AC/DC Power Supplies

CP20.241

PULS CP20.241 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 48 mm. The unit features a current consumption of 5.5A peak max. inrush at 230Vac input and 12A peak max. inrush at 120Vac input. Its efficiency rates are 0.956 at 230Vac input, 0.942 at 120Vac input, and 0.936 at 100Vac input. The dimensions of the CP20.241 are W48mm x H124mm x D127mm. It has a 450ms start-up delay for 100-230Vac input, with rise times of 145ms and 160ms under nominal input conditions with 0mF and 20mF load capacitance, respectively. Protection functions include output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 22.1 W at 230Vac input and 29.6 W at 120Vac input, with an output stage capacitance of 8500 µF. Electrical durability varies with conditions, offering up to 488000 hours of operation. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit is part of the CP-series, designed with ATEX approval and a 20% power reserve, featuring a DC-OK relay contact output and screw-clamp connections. It supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 20A at 24Vdc, and provides a rated power of 480W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input.

Puls

CP5.241

PULS CP5.241 is a power supply unit designed for DIN rail mounting with a net width of 32 mm and an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit features a current consumption of 7A peak max. inrush at both 230Vac and 120Vac inputs. Its efficiency rates are 0.943 at 230Vac input, 0.935 at 120Vac input, and 0.927 at 100Vac input. The dimensions of the CP5.241 are W32mm x H124mm x D102mm. It has a start-up delay of 380-420ms for 100-230Vac input, with rise times of 80ms and 100ms under nominal input with constant full current load at 0mF and 5mF load capacitance, respectively. The unit includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 7.3 W at 230Vac input and 8.2 W at 120Vac input with full output load. The output stage capacitance is 1800 µF. Electrical durability varies with conditions, reaching up to 775000 hours at 25°C and 2.5A output with 1AC 230Vac input. The ripple is 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series, is designed with a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage range of 85Vac-264Vac for AC and 110Vdc-180Vdc for DC, with a rated current of 5A at 24Vdc. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot and a hold time of 35ms at 120/230Vac input.

Puls

SDN4024100CX

SDN4024100CX SolaHD - SolaHD™ SDN-C Performance DIN Rail Series Power Supplies - PN SDN4024100CX

SolaHD

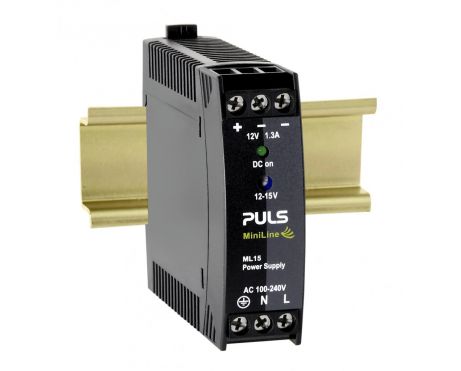

ML15.121

PULS ML15.121 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified as NEC Class 2. This unit provides a rated current of 1.3A at 12Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values listed) and from 88Vdc to 375Vdc, accommodating both single-phase (1AC) or DC networks. The ML15.121 measures 22.5mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend for durability. It delivers an adjustable output voltage between 12Vdc and 15Vdc, with a rated power of 15W. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency rate of up to 0.83 depending on the input voltage. It has a maximum inrush current consumption of 31A (at 230Vac input), a start-up delay of 780ms, and a rise time of 12ms. Power dissipation is calculated at 3.2W, with an electrical durability of 125,000 hours at +40°C. The output stage features a ripple of 75mVpp and a capacitance of 1650µF.

Puls

2904372

Primary-switched UNO power supply for DIN rail mounting, input: single-phase, output: 24 V DC/240 W

Phoenix Contact

CT5.241

PULS CT5.241 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 40mm and dimensions of W40mm x H124mm x D117mm. The unit consumes 0.68A with a 480Vac input and 0.75A with a 400Vac input for a full 24Vdc output, with a peak inrush current of 10A at both 480Vac and 400Vac inputs. It boasts an efficiency of 0.9 at 480Vac input and 0.904 at 400Vac input. The CT5.241 offers a 75ms start-up delay and a rise time of 35-36ms under nominal input with a constant full current load and 0mF load capacitance, extending to 64-68ms with 5mF load capacitance. It includes protection functions such as output overvoltage protection and an active input inrush current limiter, with overload/short-circuit protection up to 13A continuous current. The unit supports series/parallel operation for increased output power and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 13.3W and 12.7W for 480Vac and 400Vac inputs, respectively, under full output load. The output stage capacitance is 3800µF, and the electrical durability ranges from 72,000 to 526,000 hours depending on the operating conditions. The ripple is specified at 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit/converter, part of the CT-series, is designed with a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and accepts a wide range supply voltage of 323Vac-576Vac (2-phase input) with various shutdown voltages based on load conditions. The rated current is 6A at 24Vdc from -25 to +45°C and 3.75A at 24Vdc from -25 to +70°C, with a rated power of 120W. The output voltage is adjustable from 24Vdc to 28Vdc, with a hold time of 60ms at 480Vac input and 40ms at 400Vac input.

Puls

ML30.100

PULS ML30.100 is a power supply unit designed for AC/DC conversion with a primary function to supply power. It supports DIN rail mounting for easy installation and operates within an ambient air temperature range of -10 to +70°C. This unit is designed according to NEC Class 2 standards, offering a rated current of 1.3A at 24Vdc, and utilizes spring-clamp connections for secure attachment. It accepts a wide range of supply voltages from 85Vac to 264Vac (covering standard voltages like 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at 47-63Hz, with a turn-ON voltage of 46Vac and a shutdown voltage of 44Vac) and also operates on DC supply voltages from 88Vdc to 375Vdc. The ML30.100 is housed in a PC/ABS blend, ensuring durability, and measures 45mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, has a rated power of 30W, and provides an adjustable output voltage range of 24Vdc to 28Vdc with a 250mV turn-ON overshoot. The unit features protection functions including an NTC for input inrush current limiting, achieves an efficiency of 0.875 at 230Vac input, and has a maximum inrush current consumption of 17A at 120Vac input and 35A peak at 230Vac input. Power dissipation/losses are rated at 4.3W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

ML60.242

PULS ML60.242 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC (with specific nominal values and a 75Vac turn-ON voltage and 65Vac shutdown voltage) and 88Vdc-375Vdc for DC, accommodating a variety of network configurations including single-phase (1AC) or DC. The ML60.242 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It delivers a rated power of 60W with an adjustable output voltage of 24Vdc-28Vdc and includes protection functions such as an active input inrush current limiter. The unit boasts an efficiency of 0.904 at 230Vac input, 0.885 at 120Vac input, and 0.874 at 100Vac input, with a peak current consumption of 6A at 230Vac input. It features a 170ms start-up delay, a rise time of 50-60ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 110-140ms with 2.5mF load capacitance. Power dissipation/losses are rated at 6.4W, and it has an electrical durability of 90kh (minimum at +40°C) or 90,000 hours, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω and an output stage capacitance of 1600μF.

Puls

S8FS-G01524C

S8FS-G Switch Mode Power Supply

Omron

CS10.241

PULS CS10.241 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac with auto-selection, featuring an 80Vac turn-ON voltage and a 75Vac shutdown voltage. The unit provides an adjustable output voltage of 24Vdc-28Vdc, with a rated current of 12A at an ambient temperature of less than 45°C and 10A at less than 60°C for 24Vdc, and slightly different ratings for 28Vdc. It has a rated power of 288W at less than 45°C ambient temperature and 240W at less than 60°C. The CS10.241 exhibits a current consumption of 2.23A at 230Vac input for full 24Vdc output, with varying consumption rates at 120Vac and 100Vac inputs, and a peak inrush current of 10A across all input voltages. It features an efficiency of up to 0.916 depending on the input voltage, with dimensions of W60mm x H124mm x D117mm. The unit includes a time delay of 850ms for start-up and offers protection functions such as output overvoltage protection and overload/short-circuit current protection. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. The power dissipation/losses are specified for different input conditions, and the electrical durability varies with operating conditions, reaching up to 334000 hours at 25°C with a 5A output at 230Vac input. The output stage capacitance is 7000µF, and the ripple is maintained at 50mVpp. Connection is facilitated through screw-clamp connections, and the design includes a 20% power reserve with a DC-OK relay contact output.

Puls

S8FS-G01505C

S8FS-G Switch Mode Power Supply

Omron

ML70.100

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

CS10.242

PULS CS10.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit consumes 2A with a 230Vac input for a full 24Vdc output, 3.73A with a 120Vac input, and 4.34A with a 100Vac input, with a peak inrush current of 10A across all input voltages. It boasts an efficiency of 0.912 at 230Vac input, 0.91 at 120Vac input, and 0.907 at 100Vac input. The dimensions are W60mm x H124mm x D117mm. It has a start-up delay of 850ms across 100-230Vac inputs, with a rise time of 35ms under nominal input and full current load without load capacitance, and 75ms with 10mF load capacitance. The unit includes protection functions such as output overvoltage protection, active input inrush current limiting, and overload/short-circuit protection. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation is 23.2W at 230Vac input and full output load, and 23.7W at 120Vac input. The output stage capacitance is 7000µF. Electrical durability ranges from 50,000 to 305,000 hours depending on conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit is part of the C-Line series, featuring passive PFC, a 20% power reserve, and a DC-OK relay contact output. Connections are made via screw-clamp connections. It accepts a supply voltage of 85Vac-132Vac / 184Vac-264Vac with auto-selection and has a rated current of 10A at 24Vdc and 8.6A at 28Vdc. Designed for single-phase networks, it offers a rated power of 288W at ambient temperatures below 45°C and 240W below 60°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 100mV turn-ON overshoot. Hold time is 42ms at 230Vac input and 46ms at 120Vac input.

Puls

2904622

Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/20 A

Phoenix Contact

QS5.DNET

PULS QS5.DNET is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and is a NEC Class 2 DeviceNet approved unit featuring a DC-OK relay contact output. The unit provides a rated current of 3.8A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 360Vdc, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS5.DNET, part of the Q-series, measures 40mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 91.2W and a fixed output voltage of 24Vdc. Protection features include output overvoltage protection and mechanisms for handling overload, short-circuit conditions, and back-feeding loads. The unit boasts high efficiency rates varying with input voltage, specific current consumption peaks, and detailed time delays for start-up and rise times, alongside hold times for buffer periods. Power dissipation losses are provided for different input conditions, and the electrical durability is specified under various operational conditions. The output stage capacitance is 3500µF, and the ripple is maintained at 50mVpp across a wide frequency range.

Puls

QS20.241

PULS QS20.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values listed for both. The QS20.241, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, and is housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offers a rated power of 480W with a short-term capacity of 720W for up to 4 seconds, and provides an adjustable DC output voltage of 24Vdc-28Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection. The unit allows for series or parallel operation for increased output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, and the unit exhibits specific current consumption, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance characteristics as detailed in the specifications.

Puls

QT40.241

PULS QT40.241 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It supports DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit features a DC-OK relay contact output and offers rated currents of 40A at 24Vdc and 34.3A at 28Vdc, with a power derating from 24W at +60°C to +70°C. Connection is facilitated through screw-clamp connections. The supply voltage accommodates a wide range of AC inputs from 323Vac to 576Vac, including nominal values of 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac at 47-63Hz, with a 3-phase input. It has a turn-ON voltage of 3 x 305Vac and a shutdown voltage of 3 x 275Vac in steady-state conditions. The QT40.241, part of the Q-series, measures 110mm in width, 124mm in height, and 127mm in depth, and is housed in aluminium. It is designed for a 3-phase network, with a net width of 110mm. The rated power is 960W at both 24Vdc and 28Vdc, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with a turn-ON overshoot of 500mV. Protection functions include output overvoltage protection, active input inrush current limiting, and overload/short-circuit protection. It supports series or parallel operation for increased output power and is resistant to back-feeding loads up to 35V. The efficiency rates are 0.952 and 0.953 for 3x480Vac and 3x400Vac inputs, respectively. Peak inrush current consumption is 6A for both 3x400Vac and 3x480Vac inputs. The start-up delay ranges from 500 to 600 seconds, with rise times of 35ms and 40ms under nominal input conditions. The hold time is 25ms for both 3x480Vac and 3x400Vac inputs. Power dissipation losses are 48.4W and 47.3W for 3x480Vac and 3x400Vac inputs, respectively, at full output load. Electrical durability varies with temperature and load conditions, offering up to 322,000 hours of operation at 25°C and 20A output under 3AC 400Vac input. The ripple is 100mVpp across a 20Hz to 20MHz range, with an output stage capacitance of 10200µF.

Puls

ML30.106

PULS ML30.106 is a dual output voltage single-phase power supply unit (PSU) and AC/DC-Converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified as NEC Class 2. This unit provides a rated current of 2.5A at 12Vdc with spring-clamp connections for ease of installation. It supports a wide supply voltage range from 85Vac to 264Vac (with nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at 47-63Hz), featuring a 46Vac turn-ON voltage and a 44Vac shutdown voltage. Additionally, it can be powered by DC voltages ranging from 88Vdc to 375Vdc, with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc. The ML30.106 has dimensions of W45mm x H75mm x D91mm and is housed in a PC/ABS blend. It is suitable for single-phase (1AC) or DC networks, has a net width of 45 mm, and offers a rated power of 36W. The output voltage is symmetrical +/-12Vdc to +/-15Vdc, adjustable with a 250mV turn-ON overshoot. It features protection functions including NTC for input inrush current limiting, achieves an efficiency of 0.86 with a 230Vac input, and has a current consumption of 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. Power dissipation/losses are rated at 5.9 W, and it has a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.

Puls

S8FS-G60048CD

S8FS-G Switch Mode Power Supply

Omron

2903151

Primary-switched TRIO POWER power supply with push-in connection for DIN rail mounting, input: single-phase, output: 24 V DC/20 A

Phoenix Contact
