AC/DC Power Supplies

LRS-100-24

AC-DC Single output enclosed power supply; Universal AC input; Output 24Vdc at 4.5A; Up to 5G vibration; 1U low profile

MEAN WELL

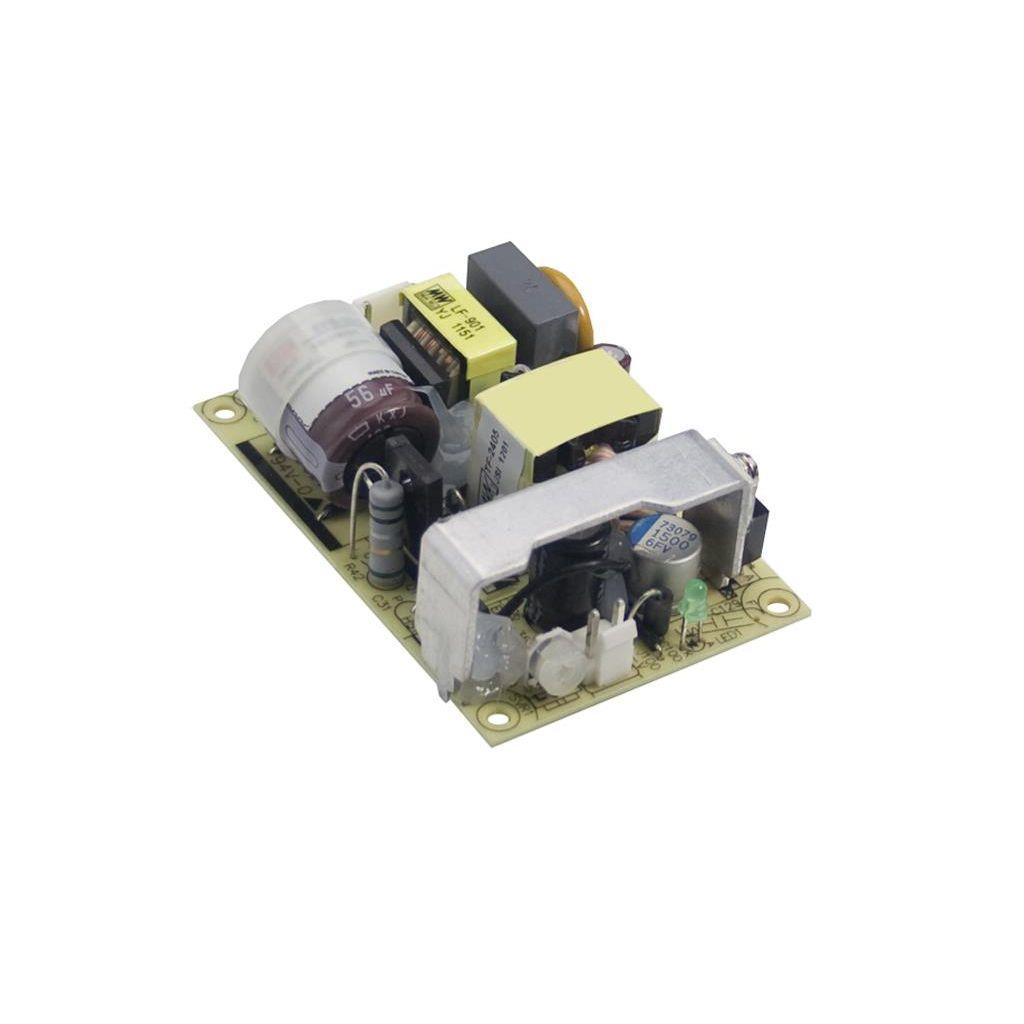

EPS-25-24

AC-DC Single output Open frame power supply; Output 24Vdc at 1.05A

MEAN WELL

QS5.241-A1

PULS QS5.241-A1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and boasts ATEX approval, conformal coating, and a DC-OK relay contact output for enhanced functionality. The unit provides a rated current of 5A at 24Vdc and 4.5A at 28Vdc, with spring-clamp connections facilitating secure and reliable connectivity. It supports a wide supply voltage range from 85Vac to 264Vac for AC inputs and 88Vdc to 360Vdc for DC inputs, ensuring versatility across different power networks. The QS5.241-A1, part of the Q-series, measures 40mm in width, 124mm in height, and 117mm in depth, housed in a durable aluminium casing. It delivers a rated power of 120W at 24V and 126W at 28V, with a short-term capacity of 180W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, and the unit includes comprehensive protection functions against overvoltage, overload, and short circuits. It is designed for single-phase or DC networks and demonstrates high efficiency rates up to 0.927, depending on the input voltage. The QS5.241-A1 also features a peak inrush current of 15A, a start-up delay between 85 to 120ms, and a hold time of up to 65ms, depending on the input voltage. Power dissipation is minimized to 9.4W at full output load with a 230Vac input. Its electrical durability is rated up to 252,000 hours at optimal conditions, with a ripple of 50mVpp and an output stage capacitance of 3500µF, ensuring stable and reliable operation over its lifespan.

Puls

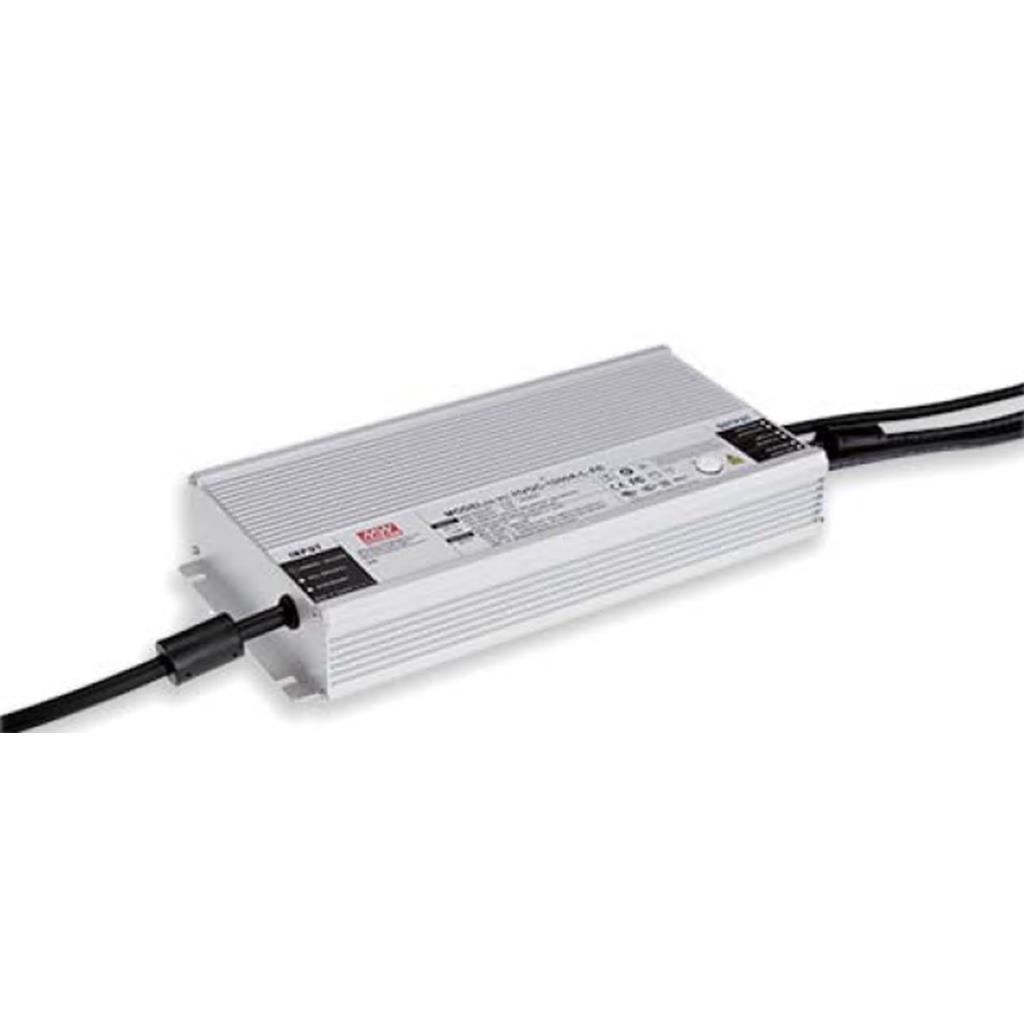

HEP-1000-100W

AC-DC Single output industrial power supply with PFC; Output 100Vdc at 10A; Input-output by waterproof wires; IP67; DC OK signal; PV/PC programmable

MEAN WELL

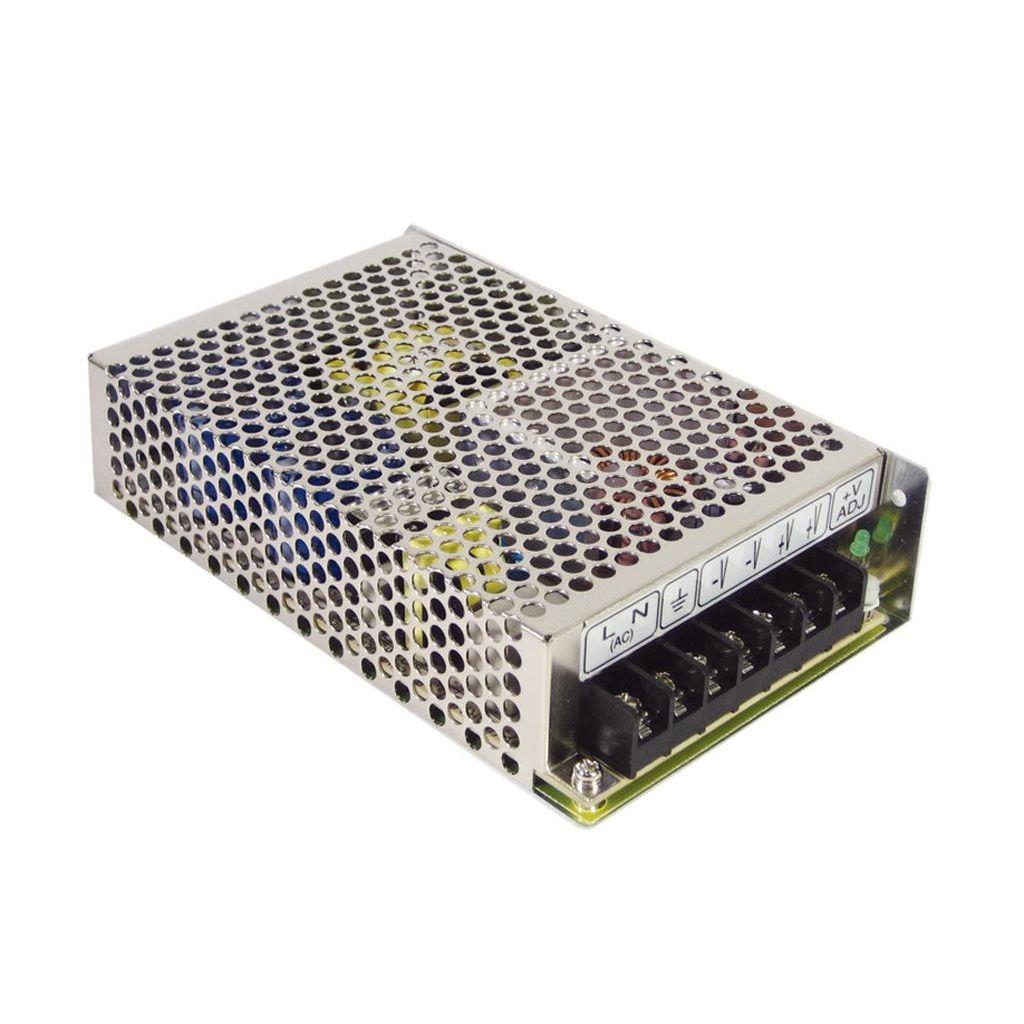

RID-85A

AC-DC Dual output enclosed power supply; Output 5Vdc at 10A +12Vdc at 5A; isolated outputs; free air convection

MEAN WELL

EPS-65-24-C

AC-DC Single output Enclosed power supply; Output 24Vdc at 2.71A; case included

MEAN WELL

RID-125-2448

AC-DC Dual output enclosed power supply; Output 24Vdc at 4A +48Vdc at 2.5A; isolated outputs; free air convection

MEAN WELL

HRP-150-7.5

AC-DC Single output enclosed power supply; Output 7.5Vdc at 20A; 1U low profile; free air convection

MEAN WELL

RSP-320-7.5

AC-DC Single Output Enclosed power supply; Output 7.5VDC Single Output at 40A; PFC; forced air cooling; 1U low profile

MEAN WELL

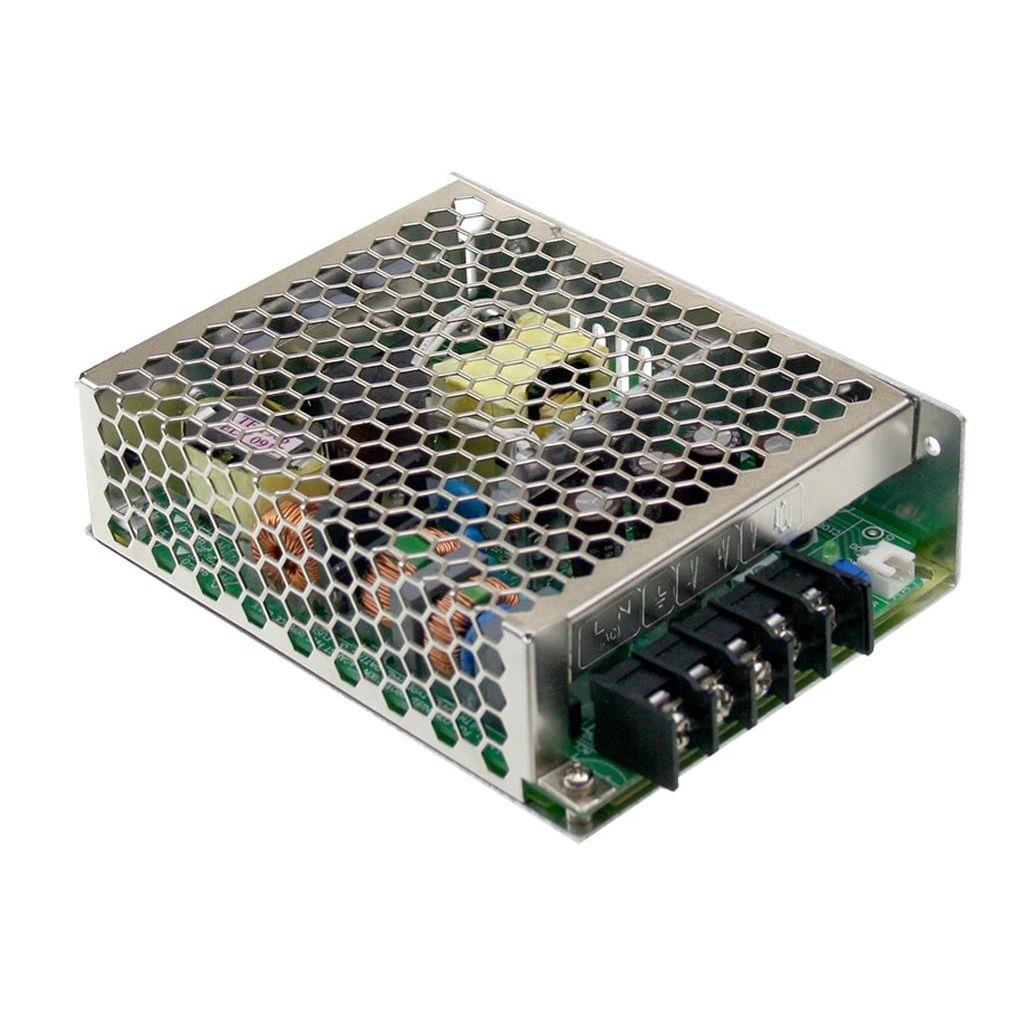

HRP-75-36

AC-DC Single output enclosed power supply; Output 36Vdc at 2.1A; 1U low profile; free air convection

MEAN WELL

UHP-350R-3.3

AC-DC Slim Single output enclosed power supply with PFC; Output 3.3VDC at 60A; DC OK signal

MEAN WELL

CS10.481

PULS CS10.481 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 60mm and dimensions of W60mm x H124mm x D117mm. It features a current consumption of 2.23A with a 230Vac input for full 48Vdc output, 3.73A with a 120Vac input, and 4.34A with a 100Vac input, alongside a peak max. inrush of 10A across all input voltages. The efficiency rates are 0.916 for 230Vac input, 0.91 for 120Vac input, and 0.907 for 100Vac input. The CS10.481 has a start-up delay of 850ms and rise times of 51ms and 96ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit current protection, with capabilities for series/parallel operation for redundancy. The unit is resistant to back-feeding loads up to 63V. Power dissipation/losses are 22W for 230Vac input and 23.7W for 120Vac input, with an output stage capacitance of 3100µF. Electrical durability varies with conditions, reaching up to 346000 hours. The ripple is specified at 100mVpp. This AC/DC power supply unit, part of the C-Line series, offers a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac with auto select and has a rated current of 6A at 48Vdc for ambient temperatures less than 45°C. The output voltage is adjustable between 48Vdc and 52Vdc, with a hold time of 47ms at 230Vac input.

Puls

S8VS-48024A-F

S8VS Switch Mode Power Supply

Omron

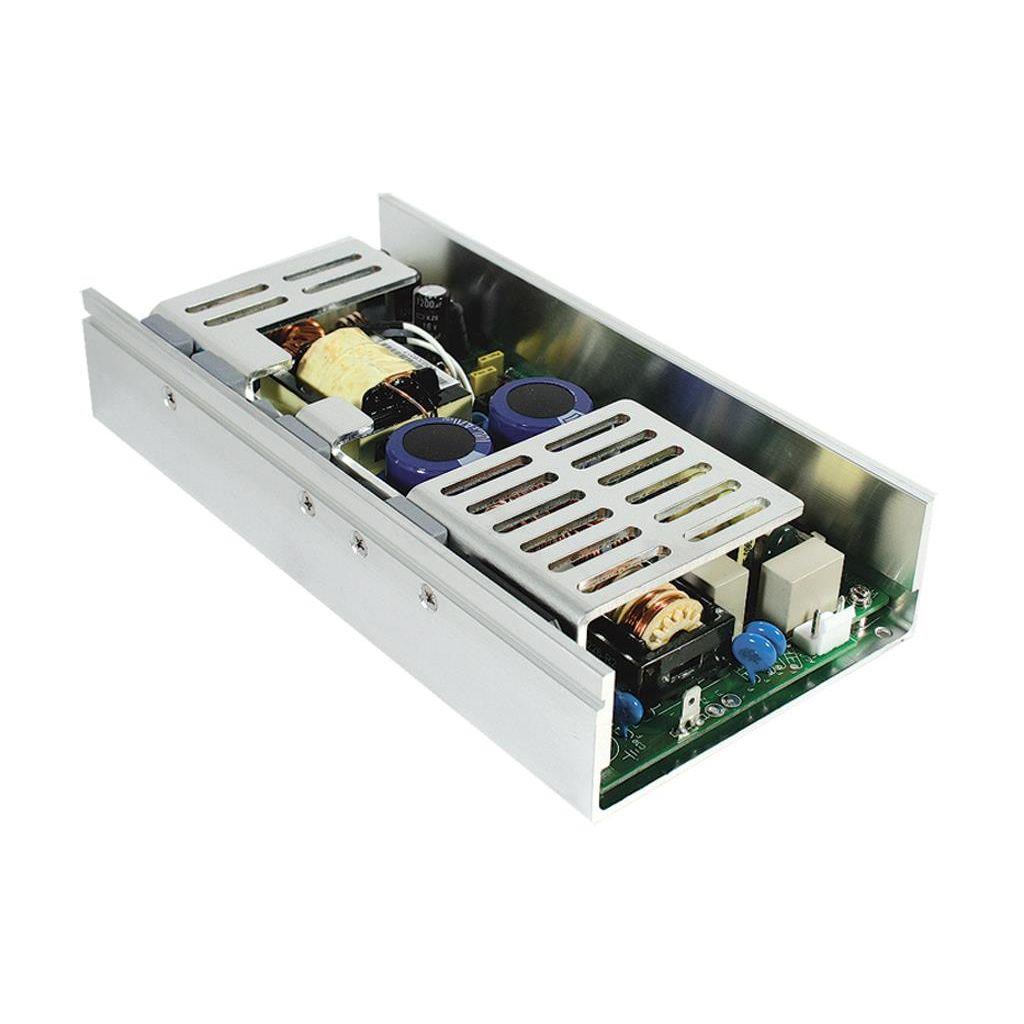

USP-225-5

AC-DC Single output power supply; Output 5Vdc at 40A; U-bracket low profile format 38mm; USP-225-5 is succeeded by UHP-200-5.

MEAN WELL

PA-120N-54P

AC-DC Desktop power supply or battery charger with 3 pin IEC320-C14 input socket; Output 55.2VDC at 2.2A with 3 pin XLR plug; open PCB

MEAN WELL

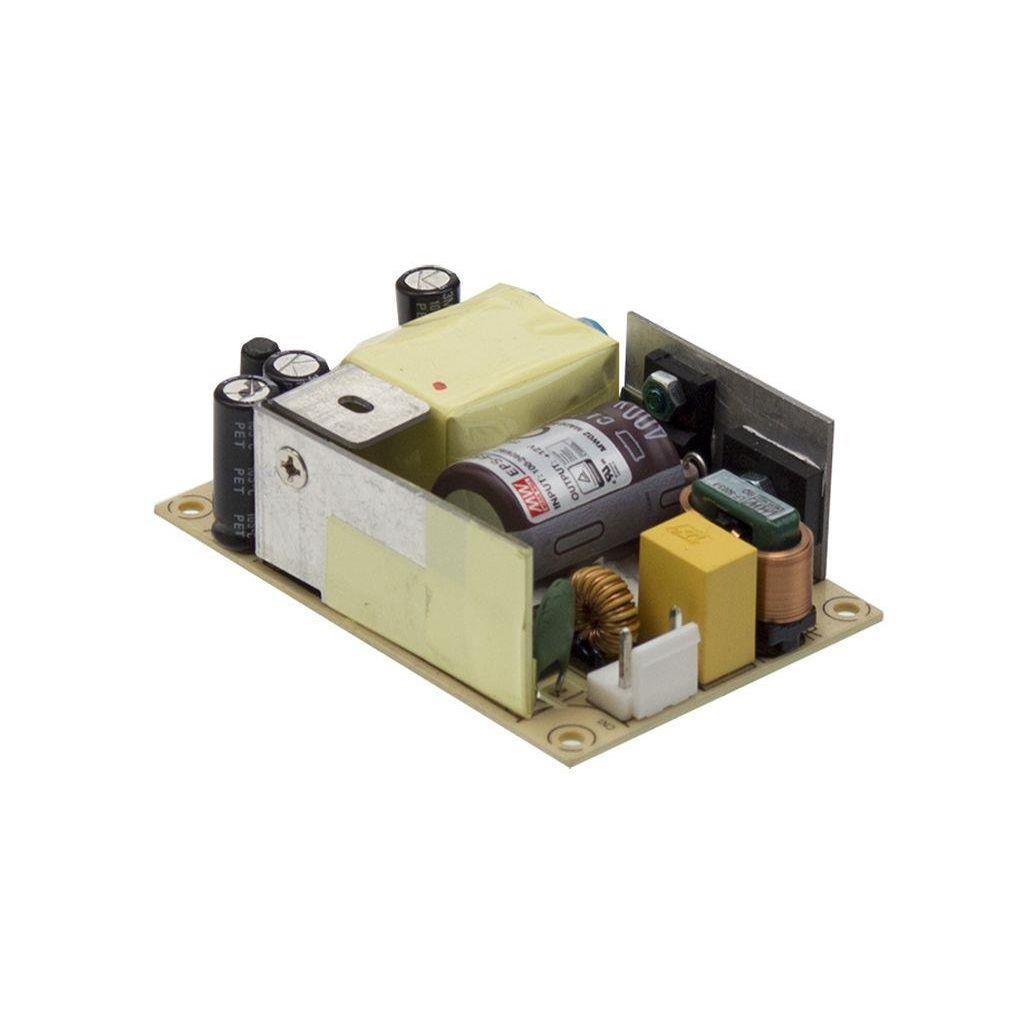

EPS-65S-5

AC-DC Single output Open frame power supply; Output 5VDC at 11A; 1U low profile; 3"x2" miniature size

MEAN WELL

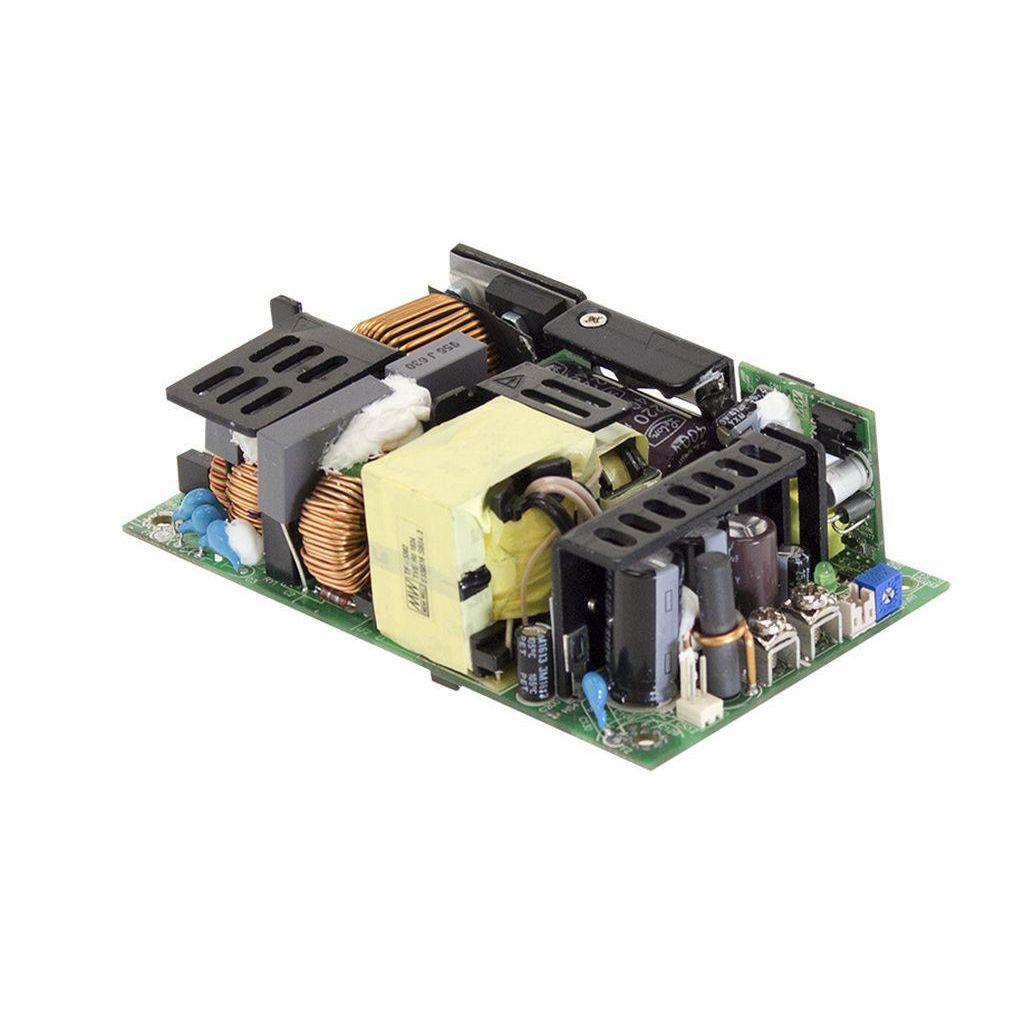

EPP-400-24

AC-DC Single output Open frame power supply with PFC; Output 24Vdc at 16.7A

MEAN WELL

RPS-400-24

AC-DC Open frame Medical power supply; Output 24Vdc at 16.7A; EN60601 2xMOPP

MEAN WELL

S8VK-WA20248

Omron S8VK-WA20248 - 3Ph 240VAC Pwr Sply 2K 48VDC

Omron

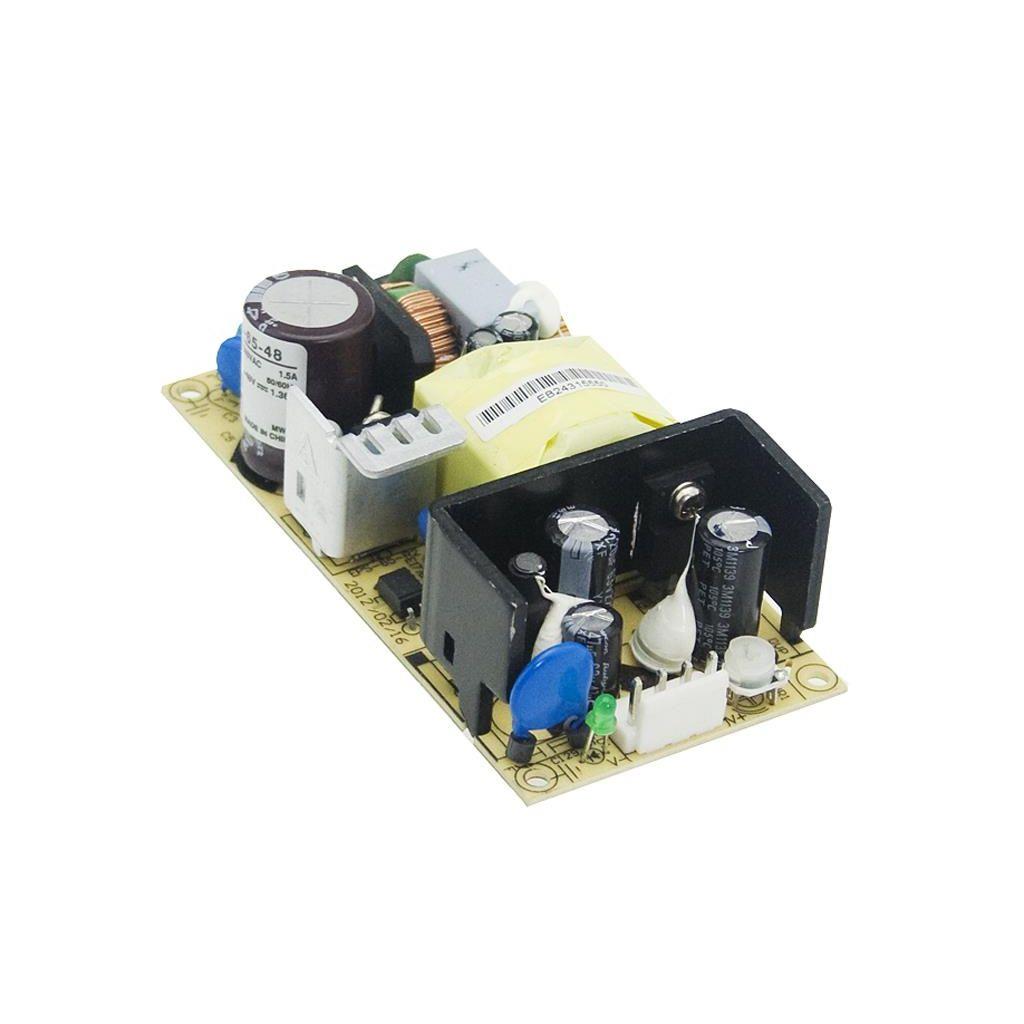

EPS-45S-5

AC-DC Single output Open frame power supply; Output 5VDC at 8A; 1U low profile; 3"x2" miniature size

MEAN WELL
