AC/DC Power Supplies

Q-120D

AC-DC Quad output Open frame power supply; Output +5Vdc at 11A +12Vdc at 4A -5Vdc at 1A -12Vdc at 1A; Q-120D is succeeded by RQ-125D.

MEAN WELL

85212

85212 Murrelektronik - TNGS 1-PHASE POWER SUPPLY SMOOTHED, IN: 230VAC OUT:24V/ 10ADC, TNGS 10-230-400/24 replaced by 85405

Murr Elektronik

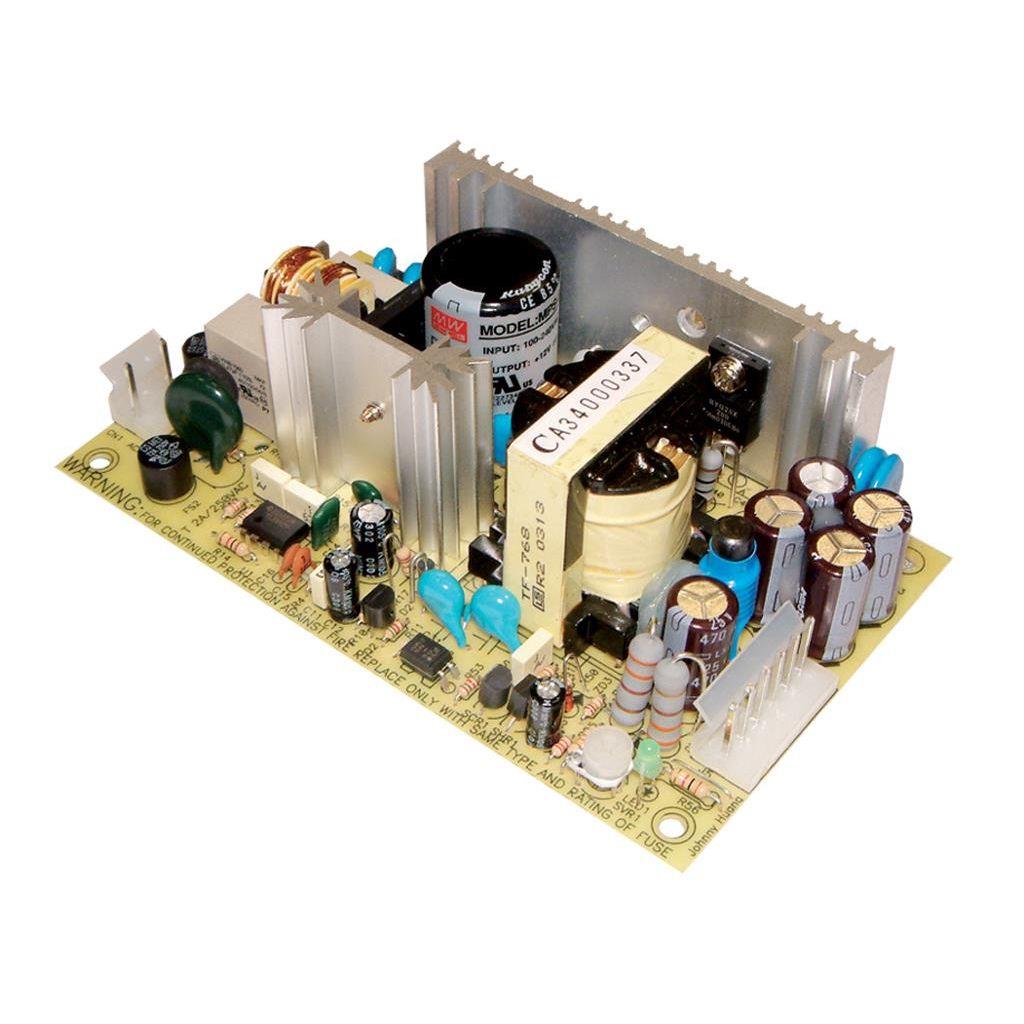

MPS-65-3.3

AC-DC Single output Medical Open frame power supply; Output 3.3Vdc at 12A; 2xMOPP; MPS-65-3.3 is succeeded by RPS-65-3.3.

MEAN WELL

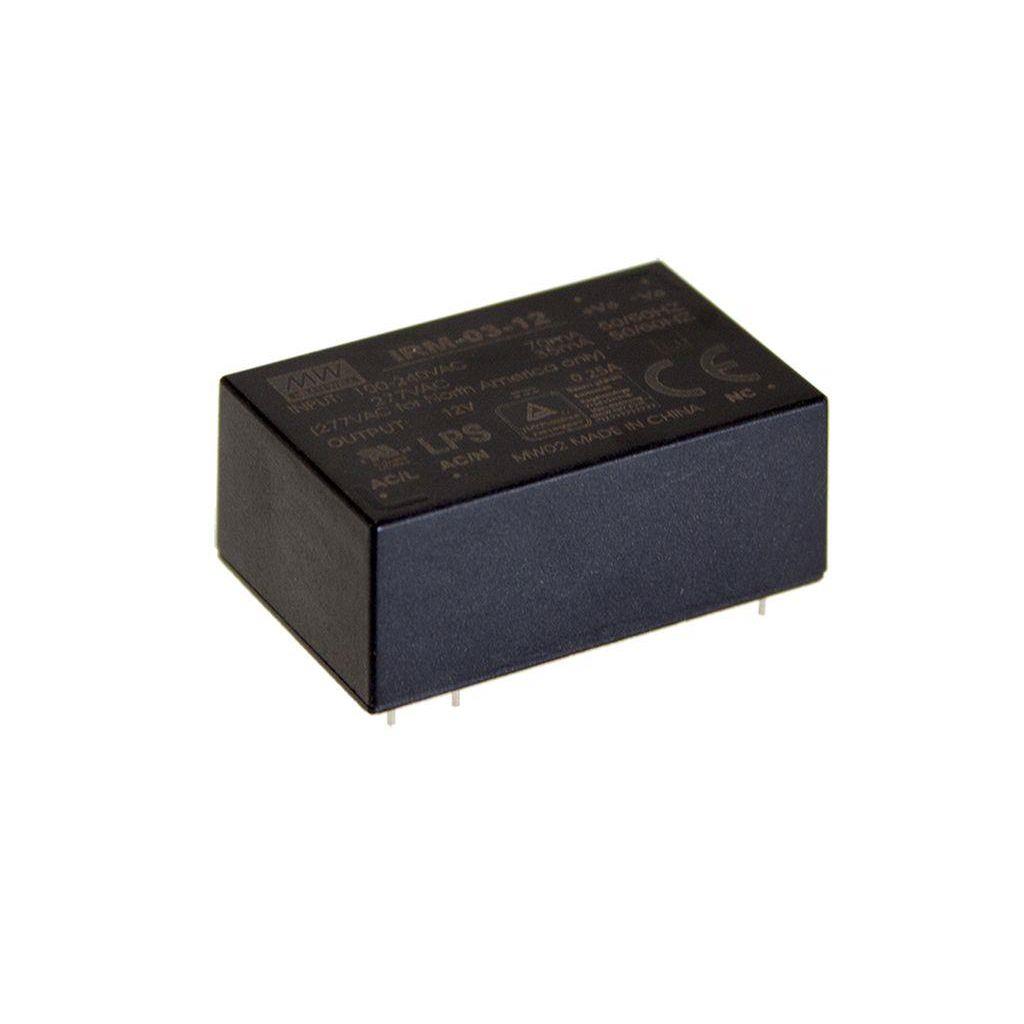

IRM-03-24

AC-DC Single Output Encapsulated power supply, PCB mount; Input range 85-305VAC; Output 24VDC at 0.125A; Compact size

MEAN WELL

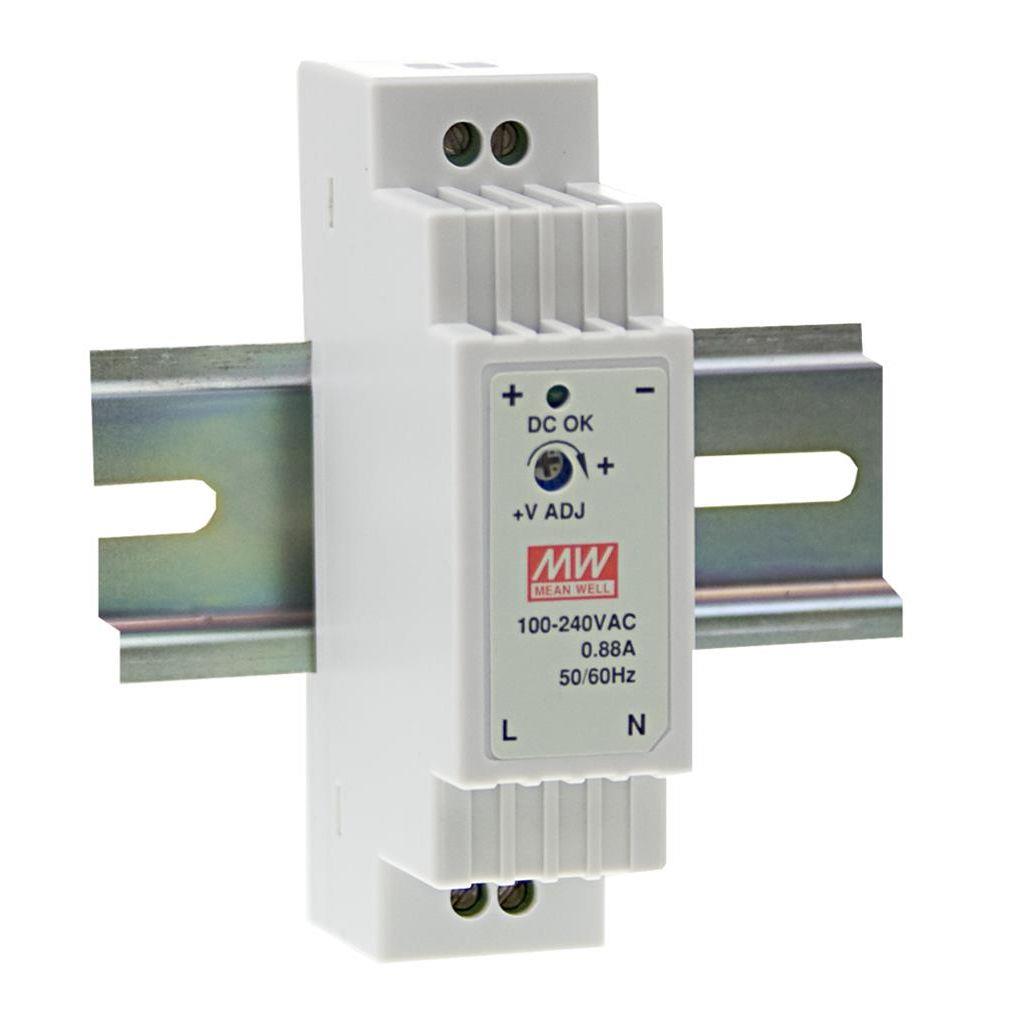

DR-15-15

AC-DC Industrial DIN rail power supply; Output 15Vdc at 1A; plastic T-shape case; DR-15-15 is succeeded by HDR-15-15.

MEAN WELL

PSL148024

PSL148024 Lovato - DIN rail switching power supply, single-phase. 24VDC, 20A/480W

Lovato Electric

S8VS-48024A-F

S8VS Switch Mode Power Supply

Omron

PA-120N-54P

AC-DC Desktop power supply or battery charger with 3 pin IEC320-C14 input socket; Output 55.2VDC at 2.2A with 3 pin XLR plug; open PCB

MEAN WELL

CP10.241-R2

PULS CP10.241-R2 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 39mm. The unit consumes current differently based on the input, including 1.14A with 230Vac input, 2.17A with 120Vac input, 2.63A with 100Vac input, and 2.35A with 110Vdc input, all at full output. It features a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. With an IP20 degree of protection, the efficiency rates are 0.947 at 230Vac input and 0.93 at 120Vac input. Its dimensions are W39mm x H124mm x D117mm. The unit has a start-up delay of 240-300ms and rise times of 30ms and 75ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or redundancy. The power dissipation/losses are 13.4W and 18.1W for 230Vac and 120Vac inputs at full load, respectively. The output stage capacitance is 4400µF. Electrical durability varies with conditions, offering up to 531000 hours at 25°C with 5A output and 1AC 230Vac input. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the CP-series, is designed with a built-in decoupling MOSFET for 1+1 or N+1 redundancy and includes a 20% power reserve. It features DC-OK relay contact output and hot-swappable connectors. The supply voltage ranges from 88Vdc to 180Vdc for DC and 85Vac to 264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc up to +45°C, decreasing at higher temperatures. It supports single-phase (1AC) or DC networks and provides a rated power of 288W at -25 to +45°C, with linear derating up to +70°C. The output voltage is adjustable from 24Vdc to 25.4Vdc, with a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Puls

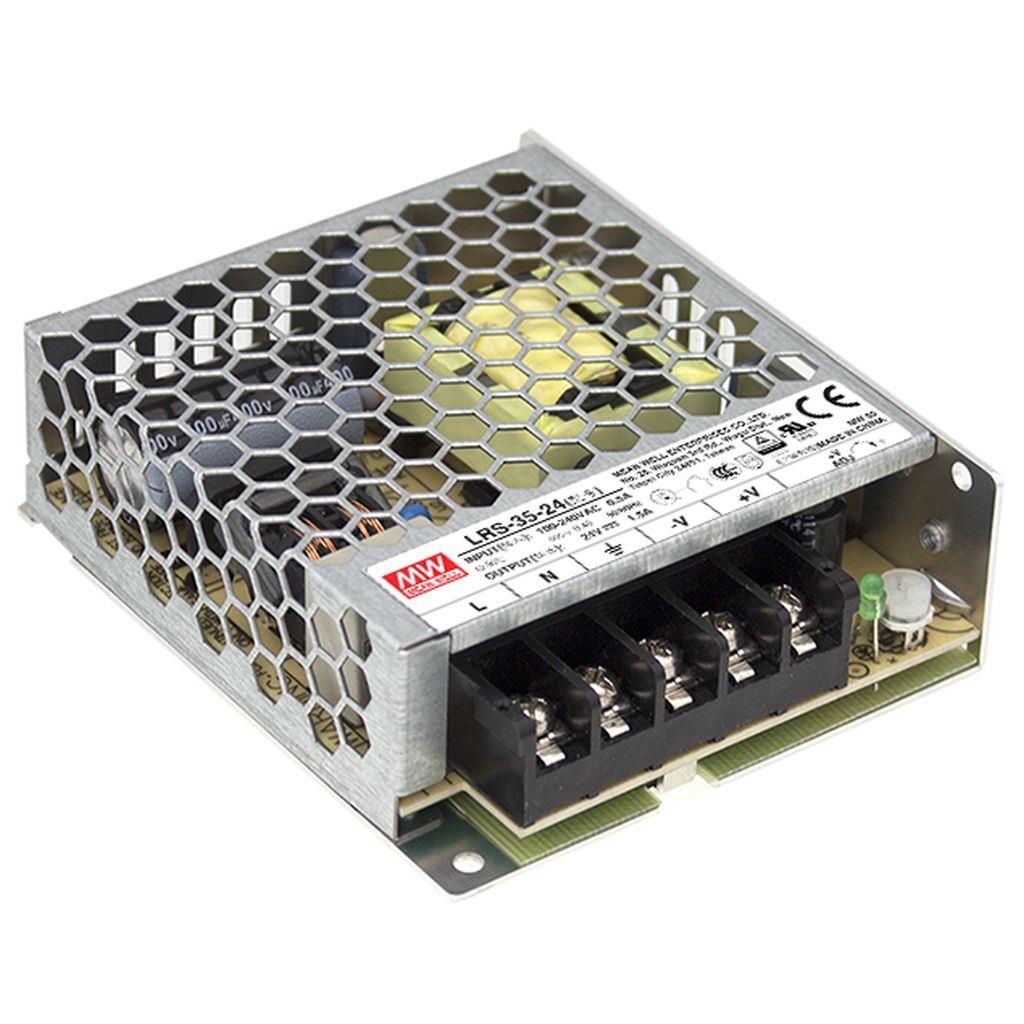

LRS-35-15

AC-DC Single output enclosed power supply; Universal AC input; Output 15Vdc at 2.4A; Up to 5G vibration; 1U low profile

MEAN WELL

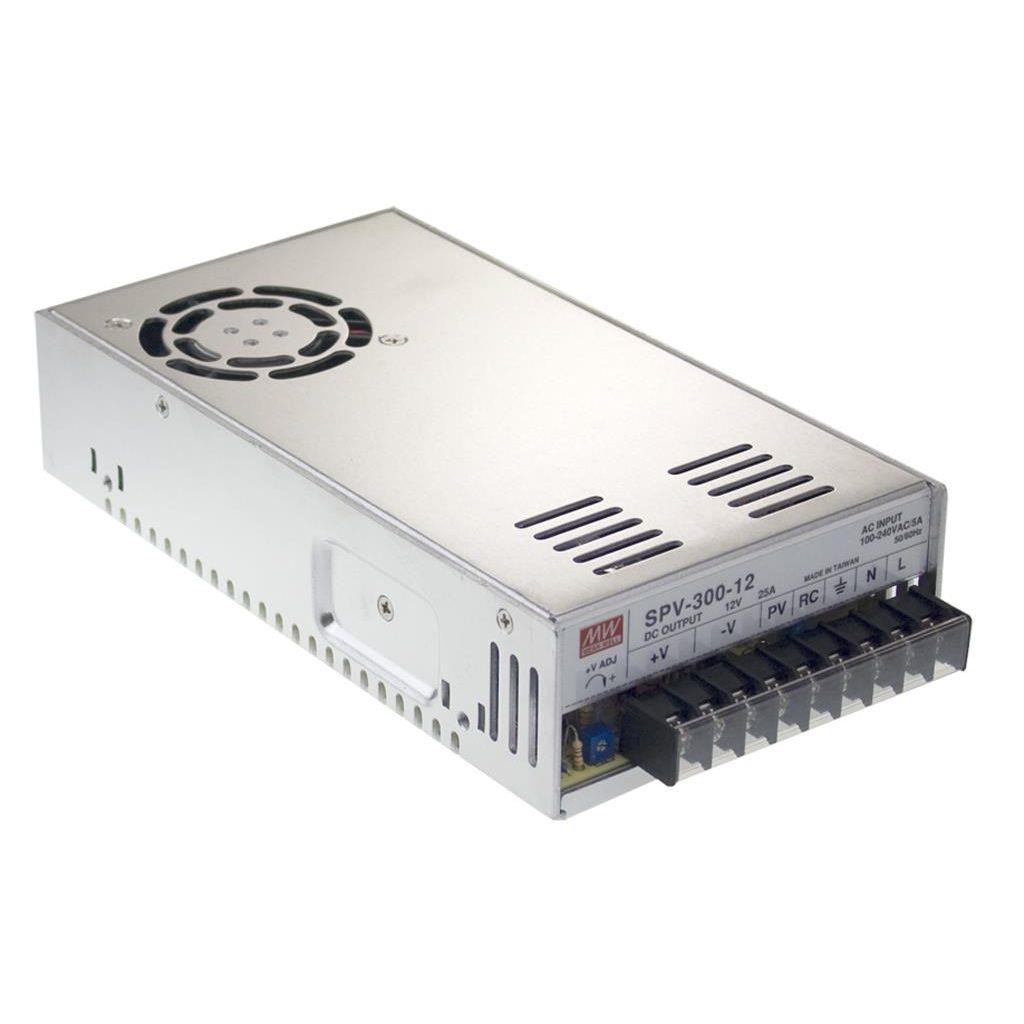

SPV-300-48

AC-DC Enclosed power supply; Output 48Vdc at 6.25A; forced air cooling; Programmable output 20-110%

MEAN WELL

RSP-1000-48

AC-DC Single Output Enclosed power supply; Output 48VDC Single Output at 21A; PFC; forced air cooling

MEAN WELL

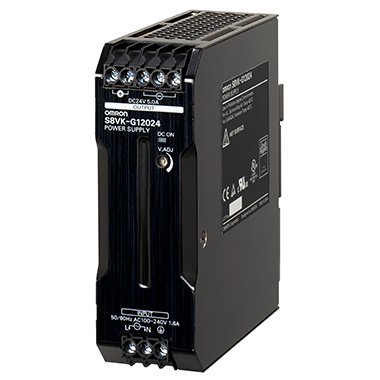

S8VK-G03012-400

S8VK-G Switch Mode Power Supply

Omron

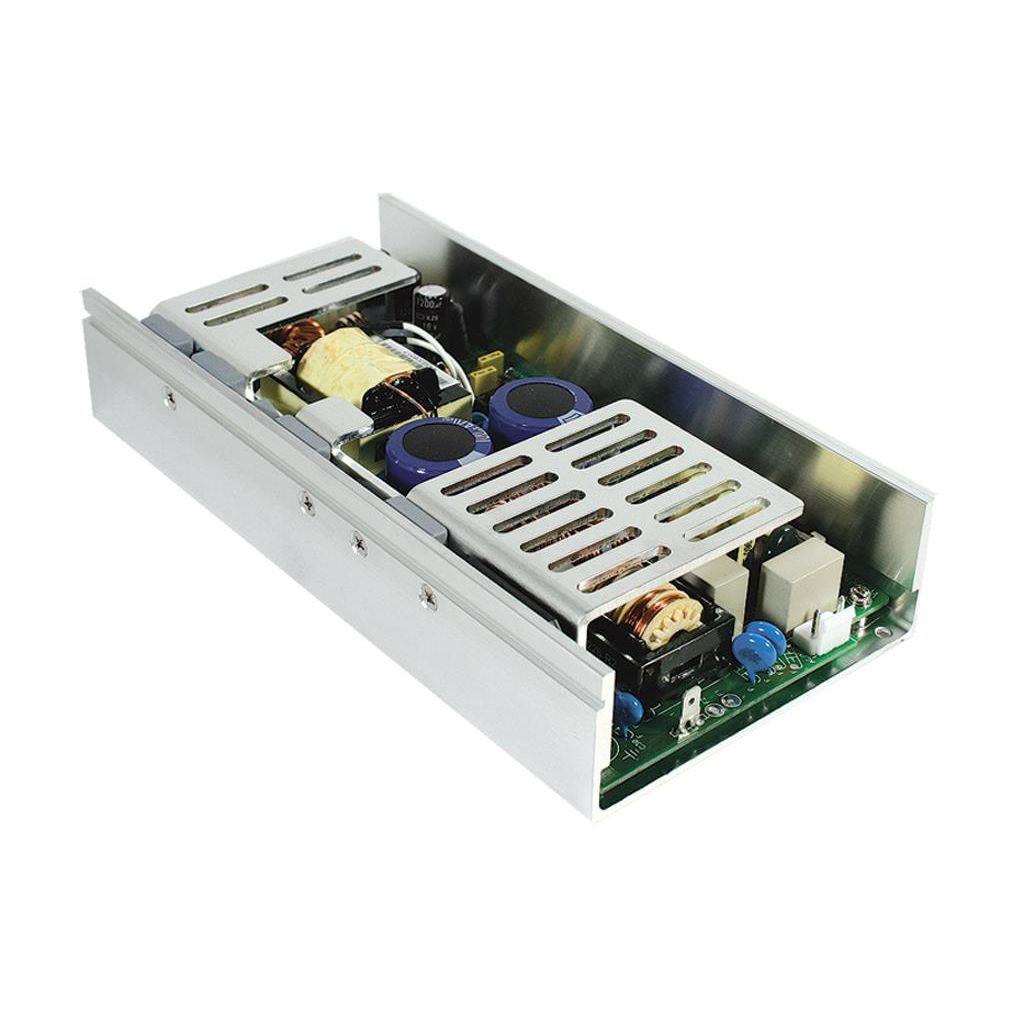

USP-225-48

AC-DC Single output power supply; Output 48Vdc at 4.7A; U-bracket low profile format 38mm; USP-225-48 is succeeded by UHP-200-48.

MEAN WELL

85232

85232 Murrelektronik - TNG 1-PHASE POWER SUPPLY SMOOTHED, TNG 35-220/24, TNG 35-220/24 replaced by 85360

Murr Elektronik

RD-35A

AC-DC Dual output enclosed power supply; Output 5Vdc at 4A +12Vdc at 1A; free air convection

MEAN WELL

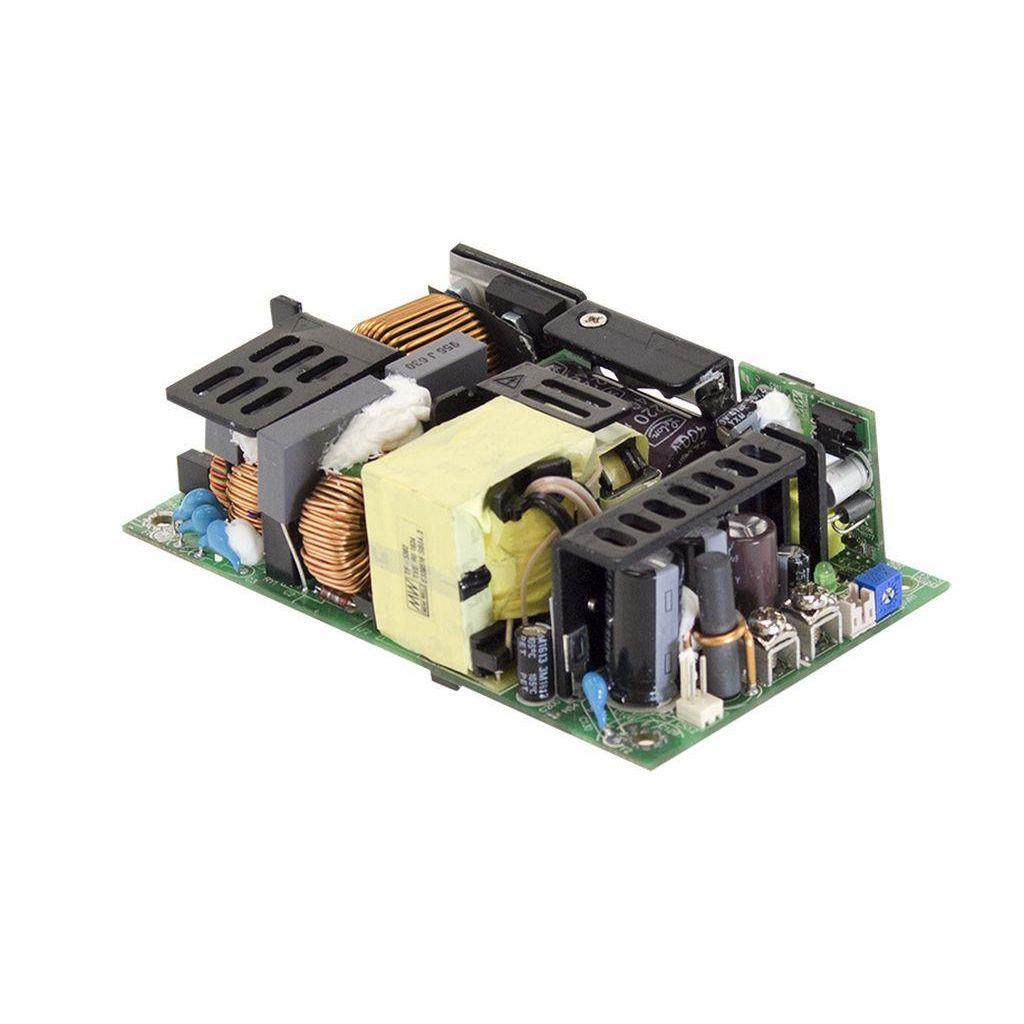

EPP-100-12

AC-DC Single output Open frame power supply; Output 12Vdc at 6.3A

MEAN WELL

RPT-160D

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 11A +12Vdc at 5A +24Vdc at 1.2A; 2xMOPP; compact size 5 x 3 inch

MEAN WELL

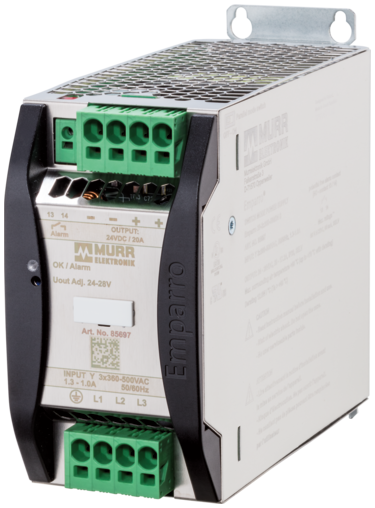

85697

85697 Murrelektronik - Emparro 20-3x360-500/24 S, Screw mounting

Murr Elektronik

RPS-400-24

AC-DC Open frame Medical power supply; Output 24Vdc at 16.7A; EN60601 2xMOPP

MEAN WELL
