AC/DC Power Supplies

PSL101824

PSL101824 Lovato - DIN rail switching power supply, single-phase. 24VDC, 0.75A/18W

Lovato Electric

CP10.361

PULS CP10.361 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It features a net width of 39 mm and operates within an ambient air temperature range of -25 to +70°C. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.954 at 230Vac input, 0.938 at 120Vac input, and 0.931 at 100Vac input. The dimensions of the CP10.361 are W39mm x H124mm x D117mm. It includes a time delay of 240-300ms for start-up and a rise time of 60ms under nominal input with a constant full current load without load capacitance, and 120ms with 7mF load capacitance. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It can handle back-feeding loads up to 50V without malfunctioning. Power dissipation/losses are 11.6W at full output load with 230Vac input and 15.9W with 120Vac input. The output stage capacitance is 1500µF. Electrical durability varies with conditions, reaching up to 553000 hours at 25°C with 3.35A output and 1AC 230Vac input. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 6.7A at 36Vdc, and provides an adjustable output voltage of 36Vdc-42Vdc. The hold time is 38ms at both 120/230Vac input.

Puls

HRP-300N-12

AC-DC Single output enclosed power supply; Output 12Vdc at 27A; 1U low profile; free air convection; 200% peak load in 5 seconds

MEAN WELL

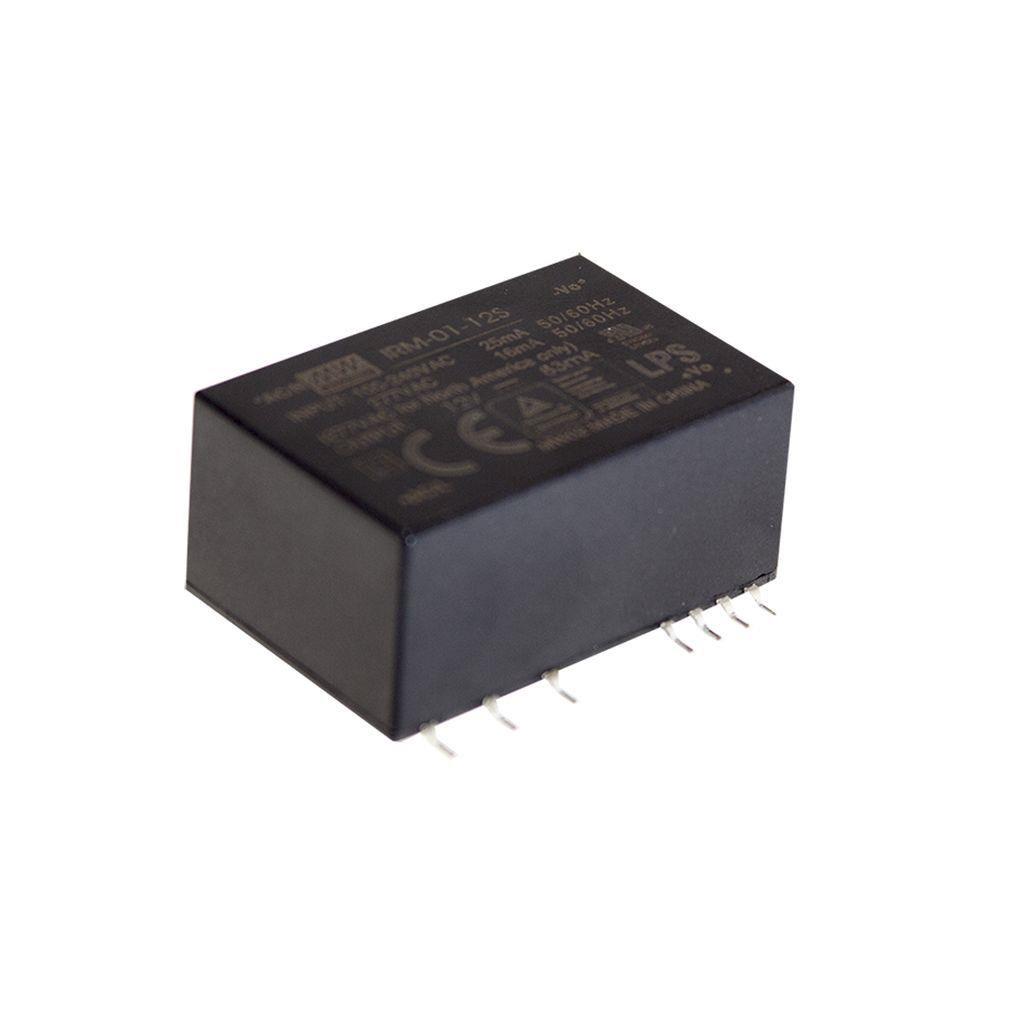

IRM-01-9S

AC-DC Single Output Encapsulated power supply; Input 85-305Vac; Output 9Vdc at 0.111A; SMD; miniature size

MEAN WELL

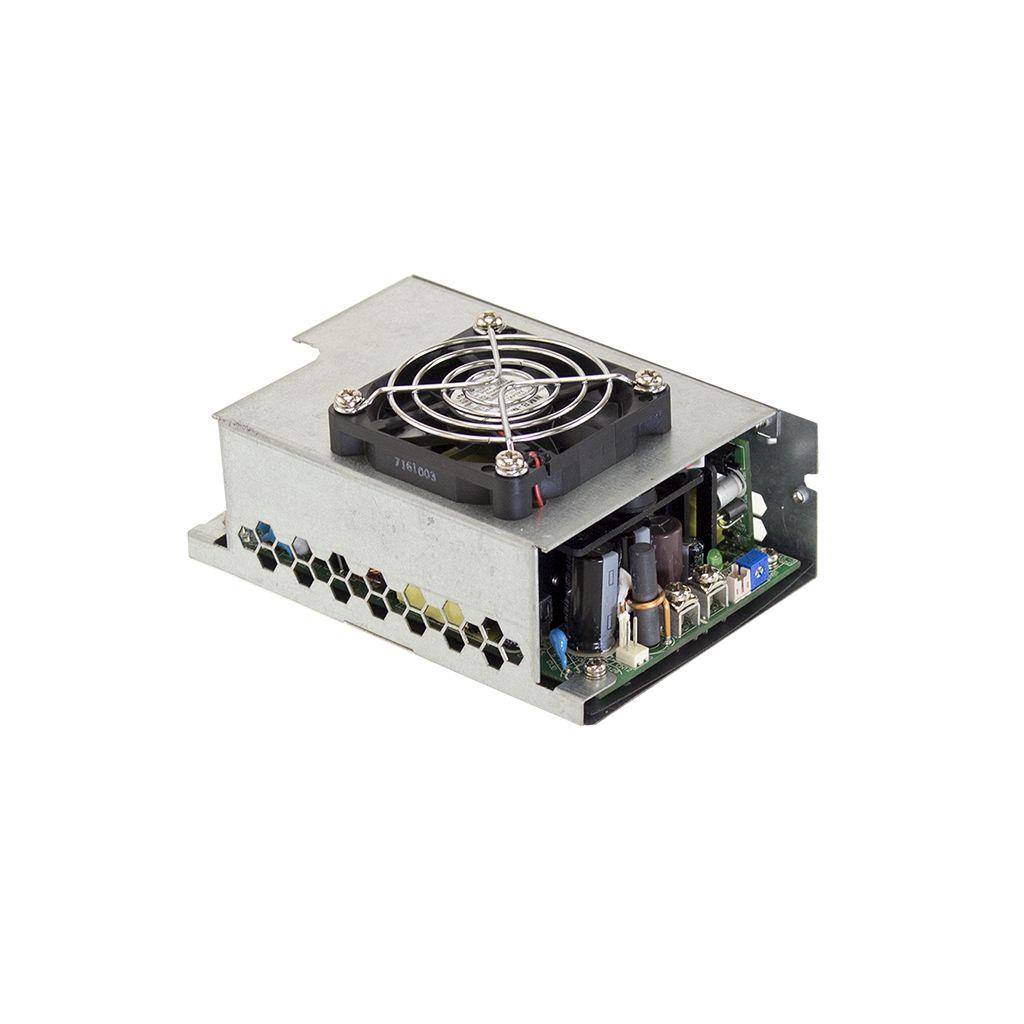

RPS-400-48-TF

AC-DC Open frame Medical power supply; Output 48Vdc at 8.4A; EN60601 2xMOPP; top fan with cover

MEAN WELL

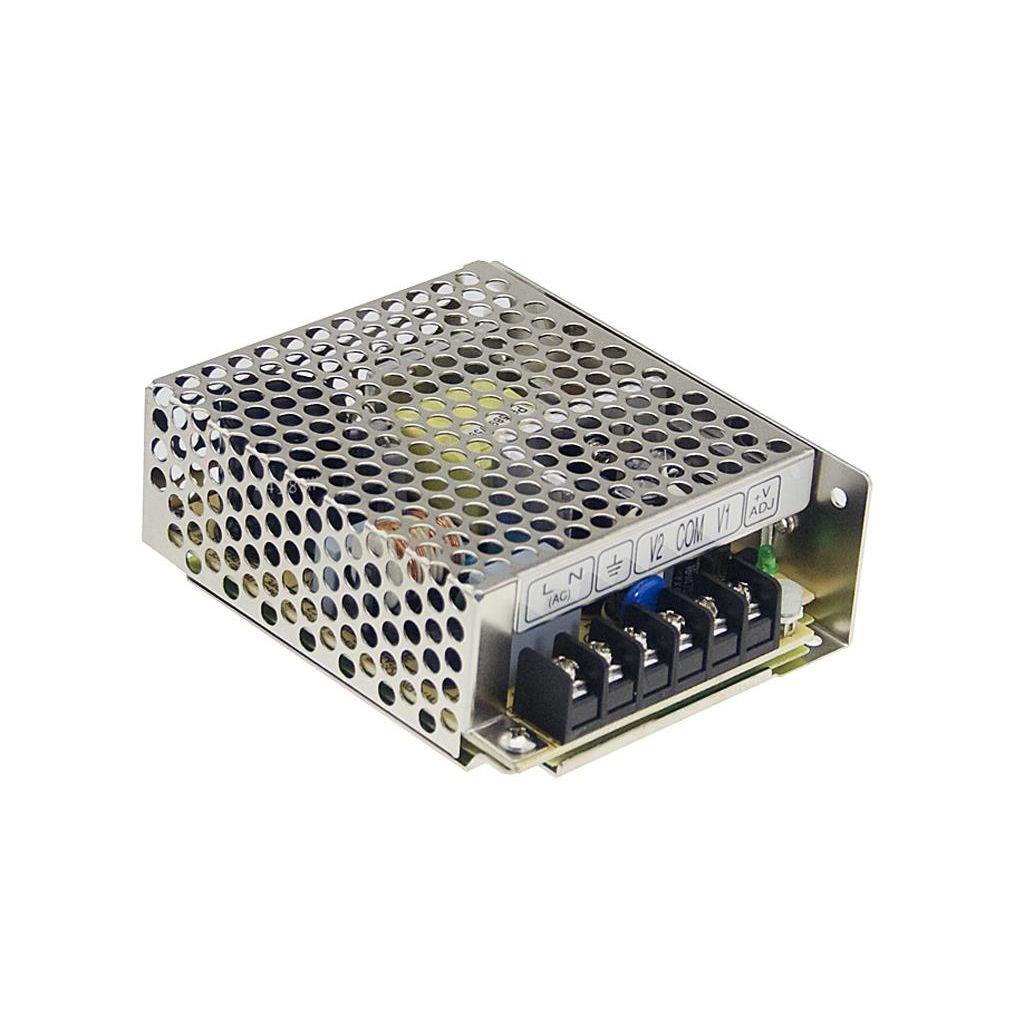

RS-35-12

AC-DC Single Output Enclosed power supply; Output 12VDC Single Output at 3A; free air convection

MEAN WELL

MFM-05-24

AC-DC Single output Medical Open frame power supply; Output 24Vdc at 0.23A; PCB mount; 2xMOPP

MEAN WELL

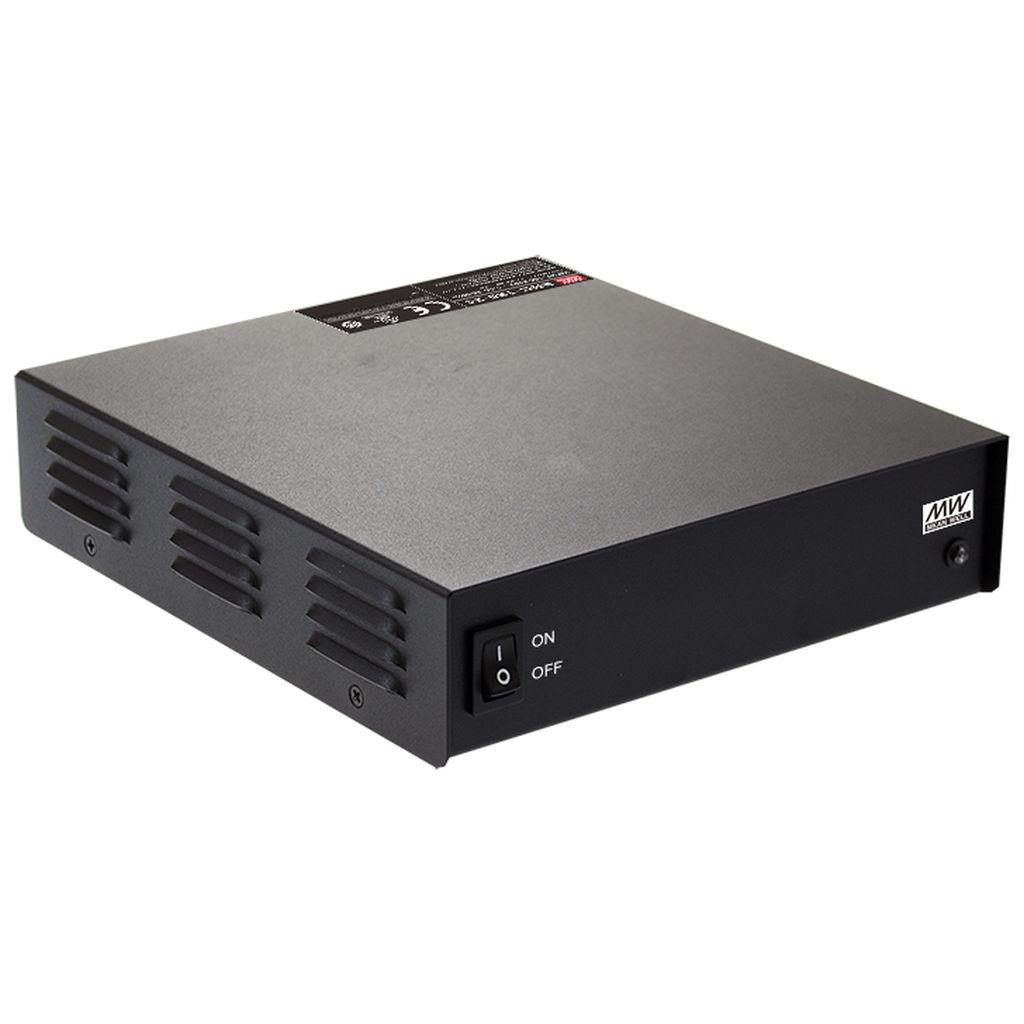

ENP-180-12

AC-DC Single output power supply with PFC; 3 stage charging; Universal AC input; Output 13.8VDC at 13A

MEAN WELL

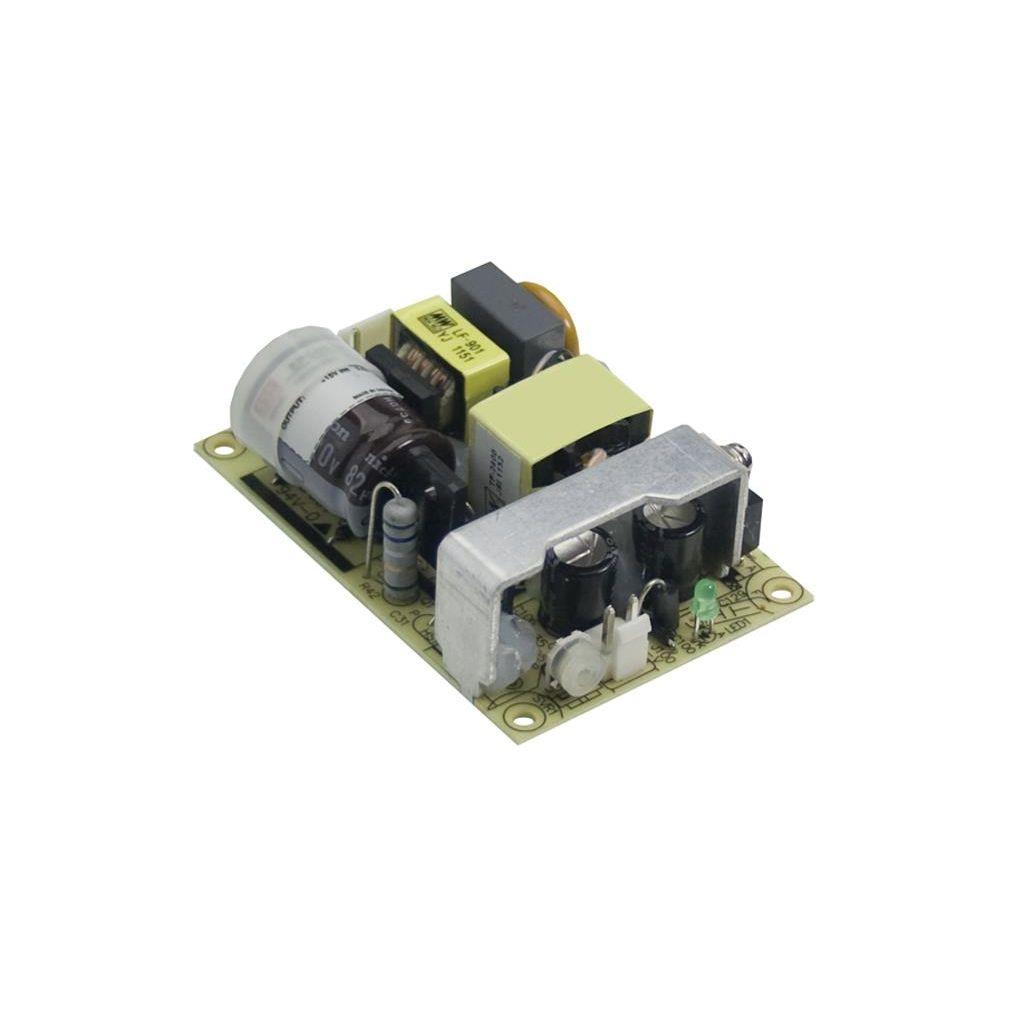

EPS-35-24

AC-DC Single output Open frame power supply; Output 24Vdc at 1.5A

MEAN WELL

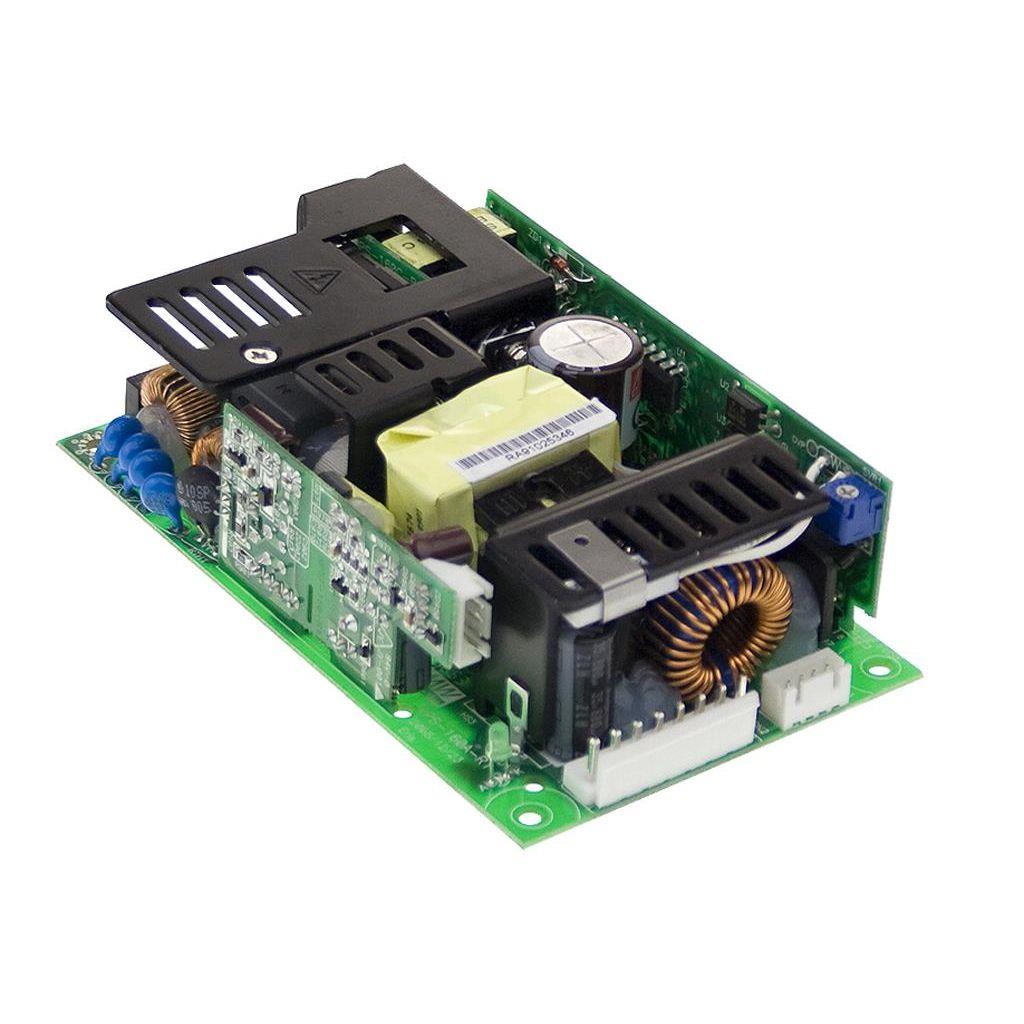

RPSG-160-12

AC-DC Open frame Medical power supply; Output 12Vdc at 12.9A; EN60601 2xMOPP; with 5V stand-by

MEAN WELL

EPS-35-36

AC-DC Single output Open frame power supply; Output 36Vdc at 1A

MEAN WELL

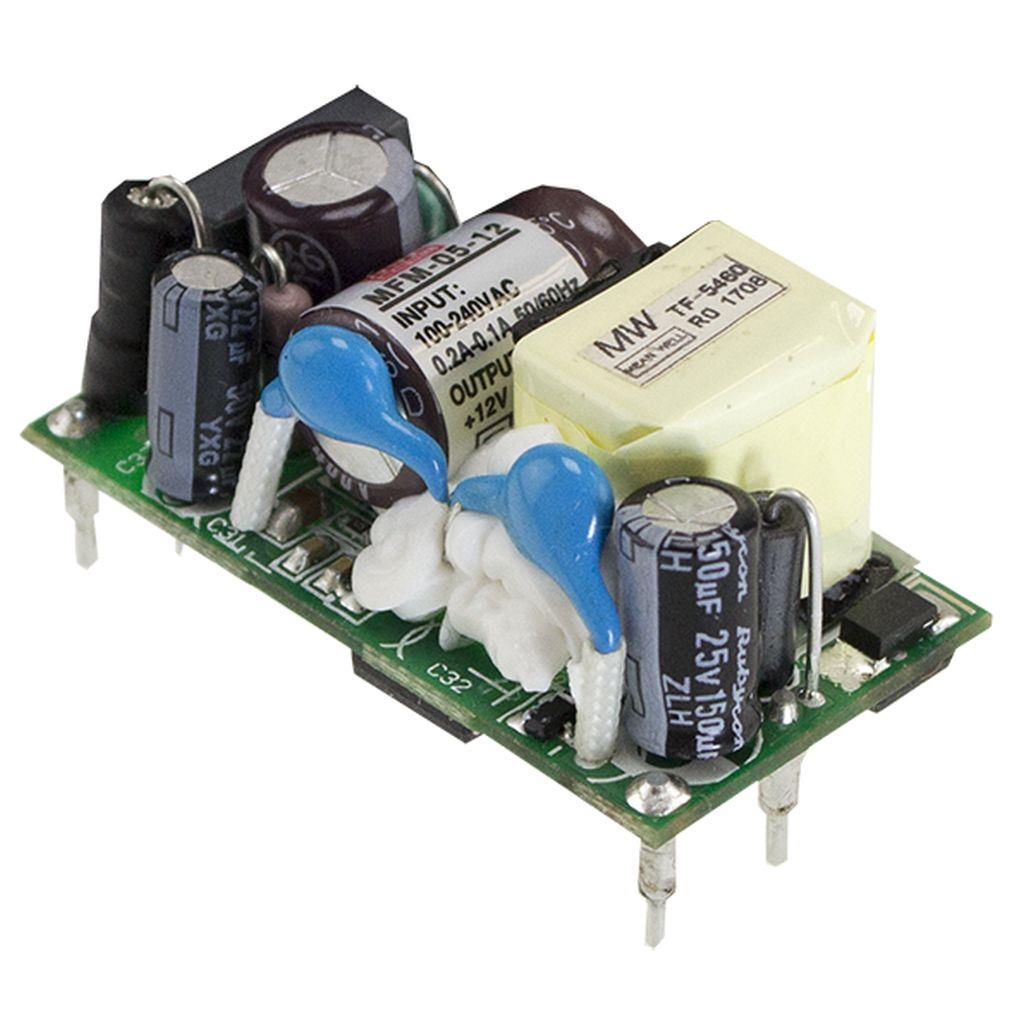

MFM-05-12

AC-DC Single output Medical Open frame power supply; Output 12Vdc at 0.42A; PCB mount; 2xMOPP

MEAN WELL

83242253

83242253 SolaHD - SolaHD™ SL Series Single and Multi Output Power Supplies - PN 83242253

SolaHD

CP10.241-S1

PULS CP10.241-S1 is a DIN rail mounting power supply unit housed in aluminium, designed to operate within an ambient air temperature range of -25 to +70°C. It consumes 1.13A with a 230Vac input for full output, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, featuring a peak max. inrush of 11A at 230Vac input and 7A at 120Vac input. This unit offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. Its dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input with a full constant current load and 0mF load capacitance, extending to 160ms with 10mF load capacitance. It includes protection functions such as output overvoltage protection, overload/short-circuit current protection, and over-temperature protection with automatic restart. The unit supports series/parallel operation for increased output voltages or power, and redundancy for higher system availability, and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input with a full output load. The output stage capacitance is 4400µF. Electrical durability is rated at various hours across different conditions, with a ripple of 50mVpp at 20Hz to 20MHz. This AC/DC power supply unit offers a 20% power reserve, is part of the CP-series, and features ATEX approval, DC-OK relay contact output, and spring-clamp connections. It accepts a supply voltage of 88Vdc-180Vdc and 85Vac-264Vac, with specific tolerances for overvoltage and shutdown voltages, and provides a rated current of 12A at 48Vdc in temperatures up to +45°C, adjusting for higher temperatures. The rated power varies from 288W at -25 to +45°C to 180W at +70°C, with the output voltage adjustable between 24Vdc and 28Vdc, and a hold time of 37ms at 120/230Vac input.

Puls

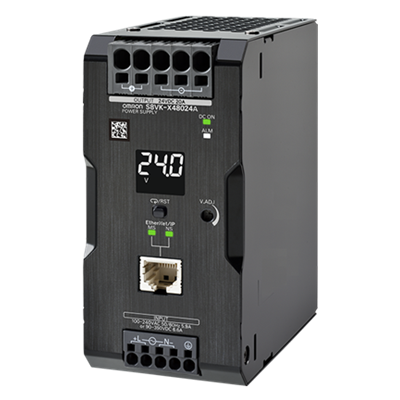

S8VK-X48024-EIP

S8VK-X Switch Mode Power Supply

Omron

HRP-300N3-12

AC-DC Single output enclosed power supply; Output 12Vdc at 27A; 350% peak power upto 5 seconds; constant current limiting; withstand 5G vibration; fanless, free air convection; 1U 41mm low profile.

MEAN WELL

RPS-500-18-TF

AC-DC Enclosed Medical power supply with PFC; Output 18Vdc at 27.8A; 2xMOPP; top fan with cover

MEAN WELL

SDP55100T

SDP55100T SolaHD - SolaHD™ SDP Low Power DIN Rail Series Power Supplies - PN SDP55100T

SolaHD

RS-75-15

AC-DC Single Output Enclosed power supply; Output 15VDC Single Output at 5A; free air convection

MEAN WELL

HEP-480-54A

AC-DC Single output industrial power supply with PFC; Output 54Vdc at 8.9A; Vo-Io adjust with Potentiometer; Withstand up to 10G Vibration

MEAN WELL
