AC/DC Power Supplies

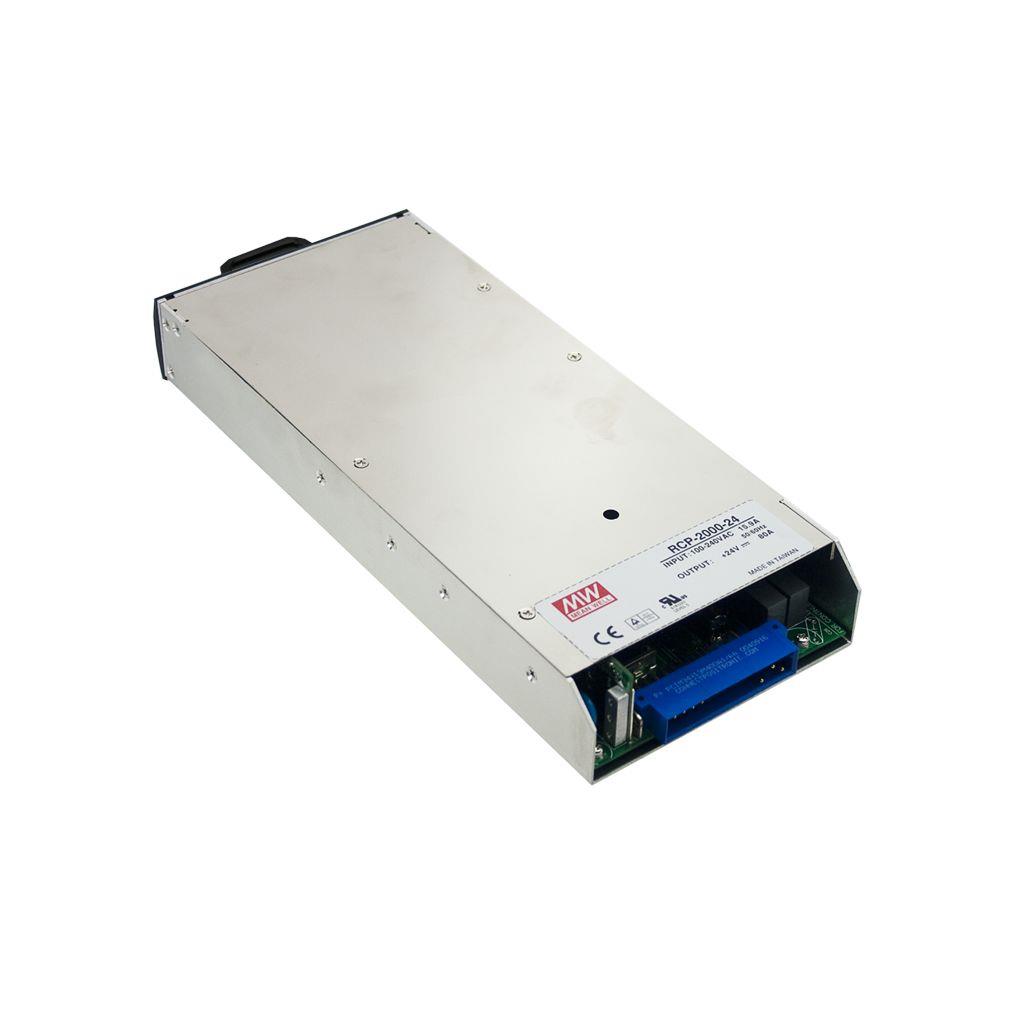

RCP-2000-48

AC-DC 19 inch rack power supply with PFC; Output 48VDC at 42A; 1U profile; Current sharing up to 6KW; Hot-swap; PMBus protocol; 5VDC Vsb

MEAN WELL

CP20.241-R1

PULS CP20.241-R1 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -40 to +70°C. It features a net width of 48 mm and offers a degree of protection rated at IP20. This unit consumes current at rates of 2.25A with a 230Vac input, 4.28A with a 120Vac input, 5.17A with a 100Vac input, and 4.64A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 5.5A at 230Vac input and 12A at 120Vac input. It boasts an efficiency of 0.952 at 230Vac input and 0.938 at 120Vac input. The dimensions of this power supply are W48mm x H124mm x D127mm. It has a 450ms start-up delay for 100-230Vac input, with rise times of 145ms and 160ms under specified conditions. The CP20.241-R1 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 35V. Power dissipation losses are 24.2 W and 31.7 W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 8000 µF. Electrical durability ranges from 25,000 to 465,000 hours under various conditions. The ripple is specified at 100mVpp. This AC/DC power supply unit, part of the CP-series, is designed with built-in decoupling MOSFET for redundancy, ATEX approval, and features a 20% power reserve, DC-OK relay contact output, and spring-clamp connections. It supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with specific tolerances for overvoltage and shutdown voltages. The rated current is 24A at 48Vdc in temperatures up to +45°C, with derating at higher temperatures. It is suitable for single-phase (1AC) or DC networks, providing a rated power of 576W at temperatures up to +45°C, and features a fixed 24Vdc output voltage with a 1000mV turn-ON overshoot and a hold time of 32ms.

Puls

S8FS-G03015C

S8FS-G Switch Mode Power Supply

Omron

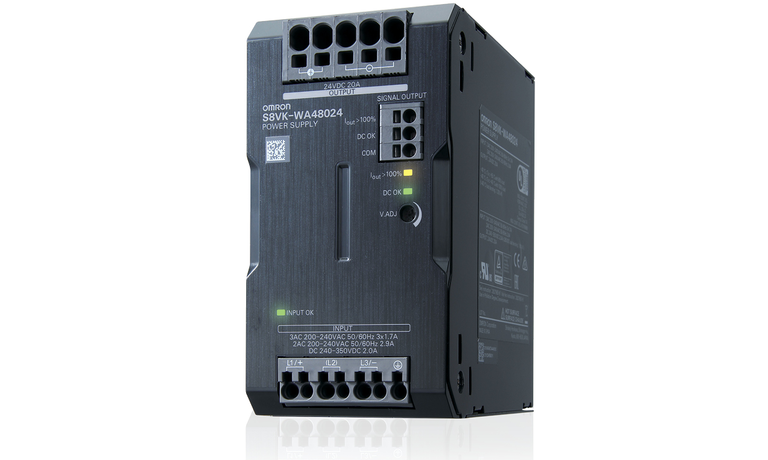

S8VK-WA96024

S8VK-WA Switch Mode Power Supply

Omron

RS-75-15

AC-DC Single Output Enclosed power supply; Output 15VDC Single Output at 5A; free air convection

MEAN WELL

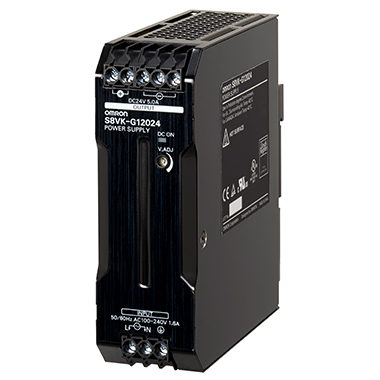

S8VK-G01524

S8VK-G Switch Mode Power Supply

Omron

LRS-50-48

AC-DC Single output enclosed power supply; Universal AC input; Output 48Vdc at 1.1A; Up to 5G vibration; 1U low profile

MEAN WELL

YP-400A-EU

AC-DC ATX PC Power supply 400W

MEAN WELL

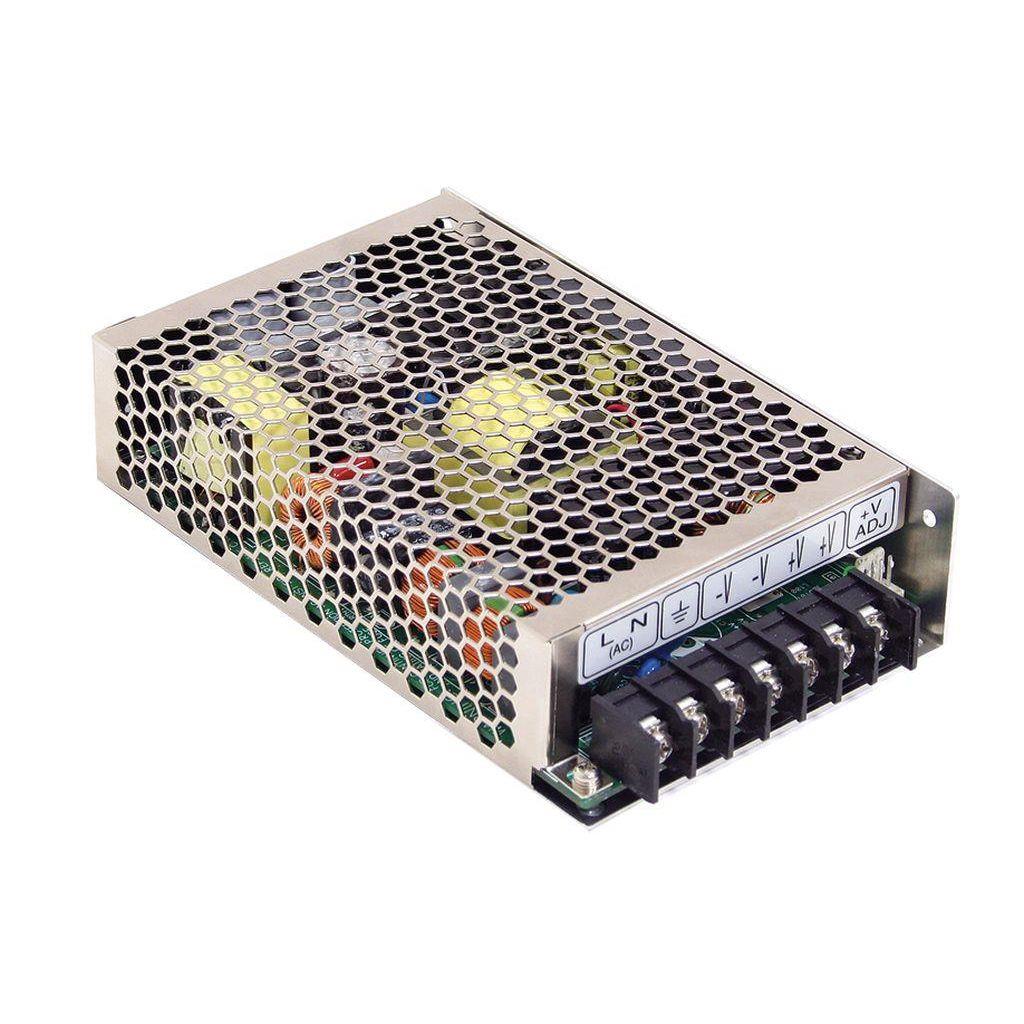

MSP-100-12

AC-DC Single output Medical Enclosed power supply; Output 12Vdc at 8.5A; 1xMOOP; 2xMOOP

MEAN WELL

2320830

Primary-switched DIN rail power supply unit. AC input: suitable for operation between two phases (400 V AC). DC input: suitable for operation in an FI intermediate circuit. Output: 24 V DC/20 A.

Phoenix Contact

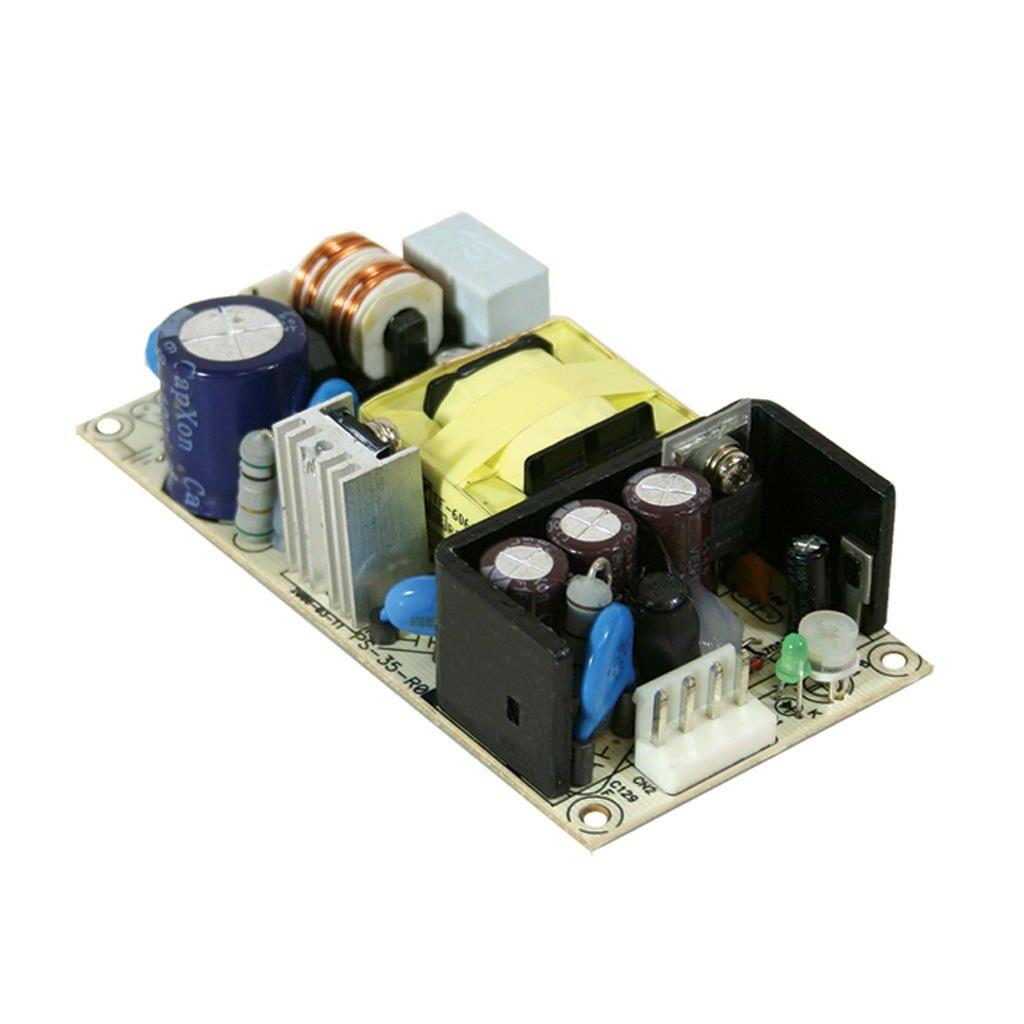

PS-35-48

AC-DC Single output Open frame power supply; Output 48Vdc at 0.73A; PS-35-48 is succeeded by EPS-35-48.

MEAN WELL

HRP-600-48

AC-DC Single output enclosed power supply; Output 48Vdc at 13A; fan cooling

MEAN WELL

UHP-2500-36

AC-DC Slim Single output enclosed power supply with PFC; Output 36Vdc at 69.4A; Remote ON/OFF and DC OK signal

MEAN WELL

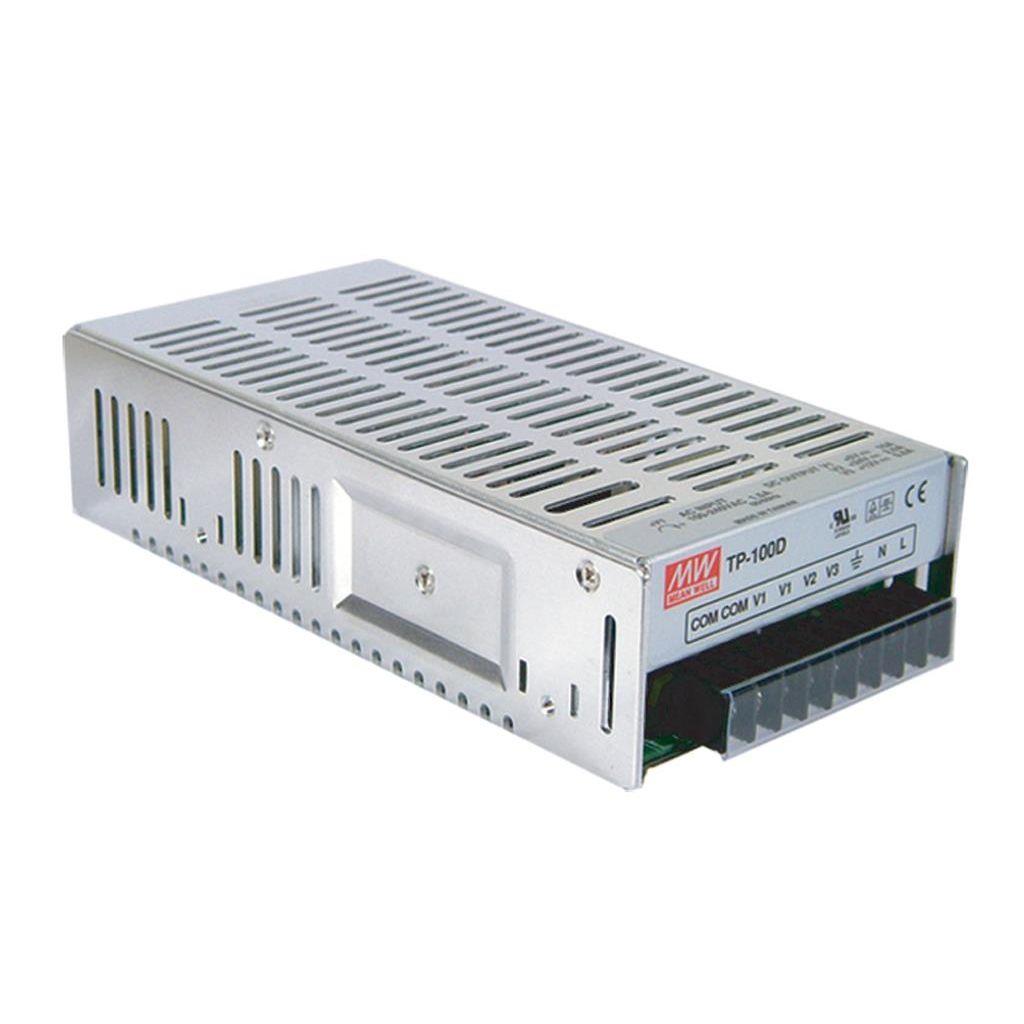

TP-100D

AC-DC Triple output enclosed power supply; Output 5Vdc at 15A +24Vdc at 3A +12Vdc at 1A; TP-100D is succeeded by QP-150-3D.

MEAN WELL

S8FS-G15024CE

S8FS-G Switch Mode Power Supply

Omron

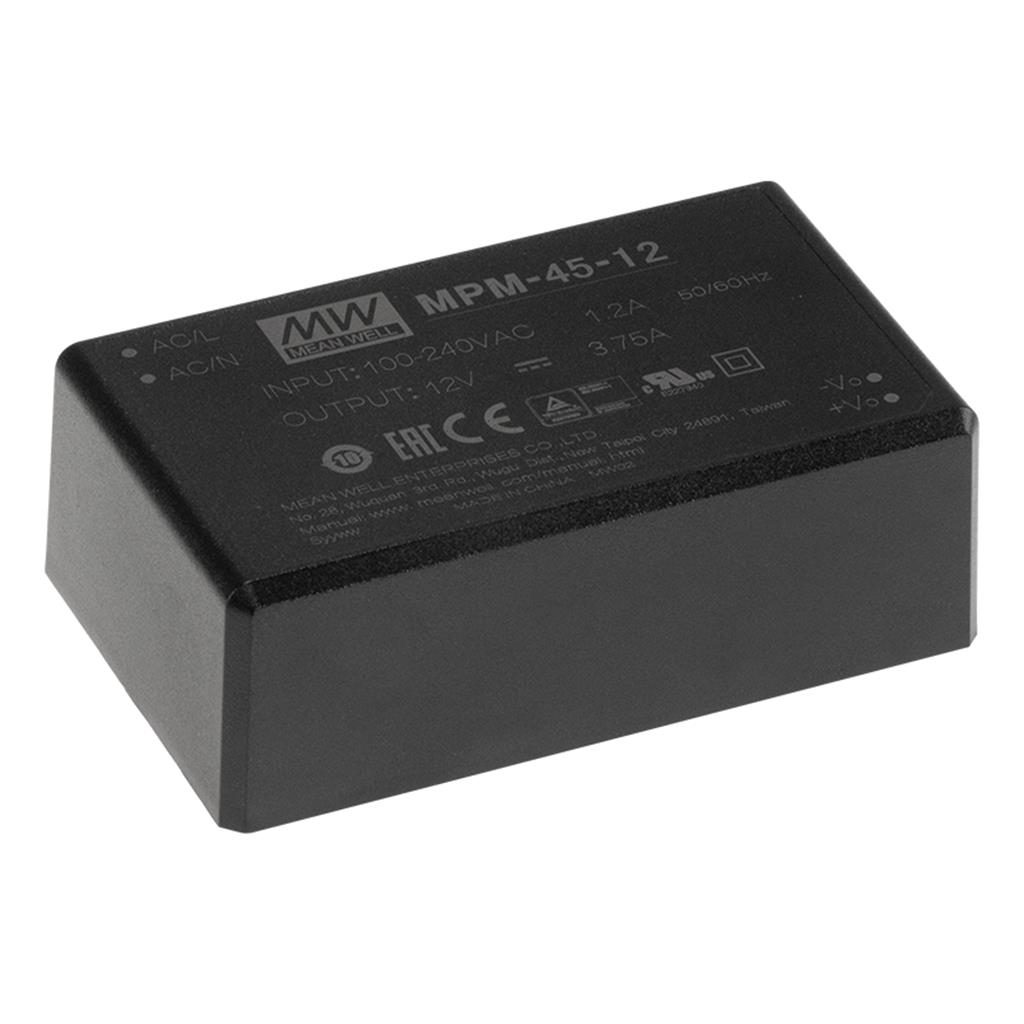

MPM-45-5

AC-DC Single output Medical Encapsulated power supply; Output 5Vdc at 8A; PCB through hole; 2xMOPP

MEAN WELL

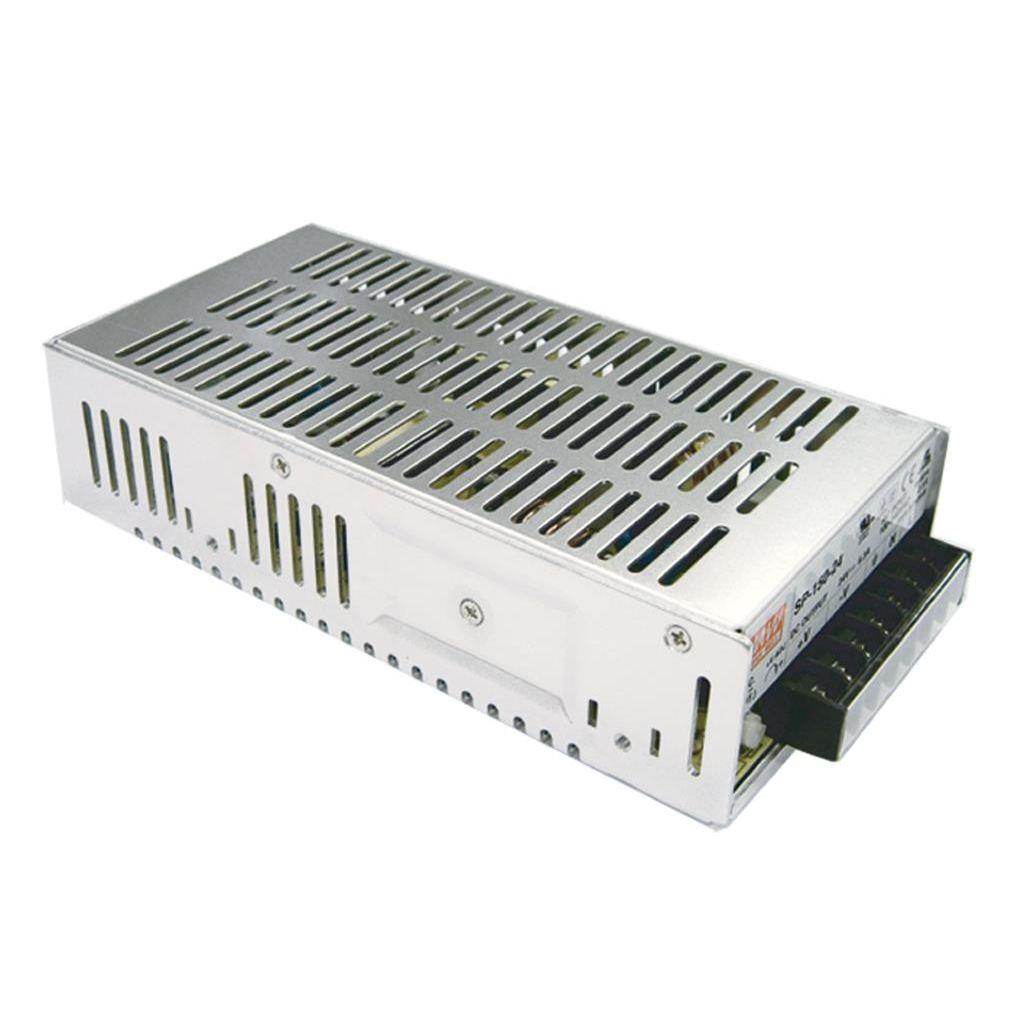

SP-150-15

AC-DC Enclosed power supply; Output 15Vdc at 10A; PFC; free air convection; SP-150-15 is succeeded by RSP-150-15.

MEAN WELL

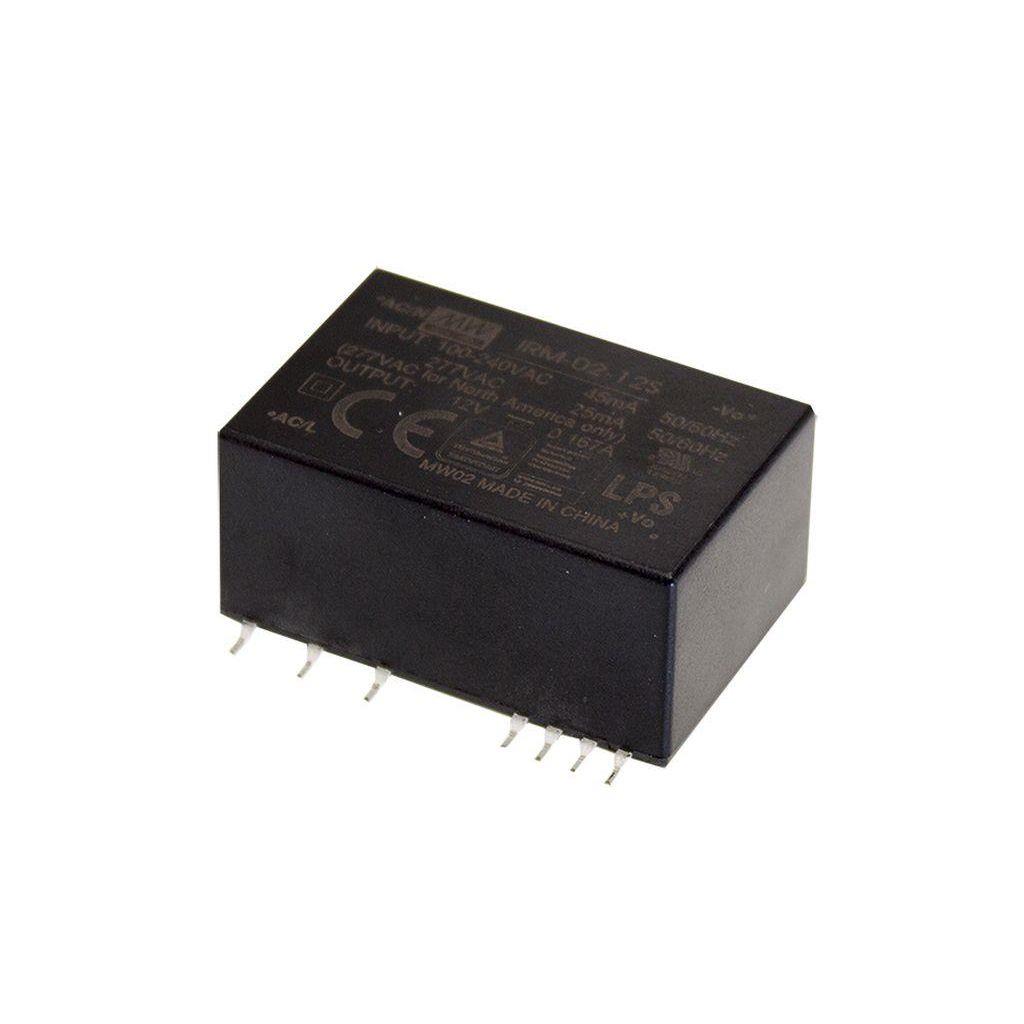

IRM-02-5S

AC-DC Single Output Encapsulated power supply, SMD; Input range 85-305VAC; Output 5VDC at 0.4A; Compact size

MEAN WELL

IRM-10-3.3

AC-DC Single output Encapsulated power supply; Input 85-264Vac; Output 3.3Vdc at 2.5A; PCB mount; miniature size

MEAN WELL

HEP-480-54A

AC-DC Single output industrial power supply with PFC; Output 54Vdc at 8.9A; Vo-Io adjust with Potentiometer; Withstand up to 10G Vibration

MEAN WELL
