AC/DC Power Supplies

RS-15-3.3

AC-DC Single Output Enclosed power supply; Output 3.3VDC Single Output at 3A; free air convection

MEAN WELL

HDR-100-24N

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 24VDC at 4.2A; Non-LPS

MEAN WELL

ML15.051

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

Puls

RPS-65-24

AC-DC Single output medical Open frame power supply; Output 24VDC at 2.71A; 2xMOPP

MEAN WELL

CP20.241-R2

PULS CP20.241-R2 is a DIN rail mounting power supply unit housed in an aluminium casing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -40 to +70°C and offers a net width of 48mm. The unit consumes current differently based on the input voltage: 2.25A at 230Vac, 4.28A at 120Vac, 5.17A at 100Vac input for full output, and 4.64A at 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 5.5A at 230Vac and 12A at 120Vac. It boasts an efficiency of 0.952 at 230Vac input and 0.938 at 120Vac input. The dimensions are W48mm x H124mm x D127mm. The power supply features a 450ms start-up delay and a rise time of 145ms to 160ms under nominal input conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 35V. Power dissipation losses are 24.2W at 230Vac input and 31.7W at 120Vac input, with an output stage capacitance of 8000µF. Electrical durability ranges from 25,000 to 465,000 hours depending on the operating conditions. The ripple is specified at 100mVpp. This AC/DC power supply unit is part of the CP-series and is designed with built-in decoupling MOSFET for redundancy, hot-swappable connectors, and ATEX approval. It offers a 20% power reserve and features a DC-OK relay contact output. The connection type is hot-swappable connectors. Supply voltage ranges from 88Vdc to 180Vdc for DC and 85Vac to 264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 24A at 48Vdc in temperatures up to +45°C, with derating at higher temperatures. It supports single-phase (1AC) or DC networks and provides a rated power of 576W at temperatures up to +45°C, with linear derating up to +70°C. The output voltage is fixed at 24Vdc, with a 1000mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input.

Puls

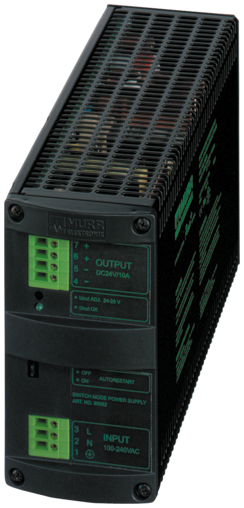

85063

85063 Murrelektronik - MCS POWER SUPPLY 1-PHASE, IN: 90-265VAC OUT: 24-28V/20ADC

Murr Elektronik

PSC-60B-C

AC-DC Enclosed power supply with UPS function; Output 27.6Vdc at 2.15A +27.6Vdc at 0.75A; with battery charger output

MEAN WELL

MDR-40-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 1.7A; plastic case

MEAN WELL

UHP-350R-15

AC-DC Slim Single output enclosed power supply with PFC; Output 15VDC at 23.4A; DC OK signal

MEAN WELL

2320898

Primary-switched power supply unit, QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 20 A

Phoenix Contact

MPM-90-24ST

AC-DC Single output Medical Encapsulated power supply; Output 24Vdc at 3.75A; Screw terminal block; 2xMOPP

MEAN WELL

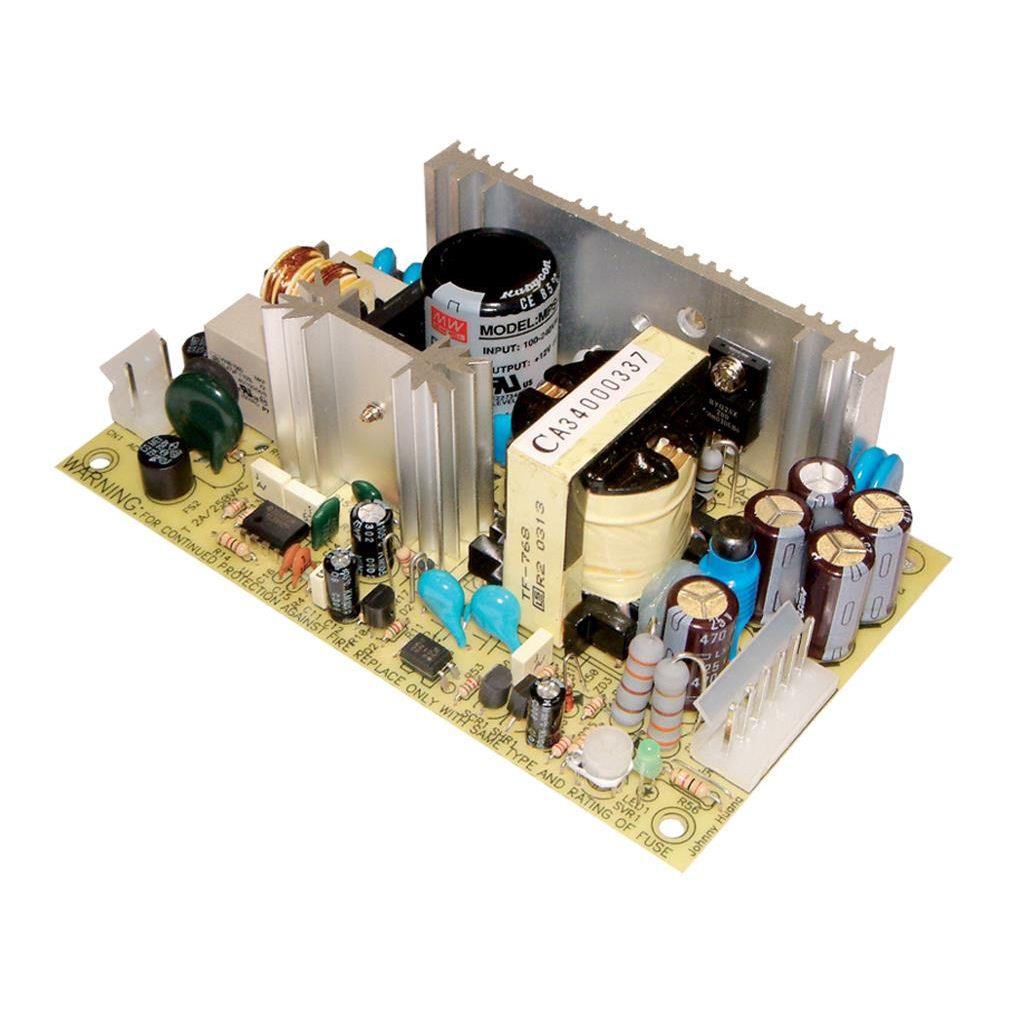

MPT-65B

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 7A +12Vdc at 3.2A -12Vdc at 0.7A; 2xMOPP; MPT-65B is succeeded by RPT-75B.

MEAN WELL

DRP-240-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 10A; metal case; DRP-240-24 is succeeded by NDR-240-24.

MEAN WELL

ML100.102

PULS ML100.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 7.5A at 12Vdc. This unit features spring-clamp connections for secure and efficient connectivity. It supports a wide range of supply voltages, including AC inputs from 85Vac to 132Vac and 184Vac to 264Vac across various nominal values (100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac) with auto-selection and a frequency range of 47-63Hz, as well as DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML100.102 is housed in a PC / ABS blend, ensuring durability, and measures W72.5mm x H75mm x D103mm. It is suitable for single-phase (1AC) or DC networks, with a net width of 72.5 mm. The unit's rated power is 90W, and it provides an adjustable output voltage range of 12Vdc to 15Vdc. It incorporates an NTC for input inrush current limiting, achieves an efficiency of 0.885 with a 230Vac input, and has a maximum inrush current consumption of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are calculated at 11.7 W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

EPS-45-48-C

AC-DC Single output enclosed type power supply; Output 48Vdc at 1A

MEAN WELL

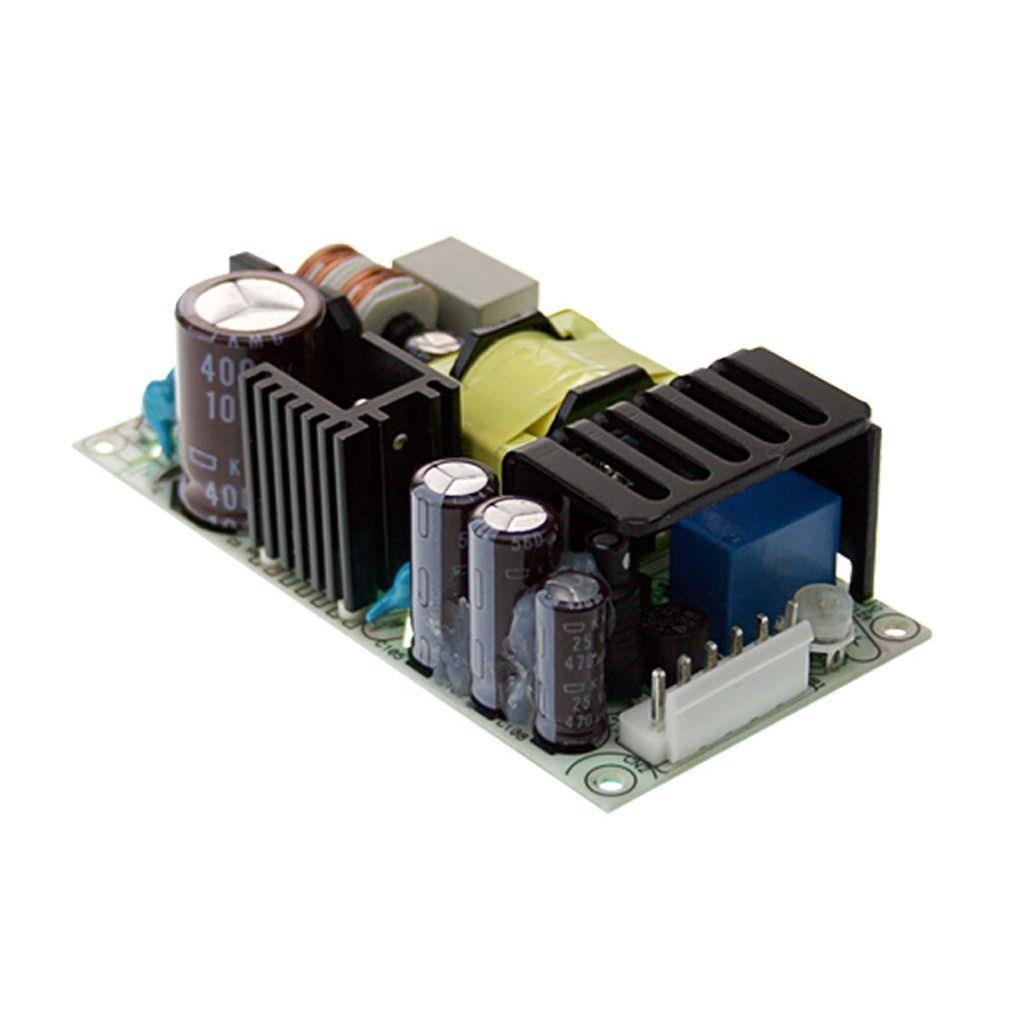

MPS-65-15

AC-DC Single output Medical Open frame power supply; Output 15Vdc at 4.2A; 2xMOPP; MPS-65-15 is succeeded by RPS-65-15.

MEAN WELL

S8FS-G10024C-R

S8FS-G Switch Mode Power Supply

Omron

722758

722758 LUTZE - Switch Mode Power Supply DRAN120-24B, Single-phase

Lutze

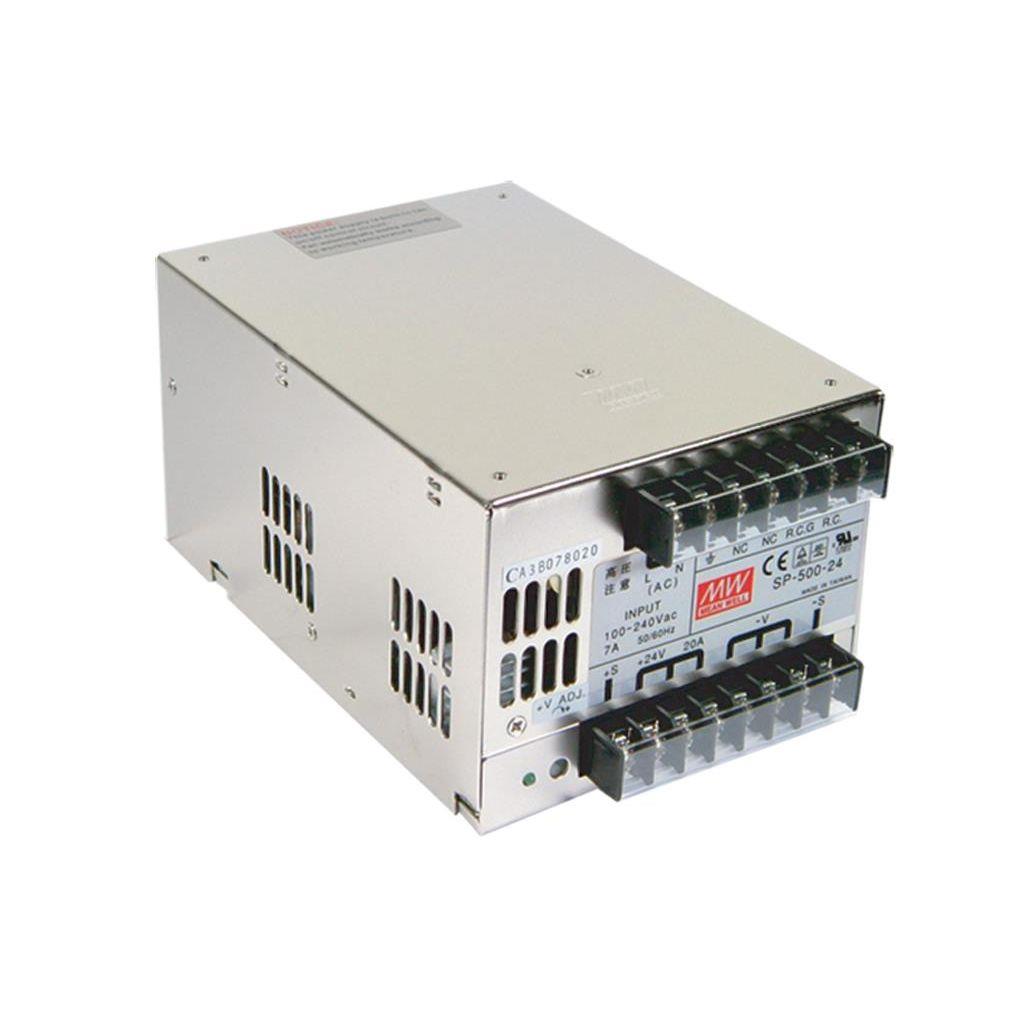

SP-500-48

AC-DC Enclosed power supply; Output 48Vdc at 10A; PFC; forced air cooling; SP-500-48 is succeeded by RSP-500-48.

MEAN WELL

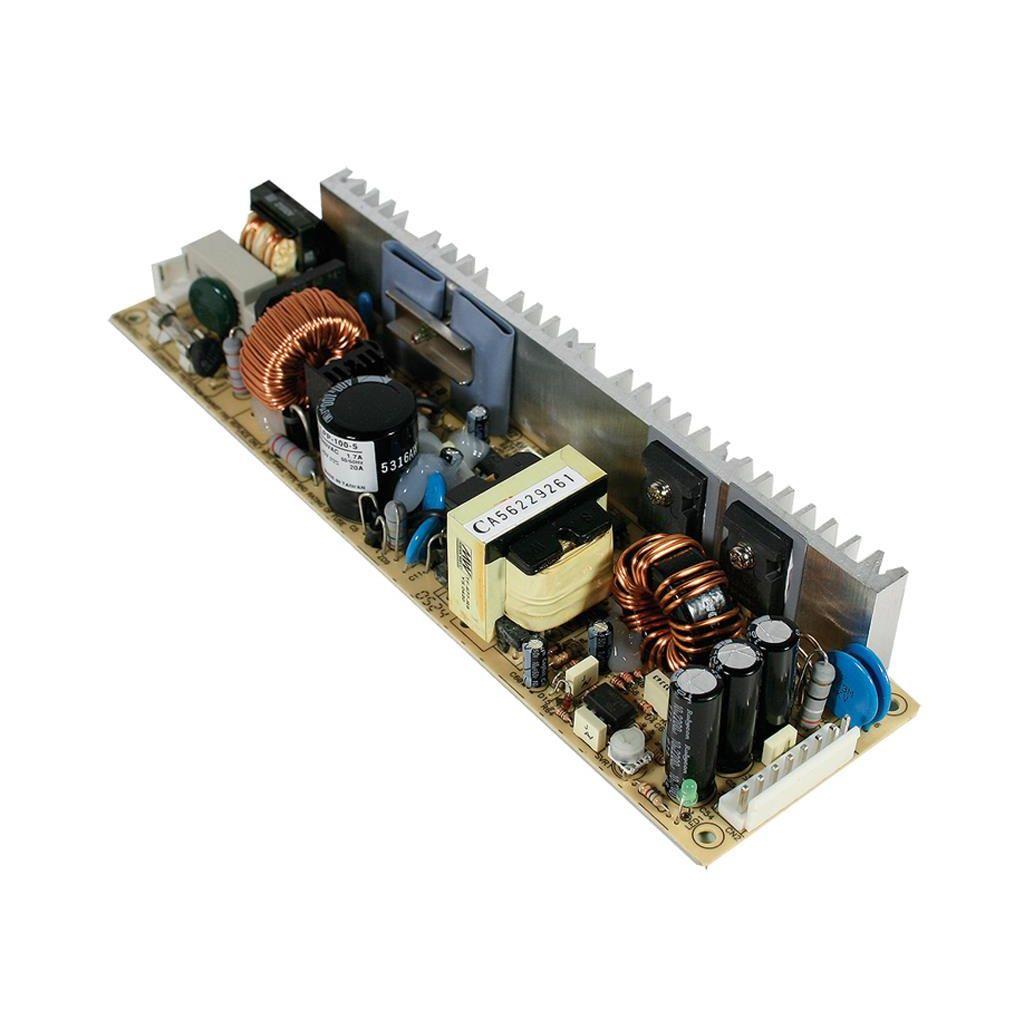

LPP-100-48

AC-DC Single output Open frame power supply with PFC; Output 48Vdc at 2.1A

MEAN WELL
