AC/DC Power Supplies

SL20.112

Power Supply, 480W, 100-120 / 200-240VAC 1PH, 36-43VDC, 13.3-11.2A

Puls

MPS-200-48

AC-DC Single output Medical Open frame power supply; Output 48Vdc at 4.2A; 2xMOPP; MPS-200-48 is succeeded by RPS-200-48.

MEAN WELL

ML120.241 PS, 115/230VAC, 24V, 5A, 1PH

ML120.241 PS, 115/230VAC, 24V, 5A, 1PH Turck - ML120.241 PS, 115/230VAC, 24V, 5A, 1PH

Turck

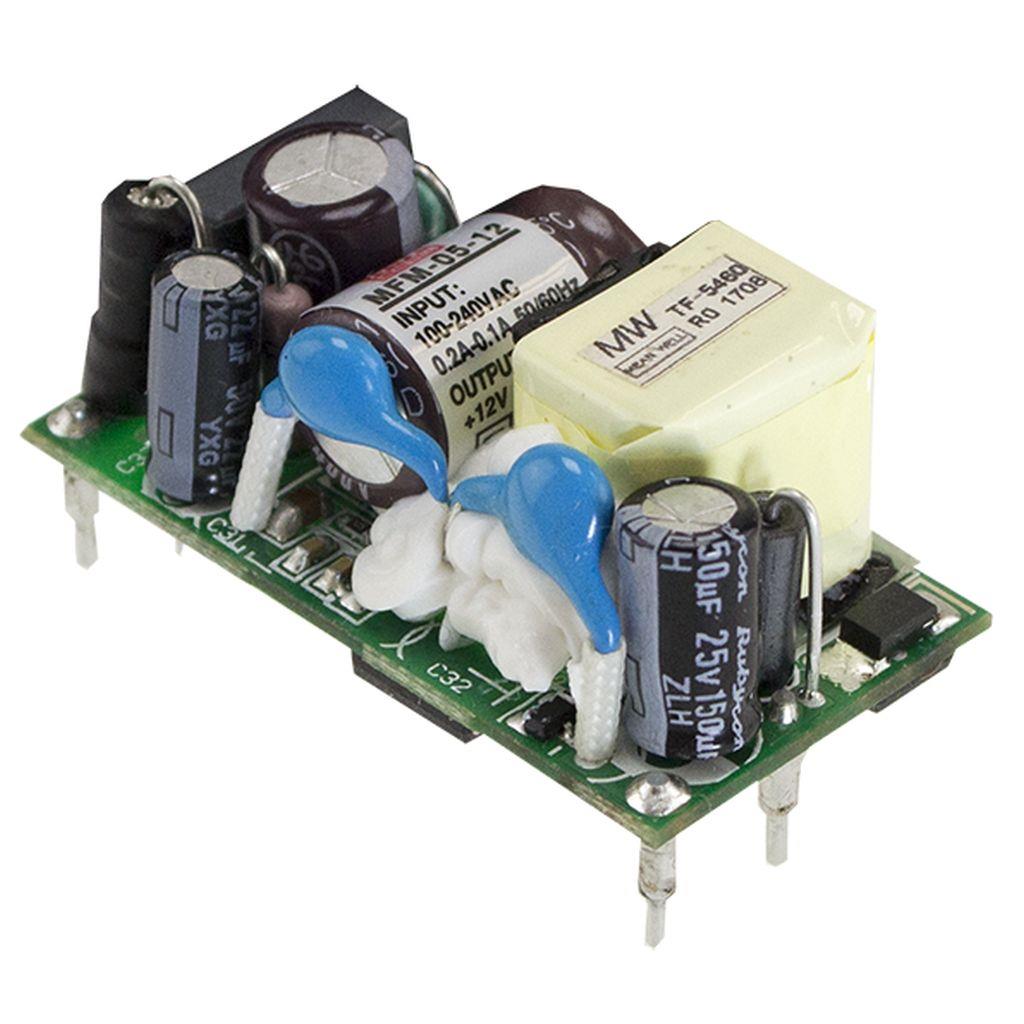

MFM-05-15

AC-DC Single output Medical Open frame power supply; Output 15Vdc at 0.33A; PCB mount; 2xMOPP

MEAN WELL

787-1102

787-1102 WAGO - EPSITRON® COMPACT power supply; single-phase; output voltage 24 VDC; 1.3 A; with picoMAX connector

WAGO

9000-17337-2521110

9000-17337-2521110 Murrelektronik - Power Supply Emparro Advanced 3-phase IN: 3x350 - 500VAC; OUT: 68 - 75V/13,5ADC

Murr Elektronik

722761

722761 LUTZE - Switch Mode Power Supply DRAN10-05, Single-phase

Lutze

HRP-150-12

AC-DC Single output enclosed power supply; Output 12Vdc at 13A; 1U low profile; free air convection

MEAN WELL

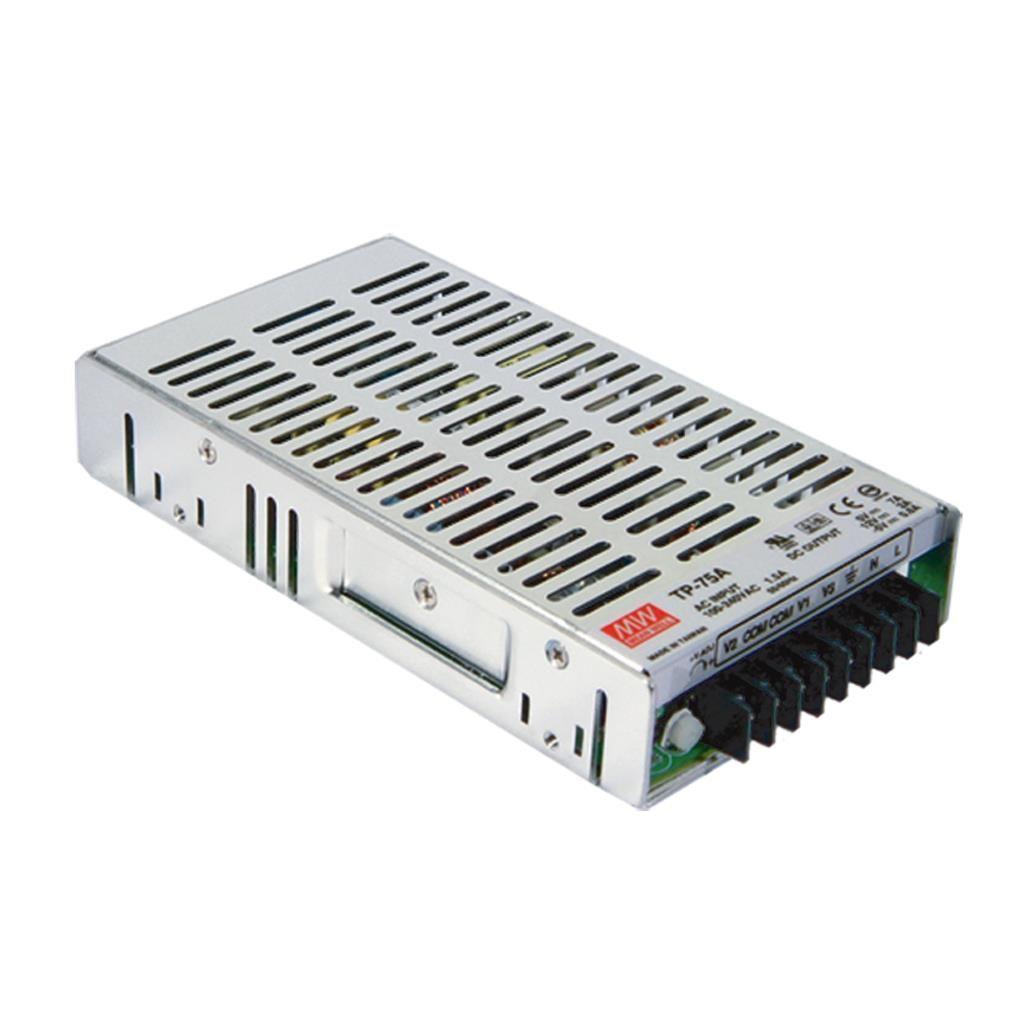

TP-75B

AC-DC Triple output enclosed power supply; Output 5Vdc at 10A +12Vdc at 4A -12Vdc at 0.6A; TP-75B is succeeded by QP-150-3B.

MEAN WELL

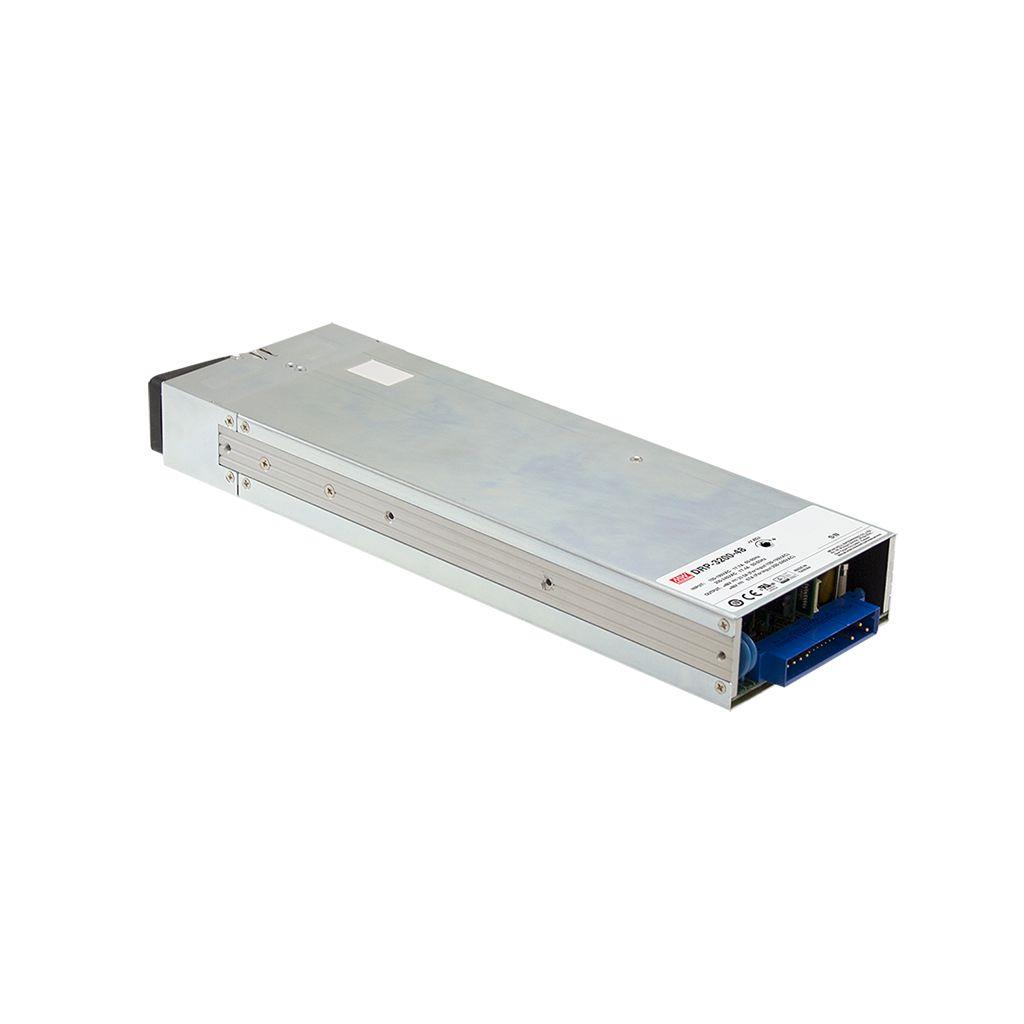

DRP-3200-48CAN

AC-DC Single output Rack front end power supply; Output 48Vdc at 67A; 1U low profile; Cooling by built-in DC fan; remote ON/OFF; Hot-swap; Built-in OR-ing FET; protocol CANBus

MEAN WELL

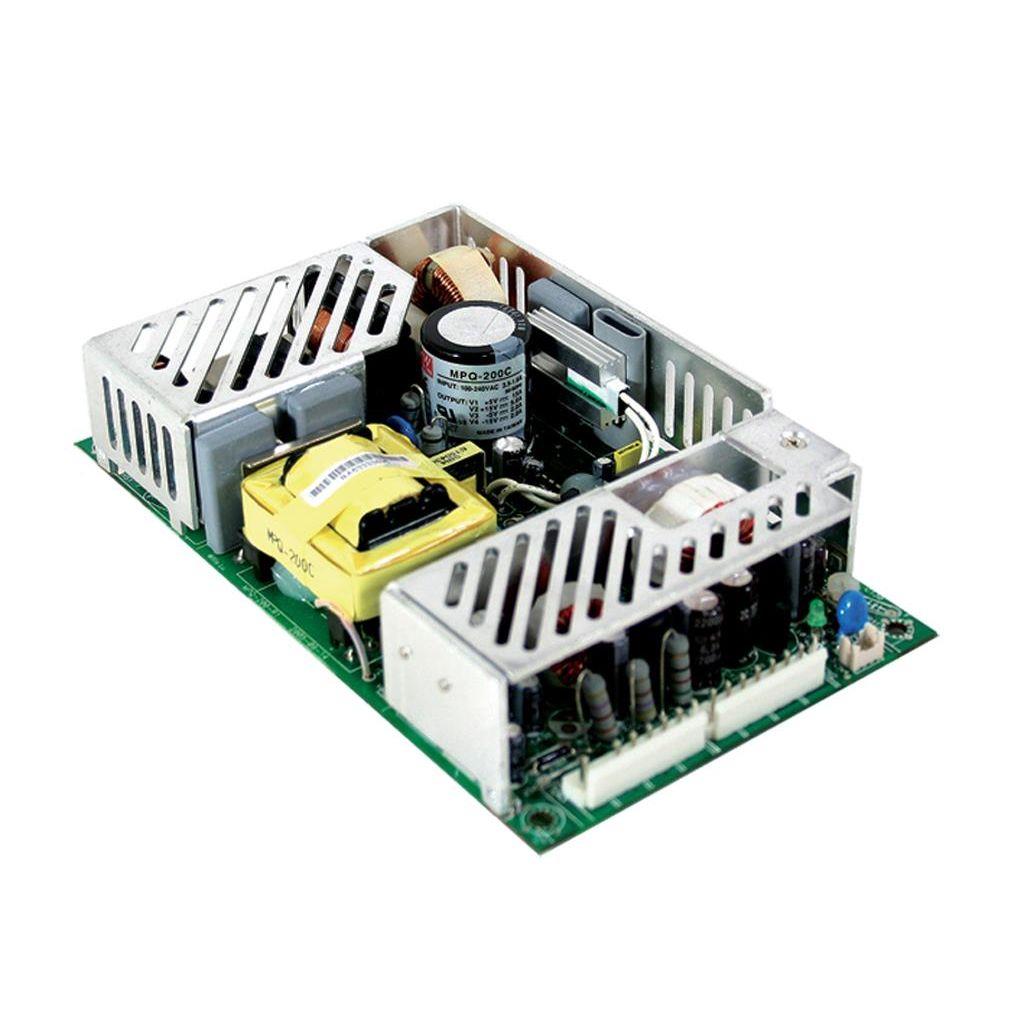

MPQ-120C

AC-DC Quad output Medical Open frame power supply; Output 5Vdc at 10A +12Vdc at 3.2A; 2xMOPP; MPQ-120C is succeeded by MPQ-200C.

MEAN WELL

RS-15-3.3

AC-DC Single Output Enclosed power supply; Output 3.3VDC Single Output at 3A; free air convection

MEAN WELL

SLD15303015T

SLD15303015T SolaHD - SolaHD™ SL Series Single and Multi Output Power Supplies - PN SLD15303015T

SolaHD

XT40.481

PULS XT40.481 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x360-440Vac (380Vac / 400Vac / 415Vac nominal; 47-63Hz), with a turn-ON voltage of 3 x 325Vac and a shutdown voltage of 3 x 295Vac. The unit is housed in aluminium, featuring screw-clamp connections for secure installation and is designed for DIN rail mounting. It supports a 3-phase (3AC) network type and can operate within an ambient air temperature range of -25 to +70°C. The XT40.481 has a net width of 96mm and dimensions of W96mm x H124mm x D159mm. It is rated for a current of 20A at 48Vdc, with a peak inrush current consumption of 4A (at 3x400Vac input). The rated power is 960W at 48Vdc, with a derating to 24W between +60°C and +70°C, and can momentarily support up to 1200W for approximately 15 seconds. Protection features include output overvoltage protection (57.2Vdc max.), active input inrush current limiter, and overload/short-circuit current protection, typically 90A at load impedance. It is not designed for series or parallel operation to increase output power but supports 1+1 redundancy for higher system reliability. The unit is resistant to back-feeding loads up to 55.1V. It boasts an efficiency of 0.96 (at 3x400Vac input), with a 400ms start-up delay, a rise time of 40ms (at nominal input with 0mF load capacitance) to 70ms (with 20mF load capacitance), and a fixed output voltage of 48Vdc with a 1V turn-ON overshoot. The hold time is 3.1ms at 3x400Vdc input, with power dissipation/losses at 40W (full output load). Its electrical durability is rated at 77000 hours (at 40°C; 20A output; 3AC 400Vdc input) to 15 years / 131400 hours (at 25°C; 20A output; 3AC 400Vdc input). The output stage capacitance is 7600µF, with a ripple of 2500mVpp (20Hz...2KHz; 50Ω).

Puls

ML15.051

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

Puls

HRP-600-5

AC-DC Single output enclosed power supply; Output 5Vdc at 120A; fan cooling

MEAN WELL

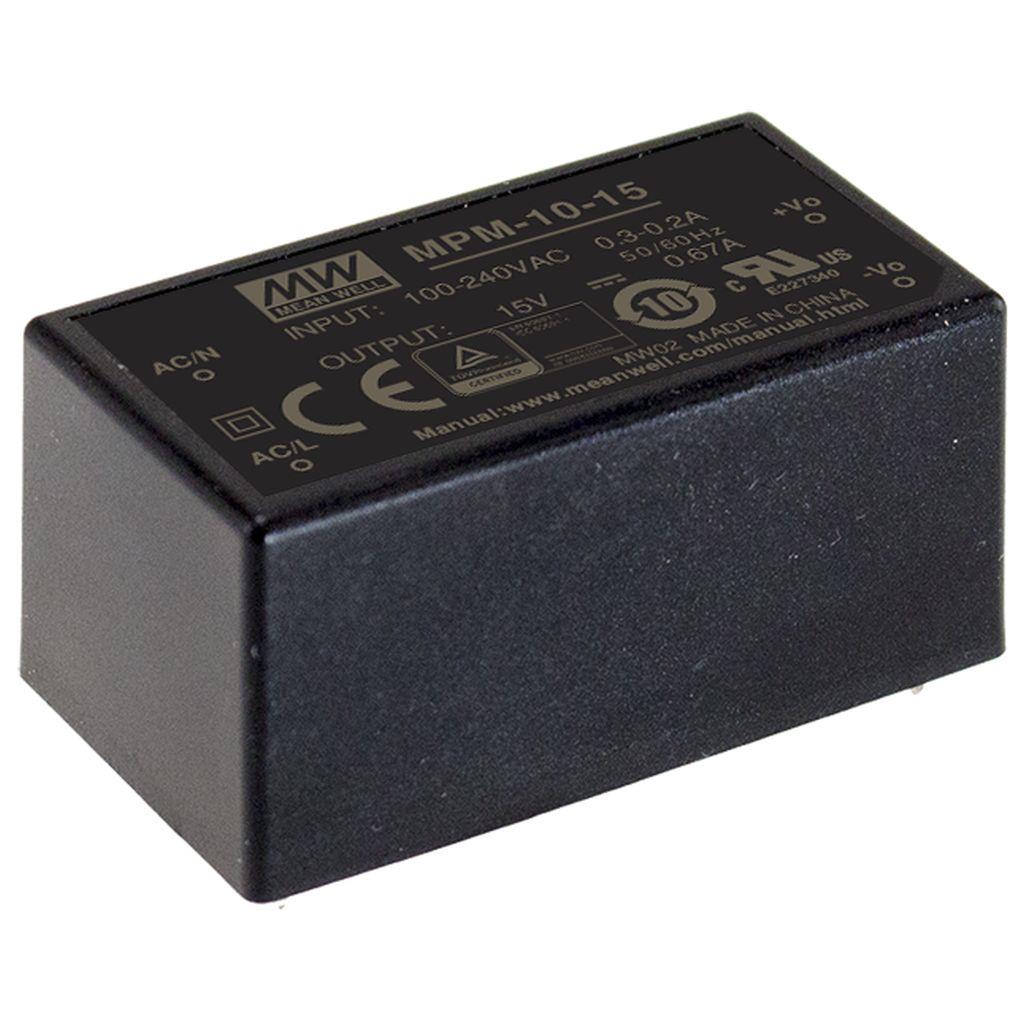

MPM-10-5

AC-DC Single output Medical Encapsulated power supply; Output 5Vdc at 2A; PCB through hole; 2xMOPP

MEAN WELL

RSP-500-3.3

AC-DC Single Output Enclosed power supply; Output 3.3VDC Single Output at 90A; PFC; forced air cooling; 1U low profile

MEAN WELL

RSP-200-27

AC-DC Single Output Enclosed power supply; Output 27VDC Single Output at 7.5A; PFC; free air convection

MEAN WELL

MDR-40-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 1.7A; plastic case

MEAN WELL
