AC/DC Power Supplies

NDR-240-24

AC-DC Single output Industrial DIN rail power supply; Output 24Vdc at 10A; metal case

MEAN WELL

S-100F-48

AC-DC Enclosed power supply; Output +48Vdc at 2.2A; S-100F-48 is succeeded by LRS-100-48.

MEAN WELL

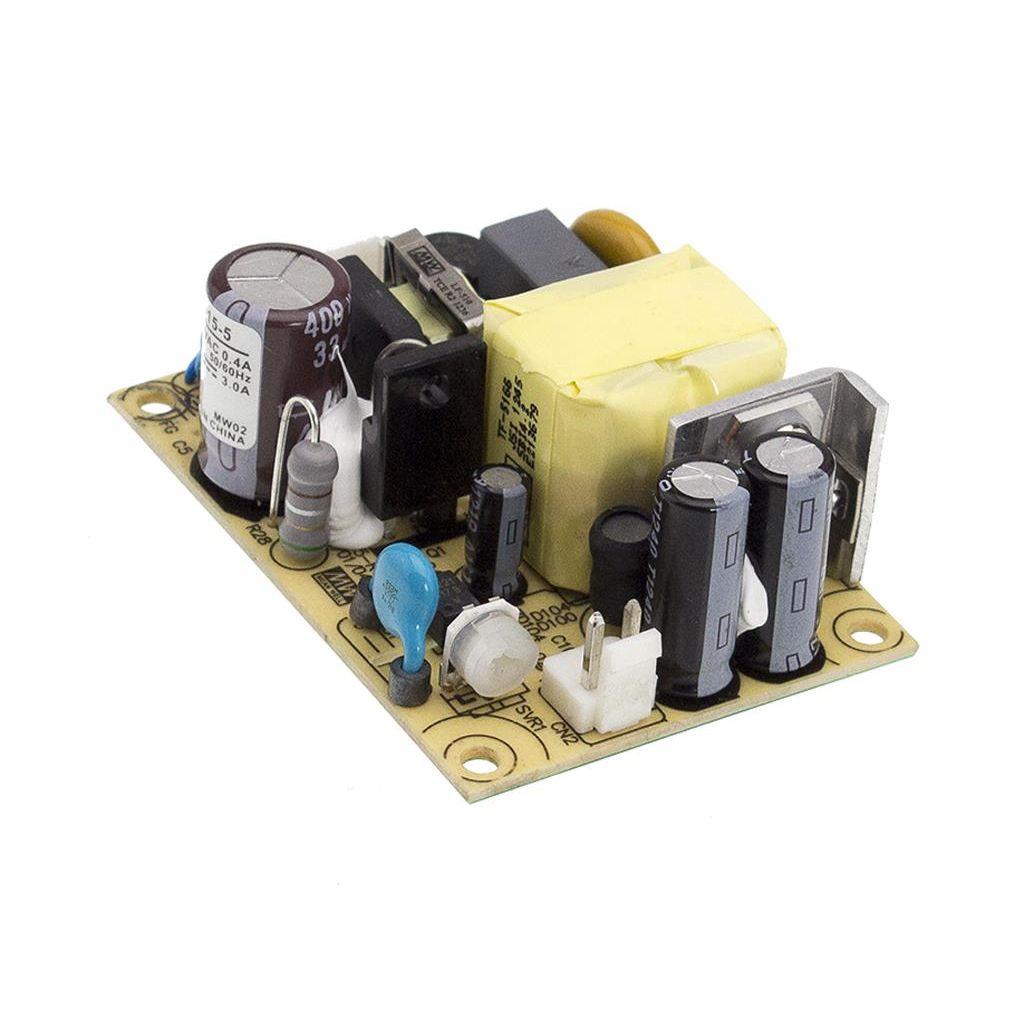

EPS-15-12

AC-DC Single output Open frame power supply; Output 12Vdc at 1.25A

MEAN WELL

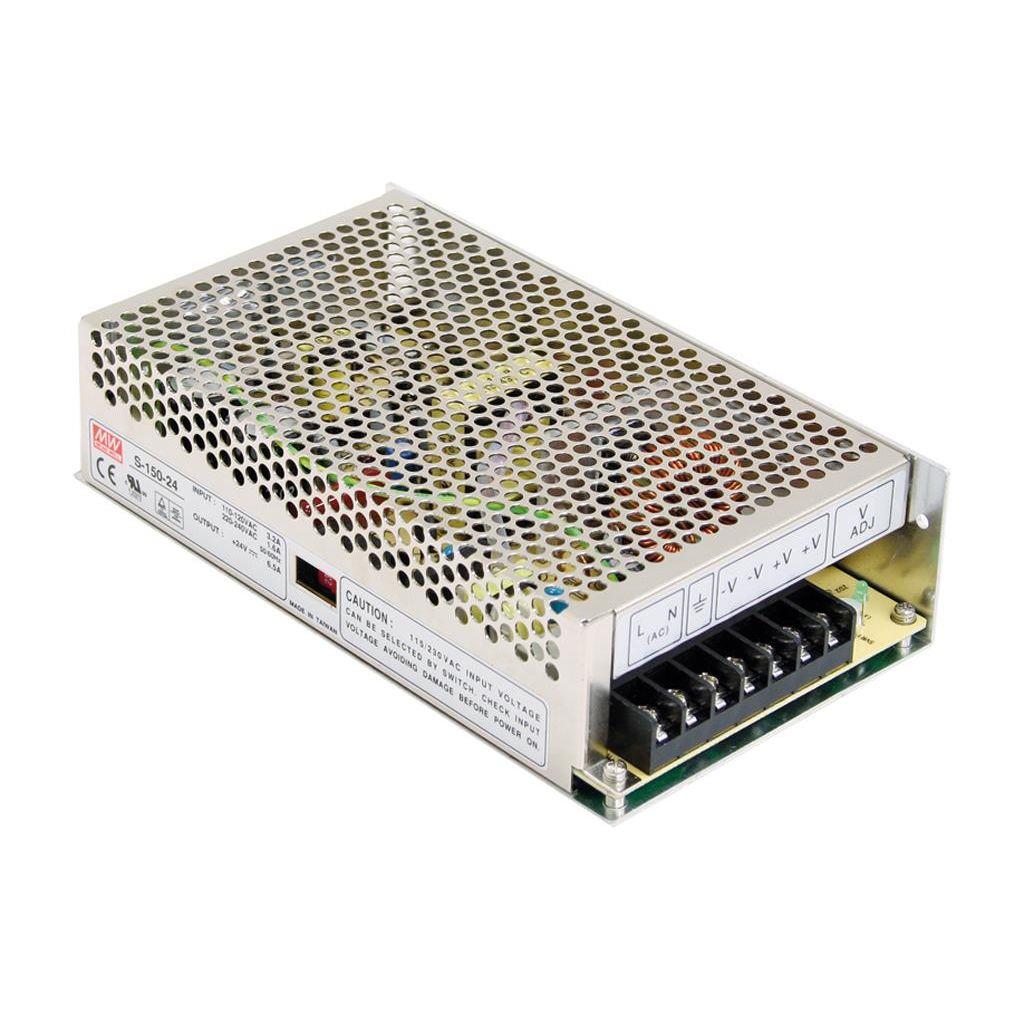

S-150-48

AC-DC Enclosed power supply; Output +48Vdc at 3.2A; S-150-48 is succeeded by LRS-150-48.

MEAN WELL

ML50.101

PULS ML50.101 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is optimized for parallel use with a DC-OK relay contact output. This unit has a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac; 47-63Hz), including a 65Vac turn-ON voltage and a 55Vac shutdown voltage, as well as a DC supply voltage range from 88Vdc to 375Vdc. The ML50.101 features a PC / ABS blend housing, is compatible with single-phase (1AC) or DC networks, and has dimensions of W45mm x H75mm x D91mm. It offers a rated power of 50W and an adjustable output voltage range from 24Vdc to 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency is rated at 0.885 with a 230Vac input, and it has a maximum current consumption of 17A inrush at 120Vac input and 35A peak max. inrush at 230Vac input. The unit exhibits a 32ms start-up delay, a rise time of 33-48ms under nominal input with a constant full current load and 0mF load capacitance, and a 45-60ms rise time with 2mF load capacitance. Power dissipation/losses are calculated at 6.8W, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω, and an output stage capacitance of 1600μF.

Puls

MDR-40-5

AC-DC Industrial DIN rail power supply; Output 5Vdc at 6A; plastic case

MEAN WELL

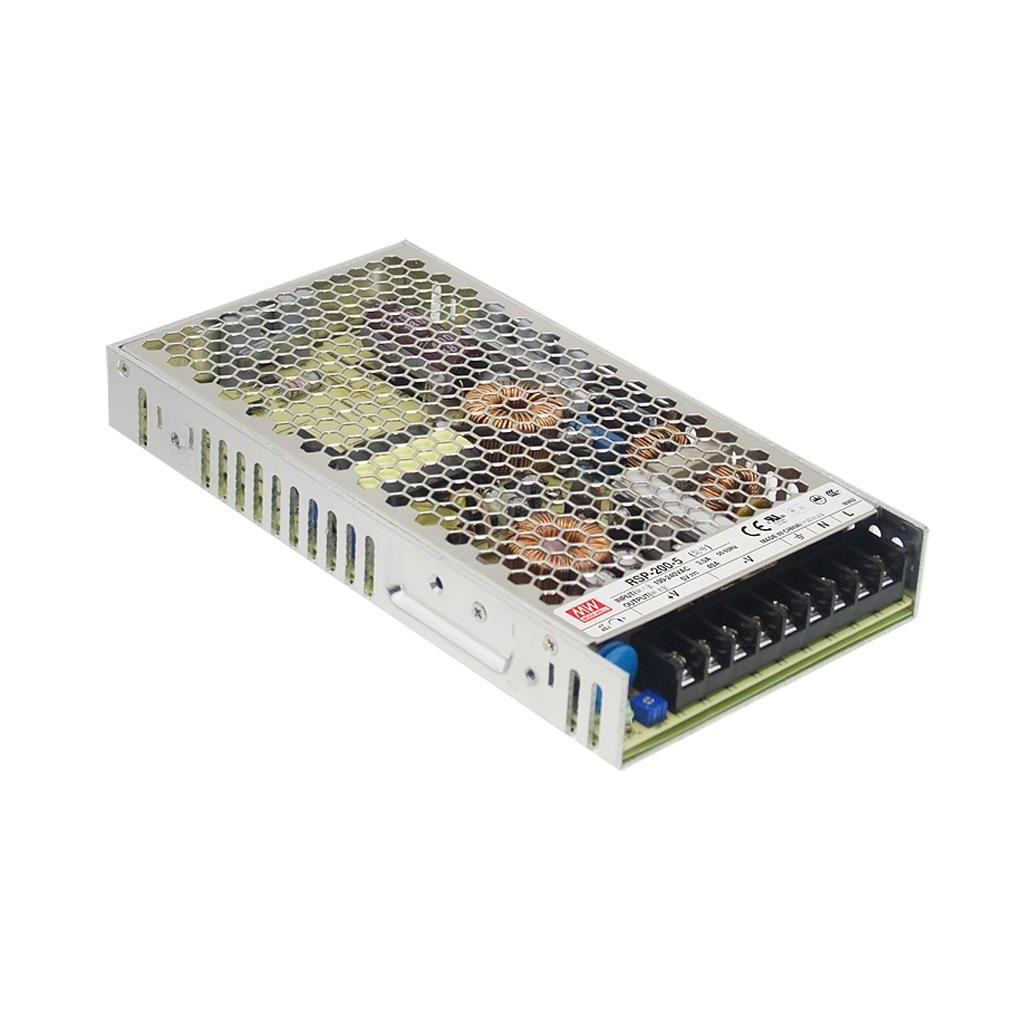

RSP-200-2.5

AC-DC Single Output Enclosed power supply; Output 2.5VDC Single Output at 40A; PFC; free air convection

MEAN WELL

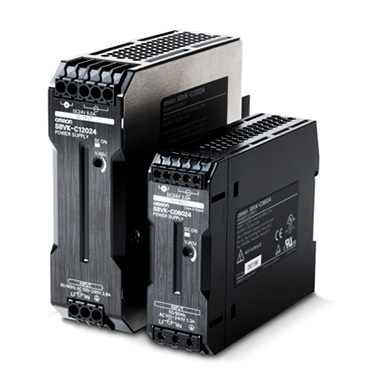

S8VK-C48024

S8VK-C Switch Mode Power Supply

Omron

PIM90.241

PULS PIM90.241 is a power supply unit designed for AC/DC conversion with a DIN rail mounting option. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C. This unit features a DC-OK relay contact output and provides a rated current of 3.8A at 24Vdc within the -10 to +60°C range, and 2.8A at 24Vdc at +70°C. It utilizes screw-clamp connections for secure installation and supports a supply voltage range of 90Vac to 264Vac across various nominal values (100Vac to 240Vac) at 47-63Hz, with an input overvoltage tolerance of 264-300Vac for up to 500ms, a turn-ON voltage of 55Vac, and a shutdown voltage of 47Vac. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. It is designed for single-phase (1AC) networks, with a net width of 36mm. The rated power is 90W at temperatures between -10 and +60°C, and 67.2W at +70°C, with output voltage adjustable between 24Vdc and 28Vdc. Protection features include output overvoltage protection and overload/short-circuit protection. The unit is not suitable for series or parallel operation and can handle back-feeding loads up to 35V without malfunctioning. It achieves an efficiency of 0.938 at 230Vac input and 0.921 at 120Vac input, with a current consumption of 0.95A at 230Vac input at full output. The start-up delay is 50ms for 100-230Vac input, with a hold time of 119ms at 230Vac input. Power dissipation is 6W at 230Vac input with a full output load. Electrical durability is rated at up to 815000 hours at 25°C with 1.9A load and 1AC 230Vac input. The output stage capacitance is 1600µF, and the ripple is maintained at 100mVpp across a 20Hz to 20MHz range with a 50Ω load.

Puls

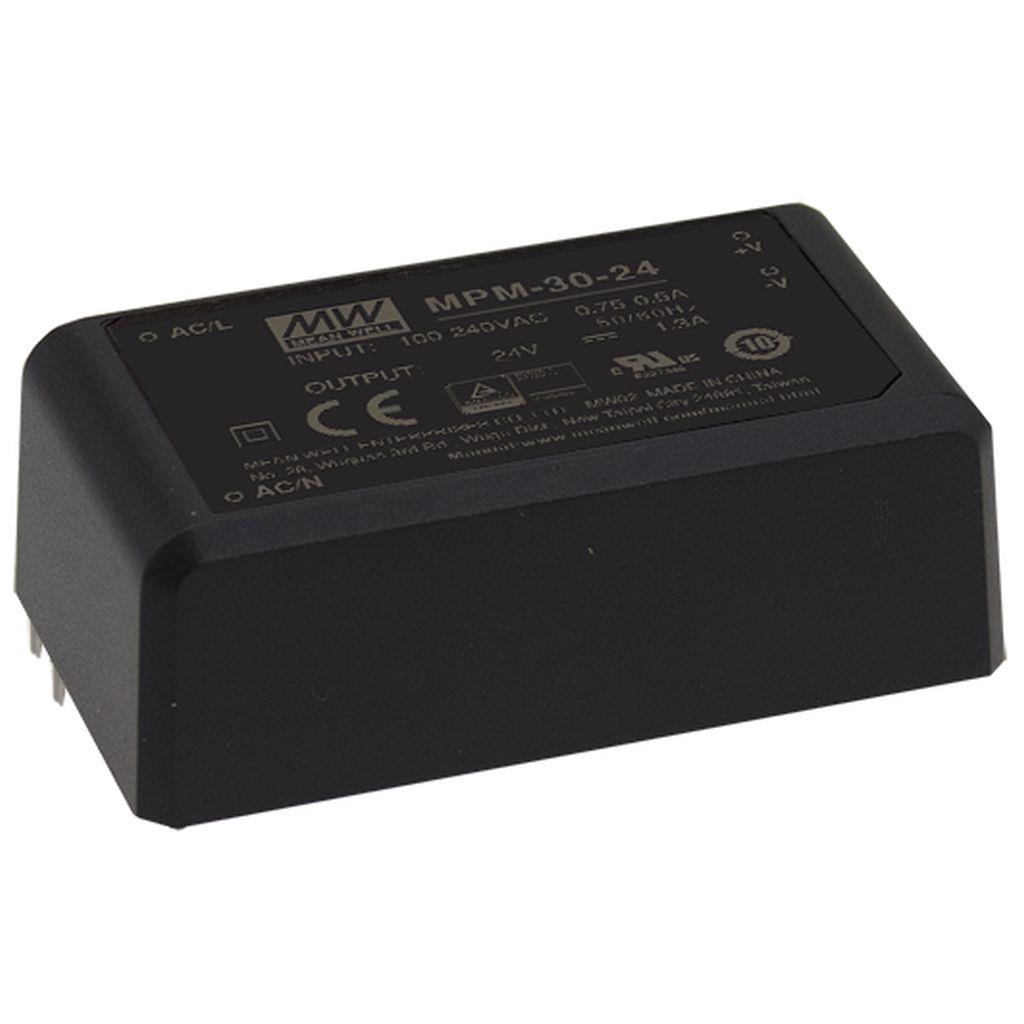

MPM-30-12

AC-DC Single output Medical Encapsulated power supply; Output 12Vdc at 2.5A; PCB through hole; 2xMOPP

MEAN WELL

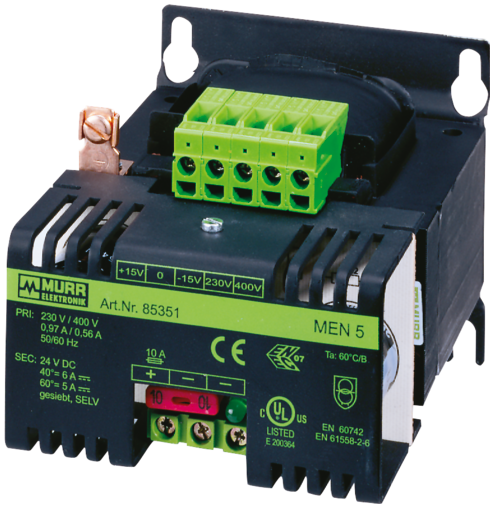

85360

85360 Murrelektronik - MEN POWER SUPPLY 1/2-PHASE, SMOOTHED, IN: 115/230+/-10VAC OUT: :24V/1ADC

Murr Elektronik

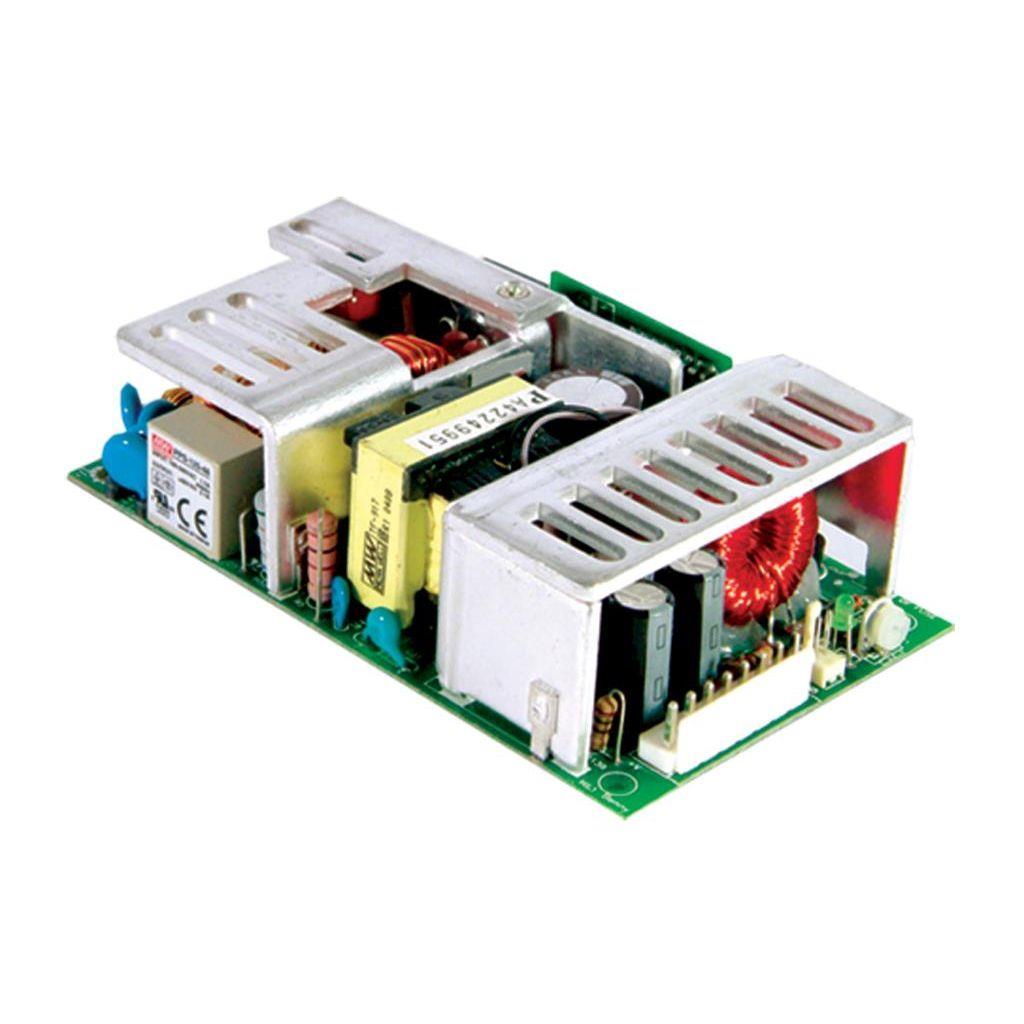

PPT-125B

AC-DC Triple output Open frame power supply; Output 5Vdc at 14.38A +12Vdc at 3.75A -12Vdc at 0.63A

MEAN WELL

RSP-200-24

AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 8.4A; PFC; free air convection

MEAN WELL

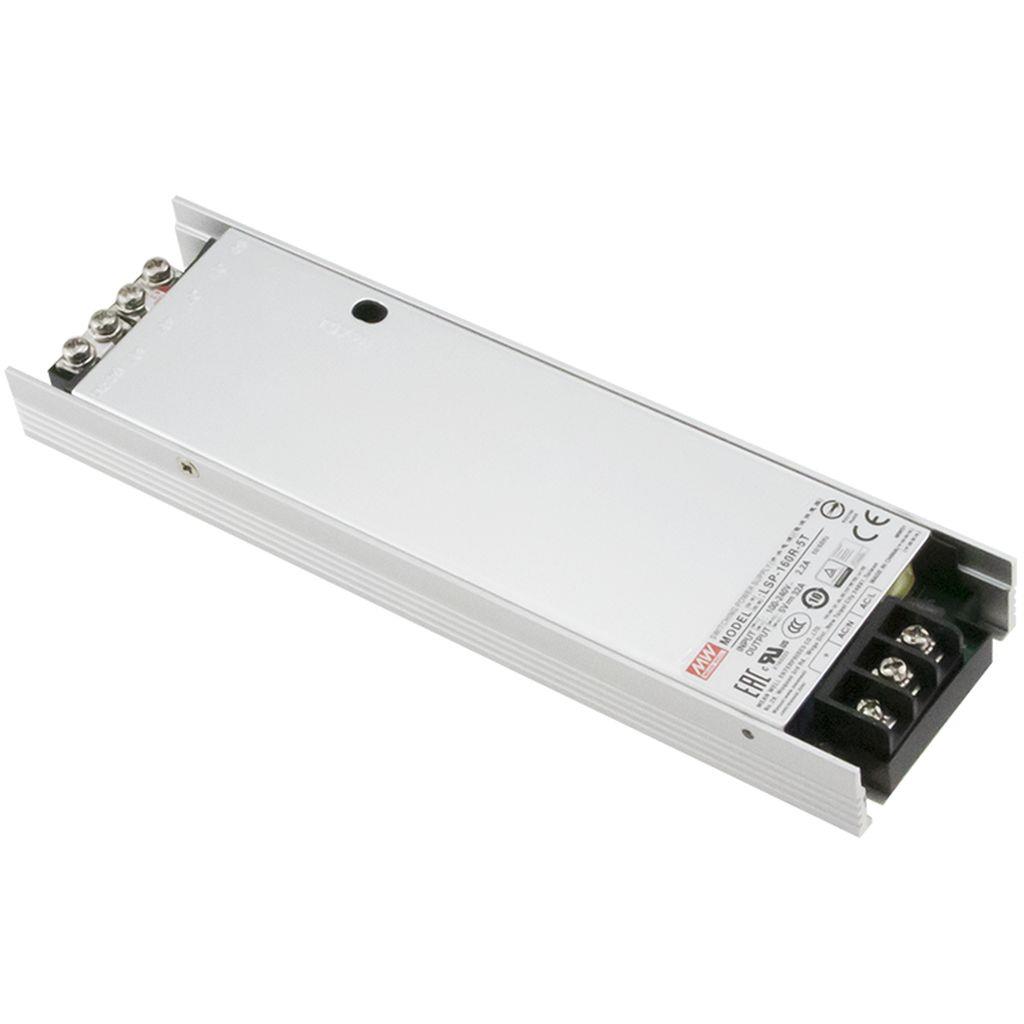

LSP-160-48W

AC-DC Slim Single output enclosed power supply with PFC; Output 48Vdc at 3.4A with Wafer connector; DC OK signal

MEAN WELL

HSP-250-5

AC-DC Single output enclosed power supply with PFC; Output 5Vdc at 50A; 1U low profile; conformal coated; With DC fan with NO/OFF control; HSP-250-5 is succeeded by HSP-300-5.

MEAN WELL

USP-225-24

AC-DC Single output power supply; Output 24Vdc at 9.4A; U-bracket low profile format 38mm; USP-225-24 is succeeded by UHP-200-24.

MEAN WELL

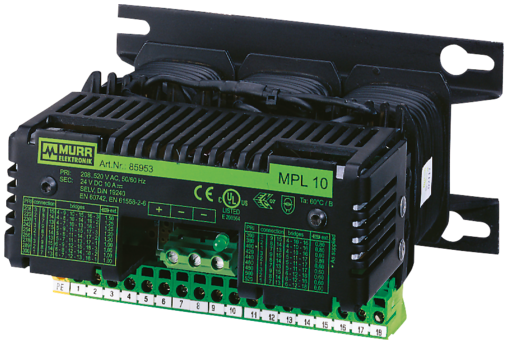

85953

85953 Murrelektronik - MPL POWER SUPPLY 3-PHASE, SMOOTHED, IN: 208-520VAC+/- 5% OUT: 24V/10ADC

Murr Elektronik

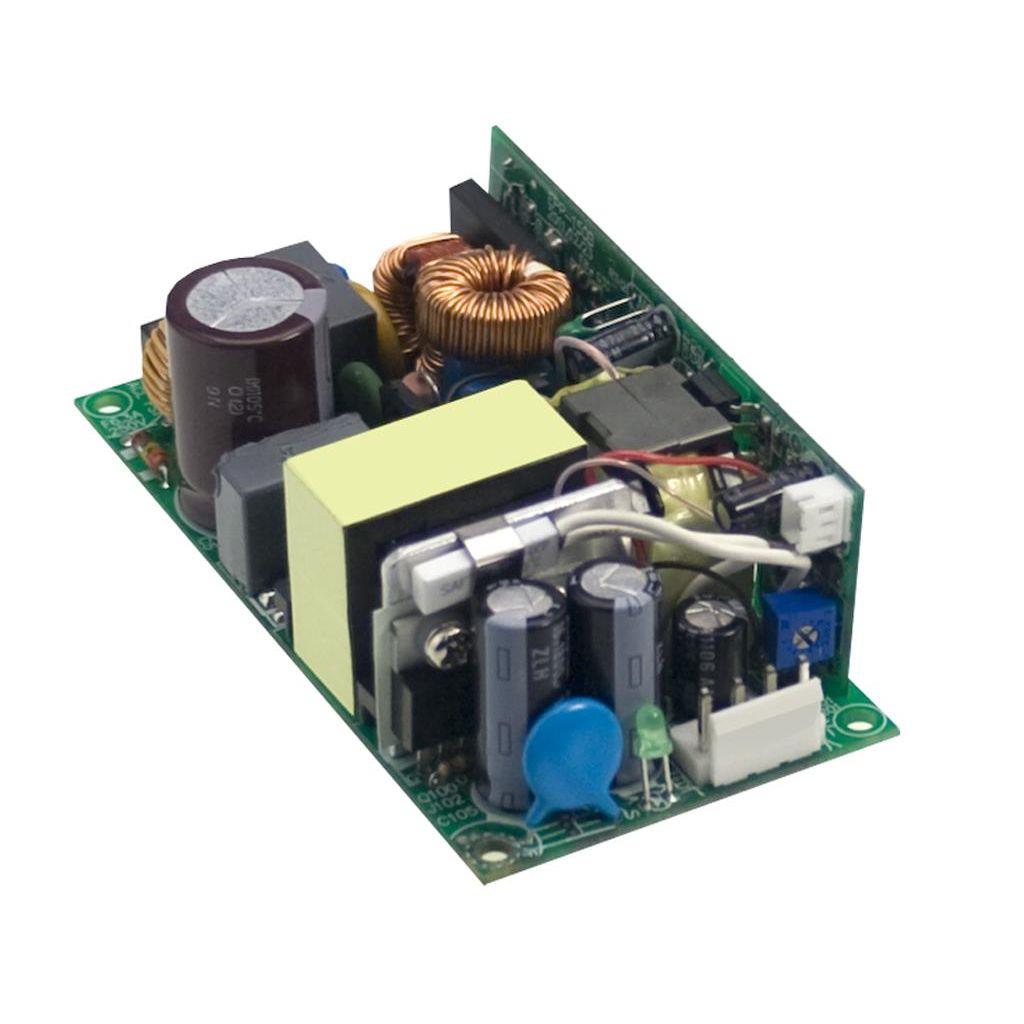

EPP-100-24

AC-DC Single output Open frame power supply; Output 24Vdc at 3.2A

MEAN WELL

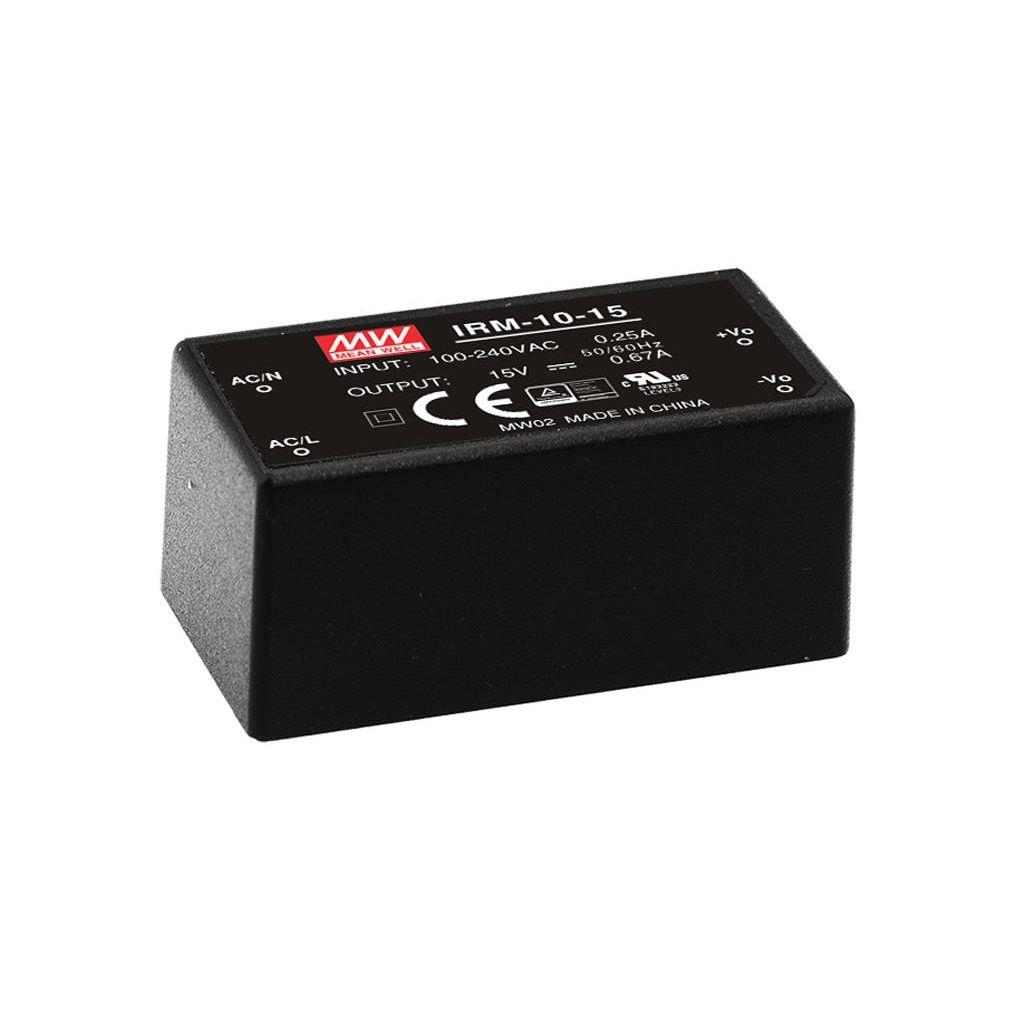

IRM-10-12

AC-DC Single output Encapsulated power supply; Input 85-264Vac; Output 12Vdc at 0.85A; PCB mount; miniature size

MEAN WELL

IRM-15-5

AC-DC Single output Encapsulated power supply; Input 85-264Vac; Output 5Vdc at 3.0A; PCB mount; miniature size

MEAN WELL
