AC/DC Power Supplies

PA-120P-13C

AC-DC Desktop power supply or battery charger with PFC; Input 3 pin IEC320-C14 input socket; Output 13.8VDC at 7.2A with 3 pin XLR plug; With case; PA-120P-13C is succeeded by PA-120N-13C.

MEAN WELL

IRM-20-24

AC-DC Single output Encapsulated power supply; Input 85-264Vac; Output 24Vdc at 0.9A; PCB mount; miniature size

MEAN WELL

QS10.241-A1

PULS QS10.241-A1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and boasts ATEX approval and conformal coating for enhanced durability in harsh environments. The unit provides a rated current of 10A at 24Vdc and 9A at 28Vdc, with spring-clamp connections for secure wiring. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS10.241-A1, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing for robustness. It delivers a rated power of 240W at 24V and 252W at 28V, with a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. It allows for series or parallel operation to scale output power as needed, with an efficiency up to 93.5% depending on the input voltage. The unit's electrical durability is rated up to 200,000 hours at 25°C with a 10A output, showcasing its longevity.

Puls

MPM-65-24ST

AC-DC Single output Medical Encapsulated power supply; Output 24Vdc at 2.71A; Screw terminal block; 2xMOPP

MEAN WELL

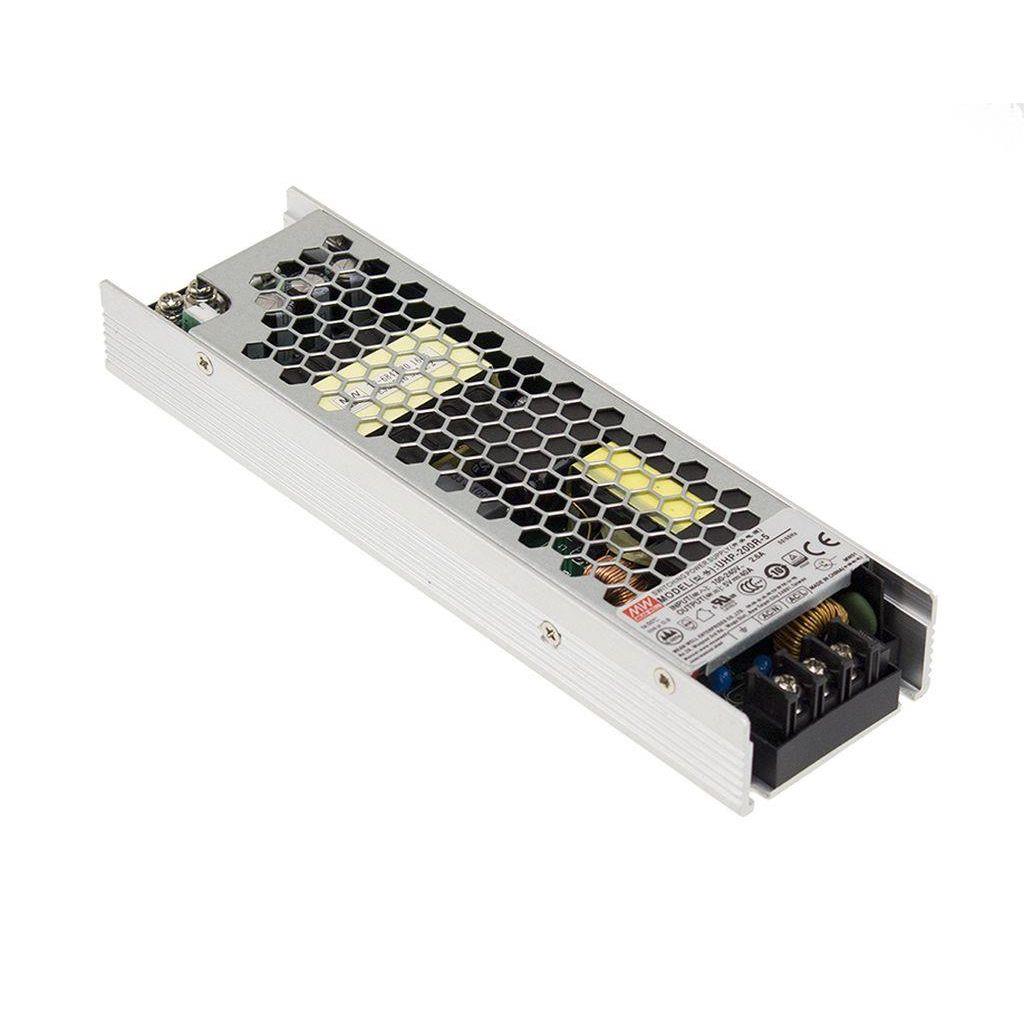

UHP-200R-36

AC-DC Slim Single output enclosed power supply with PFC; Output 36VDC at 5.6A; DC OK signal

MEAN WELL

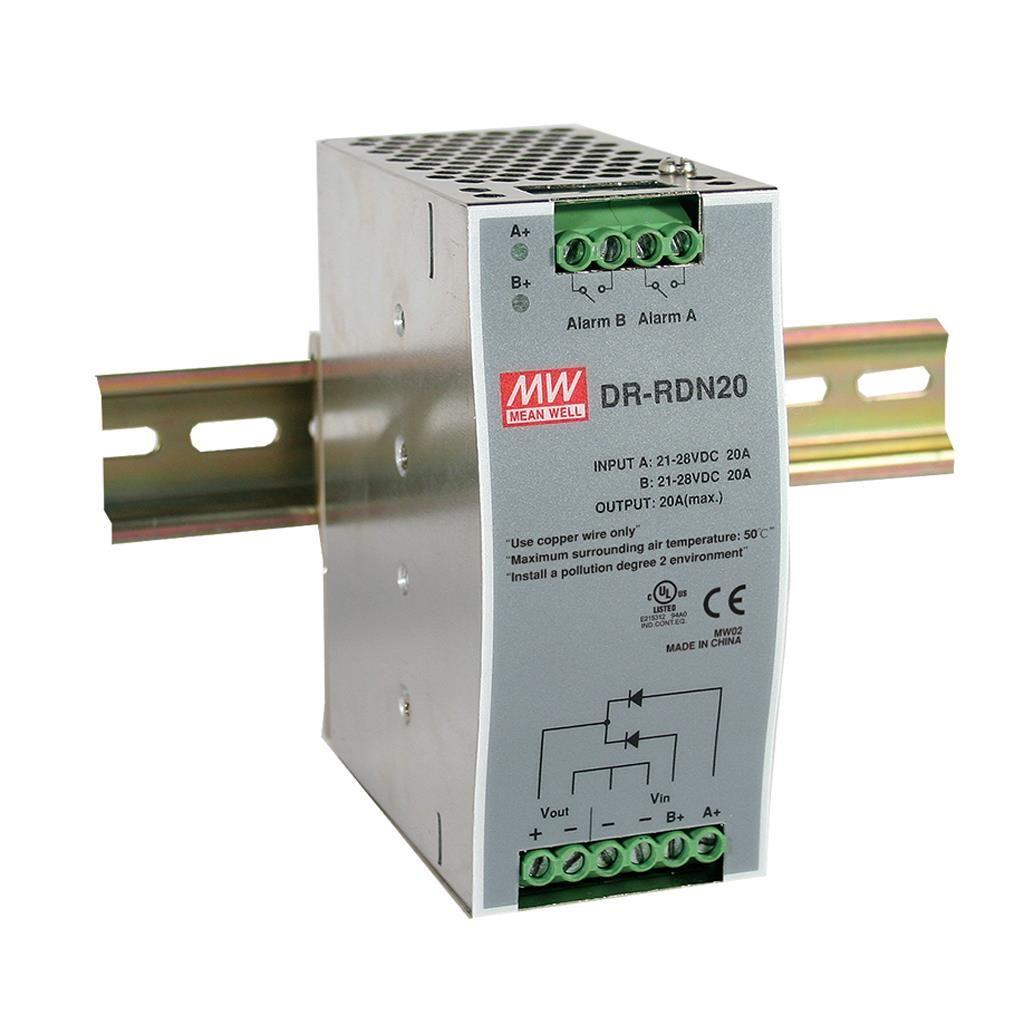

DR-RDN20

AC-DC Industrial DIN rail power supply; Output 24Vdc at 20A; redundant module; DR-RDN20 is succeeded by DRDN20-12.

MEAN WELL

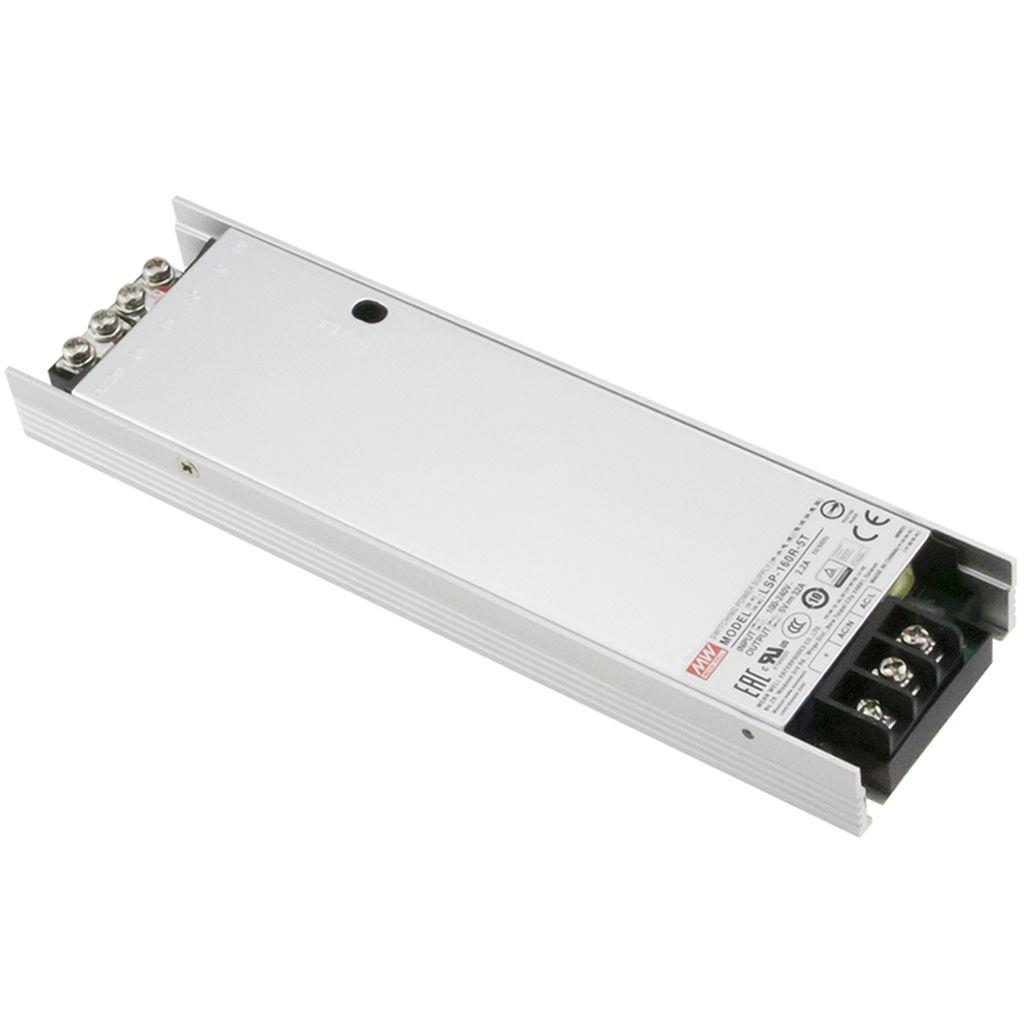

LSP-160-3.3T

AC-DC Slim Single output enclosed power supply with PFC; Output 3.3Vdc at 32A with terminal block; DC OK signal

MEAN WELL

SVL5-24-100

SVL5-24-100 SolaHD single phase power supply, 100-240 VAC input, 24 VDC output, 5 A, 120W

SolaHD

RID-125-1205

AC-DC Dual output enclosed power supply; Output 12Vdc at 10.5A +5Vdc at 3A; isolated outputs; free air convection

MEAN WELL

HEP-150-48A

AC-DC Single output industrial power supply with PFC; Output 48Vdc at 3.2A; Vo-Io adjust with Potentiometer; Withstand up to 10G Vibration

MEAN WELL

9000-17332-1621110

9000-17332-1621110 Murrelektronik - Power Supply Emparro Advanced 3-phase IN: 3x350 - 500VAC; OUT: 22,5 - 29V/40ADC

Murr Elektronik

S8FS-G10005CD

S8FS-G Switch Mode Power Supply

Omron

S8FS-G30024CD

S8FS-G Switch Mode Power Supply

Omron

CPS20.361

PULS CPS20.361 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65mm. This unit has a current consumption of 2.33A at 230Vac input for full 36Vdc output, 4.36A at 120Vac input, and 5.25A at 100Vac input, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It features an IP20 degree of protection and boasts efficiencies of 0.943, 0.93, and 0.924 at 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions of the CPS20.361 are W65mm x H124mm x D127mm. It includes a 900ms start-up delay and offers rise times of 90ms and 200ms under specified conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and it supports series/parallel operation for increased output power. The power dissipation/losses are rated at 29W, and the output stage capacitance is 3800µF. Its electrical durability varies based on conditions, with up to 516000 hours at 25°C and 6.7A output with 1AC 230Vac input. The ripple is specified at 100mVpp. This AC/DC power supply unit features a 20% power reserve, is part of the C-series, and has ATEX approval. Connection is facilitated through screw-clamp connections, and it accepts a supply voltage range of 85Vac-264Vac. The rated current is 13.3A at 36Vdc, suitable for single-phase networks, with a rated power of 576W under PowerBoost at ambient temperatures less than 45°C and 480W at less than 60°C. The output voltage is adjustable between 36Vdc and 42Vdc, with a 1V turn-ON overshoot, and it offers a hold time of 26ms.

Puls

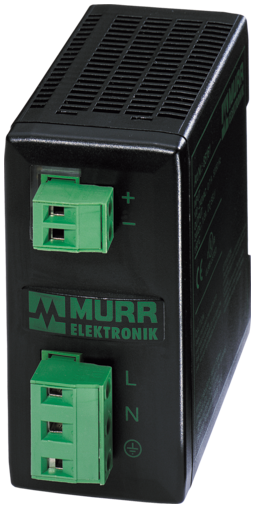

85372

85372 Murrelektronik - MCS-B POWER SUPPLY 1-PHASE, IN: 90-265VAC OUT: 12-15V/1ADC

Murr Elektronik

RSP-100-5

AC-DC Single Output Enclosed power supply; Output 5VDC Single Output at 20A; PFC; free air convection; Ultra low profile 30mm

MEAN WELL

MPM-20-15

AC-DC Single output Medical Encapsulated power supply; Output 15Vdc at 1.4A; PCB through hole; 2xMOPP

MEAN WELL

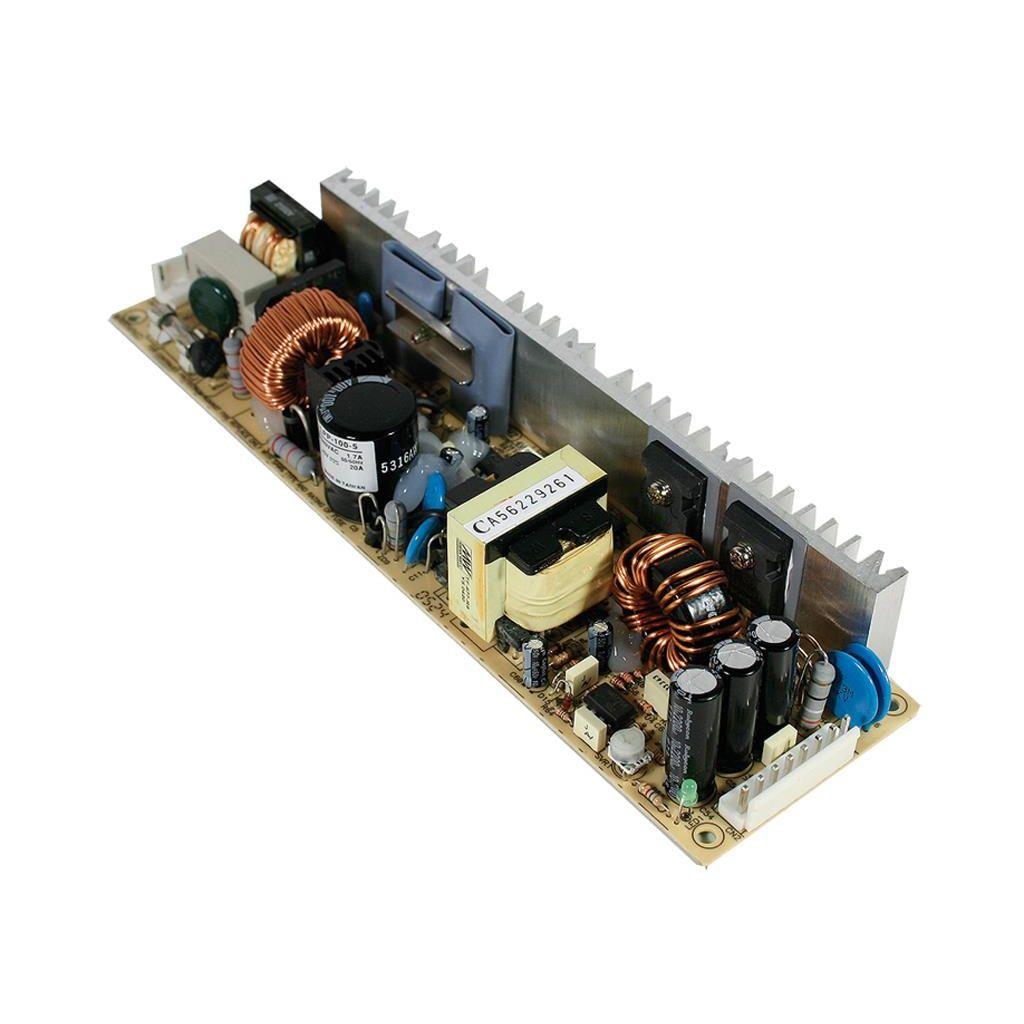

LPP-100-13.5

AC-DC Single output Open frame power supply with PFC; Output 13.5Vdc at 7.5A

MEAN WELL

RS-150-3.3

AC-DC Single Output Enclosed power supply; Output 3.3VDC Single Output at 30A; free air convection

MEAN WELL

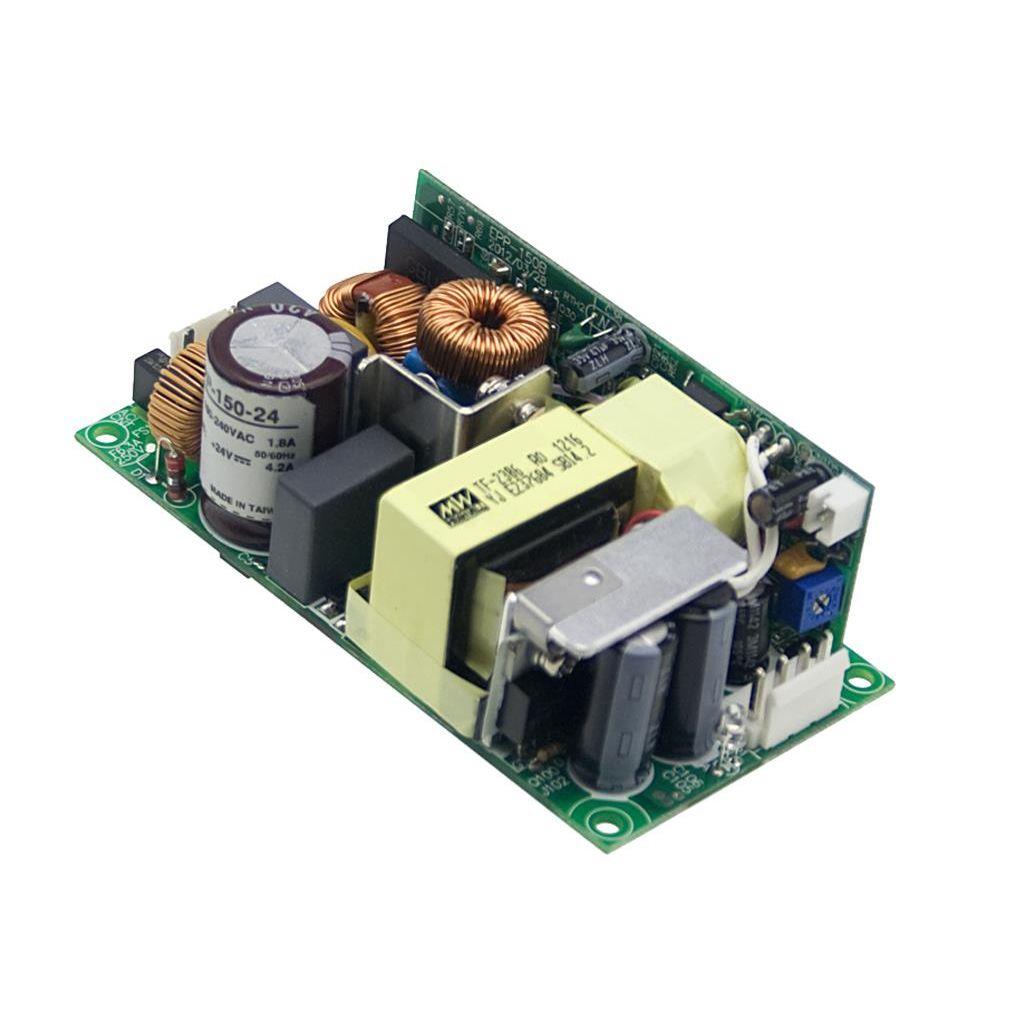

EPP-150-24

AC-DC Single output Open frame power supply; Output 24Vdc at 4.2A

MEAN WELL
