AC/DC Power Supplies

PIM60.125

PULS PIM60.125 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. This unit features a NEC Class 2 DC-OK relay contact output and provides a rated current of 2.5A at 24Vdc within -10 to +60°C and 1.9A at 24Vdc at +70°C. It offers push-in spring connections for ease of installation. The supply voltage (AC) ranges from 90Vac to 264Vac across various nominal voltages and frequencies, with specific input overvoltage and shutdown voltage parameters. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. Designed for single-phase (1AC) networks, it has a net width of 36 mm and delivers a rated power of 60W at -10 to +60°C, which derates linearly to 45.6W at +70°C. The output voltage (DC) is adjustable between 24Vdc and 28Vdc, with specific protection functions against overvoltage and overload/short-circuit conditions. It does not support series or parallel operation and is resistant to back-feeding loads. The efficiency rates are 0.918 and 0.907 for 230Vac and 120Vac inputs, respectively. Current consumption varies with input voltage, and the unit exhibits specific start-up delay, rise time, and hold time characteristics. Power dissipation/losses are detailed for different input conditions, and the electrical durability is specified across various operational conditions. The ripple is noted at 100mVpp, and the output stage capacitance is 900 µF.

Puls

UHP-1000-48

AC-DC Slim Single output enclosed power supply with PFC; Output 48Vdc at 21A; Remote ON/OFF and DC OK signal

MEAN WELL

S8AS-24006R

S8AS Smart Power Supply

Omron

EPS-35-5

AC-DC Single output Open frame power supply; Output 5Vdc at 6A

MEAN WELL

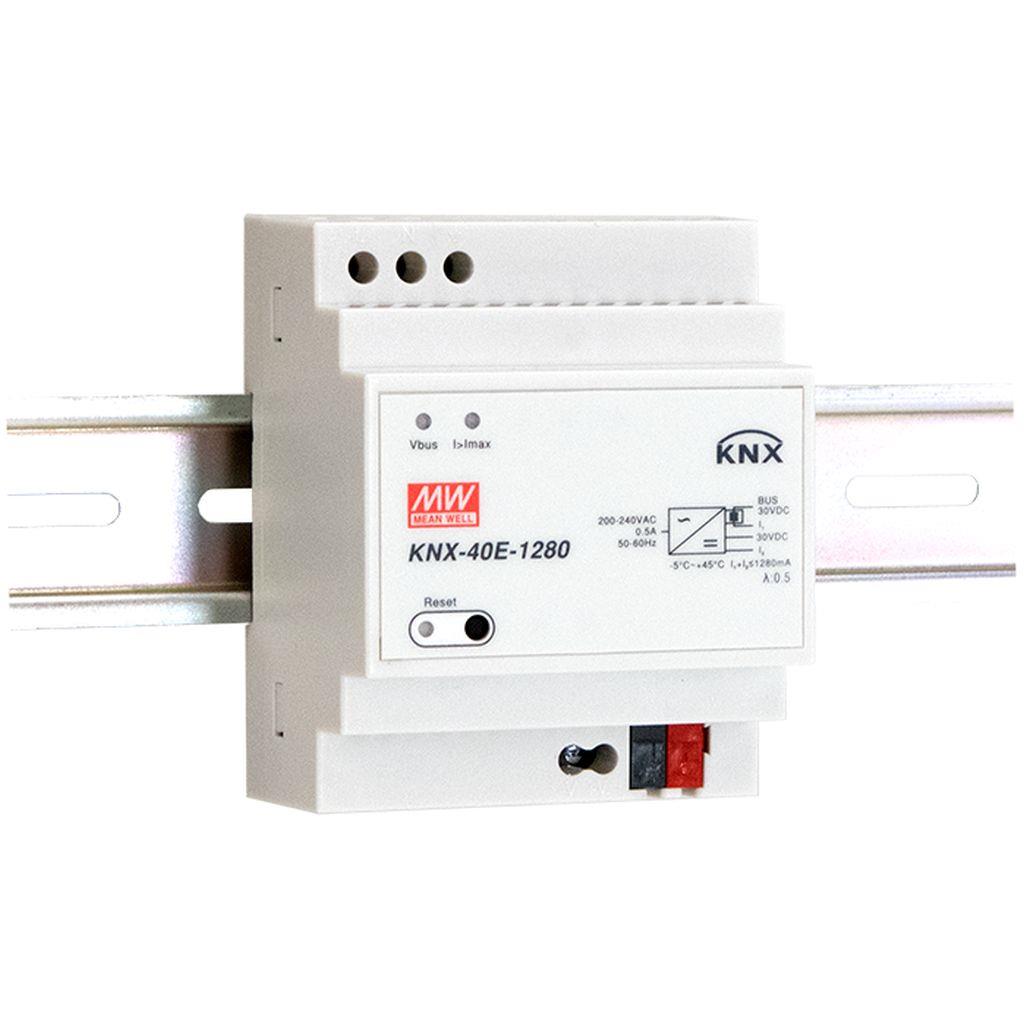

KNX-40E-1280D

AC-DC KNX EIB DIN rail power supply with integrated choke; Output 30Vdc at 1.28A; with diagnostic function

MEAN WELL

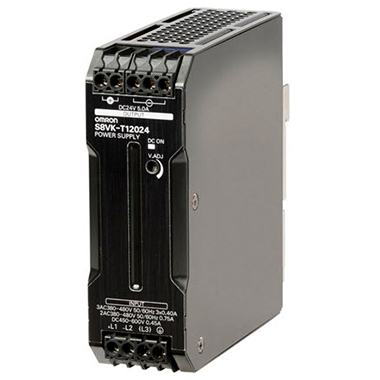

S8VK-T12024

S8VK-T Switch Mode Power Supply

Omron

PSP-1000-12

AC-DC Single output Enclosed power supply; Output 12Vdc at 75A; PFC + parallel; PSP-1000-12 is succeeded by RSP-1000-12.

MEAN WELL

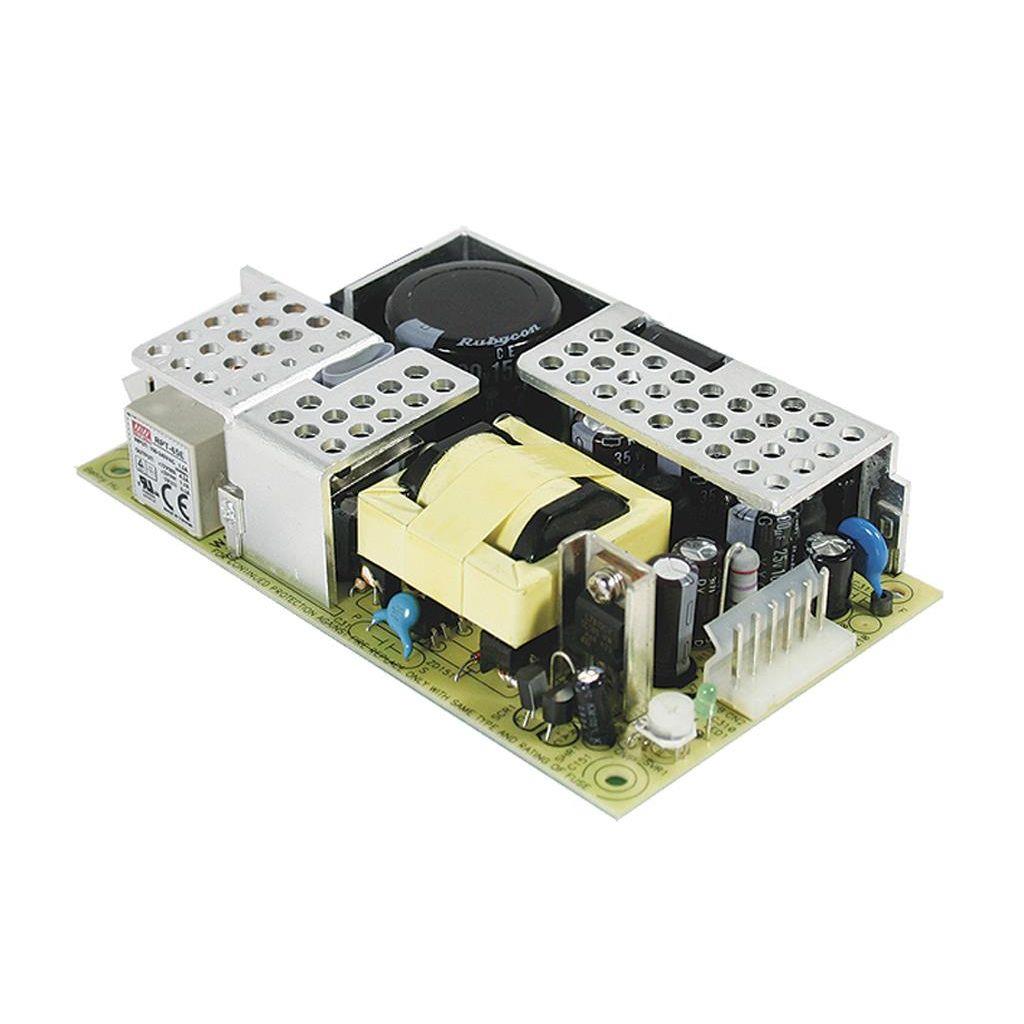

RPT-65F

AC-DC Triple output Open frame power supply; Output 12Vdc at 5.8A +5Vdc at 1.5A -12Vdc at 0.7A

MEAN WELL

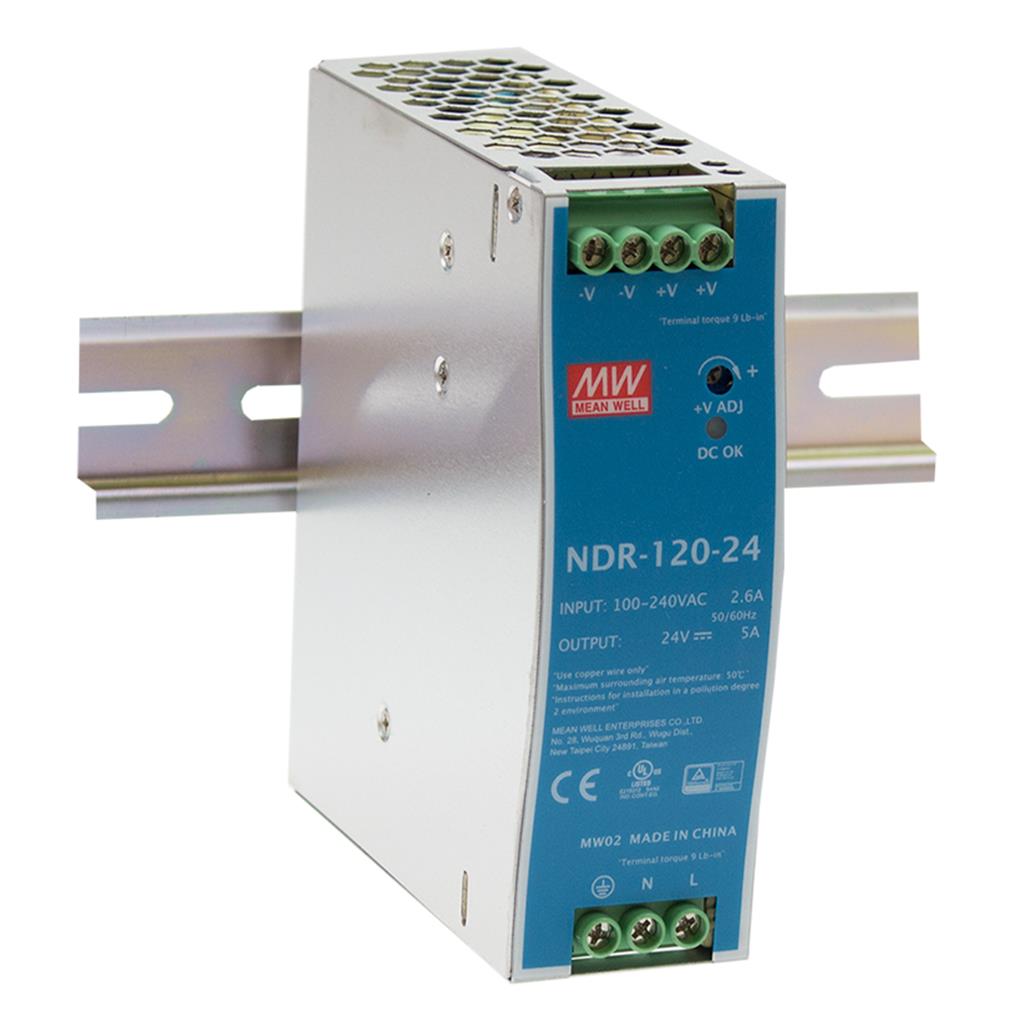

NDR-120-24

AC-DC Single output Industrial DIN rail power supply; Output 24Vdc at 5A; metal case

MEAN WELL

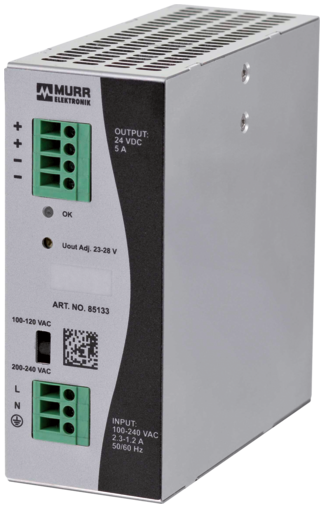

85133

85133 Murrelektronik - ECO-RAIL-2 POWER SUPPLY 1-PHASE, IN: 90 .. 132 VAC / 173 ... 264 VAC OUT: 24V/5ADC

Murr Elektronik

S8VK-T12024-400

S8VK-T Switch Mode Power Supply

Omron

RQ-85D

AC-DC Quad output enclosed power supply; Output 5Vdc at 10A +12Vdc at 4A +24Vdc at 1.5A -12Vdc at 1A

MEAN WELL

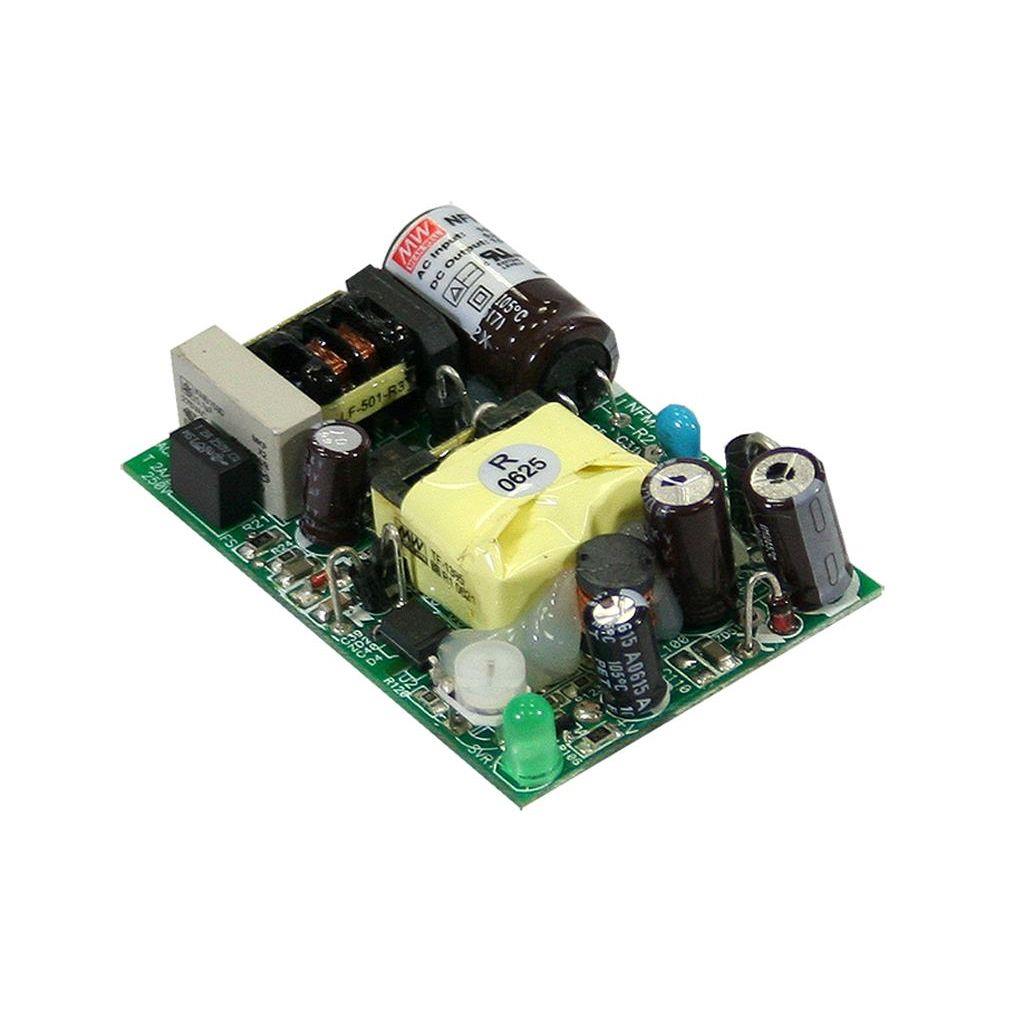

NFM-10-3.3

AC-DC Single output Medical Open frame power supply; Output 3.3Vdc at 2.5A; PCB mount; 2xMOPP; NFM-10-3.3 is succeeded by MFM-10-3.3.

MEAN WELL

85071

85071 Murrelektronik - MCS POWER SUPPLY 3-PHASE, IN: 360-550VAC OUT: 24-28V/10ADC

Murr Elektronik

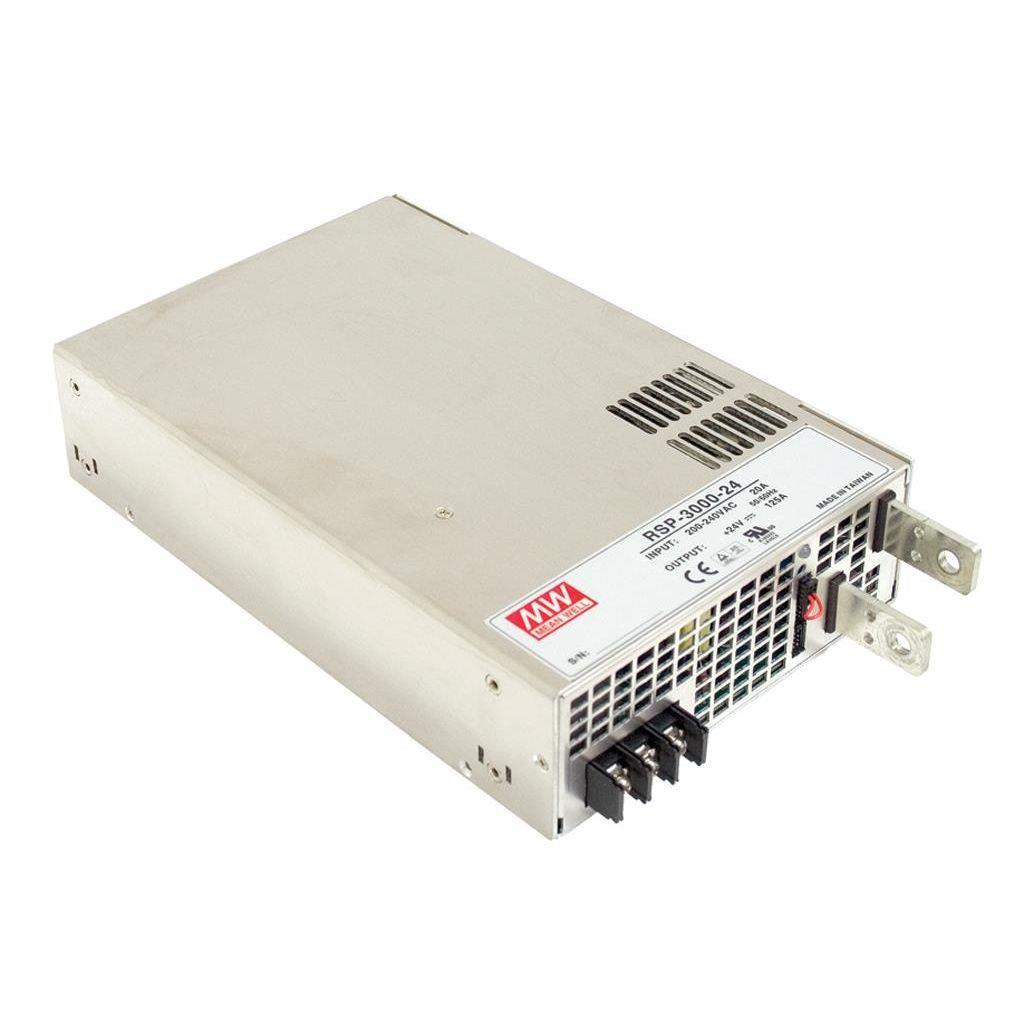

RSP-3000-12

AC-DC Single Output Enclosed power supply; Output 12VDC Single Output at 200A; PFC; forced air cooling

MEAN WELL

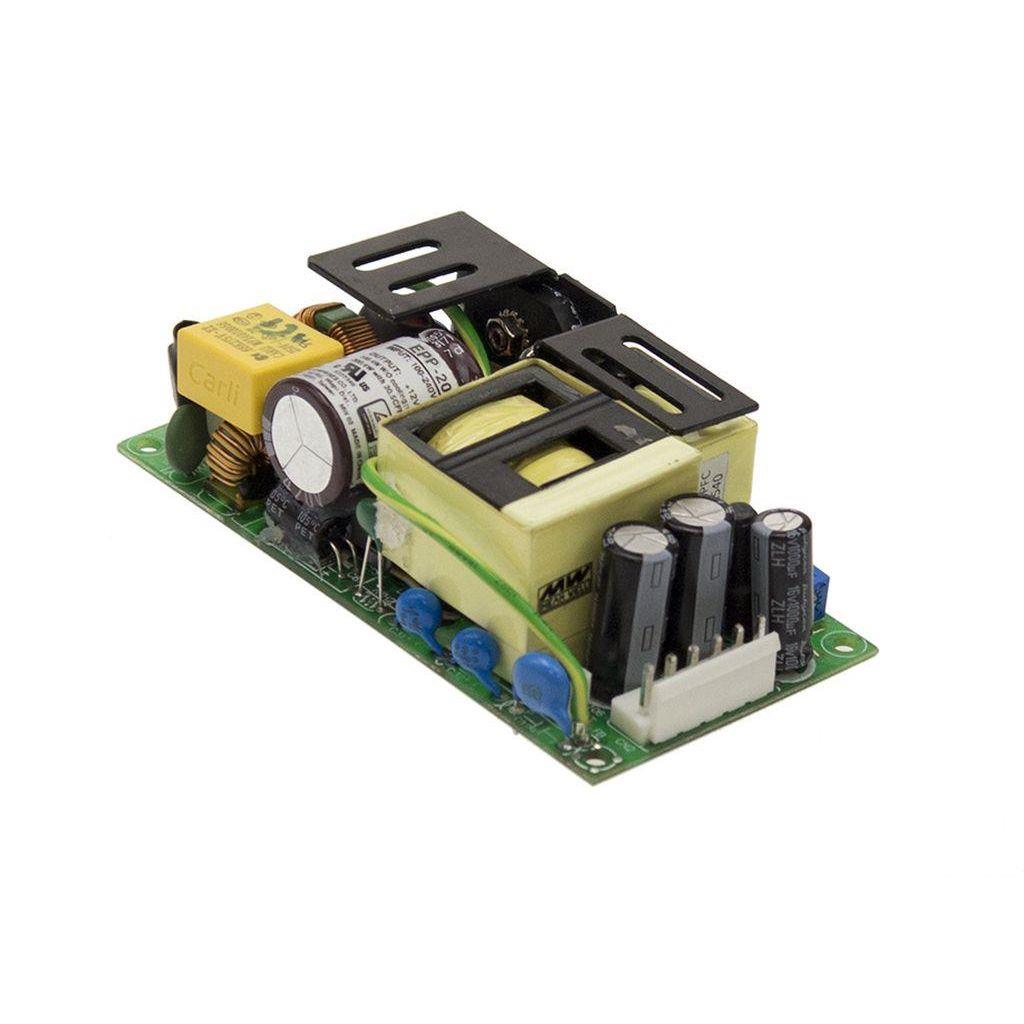

EPP-200-48

AC-DC Single output Open frame power supply; output 48Vdc at 3A

MEAN WELL

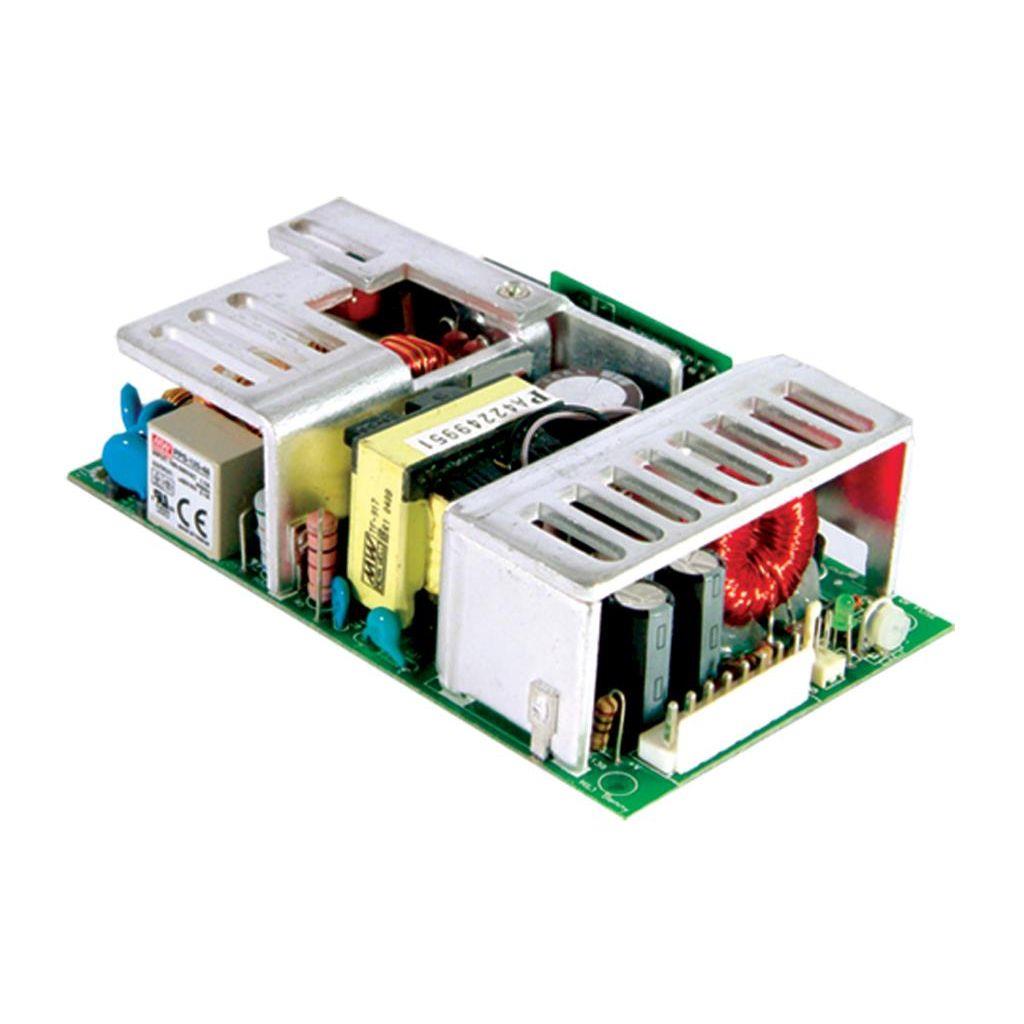

PPT-125A

AC-DC Triple output Open frame power supply; Output 3.3Vdc at 12.5A +5Vdc at 10A +12Vdc at 0.63A

MEAN WELL

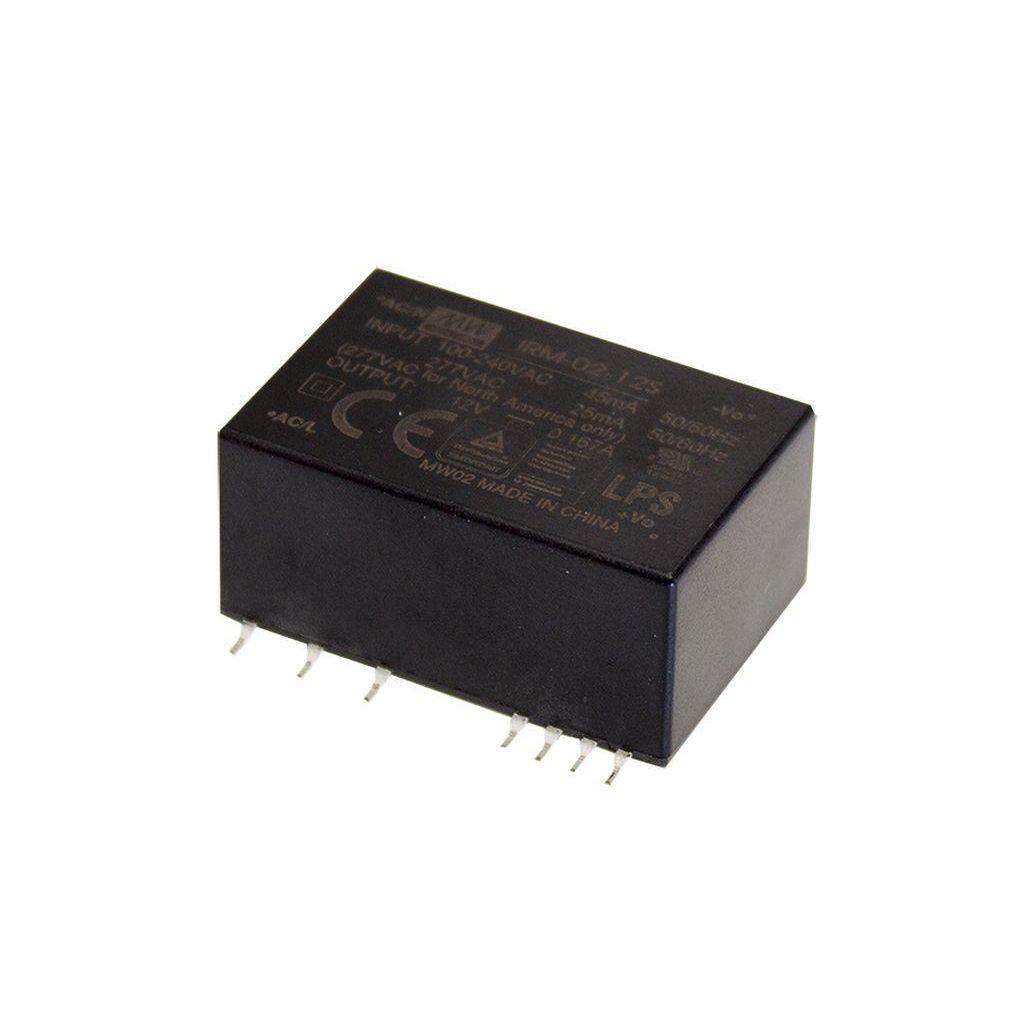

IRM-02-24S

AC-DC Single Output Encapsulated power supply, SMD; Input range 85-305VAC; Output 24VDC at 0.083A; Compact size

MEAN WELL

S8FS-G10024CE

S8FS-G Switch Mode Power Supply

Omron

PSL130024

PSL130024 Lovato - DIN rail switching power supply, single-phase. 24VDC, 12.5A/300W

Lovato Electric
