AC/DC Power Supplies

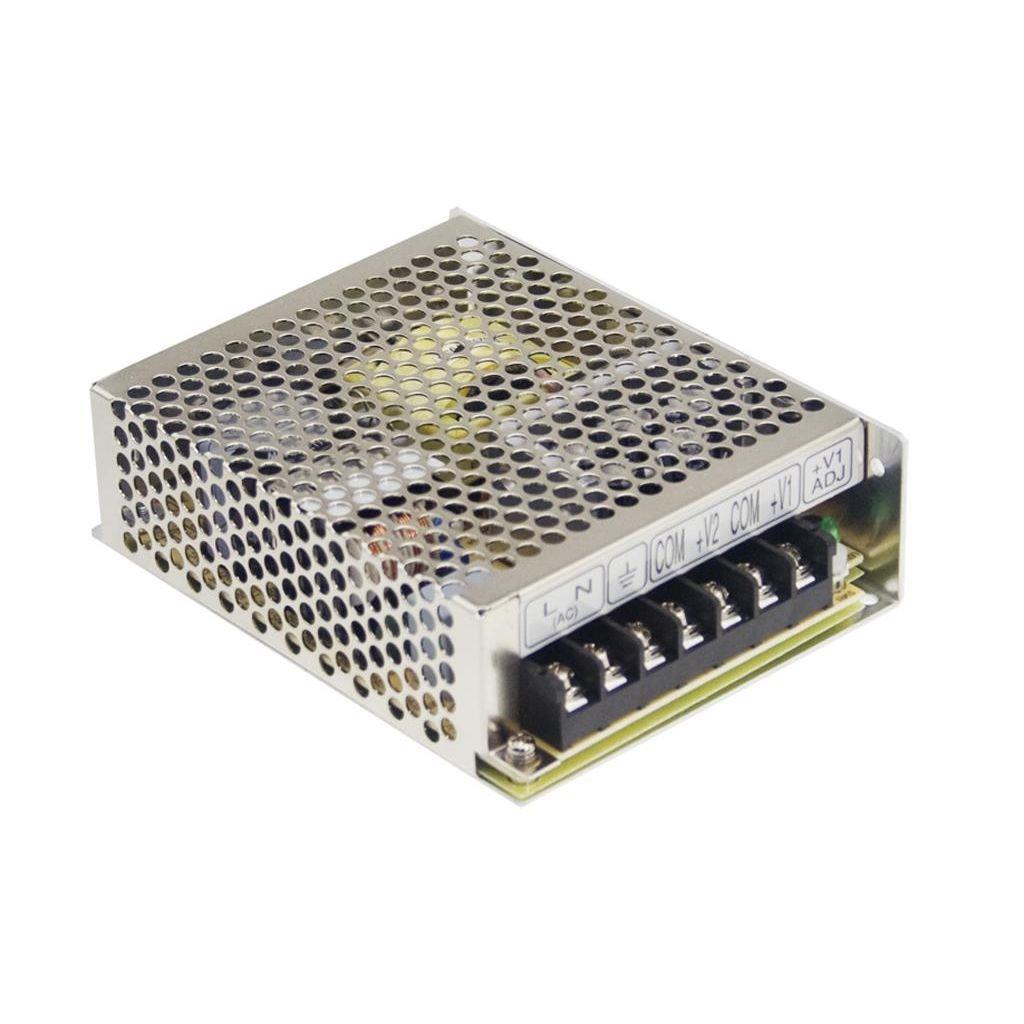

RT-125D

AC-DC Triple output enclosed power supply; Output +5Vdc at 8A +24Vdc at 3A +12Vdc at 2A

MEAN WELL

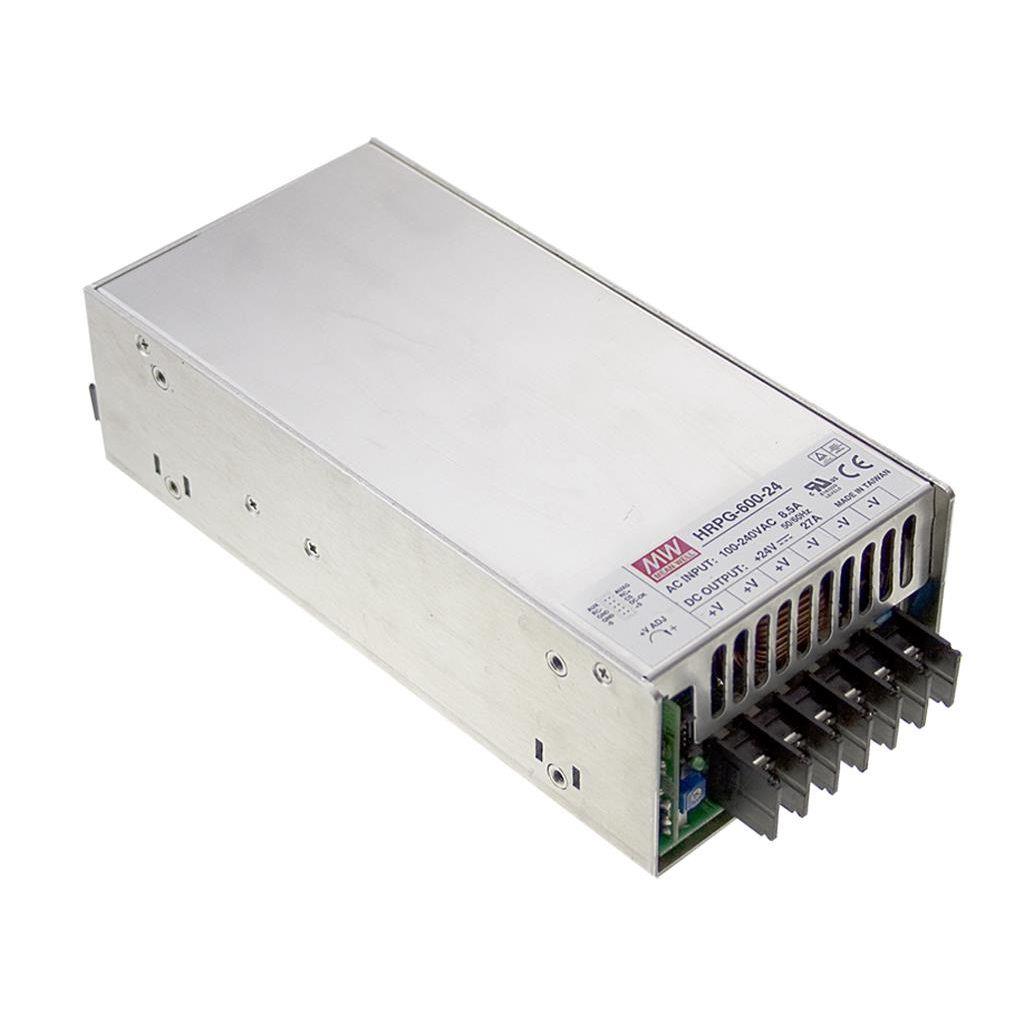

HRPG-600-48

AC-DC Single output enclosed power supply; Output 48Vdc at 13A; fan cooling; remote on/off + 5Vdc at 0.3A standby

MEAN WELL

CPS20.241

PULS CPS20.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit consumes 2.33A with a 230Vac input, 4.36A with a 120Vac input, and 5.25A with a 100Vac input for full 24Vdc output, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It offers an IP20 degree of protection and achieves an efficiency of 0.94 at 230Vac input, 0.927 at 120Vac input, and 0.92 at 100Vac input. The dimensions are W65mm x H124mm x D127mm. The CPS20.241 has a start-up delay of 850ms across 100-230Vac inputs, with rise times of 85ms and 150ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 30.6W, and the output stage capacitance is 7000µF. Electrical durability varies with conditions, reaching up to 475000 hours. Ripple is maintained at 50mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads, and provides a rated current of 20A at 24Vdc, with a rated power of 576W under PowerBoost conditions and 480W otherwise. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot, and it maintains a hold time of 26ms.

Puls

87156

87156 Murrelektronik - ECO-POWER 6.5-100-240/24

Murr Elektronik

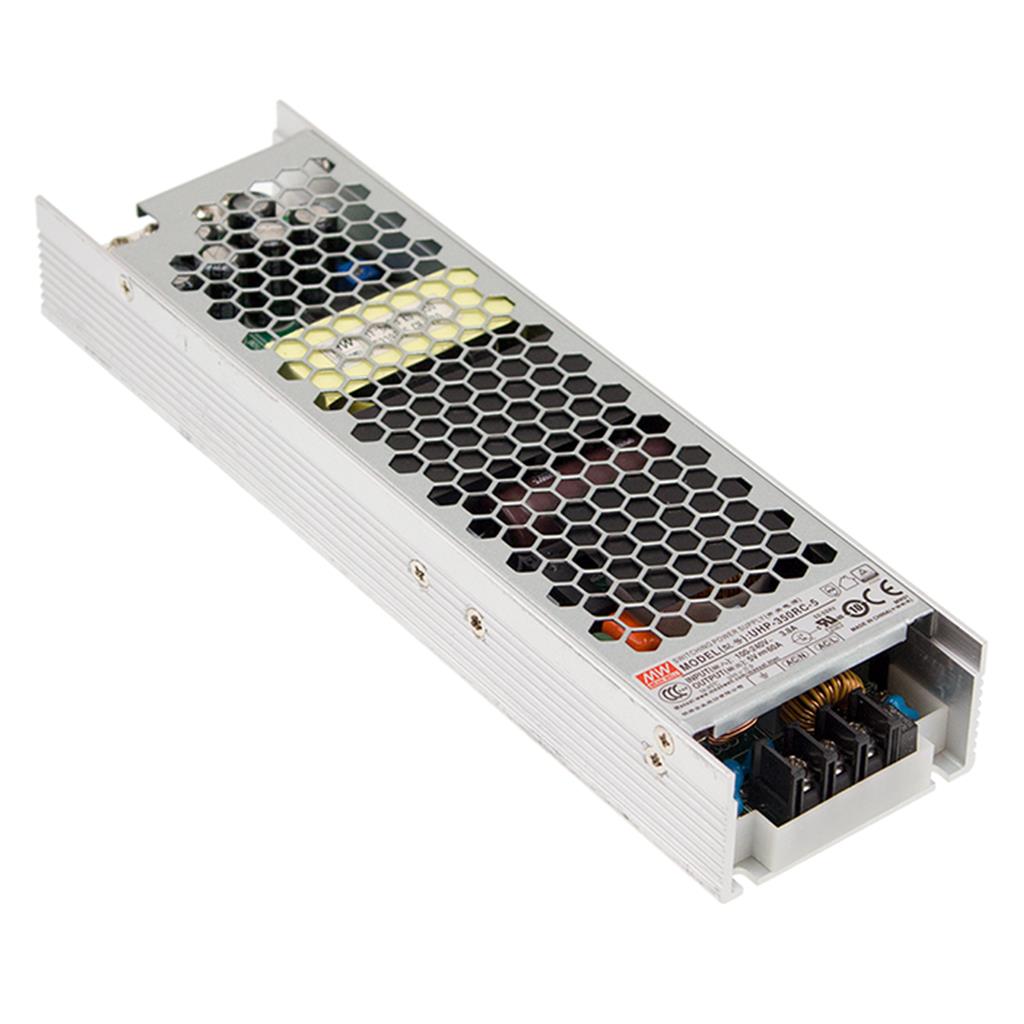

UHP-350-55

AC-DC Slim Single output enclosed power supply with PFC; Output 55VDC at 6.3A

MEAN WELL

RS-75-5

AC-DC Single Output Enclosed power supply; Output 5VDC Single Output at 12A; free air convection

MEAN WELL

QT40.481

PULS QT40.481 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It supports DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit features a design that includes a 50% power reserve and a DC-OK relay contact output. It offers a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a power derating applicable from 24W at +60°C to +70°C. The QT40.481 utilizes screw-clamp connections for its inputs and outputs and is designed to work with a supply voltage (AC) ranging from 323Vac to 576Vac across various nominal voltages, accommodating a wide range of 3-phase inputs. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W110mm x H124mm x D127mm. This unit is compatible with 3-phase networks and has a net width of 110 mm. Its rated power is 960W at both 48Vdc and 54Vdc, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 54Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The QT40.481 supports series or parallel operation for increased output power and is resistant to back-feeding loads up to 63V. It boasts high efficiency rates of 0.952 and 0.954 for 3x480Vac and 3x400Vac inputs, respectively. Peak inrush current consumption is capped at 6A for both 3x400Vac and 3x480Vac inputs. The unit exhibits a start-up delay of 500-600s and rise times of 23ms and 47ms under specified conditions, with a hold time of 25ms. Power dissipation losses are noted at 48.4W and 46.3W for full output loads at 3x480Vac and 3x400Vac inputs, respectively. Its electrical durability spans up to 324000 hours at 25°C and 10A output for a 3AC 400Vac input, with varying durability at different temperatures and outputs. The ripple is specified at 150mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 3700 µF.

Puls

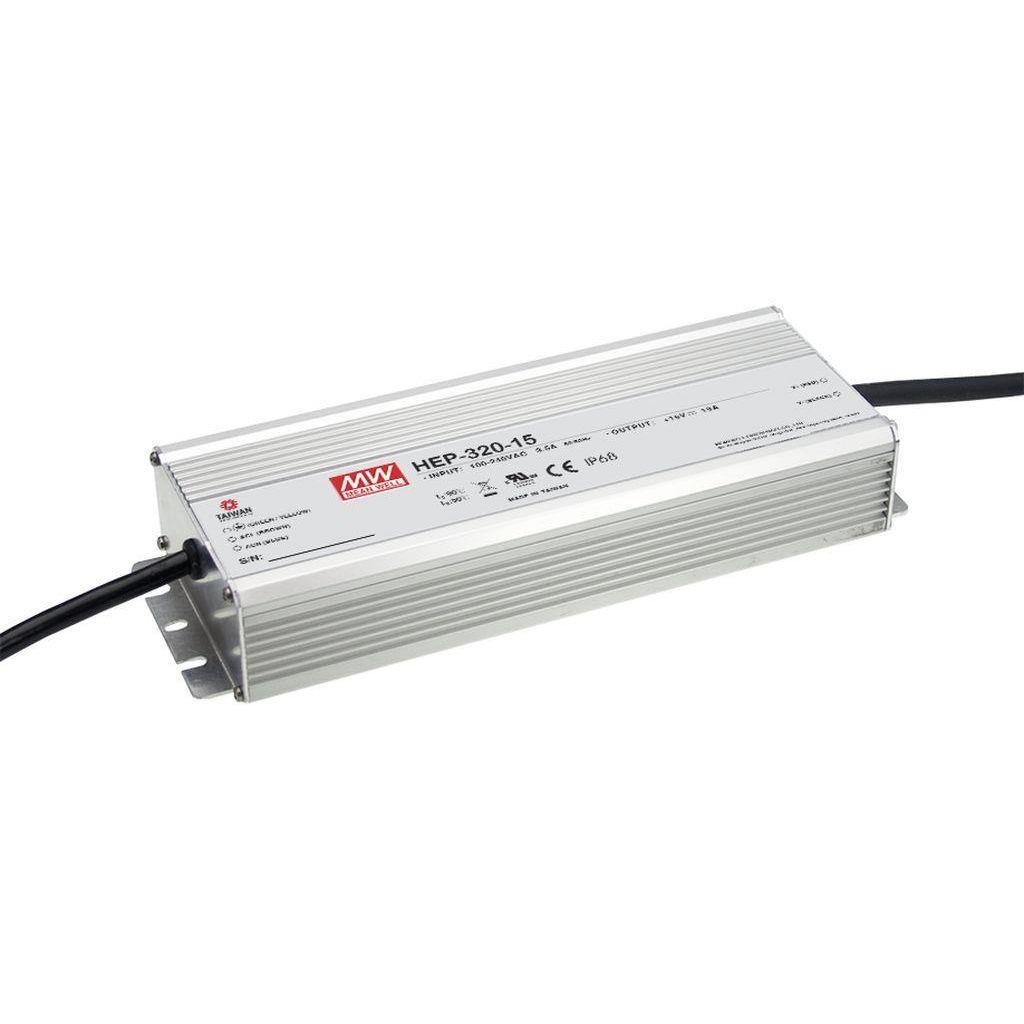

HEP-320-12A

AC-DC Single output industrial power supply with PFC; Output 12Vdc at 22A; Vo-Io adjust with Potentiometer; Withstand up to 10G Vibration

MEAN WELL

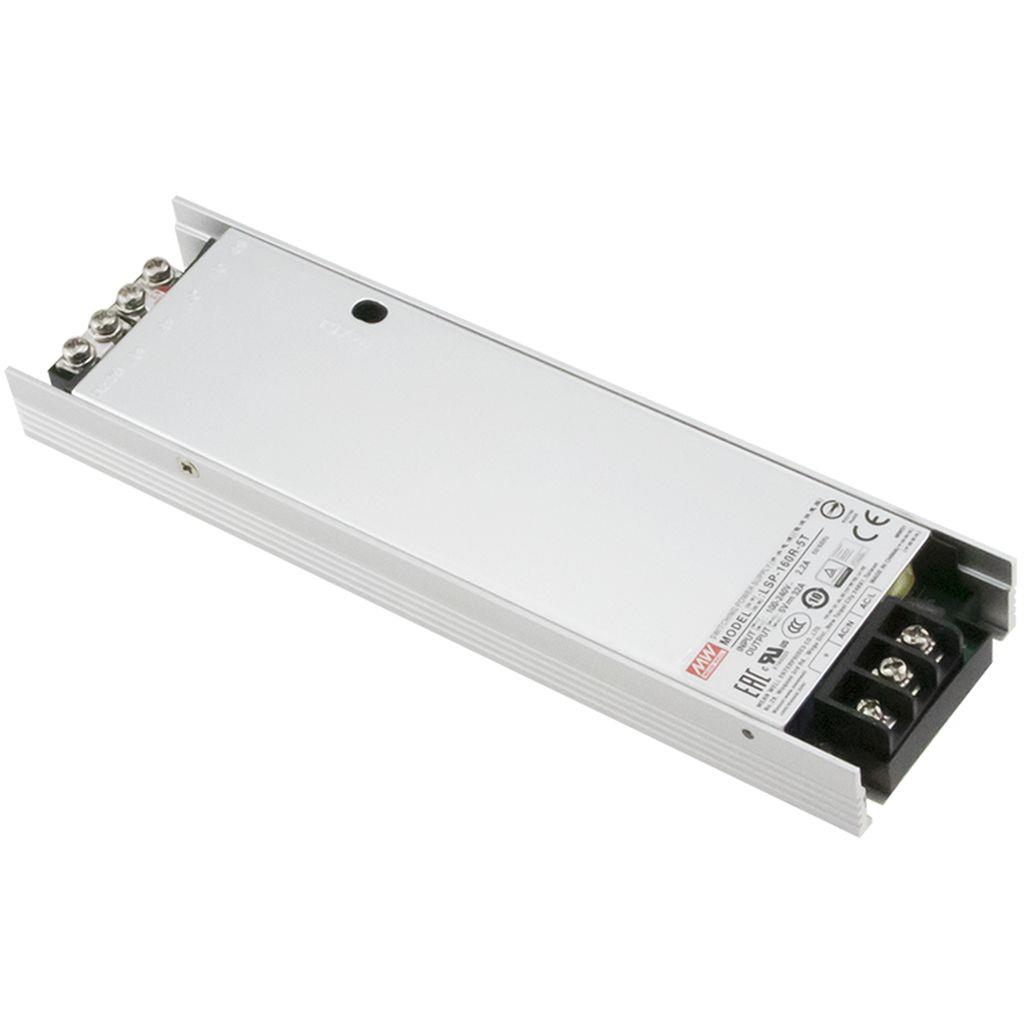

LSP-160-5W

AC-DC Slim Single output enclosed power supply with PFC; Output 5Vdc at 32A with Wafer connector; DC OK signal

MEAN WELL

85926

85926 Murrelektronik - MPL POWER SUPPLY 3-PHASE, UNSMOOTHED, IN: 3x380/400/420VAC OUT: 24VDC/15ADC

Murr Elektronik

SL30.300

Power Supply, 720W, 380-480VAC 3PH, 24-28VDC, 30-26A

Puls

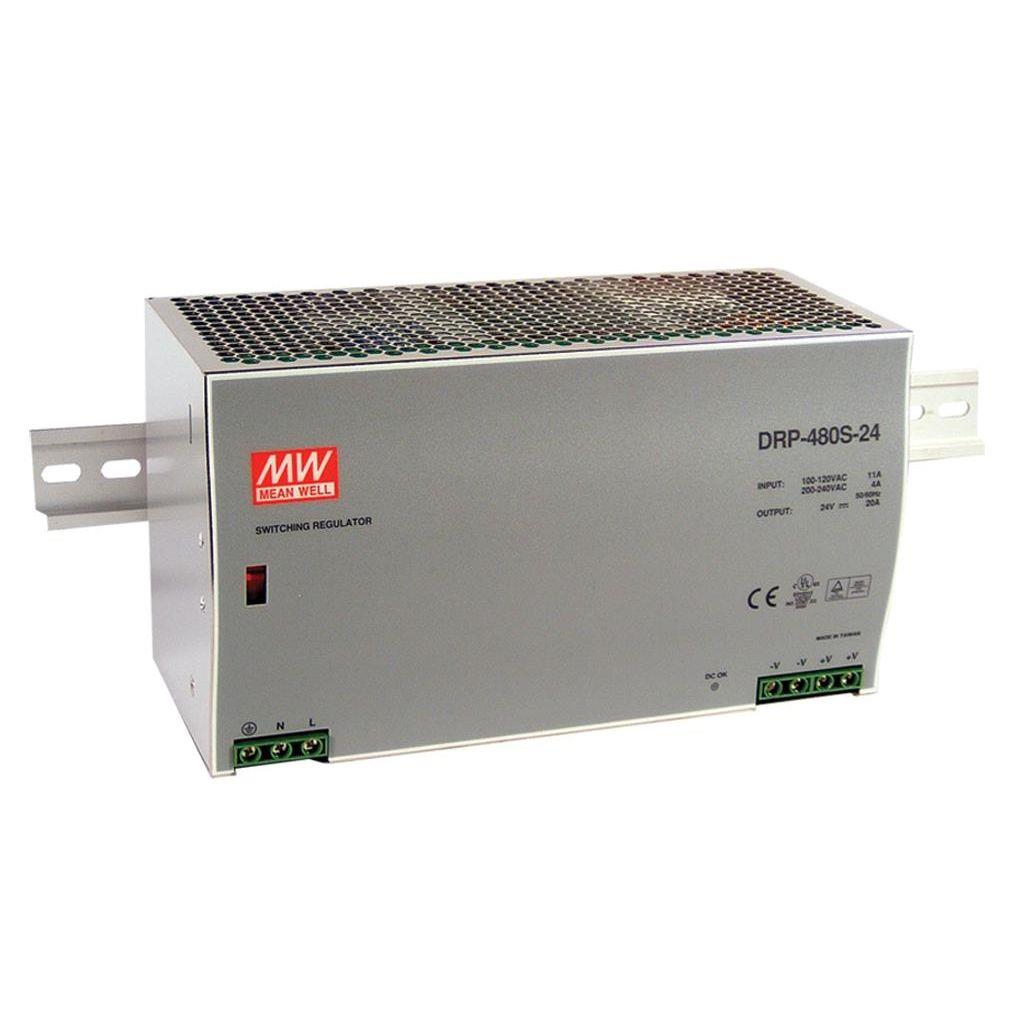

DRP-480S-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 20A; metal case; EU input only; DRP-480S-24 is succeeded by NDR-480-24.

MEAN WELL

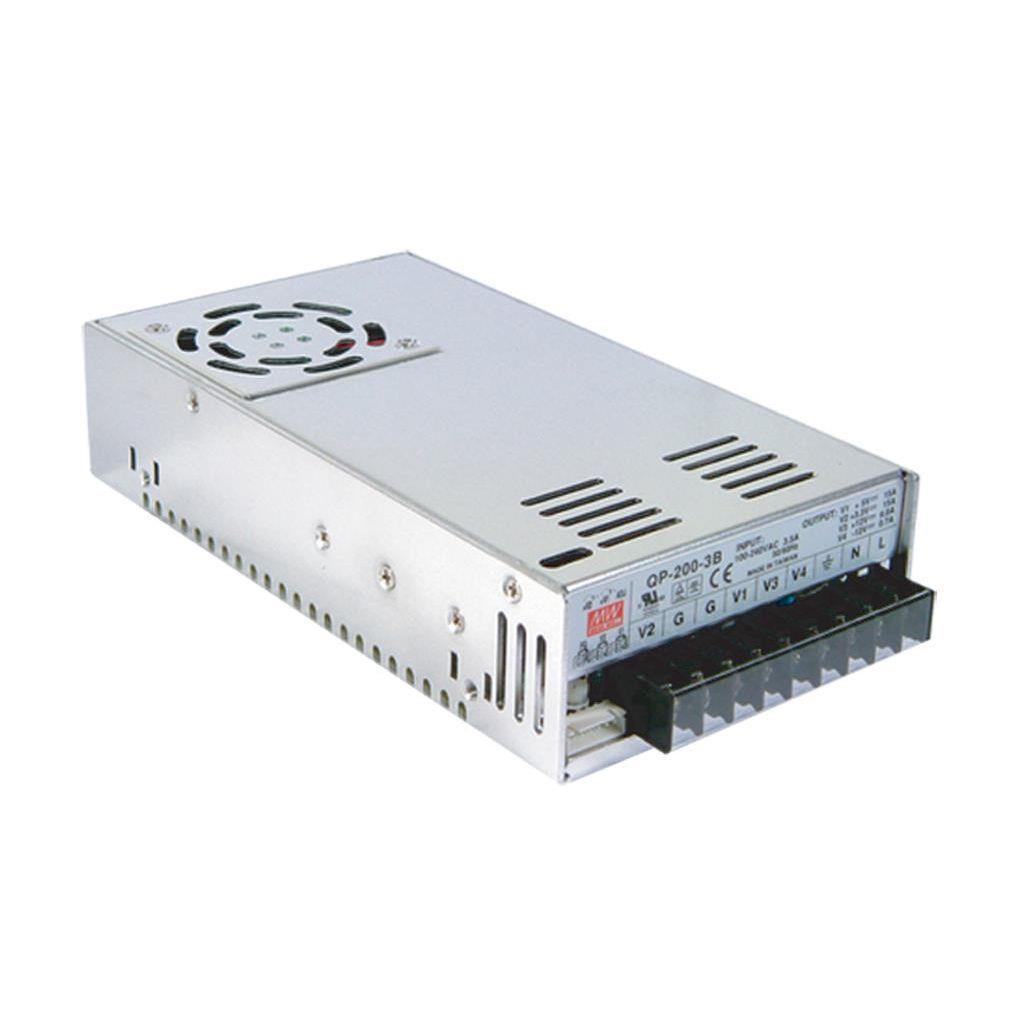

QP-200-3B

AC-DC Quad output enclosed power supply; Output 5Vdc at 20A +3.3Vdc at 20A +12Vdc at 8A -12Vdc at 1A; QP-200-3B is succeeded by UMP-400-24.

MEAN WELL

PSL1M06024

PSL1M06024 Lovato - Modular switching power supply, single-phase. 24VDC, 2.5A/60W

Lovato Electric

S8VK-T24024-400

S8VK-T Switch Mode Power Supply

Omron

PM-15-15

AC-DC Single output Medical Encapsulated power supply; Output 15Vdc at 1A; PCB mount; 2xMOPP; PM-15-15 is succeeded by MPM-15-15.

MEAN WELL

LPS-75-3.3

AC-DC Single output Open frame power supply; Output 3.3Vdc at 15A

MEAN WELL

MFM-20-24

AC-DC Single output Medical Open frame power supply; Output 24Vdc at 0.9A; PCB mount; 2xMOPP

MEAN WELL

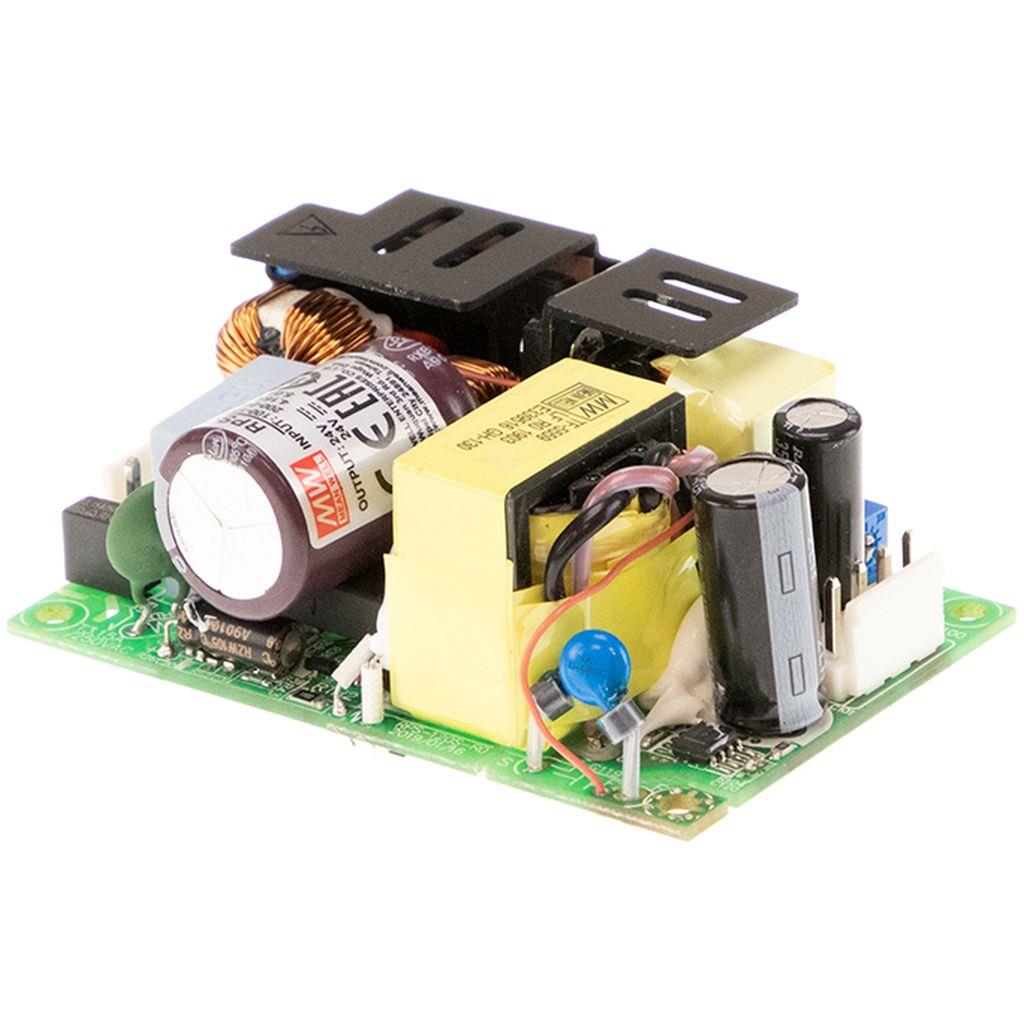

EPP-120S-12

AC-DC Single output Open frame power supply with PFC; Output 12Vdc at 11.8A; compact size 3x2 inch

MEAN WELL

S8VK-X12024-EIP

S8VK-X Switch Mode Power Supply

Omron
