AC/DC Power Supplies

PIM60.121

PULS PIM60.121 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C, and features a NEC Class 2 DC-OK relay contact output. The unit provides a rated current of 2.5A at 24Vdc within -10 to +60°C and 1.9A at 24Vdc at +70°C, utilizing screw-clamp connections. It supports a supply voltage range of 90Vac-264Vac across various nominal voltages and frequencies, with specific input overvoltage and turn-on/shutdown voltages detailed. The PIM-series part measures W36mm x H90mm x D91mm, has an IP20 protection degree, and is housed in polycarbonate. Designed for single-phase networks, it offers a rated power of 60W at -10 to +60°C and 45.6W at +70°C, with an adjustable output voltage of 24Vdc-28Vdc. Protection functions include output overvoltage and overload/short-circuit protection, with specified current limits and conditions for back-feeding loads. The unit's efficiency rates are 0.918 and 0.907 for 230Vac and 120Vac inputs, respectively, with detailed current consumption, inrush peaks, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance specifications.

Puls

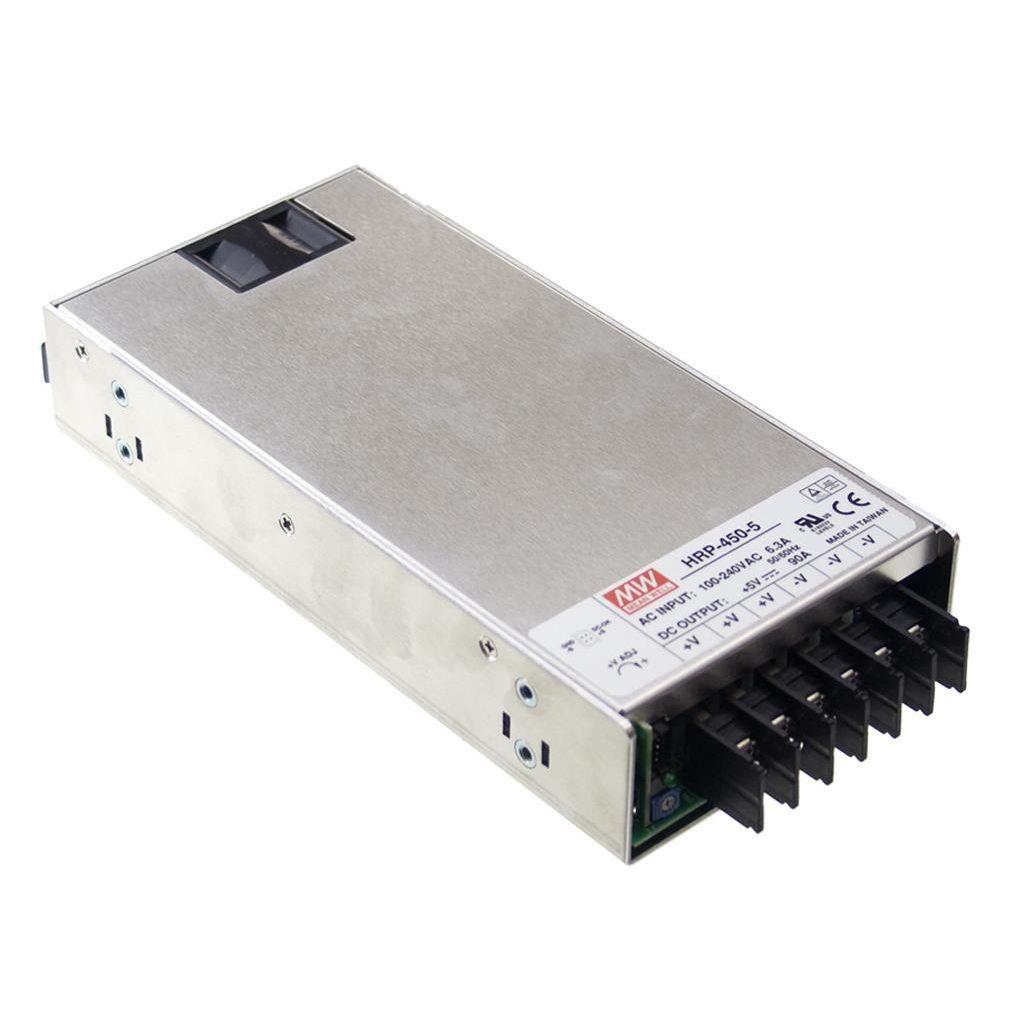

HRP-450-48

AC-DC Single output enclosed power supply; Output 48Vdc at 9.5A; 1U low profile; fan cooling

MEAN WELL

RSP-75-12

AC-DC Single Output Enclosed power supply; Output 12VDC Single Output at 6.3A; PFC; free air convection; Ultra low profile 30mm

MEAN WELL

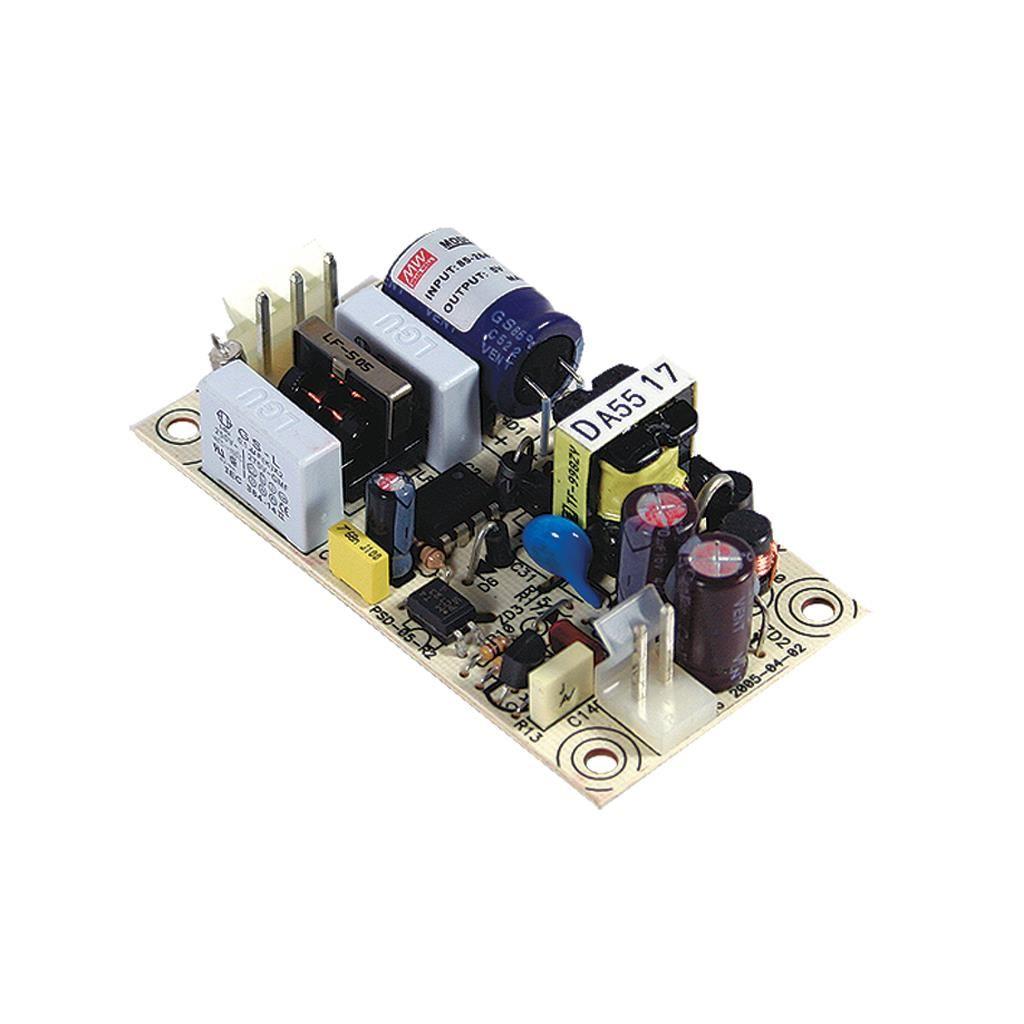

PS-05-5

AC-DC Single output Open frame power supply; Output 5Vdc at 1A

MEAN WELL

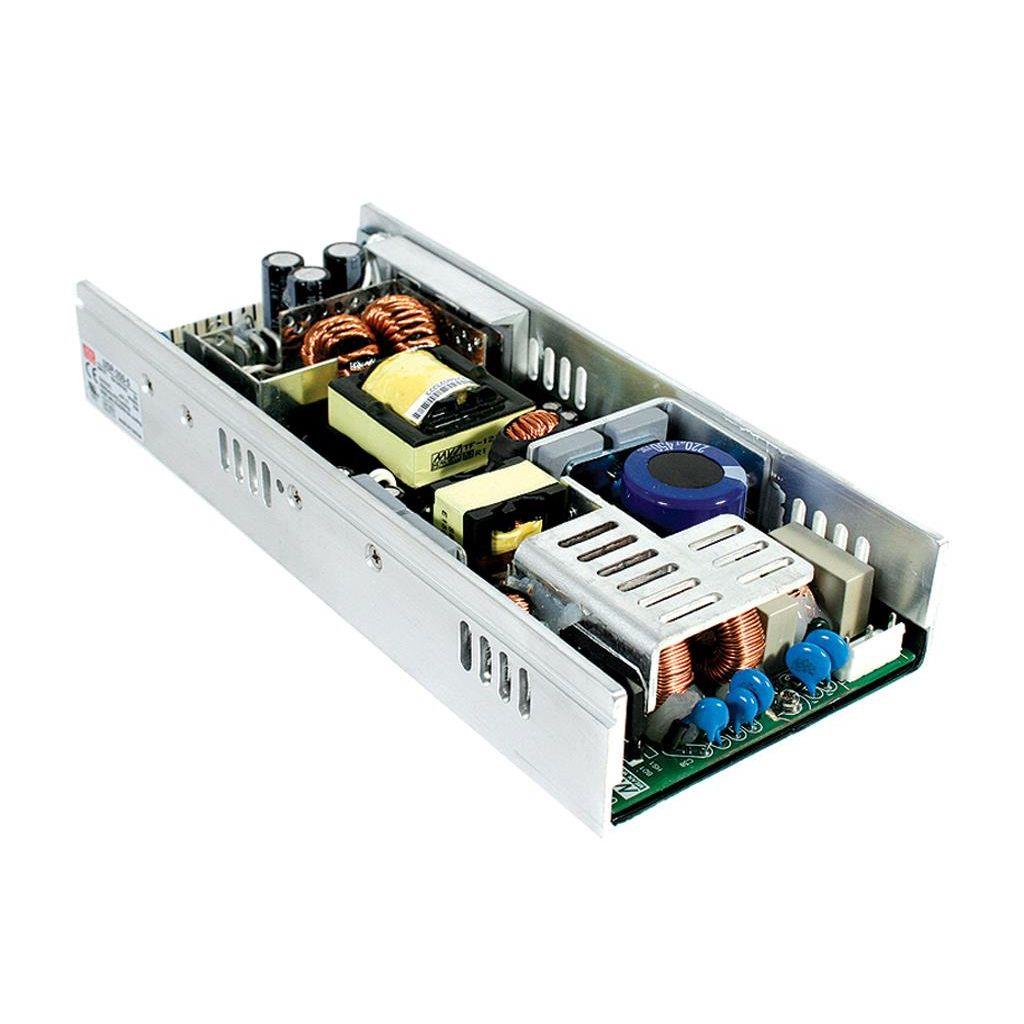

USP-350-12

AC-DC Single output power supply; Output 12Vdc at 29.2A; U-bracket low profile format 38mm; USP-350-12 is succeeded by UHP-350-12.

MEAN WELL

PSP-500-13

AC-DC Single output Enclosed power supply; Output 13.5Vdc at 37A; PFC + parallel; PSP-500-13 is succeeded by PSP-600-13.5.

MEAN WELL

D-60A

AC-DC Dual output enclosed power supply; Output CH1 5Vdc at 4A CH2 12Vdc at 3A; D-60A is succeeded by RD-65A.

MEAN WELL

RPS-400-18-C

AC-DC Open frame Medical power supply; Output 18Vdc at 22.3A; EN60601 2xMOPP; with case

MEAN WELL

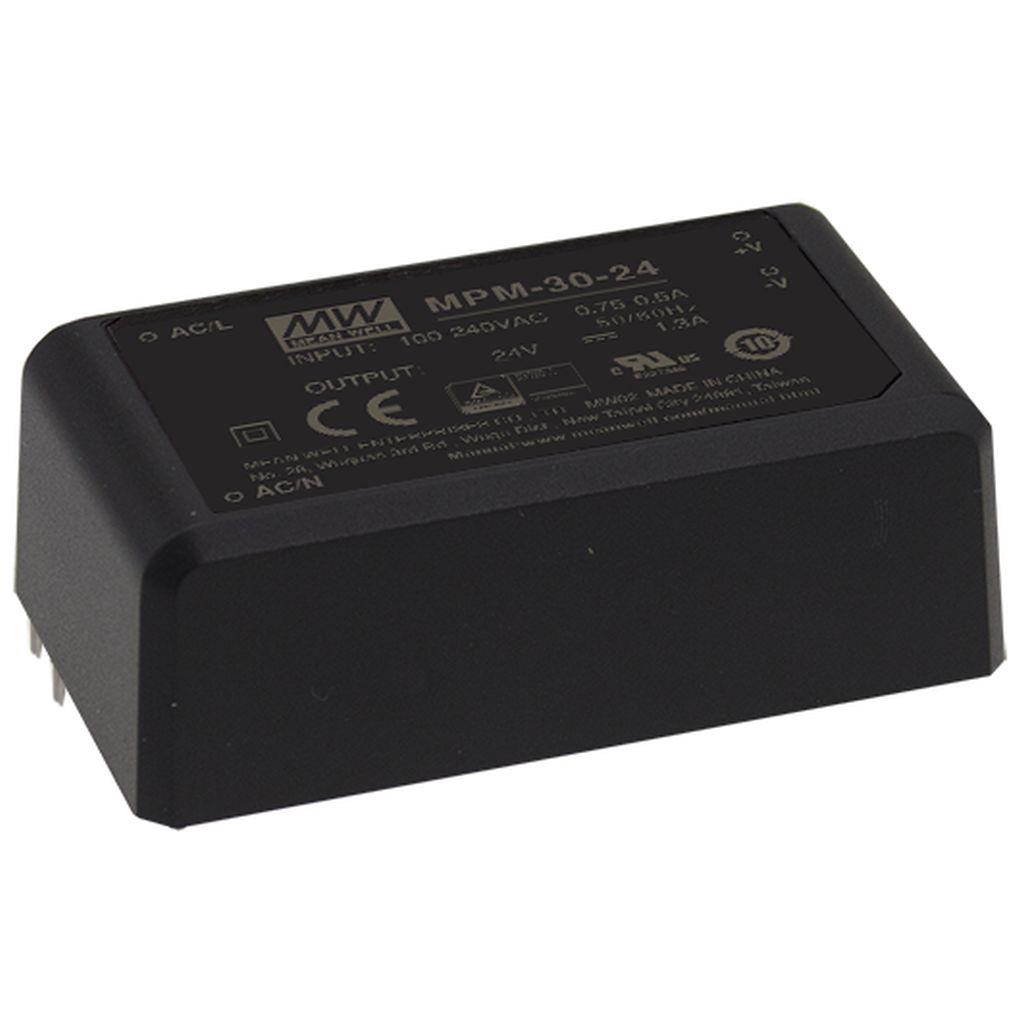

MPM-30-3.3

AC-DC Single output Medical Encapsulated power supply; Output 3.3Vdc at 6A; PCB through hole; 2xMOPP

MEAN WELL

MDR-40-12

AC-DC Industrial DIN rail power supply; Output 12Vdc at 3.33A; plastic case

MEAN WELL

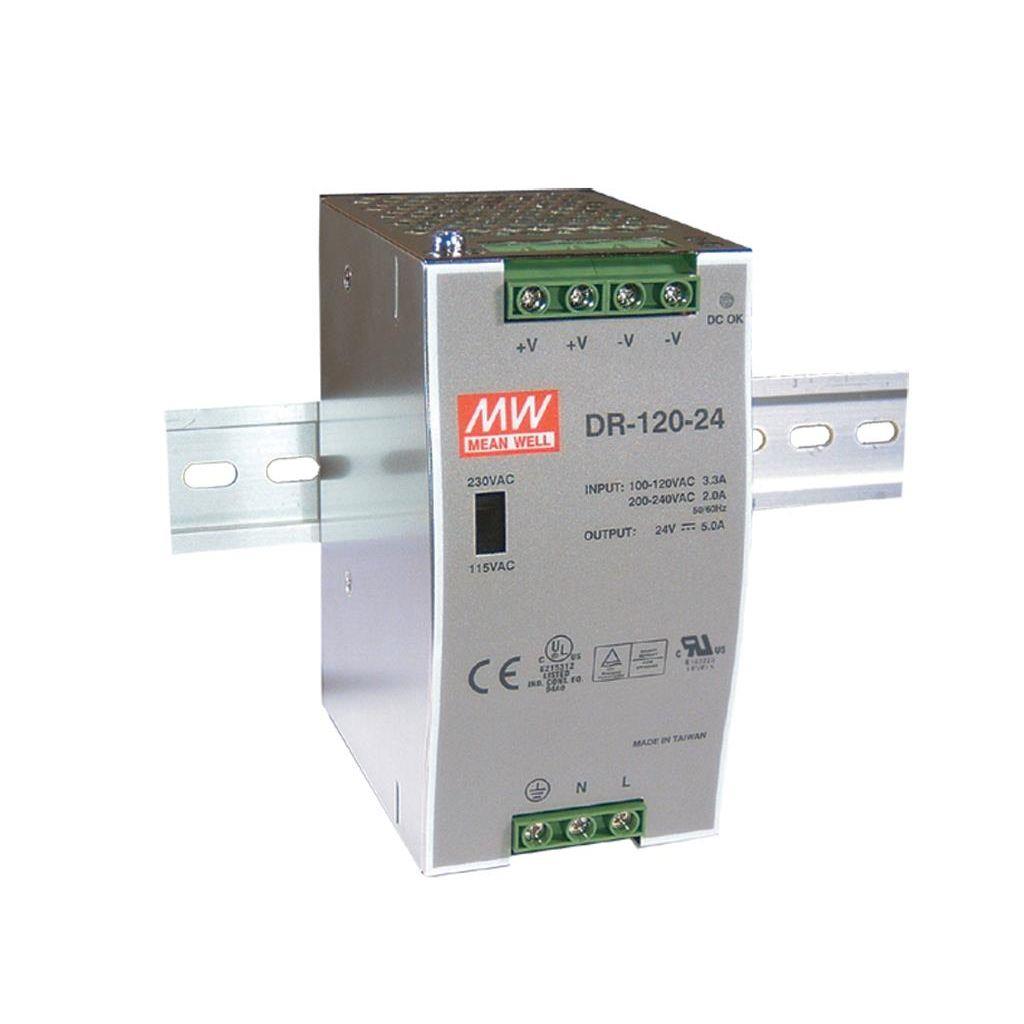

DR-120-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 2.5A; metal case; DR-120-48 is succeeded by NDR-120-48.

MEAN WELL

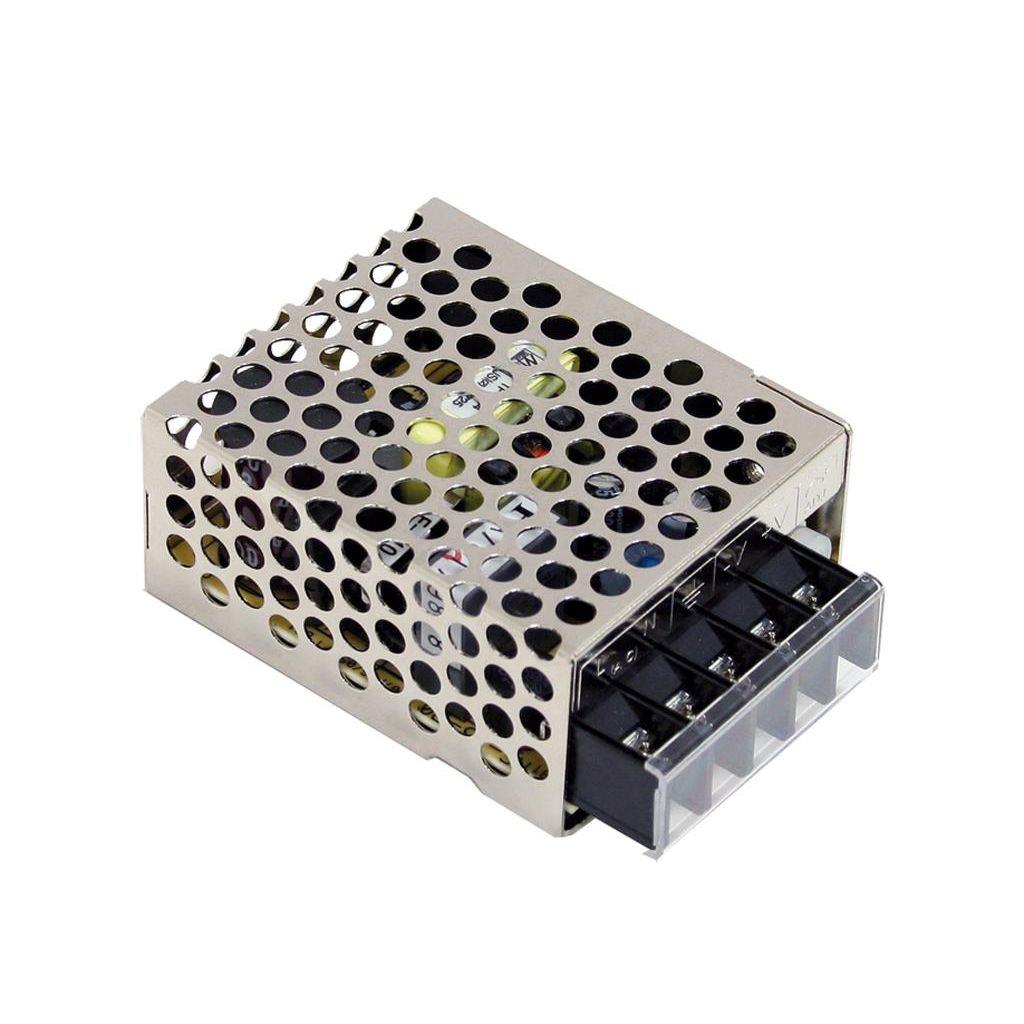

RS-15-24

AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 0.7A; free air convection

MEAN WELL

WDR-120-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 5A; metal case; Ultra wide input 180-550Vac for single and two phase mains network

MEAN WELL

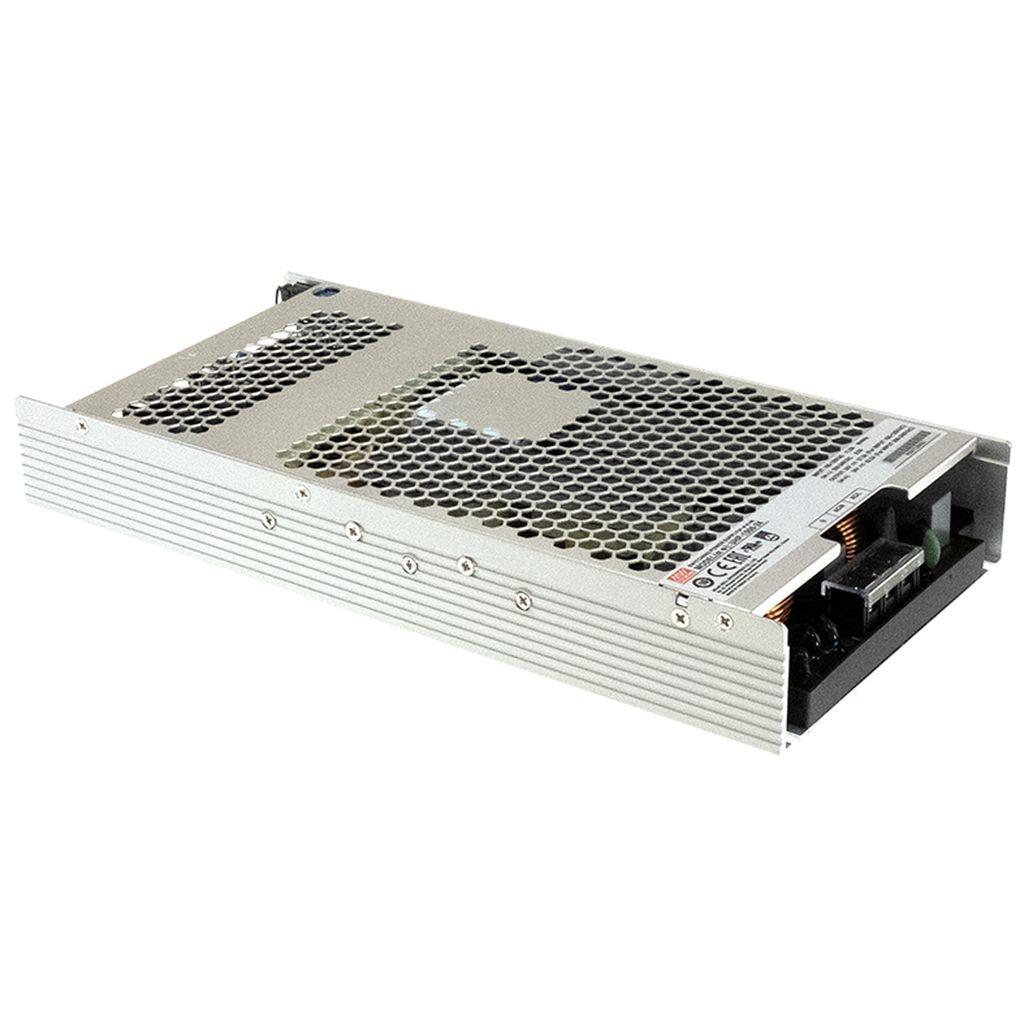

UHP-1500-48-CAN

AC-DC Slim Single output enclosed power supply with PFC; Output 48Vdc at 31.5A; Remote ON/OFF and DC OK signal; protocol CANBus

MEAN WELL

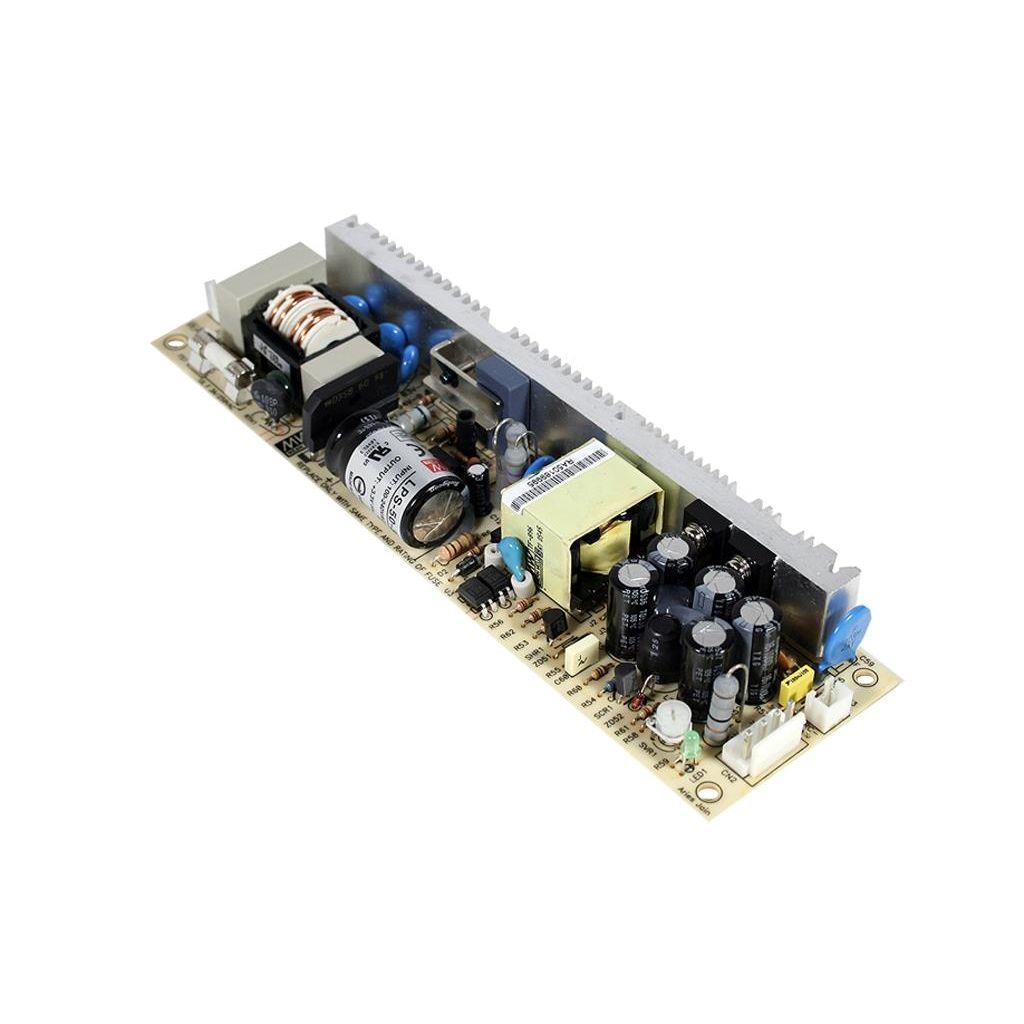

LPS-50-3.3

AC-DC Single output Open frame power supply; Output 3.3Vdc at 10A

MEAN WELL

MPM-15-5

AC-DC Single output Medical Encapsulated power supply; Output 5Vdc at 3A; PCB through hole; 2xMOPP

MEAN WELL

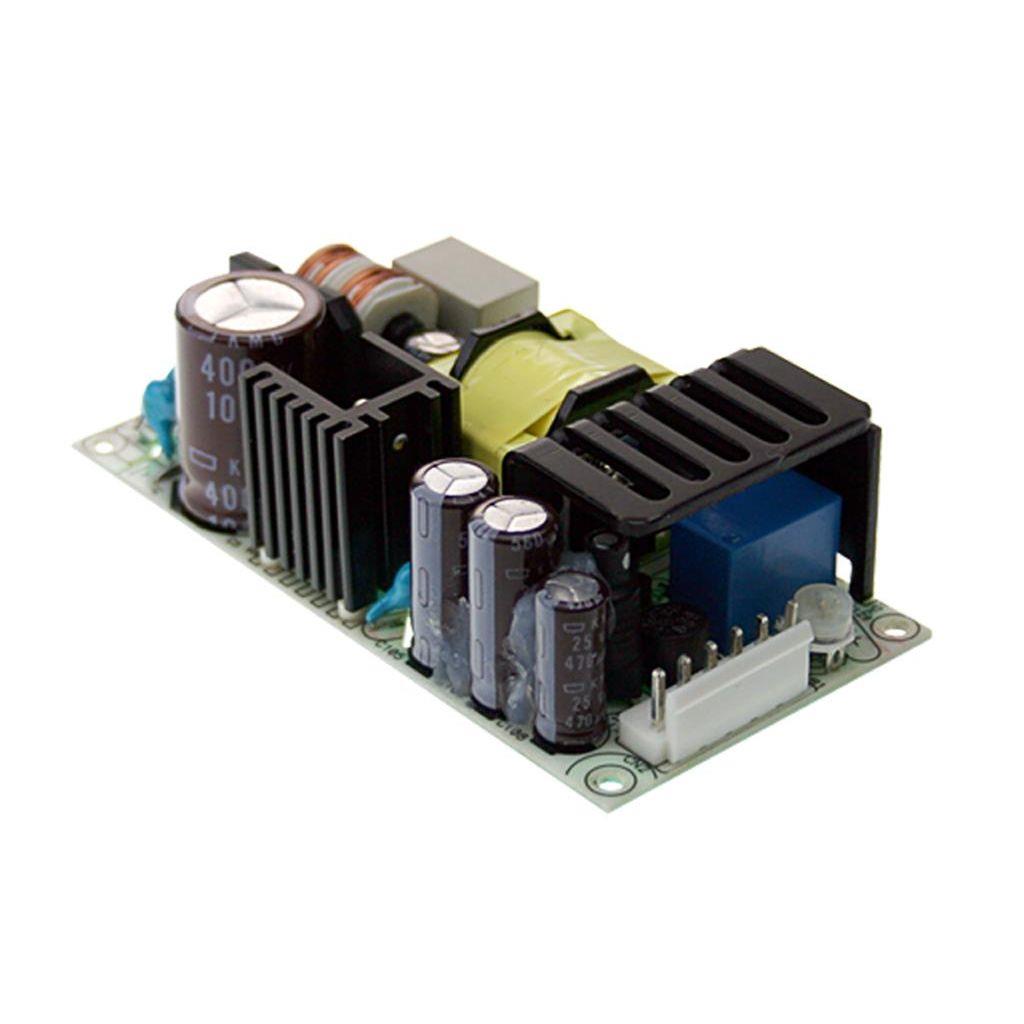

PSC-60B

AC-DC Open frame power supply with UPS function; Output 27.6Vdc at 2.15A +27.6Vdc at 0.75A; with battery charger output

MEAN WELL

SLS24012T

SLS24012T SolaHD - SolaHD™ SL Series Single and Multi Output Power Supplies - PN SLS24012T

SolaHD

TP-75C

AC-DC Triple output enclosed power supply; Output 5Vdc at 10A +15Vdc at 3A -15Vdc at 0.6A; TP-75C is succeeded by QP-150-3C.

MEAN WELL

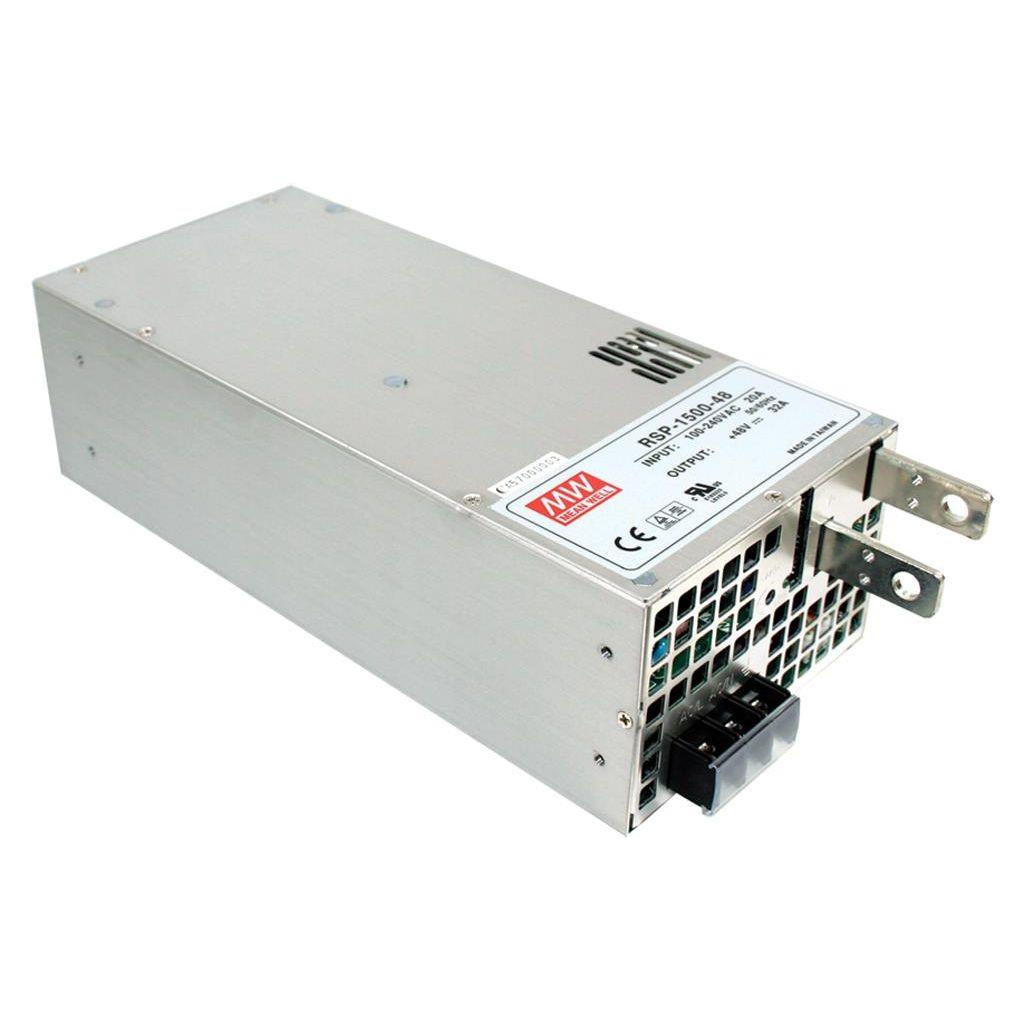

RSP-1500-48

AC-DC Single Output Enclosed power supply; Output 48VDC Single Output at 32A; PFC; forced air cooling

MEAN WELL
