AC/DC Power Supplies

IRM-45-5

AC-DC Single output Encapsulated power supply; Output 5Vdc at 8A; PCB mount style; miniature size

MEAN WELL

CP20.241-C1

PULS CP20.241-C1 is a DIN rail mounting power supply unit housed in aluminium, designed for operation in ambient air temperatures ranging from -25 to +70°C. It features a net width of 48mm and dimensions of W48mm x H124mm x D127mm. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input, with efficiencies of 0.956, 0.942, and 0.936 at 230Vac, 120Vac, and 100Vac inputs respectively. It is chemically resistant with a conformal coated PCB suitable for harsh environments. The CP20.241-C1 offers a 450ms start-up delay and rise times of 145ms and 160ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and handling back-feeding loads up to 35V. Power dissipation/losses are 22.1W and 29.6W for 230Vac and 120Vac inputs at full output load, respectively. The output stage capacitance is 8500µF, and the unit demonstrates electrical durability across various conditions, with ripple at 50mVpp. It functions as an AC/DC power supply unit with a 20% power reserve, part of the CP-series, featuring ATEX approval, conformal coating, and a DC-OK relay contact output. Connection is via screw-clamp connections, with supply voltages of 88Vdc-180Vdc and 85Vac-264Vac, rated current of 20A at 24Vdc, and a rated power of 480W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 32ms hold time at 120/230Vac input.

Puls

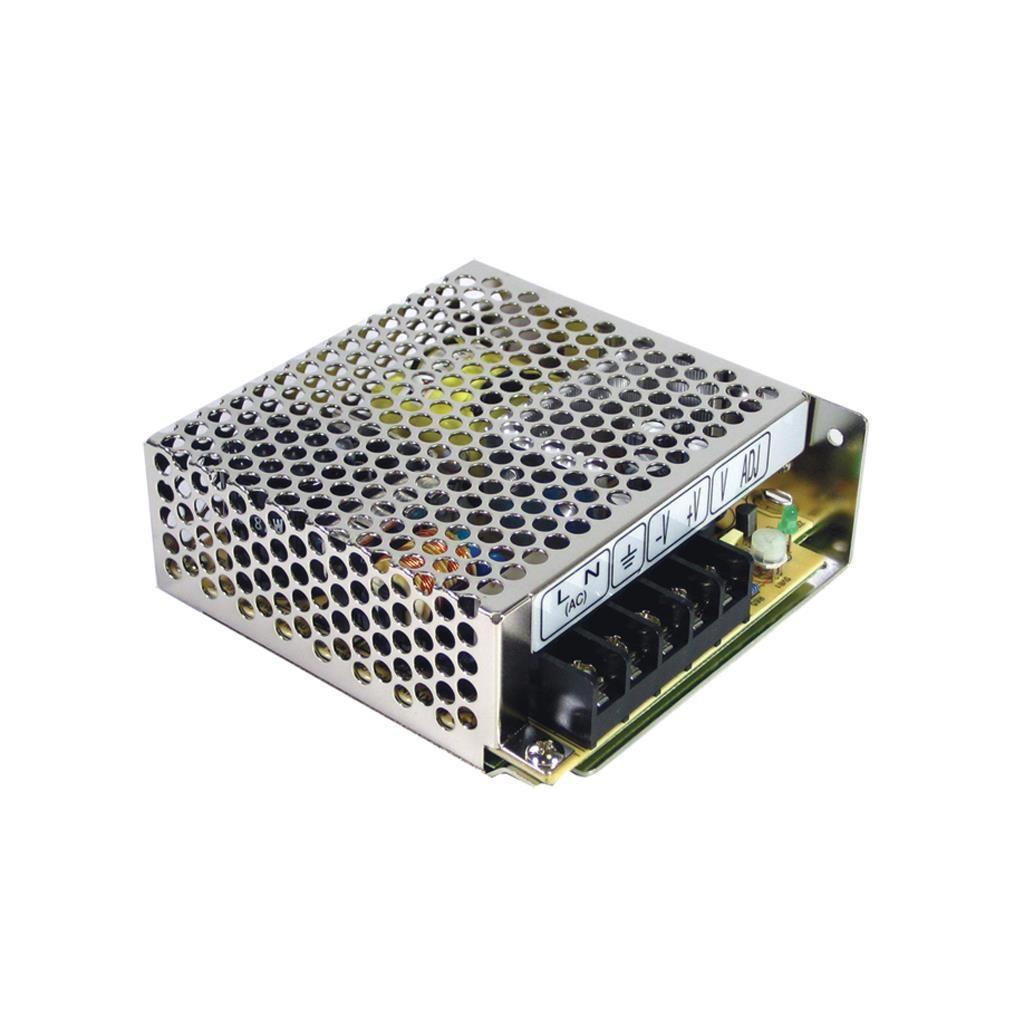

RD-65B

AC-DC Dual output enclosed power supply; Output 5Vdc at 8A +24Vdc at 3A; free air convection

MEAN WELL

SL10.305

Power Supply, 240W, 380-480VAC 3PH, 48-52VDC, 5-4.6A

Puls

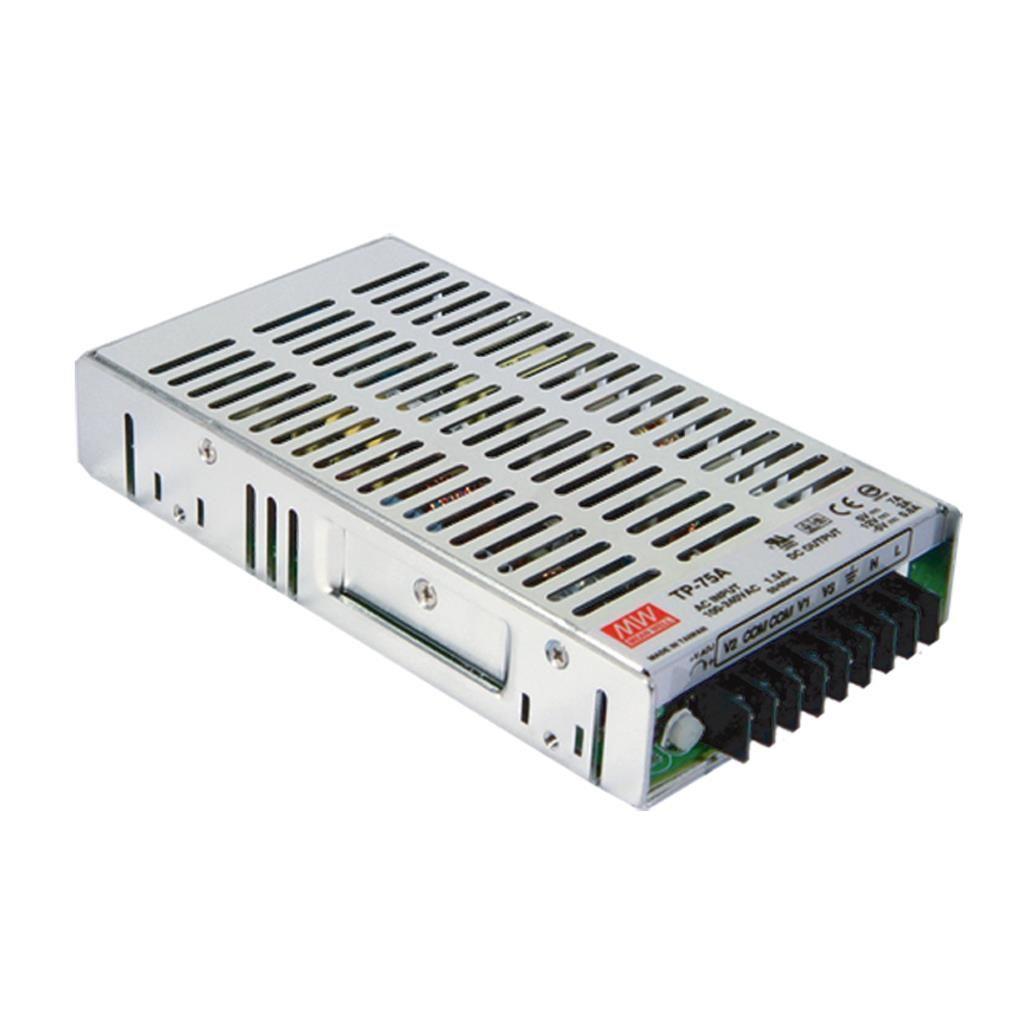

TP-75A

AC-DC Triple output enclosed power supply; Output 5Vdc at 10A +12Vdc at 4A -5Vdc at 0.6A; TP-75A is succeeded by QP-150-3A.

MEAN WELL

RSP-320-4

AC-DC Single Output Enclosed power supply; Output 4VDC Single Output at 60A; PFC; forced air cooling; 1U low profile

MEAN WELL

ML100.109

PULS ML100.109 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a conformal coating design for enhanced durability. This unit provides a rated current of 4.2A at 24Vdc and utilizes spring-clamp connections for secure attachment. It supports a wide range of supply voltages from 85Vac-132Vac / 184Vac-264Vac (auto select) for AC and 213Vdc-348Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML100.109 measures 73mm in width, 75mm in height, and 103mm in depth, housed in a PC / ABS blend for robustness. It delivers a rated power of 100W with an adjustable output voltage range of 24Vdc-28Vdc. Protection is provided by an NTC (input inrush current limiter), ensuring stability. The unit boasts an efficiency of 0.9 at 230Vac input, with a maximum inrush current consumption of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation is calculated at 11.4 W, and the ripple is maintained at 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

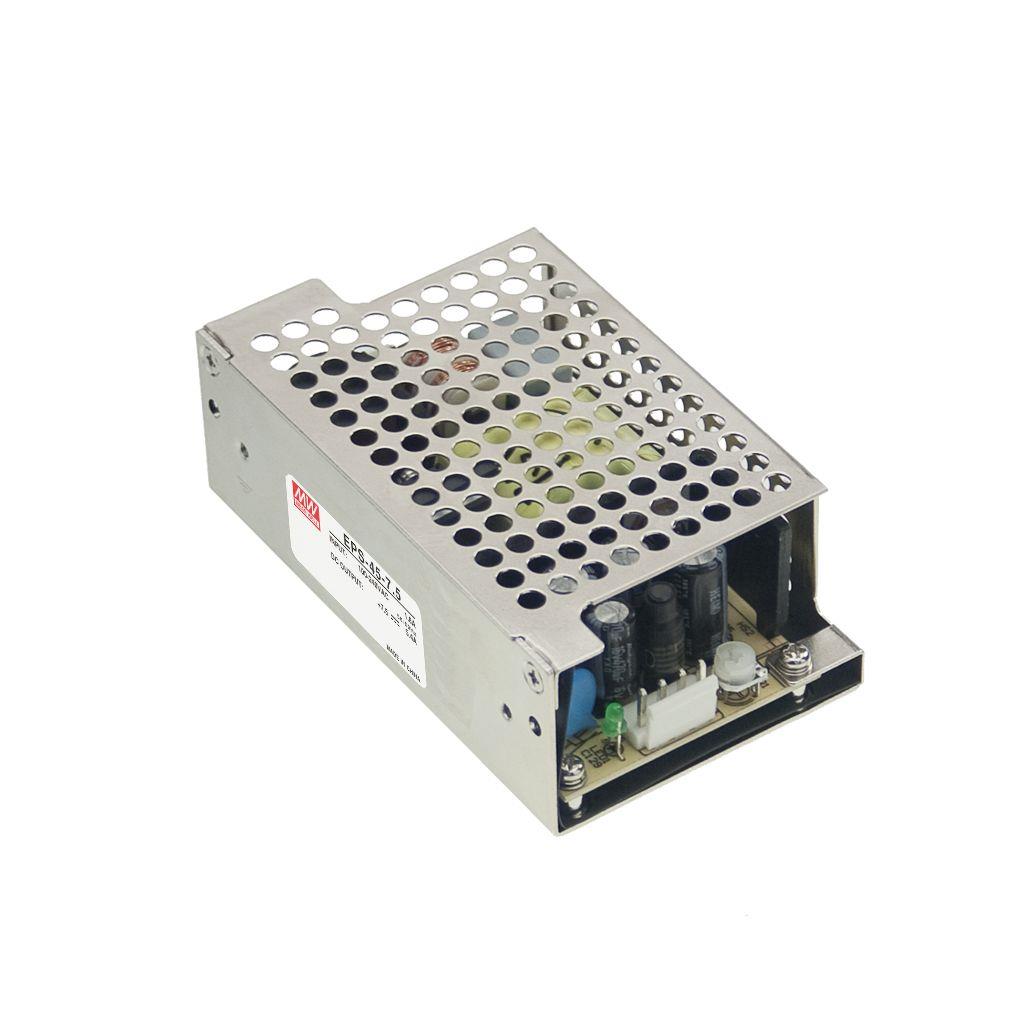

EPS-45-36-C

AC-DC Single output enclosed type power supply; Output 36Vdc at 1.25A

MEAN WELL

CP5.121

PULS CP5.121 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit offers a current consumption of 7A peak max inrush at both 230Vac and 120Vac inputs. Its efficiency rates are 0.94 at 230Vac input, 0.932 at 120Vac input, and 0.926 at 100Vac input. The CP5.121 provides a time delay of 350-400ms for start-up and a rise time of 30ms under nominal input with a constant full current load without load capacitance, and 50ms with 10mF load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 25V. Power dissipation/losses are 7.7W at full output load with 230Vac input and 8.8W with 120Vac input. The output stage capacitance is 2700 µF. Electrical durability varies with conditions, offering up to 839000 hours at 25°C with 5A output and 1AC 120Vac input. The ripple is 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series, is designed with a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC and 110Vdc-150Vdc for DC, with a rated current of 10A at 12Vdc, and provides an adjustable output voltage of 12Vdc-15Vdc. The hold time is 35ms at both 120/230Vac input.

Puls

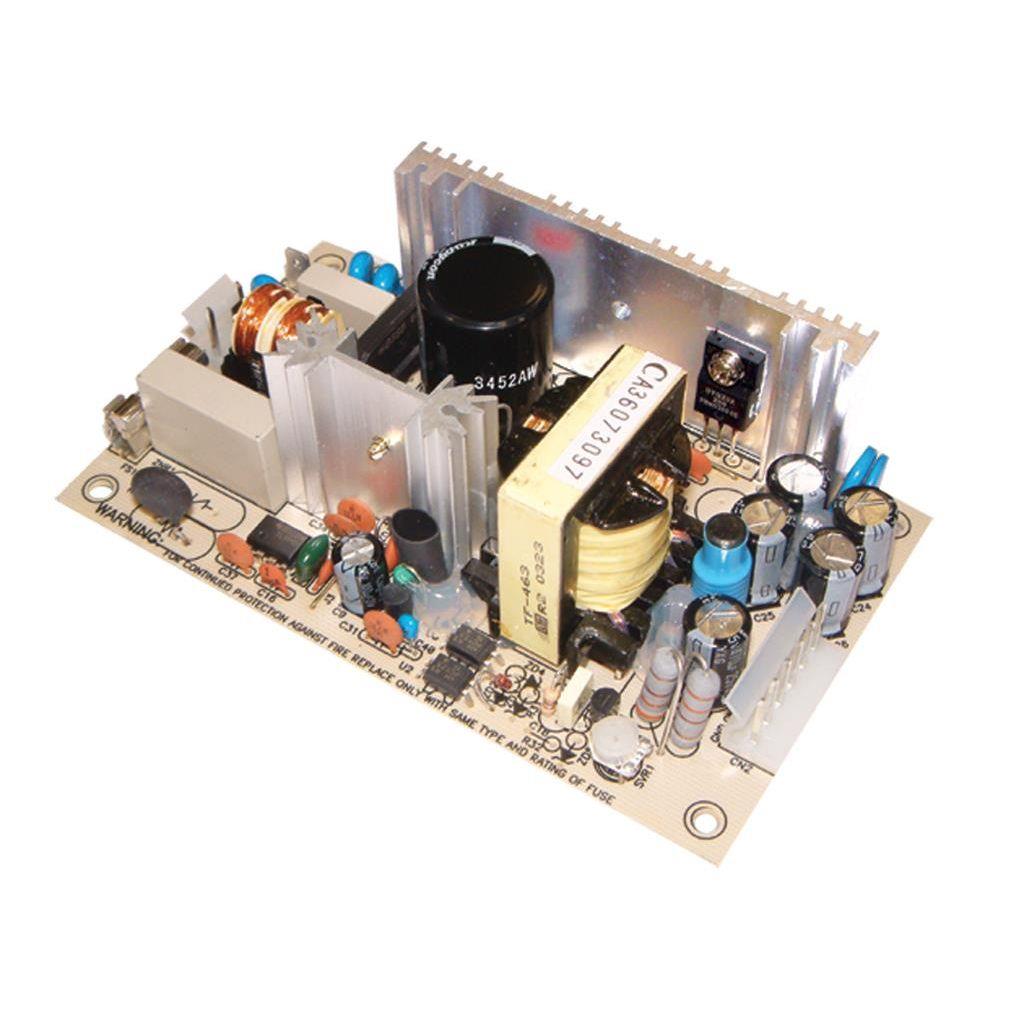

PS-65-12

AC-DC Single output Open frame power supply; Output 12Vdc at 5.2A; PS-65-12 is succeeded by EPS-65-12.

MEAN WELL

HRP-100-24

AC-DC Single output enclosed power supply; Output 24Vdc at 4.5A; 1U low profile; free air convection

MEAN WELL

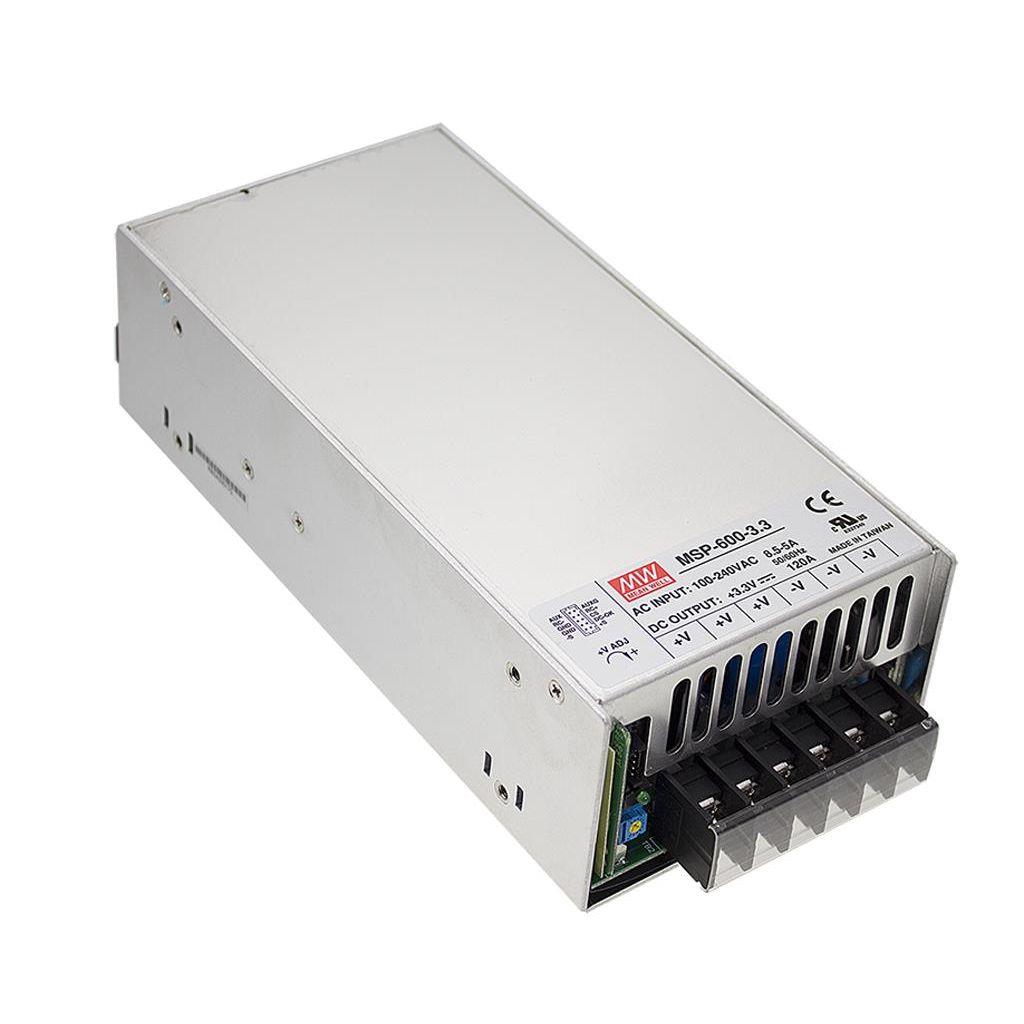

MSP-600-3.3

AC-DC Single output Medical Enclosed power supply; Output 3.3Vdc at 120A; Stand-by voltage 5Vdc at 0.3A; remote on/off; Fan on/off; DC OK signal; 1xMOOP; 2xMOOP

MEAN WELL

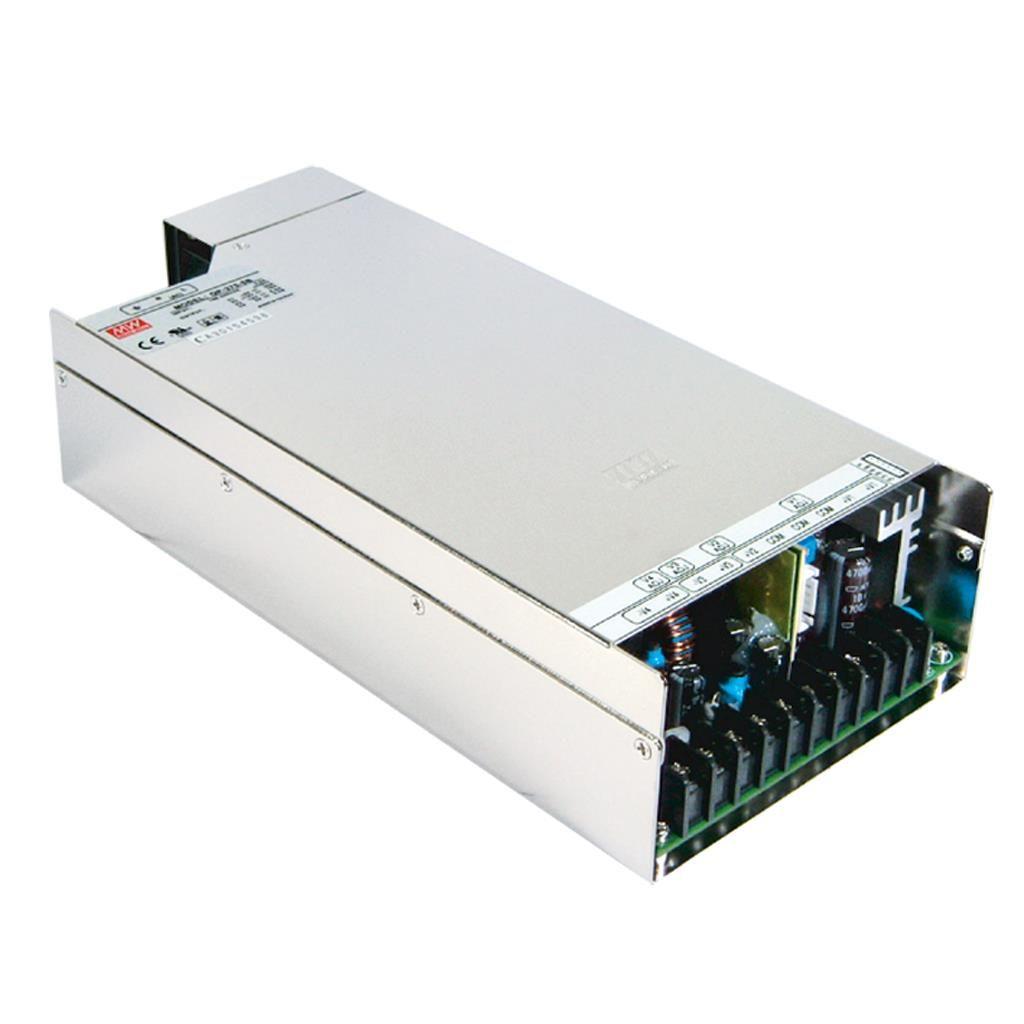

QP-375-5B

AC-DC Quad output enclosed power supply; Output 5Vdc at 40A +12Vdc at 16A +-12Vdc at 6A +-5Vdc at 3A; QP-375-5B is succeeded by MP450.

MEAN WELL

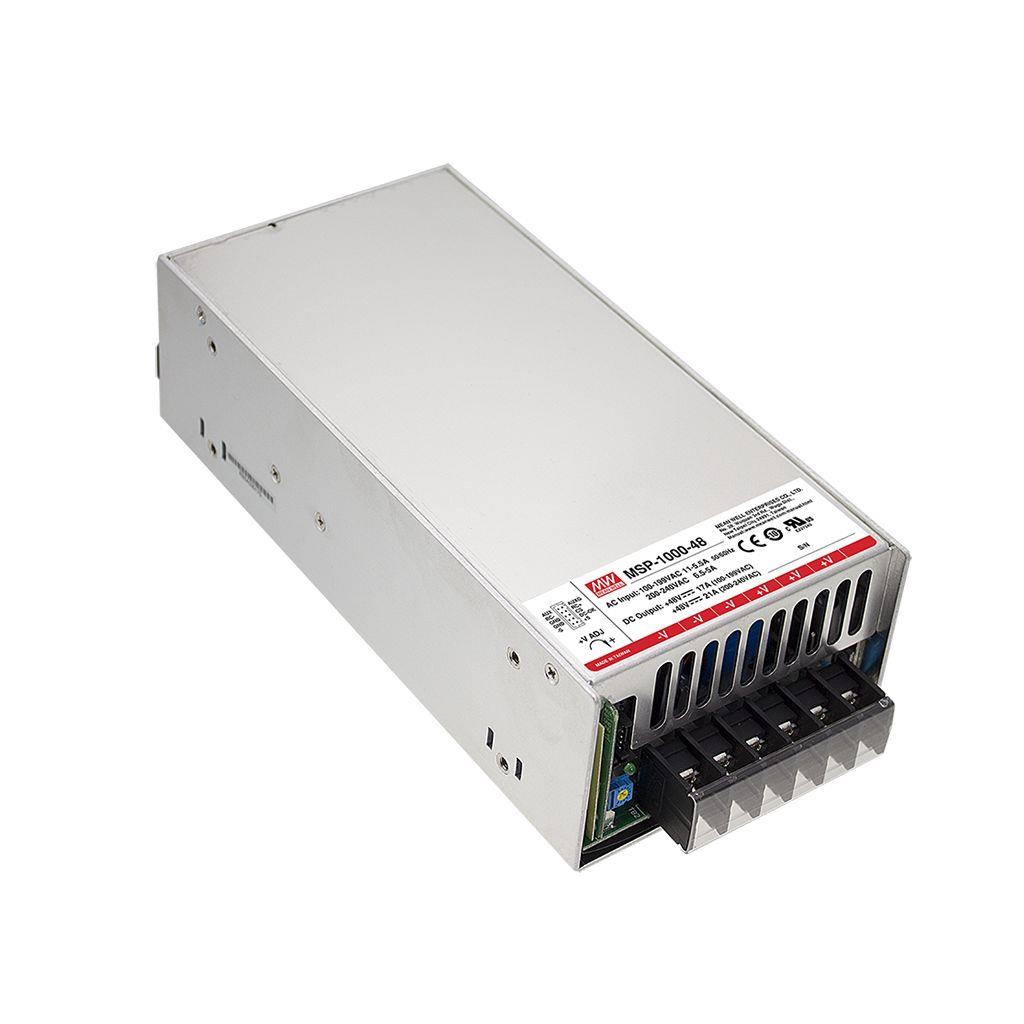

MSP-1000-15

AC-DC Single output Medical Enclosed power supply; Output 15Vdc at 64A; remote ON/OFF; DC OK signal; 2xMOPP

MEAN WELL

UHP-2500-48-PM

AC-DC Slim Single output enclosed power supply with PFC; Output 48Vdc at 52.1A; Remote ON/OFF and DC OK signal; protocol PMBus

MEAN WELL

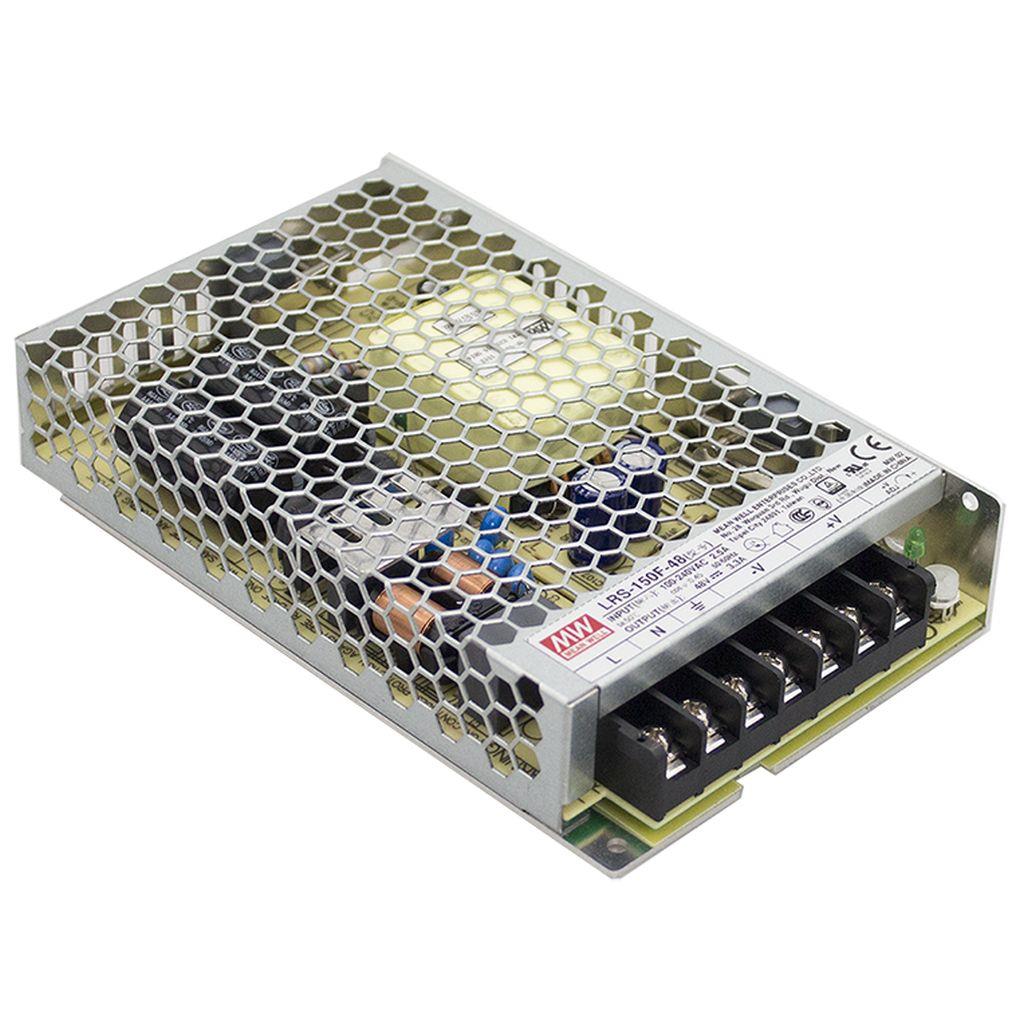

LRS-150F-5

AC-DC Single output enclosed power supply; Universal AC input; Output 5Vdc at 22A; Up to 5G vibration; 1U low profile

MEAN WELL

RQ-50B

AC-DC Quad output enclosed power supply; Output 5Vdc at 6A +12Vdc at 1.5A -5Vdc at 1A -12Vdc at 1A

MEAN WELL

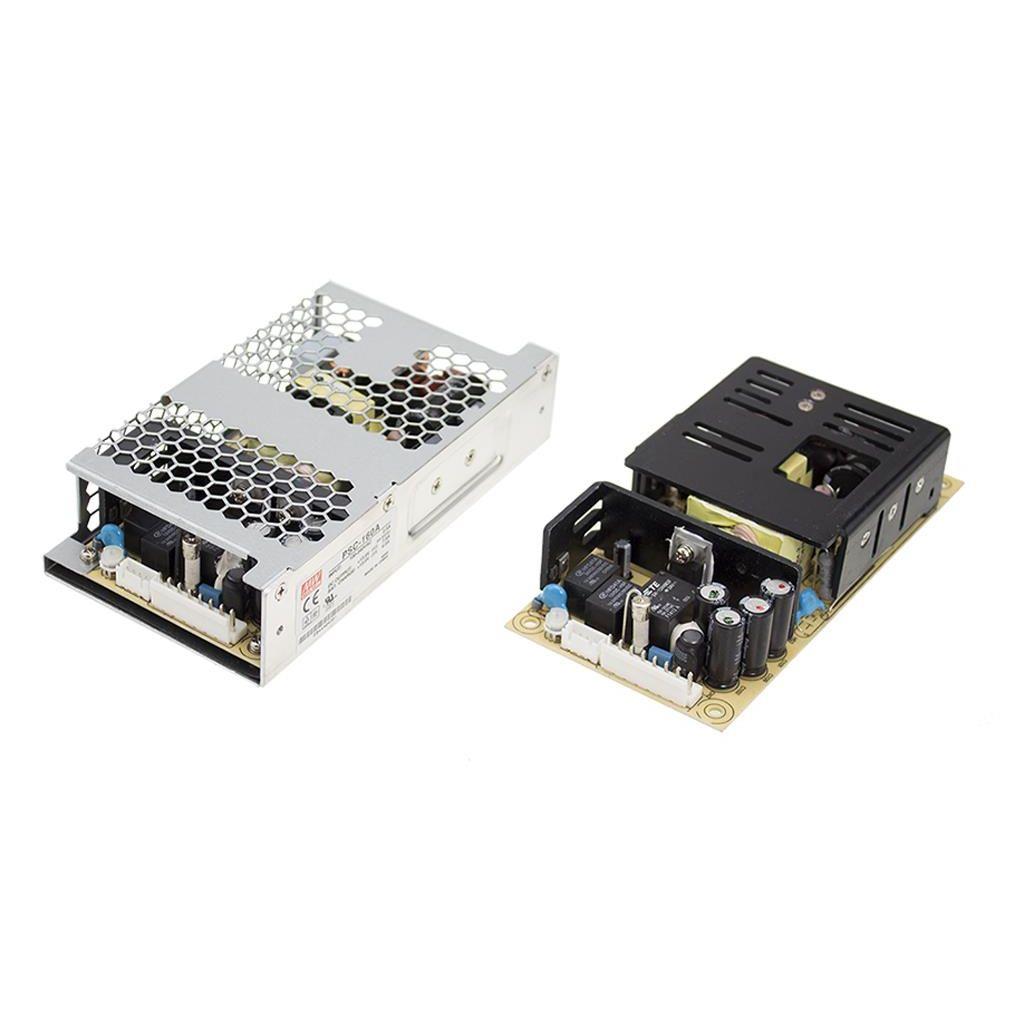

PSC-160B-C

AC-DC Single output open framepower supply with battery charger (UPS function); Output 27.6VDC at 3.8A / 27.6VDC at 2A; With cover and L-bracket

MEAN WELL

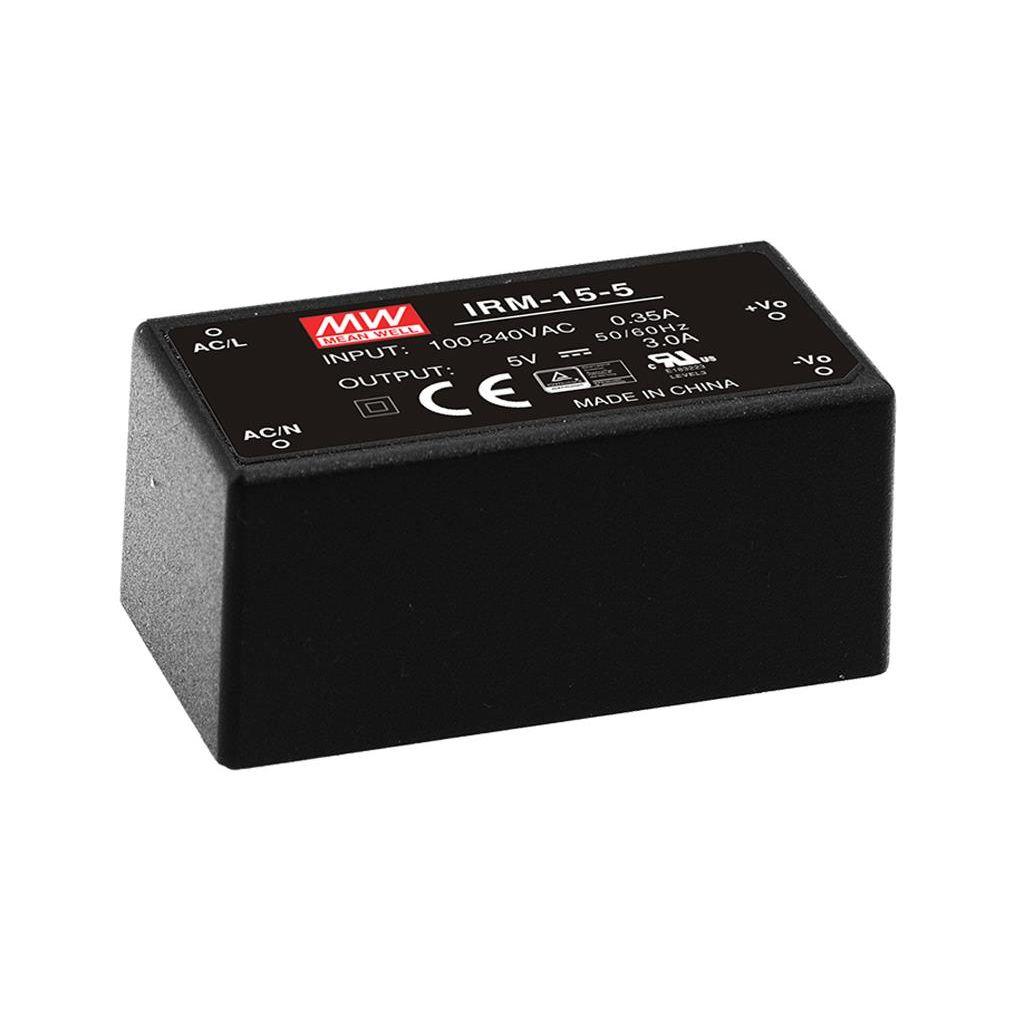

IRM-15-15

AC-DC Single output Encapsulated power supply; Input 85-264Vac; Output 15Vdc at 1.0A; PCB mount; miniature size

MEAN WELL

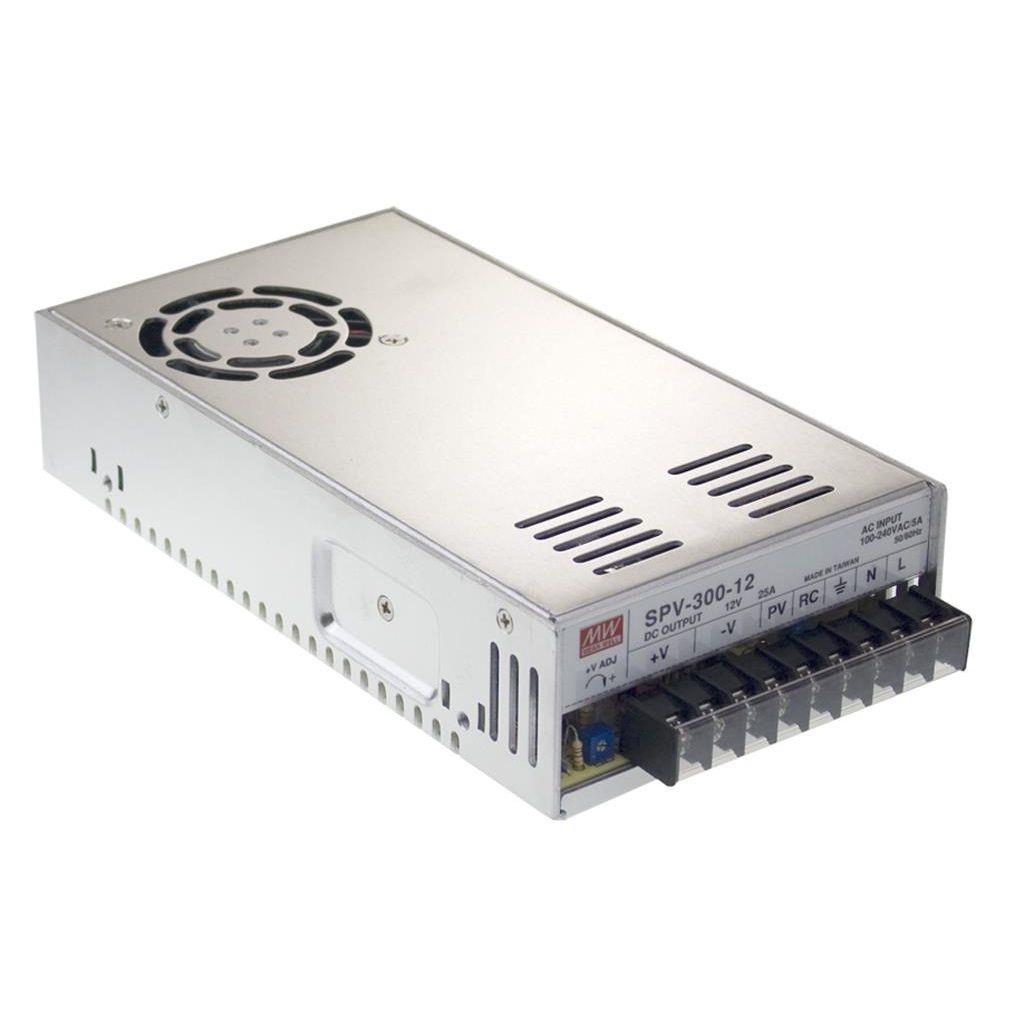

SPV-300-24

AC-DC Enclosed power supply; Output 24Vdc at 12.5A; forced air cooling; Programmable output 20-110%

MEAN WELL
