PCJ120 WEG AC Motors
Part#:PCJ120
Manufacturer:WEG
Alt. Part#:7890355332146
Product Lifecycle:Active
Get a quick Quote!

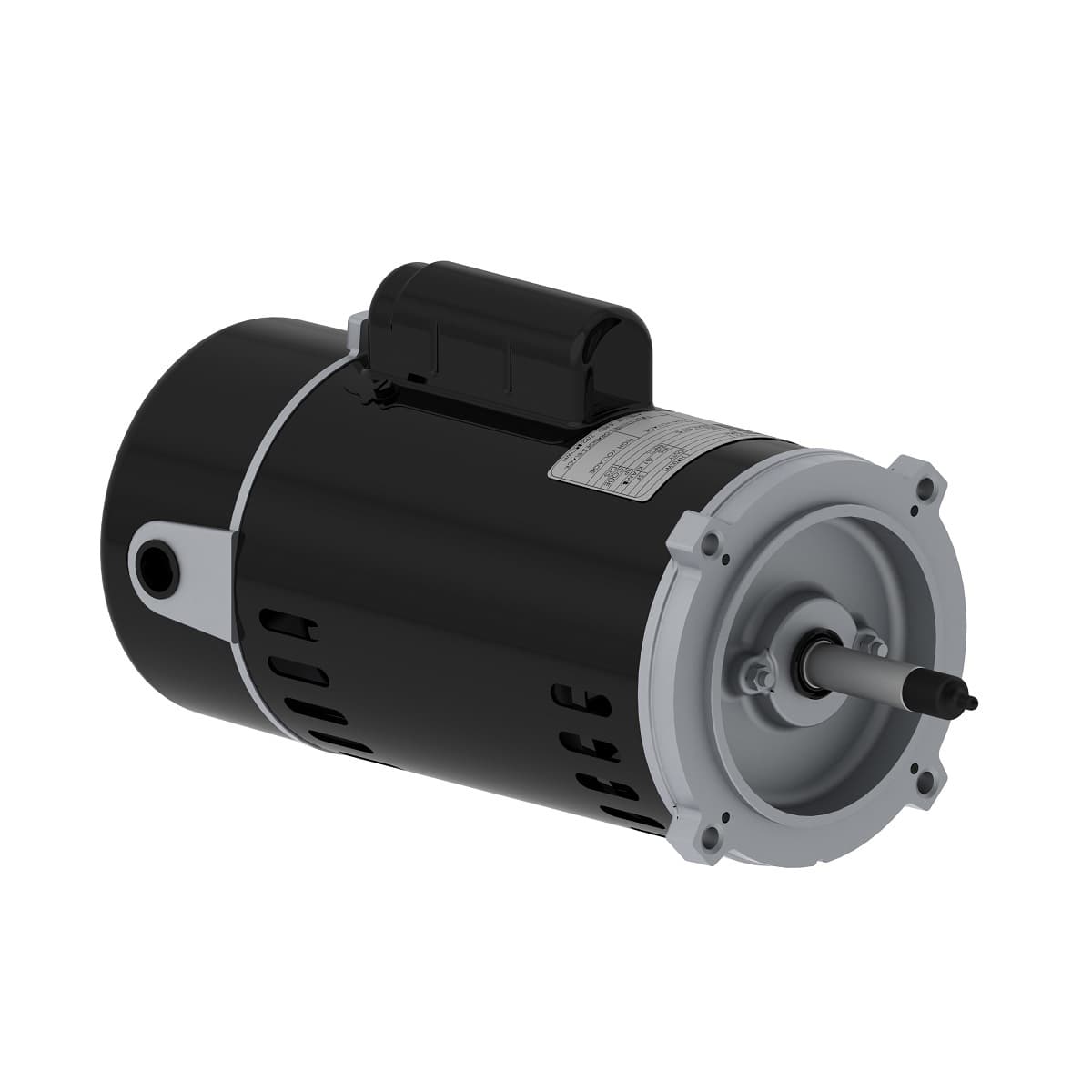

Pool Spa Pump Start Capacitor 2 HP 2P M56J 1Ph 230 V 60 Hz IC01 - ODP - Footless
Check out the PCJ120 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed3460 rpm
- Number of Poles2 Pole
- Voltage230 V
- Flange TypeFC 149
- LRC 5.9x(Code H)
- Moment of inertia (J) 0.0403 sq.ft.lb
- Ambient temperature -20°C to +50°C
- Voltage 230 V
- Rated voltage 230 V
- Temperature rise 70 K
- Approx. weight³ 31.8 lb
- Frequency 60 Hz
- Locked rotor torque 130 %
- Altitude 1000 m.a.s.l.
- Number of Poles 2
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Frame M56J
- Insulation Class B
- Mounting F-1
- Flange FC 149
- L. R. Amperes 54.9 A
- Rated torque 3.04 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Output 2 HP (1.5 kW)
- Breakdown torque 229 %
- Noise level² 58.0 dB(A)
- Terminal box¹ Without Terminal Box
- Rated current 9.30 A
- No load current 3.90 A
- Degree of Protection IP21
- Number of poles 2
- Slip 3.89 %
- Locked rotor time 10s (cold) 6s (hot)
- Enclosure IC01 - ODP
- Output rating 2 HP
- Rated speed 3460 rpm
- Service factor 1.10
- Rotation¹ CCW
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents PCJ120 Specs
1-year warranty
