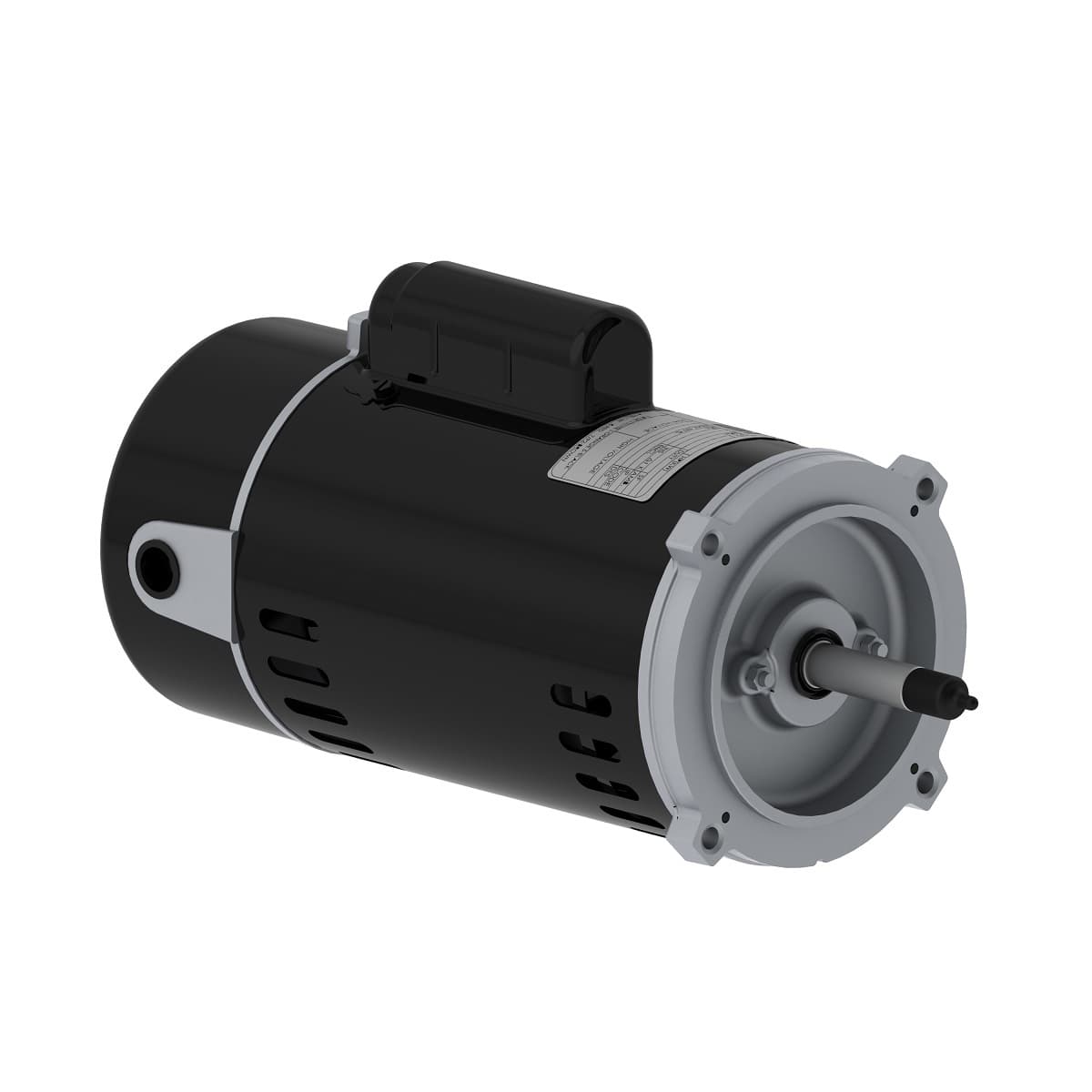

PCJ105H WEG AC Motors
Part#:PCJ105H
Manufacturer:WEG
Alt. Part#:7909522135760
Product Lifecycle:Active
Get a quick Quote!
Pool Spa Pump Start Capacitor 0.5 HP 2P K56J 1Ph 115/230 V 60 Hz IC01 - ODP - Footless
Check out the PCJ105H WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.5 HP
- Rated Speed3515 rpm
- Number of Poles2 Pole
- Voltage115/230 V
- Flange TypeFC 149
- L. R. Amperes 53.7/26.8 A
- Service factor 1.60
- Noise level² 58.0 dB(A)
- Output rating 0.5 HP
- Rated voltage 115/230 V
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Slip 2.36 %
- Rated torque 0.747 ft.lb
- Mounting F-1
- Flange FC 149
- Frequency 60 Hz
- Locked rotor torque 210 %
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Rated speed 3515 rpm
- Moment of inertia (J) 0.0233 sq.ft.lb
- Degree of Protection IP21
- Synchronous speed 3600 rpm
- Rated current 9.10/4.55 A
- Locked rotor time 10s (cold) 6s (hot)
- Approx. weight³ 22.0 lb
- Number of Poles 2
- Temperature rise 70 K
- Voltage 115/230 V
- Terminal box¹ Without Terminal Box
- No load current 7.70/3.85 A
- Insulation Class B
- Rotation¹ CCW
- Frame K56J
- LRC 5.9x(Code N)
- Starting Method Direct On Line
- Standard NEMA MG-1
- Output 0.5 HP (0.37 kW)
- Breakdown torque 400 %
- Altitude 1000 m.a.s.l.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents PCJ105H Specs
1-year warranty
