PCJ107 WEG AC Motors
Part#:PCJ107
Manufacturer:WEG
Alt. Part#:7890355314685
Product Lifecycle:Active
Get a quick Quote!

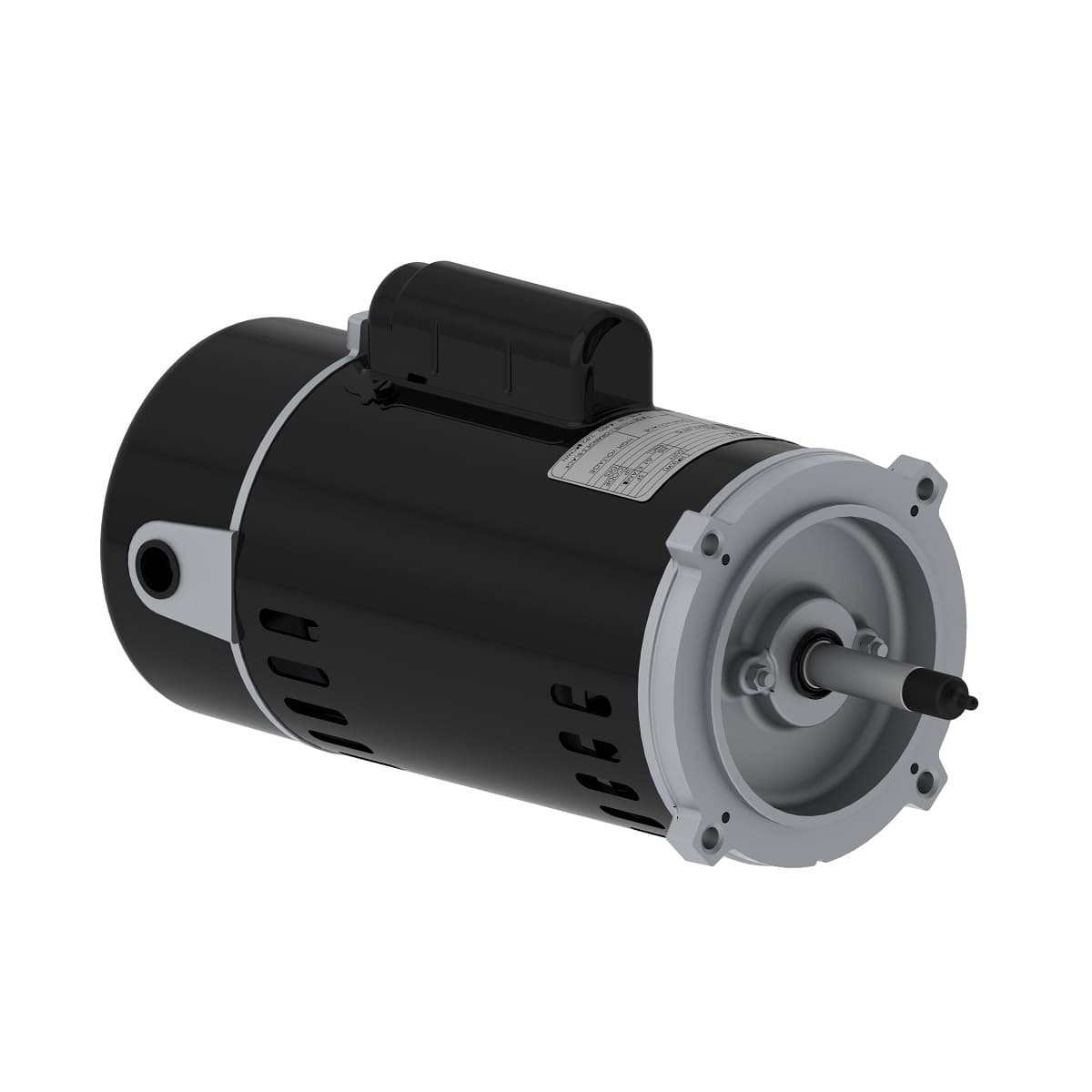

Pool Spa Pump Start Capacitor 0.75 HP 2P K56J 1Ph 115/230 V 60 Hz IC01 - ODP - Footless
Check out the PCJ107 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.75 HP
- Rated Speed3465 rpm
- Number of Poles2 Pole
- Voltage115/230 V
- Flange TypeFC 149
- Frame K56J
- LRC 5.3x(Code K)
- Altitude 1000 m.a.s.l.
- Approx. weight³ 22.3 lb
- Output 0.75 HP (0.55 kW)
- Moment of inertia (J) 0.0233 sq.ft.lb
- Degree of Protection IP21
- Frequency 60 Hz
- No load current 7.70/3.85 A
- Standard NEMA MG-1
- Number of Poles 2
- Rated torque 1.14 ft.lb
- Enclosure IC01 - ODP
- Flange FC 149
- Rated voltage 115/230 V
- Locked rotor time 10s (cold) 6s (hot)
- Noise level² 58.0 dB(A)
- Output rating 0.75 HP
- Slip 3.75 %
- Temperature rise 70 K
- Voltage 115/230 V
- Rated current 10.2/5.10 A
- Service factor 1.30
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- L. R. Amperes 54.1/27.0 A
- Breakdown torque 260 %
- Starting Method Direct On Line
- Number of poles 2
- Rated speed 3465 rpm
- Insulation Class B
- Mounting F-1
- Terminal box¹ Without Terminal Box
- Locked rotor torque 140 %
- Ambient temperature -20°C to +50°C
- Rotation¹ CCW
