70036OT3Q5010S-W40 WEG AC Motors
Part#:70036OT3Q5010S-W40
Manufacturer:WEG
Alt. Part#:7909322943374
Product Lifecycle:Active
Get a quick Quote!

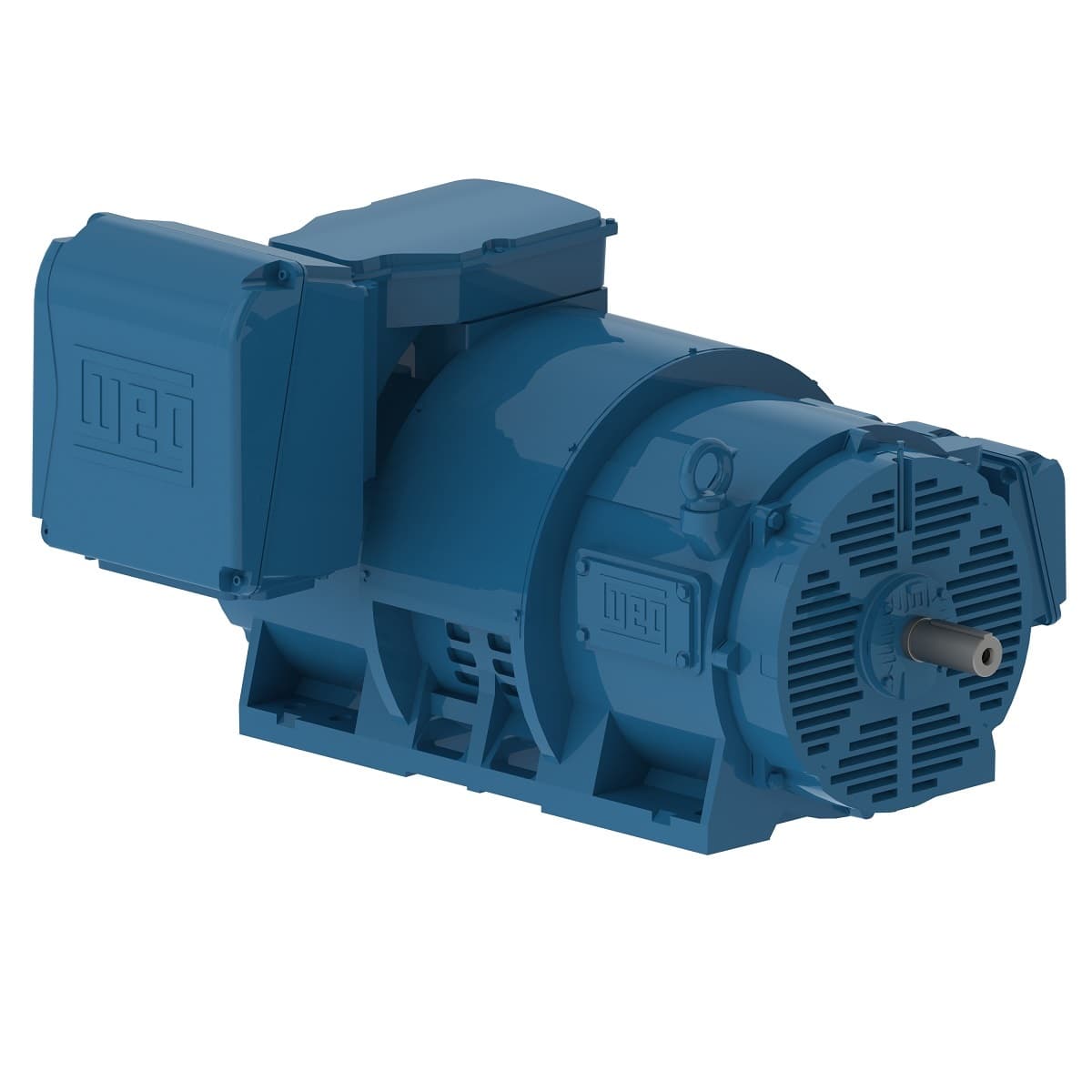

W40 NEMA Premium Efficiency 700 HP 2P 5010/11 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 70036OT3Q5010S-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating700 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- L. R. Amperes 5195 A
- Rated torque 1030 ft.lb
- Duty Cycle Cont.(S1)
- Degree of Protection IP23
- Number of Poles 2
- Moment of inertia (J) 78.5 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 700 HP
- Locked rotor time 28s (cold) 16s (hot)
- Altitude 1000 m.a.s.l.
- Slip 0.83 %
- No load current 140 A
- Rotation¹ Both (CW and CCW)
- Flange Without
- Rated voltage 460 V
- Service factor 1.15
- Approx. weight³ 3419 lb
- LRC 6.8x(Code G)
- Breakdown torque 240 %
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
- Frame 5010/11
- Insulation Class F
- Voltage 460 V
- Number of poles 2
- Output 700 HP (515 kW)
- Rated current 764 A
- Temperature rise 80 K
- Noise level² 89.0 dB(A)
- Frequency 60 Hz
- Locked rotor torque 229 %
- Mounting F-1
- Terminal box¹ Left position
- Rated speed 3570 rpm
- Starting Method Direct On Line
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
