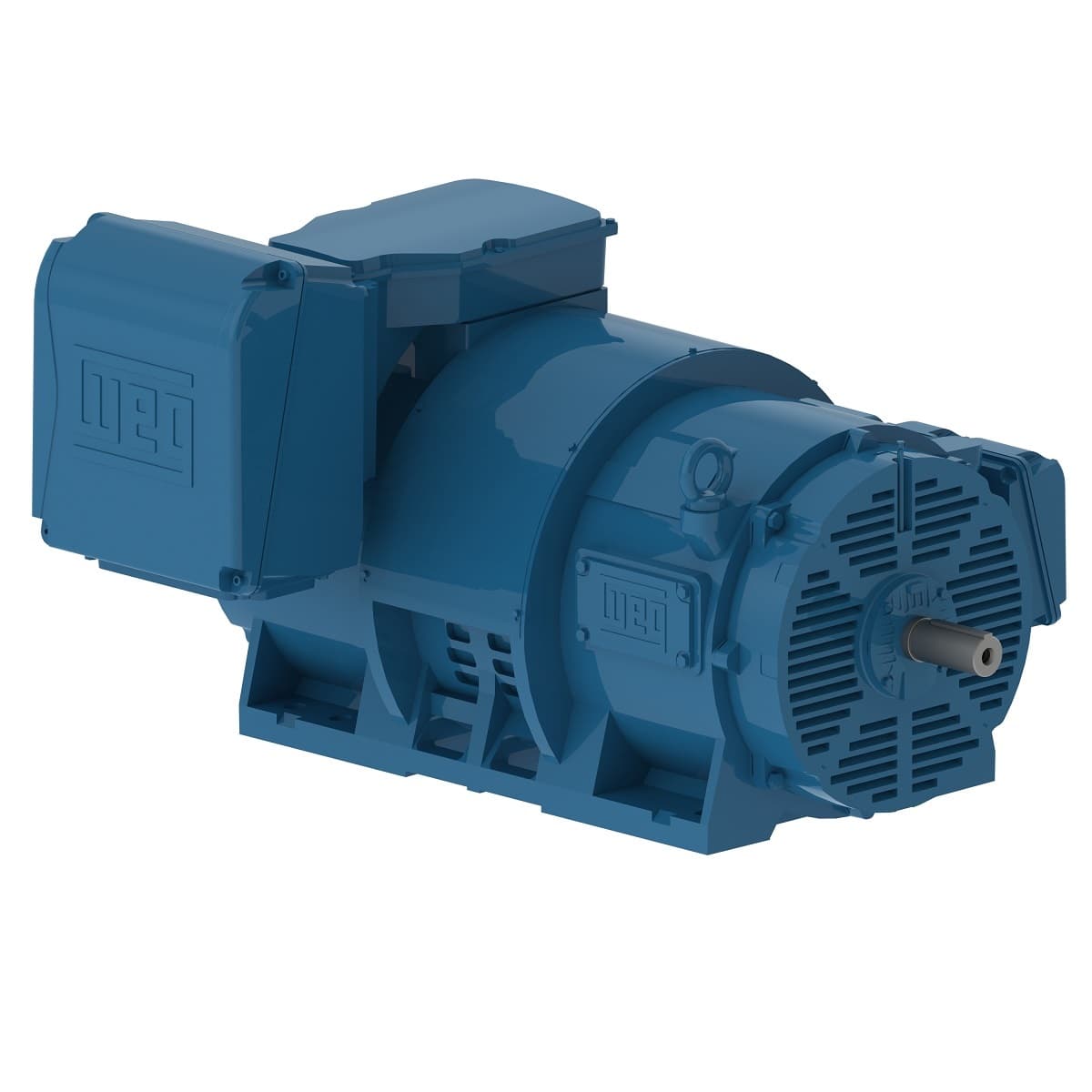

70036OT3G5010S-RF WEG AC Motors
Part#:70036OT3G5010S-RF
Manufacturer:WEG
Alt. Part#:7891327514218
Product Lifecycle:Active
Get a quick Quote!
W40 NEMA Premium Efficiency 700 HP 2P 5010/11TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 70036OT3G5010S-RF WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating700 HP
- Rated Speed3578 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 0.61 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 4212 lb
- Rated current 760 A
- Insulation Class F
- Enclosure IC01 - ODP
- Frame 5010/11TS
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Output rating 700 HP
- Rated speed 3578 rpm
- Moment of inertia (J) 78.5 sq.ft.lb
- Mounting F-1
- Output 700 HP (515 kW)
- Rated voltage 460 V
- Degree of Protection IP23
- Flange Without
- Frequency 60 Hz
- Locked rotor time 21s (cold) 12s (hot)
- Noise level² 86.0 dB(A)
- Synchronous speed 3600 rpm
- Number of Poles 2
- L. R. Amperes 6080 A
- Rotation¹ Both (CW and CCW)
- Number of poles 2
- Rated torque 1030 ft.lb
- Breakdown torque 280 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- No load current 205 A
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- LRC 8.0x(Code H)
- Temperature rise 80 K
- Voltage 460 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 70036OT3G5010S-RF Specs
