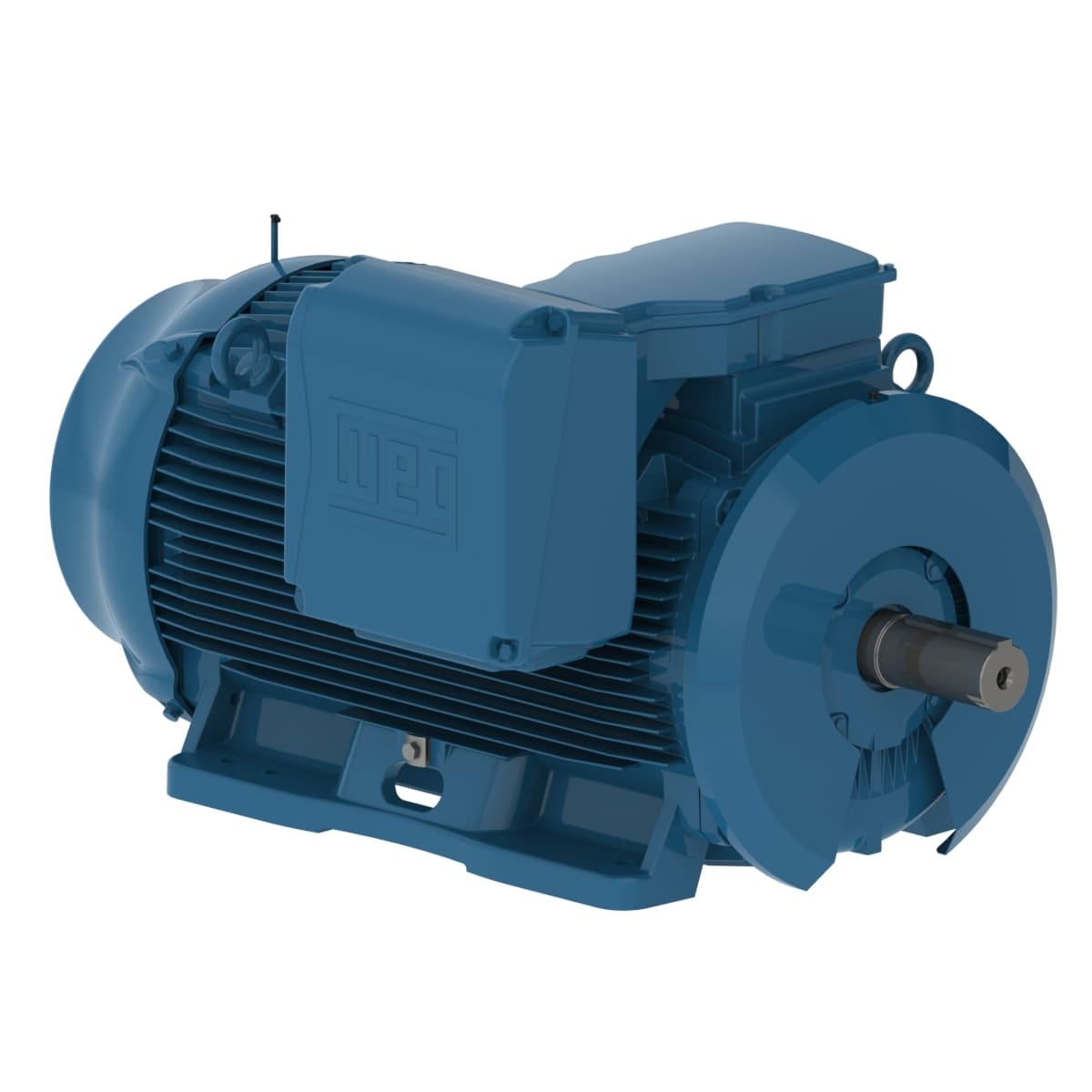

70036ET3G588/9S-W22 WEG AC Motors
Part#:70036ET3G588/9S-W22
Manufacturer:WEG
Alt. Part#:7909018495439
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 700 HP 2P 588/9TS 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 70036ET3G588/9S-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating700 HP
- Rated Speed3585 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Rated voltage 460 V
- Rated torque 1030 ft.lb
- Mounting F-1
- Synchronous speed 3600 rpm
- Rated speed 3585 rpm
- Insulation Class F
- Approx. weight³ 5321 lb
- L. R. Amperes 5299 A
- Temperature rise 105 K
- Voltage 460 V
- Frequency 60 Hz
- No load current 140 A
- Duty Cycle Cont.(S1)
- Slip 0.42 %
- Breakdown torque 250 %
- Noise level² 89.0 dB(A)
- Altitude 1000 m.a.s.l.
- Frame 588/9TS
- Moment of inertia (J) 183 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Number of Poles 2
- Locked rotor time 61s (cold) 34s (hot)
- Degree of Protection IP55
- Standard NEMA MG-1
- Output 700 HP (515.20 kW)
- LRC 7.2x(Code G)
- Starting Method Direct On Line
- Output rating 700 HP
- Locked rotor torque 229 %
- Enclosure IC411 - TEFC
- Rated current 736 A
- Service factor 1.00
- Ambient temperature -20°C to +40°C
- Flange Without
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
