45018XT3G586/7 WEG AC Motors
Part#:45018XT3G586/7
Manufacturer:WEG
Alt. Part#:7892304606940
Product Lifecycle:Active
Get a quick Quote!

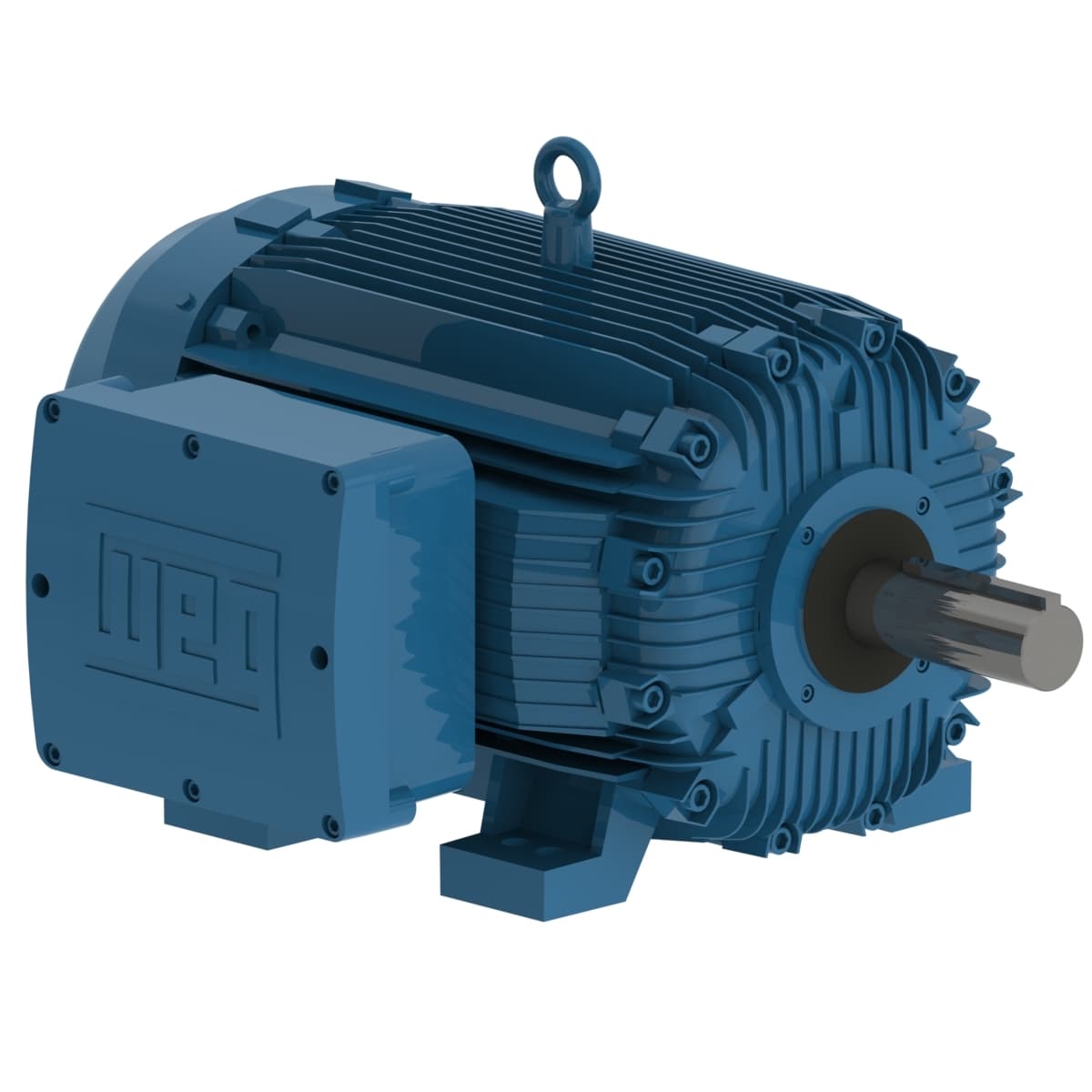

W21 Explosion-proof Motor NEMA Premium Efficiency 450 HP 4P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 45018XT3G586/7 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating450 HP
- Rated Speed1787 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Frequency 60 Hz
- Locked rotor time 43s (cold) 24s (hot)
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Frame 586/7T
- Moment of inertia (J) 213 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- Rated current 501 A
- Service factor 1.15
- Voltage 460 V
- Slip 0.72 %
- No load current 121 A
- Insulation Class F
- Output rating 450 HP
- Output 450 HP (330 kW)
- Breakdown torque 200 %
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Number of Poles 4
- Temperature rise 105 K
- Noise level² 83.0 dB(A)
- Rated speed 1787 rpm
- Rated torque 1320 ft.lb
- Duty Cycle Cont.(S1)
- Flange Without
- LRC 6.5x(Code G)
- Starting Method Direct On Line
- Mounting F-1
- L. R. Amperes 3257 A
- Locked rotor torque 180 %
- Degree of Protection IP55
- Approx. weight³ 4404 lb
- Rated voltage 460 V
- Design B
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 45018XT3G586/7 Specs
