45012EP3G586/7-W22 WEG AC Motors
Part#:45012EP3G586/7-W22
Manufacturer:WEG
Alt. Part#:7894171928828
Product Lifecycle:Active
Get a quick Quote!

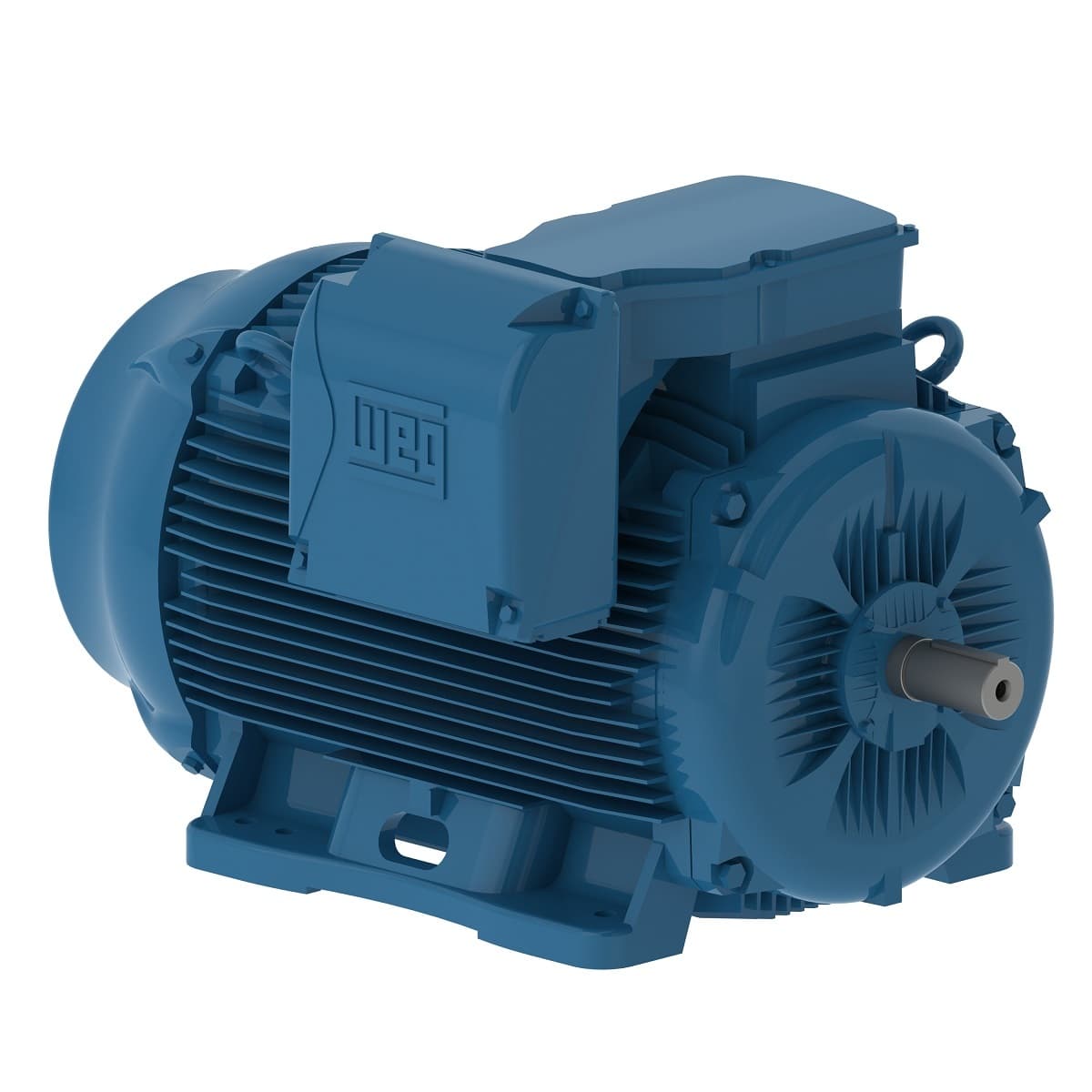

W22 High Efficiency 450 HP 6P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 45012EP3G586/7-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating450 HP
- Rated Speed1190 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- L. R. Amperes 3270 A
- Temperature rise 80 K
- Voltage 460 V
- Frequency 60 Hz
- Locked rotor time 46s (cold) 26s (hot)
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1200 rpm
- Output 450 HP (330 kW)
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Number of Poles 6
- Insulation Class F
- Mounting F-1
- Frame 586/7T
- Locked rotor torque 210 %
- Duty Cycle Cont.(S1)
- Number of poles 6
- Rated current 536 A
- Moment of inertia (J) 368 sq.ft.lb
- Terminal box¹ Left position
- Rated speed 1190 rpm
- Breakdown torque 210 %
- Starting Method Direct On Line
- Noise level² 77.0 dB(A)
- Slip 0.83 %
- Rated torque 1990 ft.lb
- Ambient temperature -20°C to +40°C
- Degree of Protection IP55
- LRC 6.1x(Code G)
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated voltage 460 V
- No load current 210 A
- Service factor 1.15
- Approx. weight³ 4633 lb
- Output rating 450 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 45012EP3G586/7-W22 Specs
