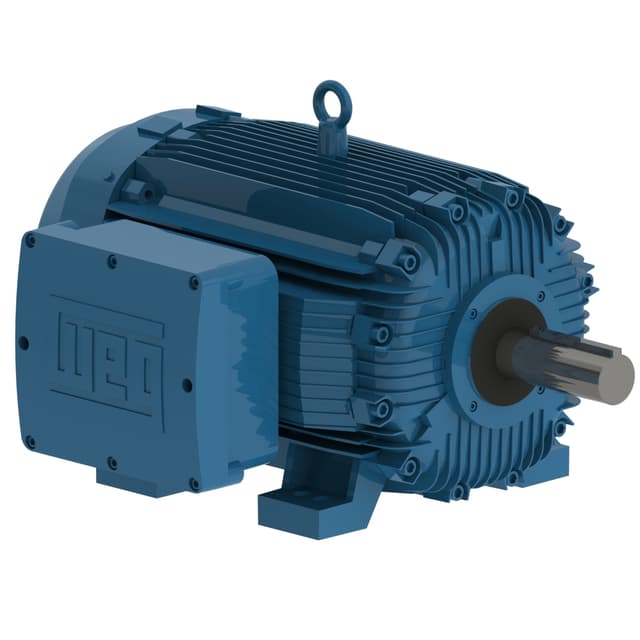

45012ET3H586/7-W22 WEG AC Motors
Part#:45012ET3H586/7-W22
Manufacturer:WEG
Alt. Part#:7899058058049
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 450 HP 6P 586/7T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 45012ET3H586/7-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating450 HP
- Rated Speed1193 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- LRC 6.1x(Code G)
- Service factor 1.15
- Mounting F-1
- Rated voltage 575 V
- Locked rotor time 45s (cold) 25s (hot)
- Degree of Protection IP55
- Voltage 575 V
- Slip 0.58 %
- Temperature rise 80 K
- Standard NEMA MG-1
- Output rating 450 HP
- Rated current 426 A
- Breakdown torque 210 %
- Starting Method Direct On Line
- Synchronous speed 1200 rpm
- L. R. Amperes 2596 A
- Ambient temperature -20°C to +40°C
- Frame 586/7T
- Moment of inertia (J) 368 sq.ft.lb
- Noise level² 77.0 dB(A)
- Terminal box¹ Left position
- Output 450 HP (330 kW)
- Locked rotor torque 200 %
- Approx. weight³ 4628 lb
- Number of Poles 6
- No load current 176 A
- Duty Cycle Cont.(S1)
- Flange Without
- Frequency 60 Hz
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Enclosure IC411 - TEFC
- Rated speed 1193 rpm
- Rated torque 1980 ft.lb
- Rotation¹ Both (CW and CCW)
- Number of poles 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
