25018OT3G445TS-W40 WEG AC Motors
Part#:25018OT3G445TS-W40
Manufacturer:WEG
Alt. Part#:7909323934494
Product Lifecycle:Active
Get a quick Quote!

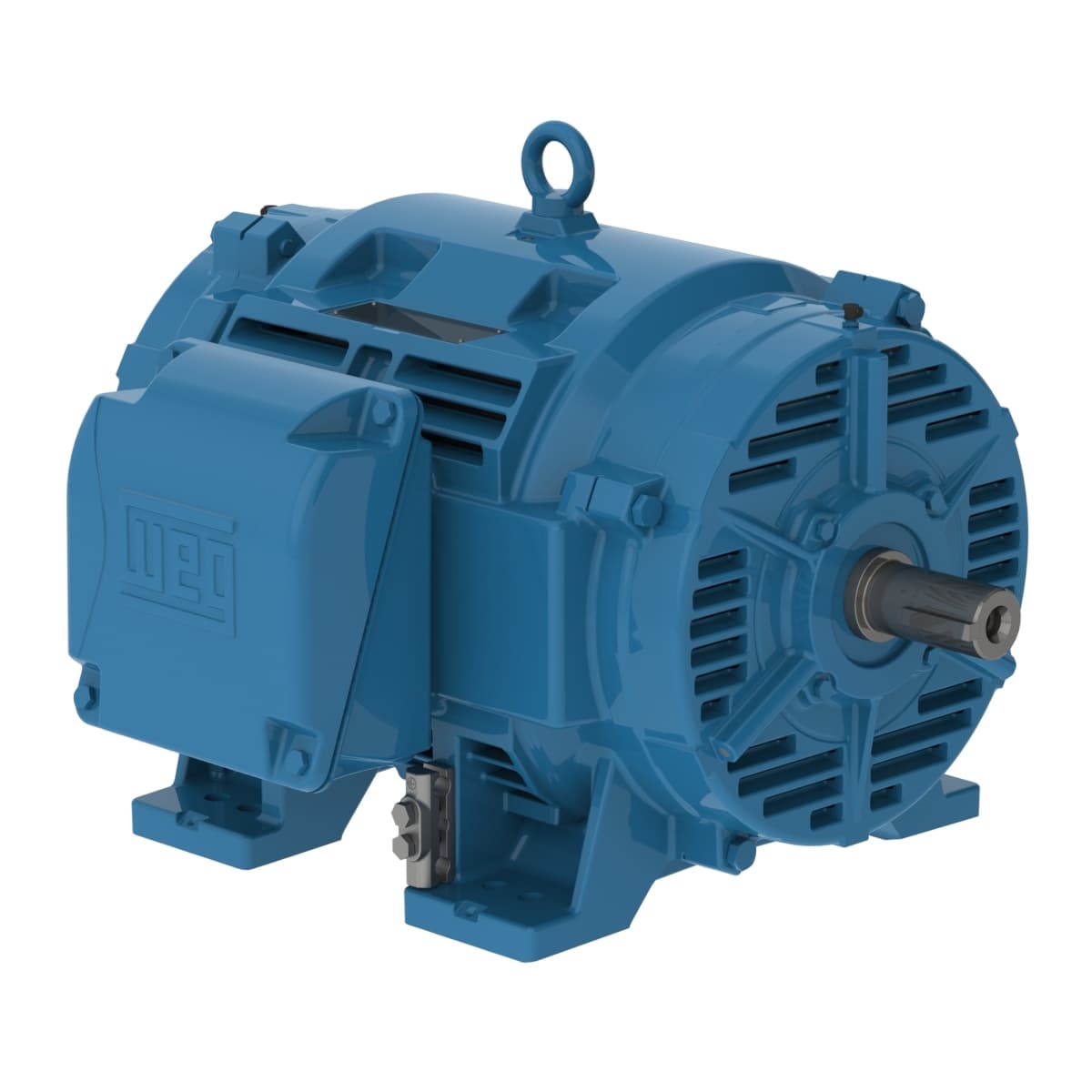

W40 NEMA Premium Efficiency 250 HP 4P 444/5TS 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 25018OT3G445TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- L. R. Amperes 1850 A
- Mounting F-1
- Number of poles 4
- Output 250 HP (185 kW)
- Altitude 1000 m.a.s.l.
- Synchronous speed 1800 rpm
- Slip 1.11 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated speed 1780 rpm
- Locked rotor torque 210 %
- Enclosure IC01 - ODP
- Flange Without
- Frequency 60 Hz
- Rated torque 738 ft.lb
- Moment of inertia (J) 50.9 sq.ft.lb
- Approx. weight³ 1426 lb
- Frame 444/5TS
- Ambient temperature -20°C to +40°C
- Degree of Protection IP23
- Number of Poles 4
- Locked rotor time 16s (cold) 9s (hot)
- Breakdown torque 240 %
- Noise level² 78.0 dB(A)
- Rated voltage 460 V
- No load current 106 A
- Service factor 1.15
- Temperature rise 80 K
- Terminal box¹ Left position
- Rated current 289 A
- LRC 6.4x(Code G)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output rating 250 HP
- Design B
- Starting Method Direct On Line
- Voltage 460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25018OT3G445TS-W40 Specs
