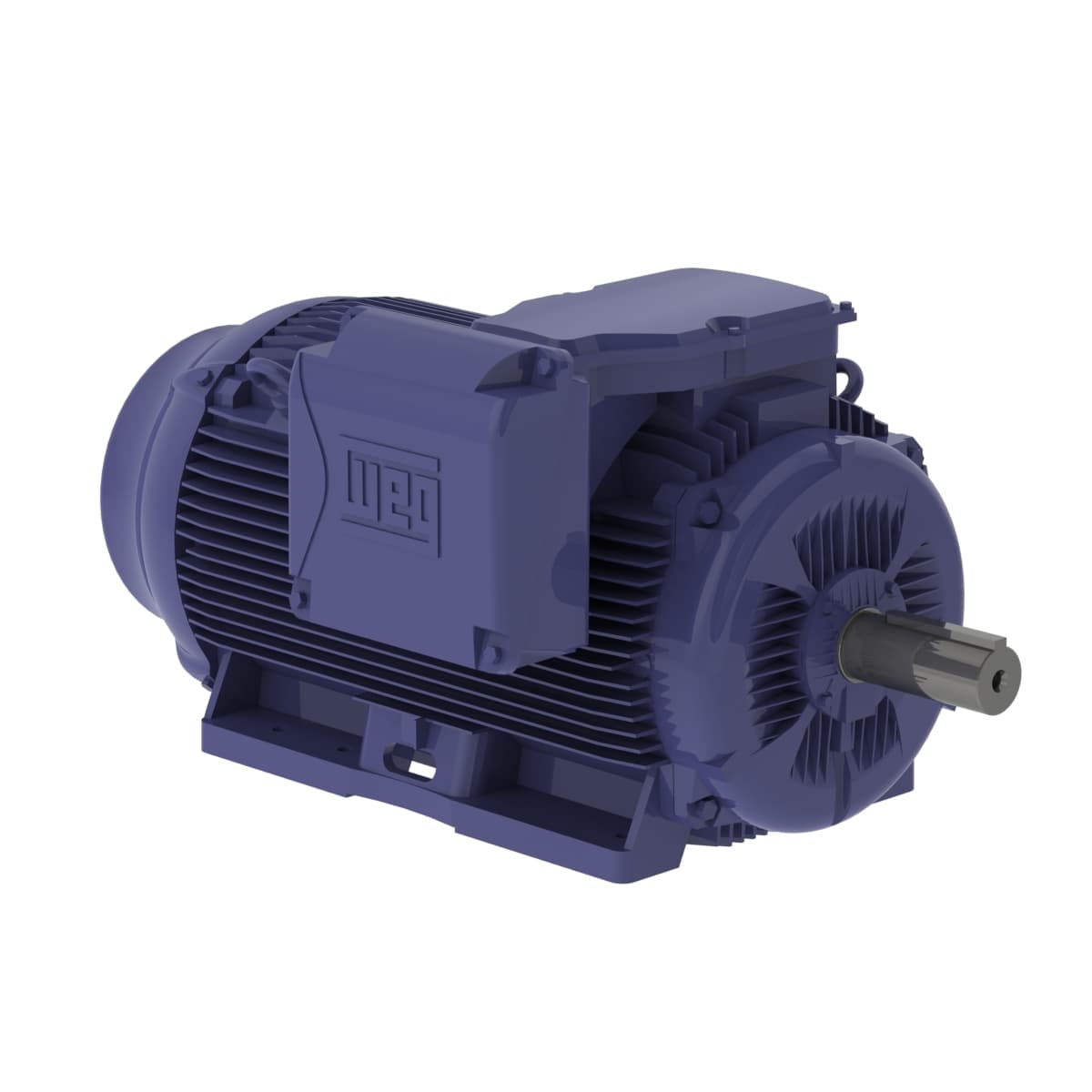

25015EP3OFP449TS-W22 WEG AC Motors
Part#:25015EP3OFP449TS-W22
Manufacturer:WEG
Alt. Part#:7909492072997
Product Lifecycle:Active
Get a quick Quote!
W22 High Efficiency 250 HP 4P 447/9TS 3Ph 380-415 V 50 Hz IC411 - TEFC - Foot-mounted
Check out the 25015EP3OFP449TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed1475 rpm
- Number of Poles4 Pole
- Voltage380 V
- Flange TypeWithout
- Output 250 HP (185 kW)
- Moment of inertia (J) 112 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 1865 A
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Frequency 50 Hz
- Design B
- Mounting F-1
- Flange Without
- Rated current 339 A
- Locked rotor torque 180 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Frame 447/9TS
- Rated voltage 380 V
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated speed 1475 rpm
- Rated torque 890 ft.lb
- Duty Cycle Cont.(S1)
- Noise level² 69.0 dB(A)
- LRC 5.5x(Code E)
- Insulation Class F
- Approx. weight³ 2800 lb
- No load current 91.0 A
- Temperature rise 80 K
- Voltage 380-415 V
- Number of Poles 4
- Breakdown torque 210 %
- Degree of Protection IP55
- Output rating 250 HP
- Slip 1.67 %
- Locked rotor time 46s (cold) 26s (hot)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1500 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
