25015OP3OFP449TS-W40 WEG AC Motors
Part#:25015OP3OFP449TS-W40
Manufacturer:WEG
Alt. Part#:7909712250303
Product Lifecycle:Active
Get a quick Quote!

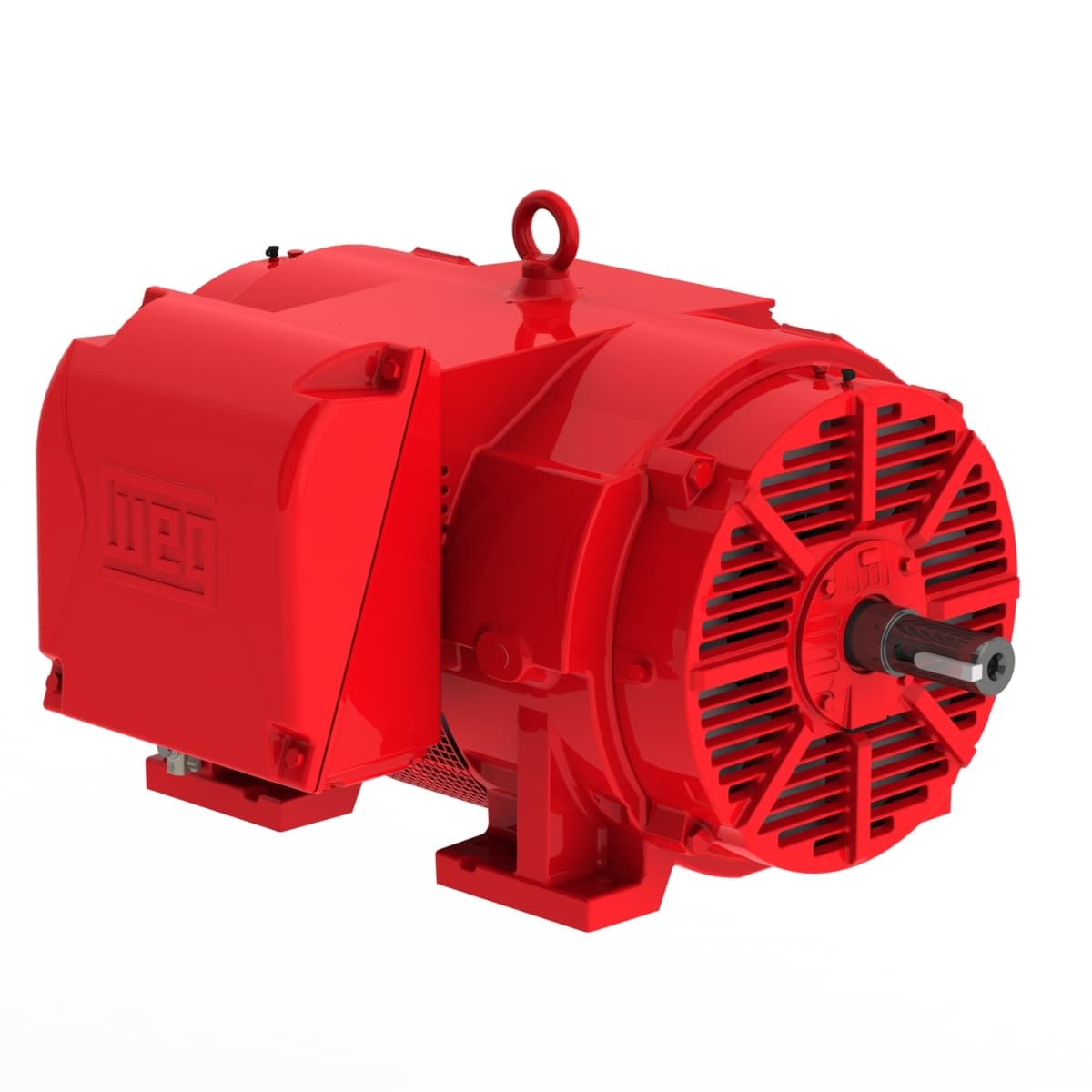

W40 High Efficiency 250 HP 4P 447/9TS 3Ph 380-400-415 V 50 Hz IC01 - ODP - Foot-mounted
Check out the 25015OP3OFP449TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed1480 rpm
- Number of Poles4 Pole
- Voltage380 V
- Flange TypeWithout
- Rated speed 1480 rpm
- Locked rotor time 41s (cold) 23s (hot)
- Starting Method Direct On Line
- Synchronous speed 1500 rpm
- Rated voltage 380 V
- Service factor 1.15
- Mounting F-1
- Flange Without
- Number of Poles 4
- No load current 102 A
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Output 250 HP (185 kW)
- Rated torque 887 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Breakdown torque 200 %
- Temperature rise 70 K
- Rated current 343 A
- Moment of inertia (J) 81.5 sq.ft.lb
- Degree of Protection IP23
- Terminal box¹ Left position
- Frame 447/9TS
- LRC 6.4x(Code G)
- Ambient temperature -20°C to +50°C
- Approx. weight³ 2289 lb
- Slip 1.33 %
- Insulation Class F
- Noise level² 72.0 dB(A)
- Output rating 250 HP
- L. R. Amperes 2195 A
- Design B
- Rotation¹ Both (CW and CCW)
- Frequency 50 Hz
- Locked rotor torque 200 %
- Enclosure IC01 - ODP
- Voltage 380-400-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
