25012OT3G447/9T-W40 WEG AC Motors
Part#:25012OT3G447/9T-W40
Manufacturer:WEG
Alt. Part#:7909322530444
Product Lifecycle:Active
Get a quick Quote!

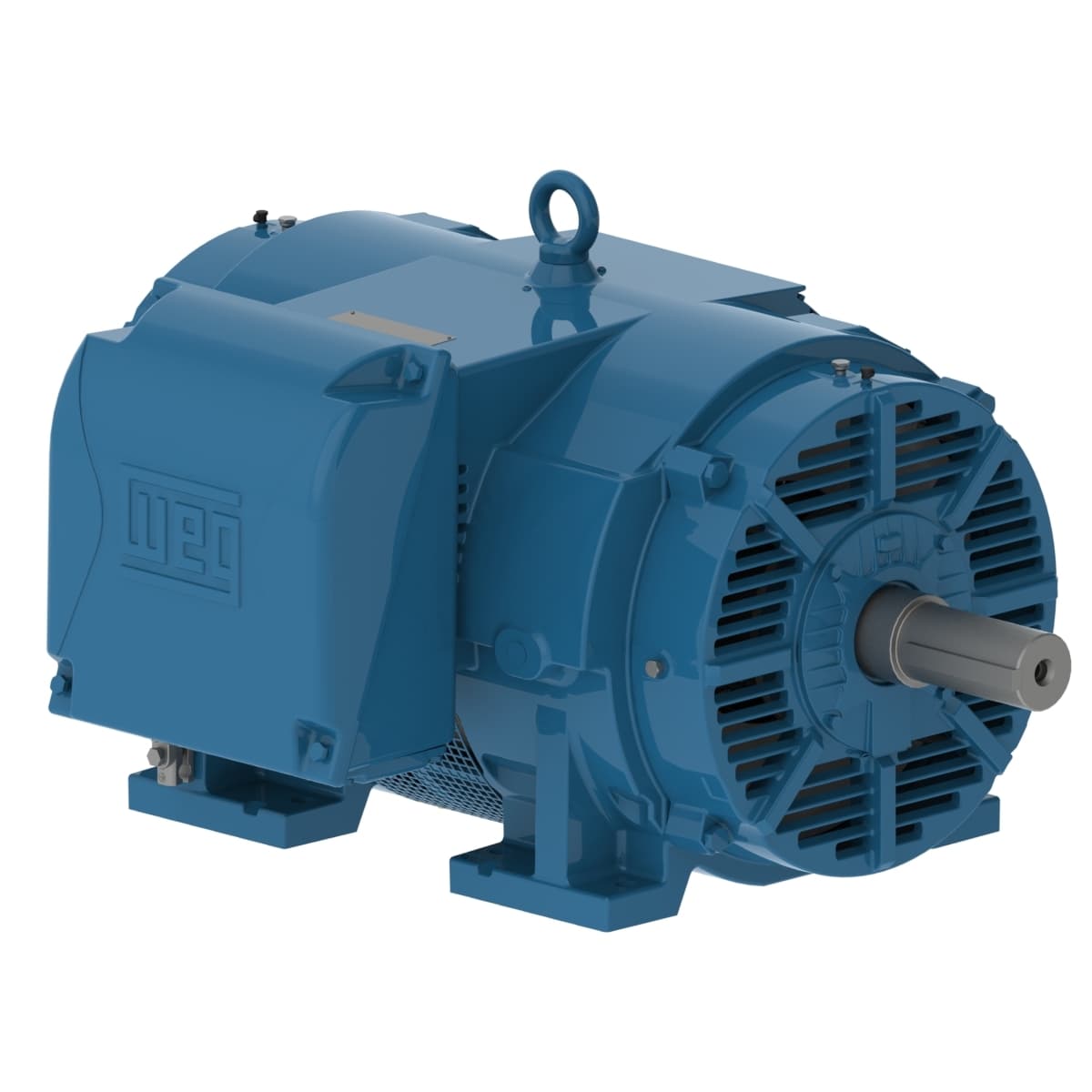

W40 NEMA Premium Efficiency 250 HP 6P 447/9T 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 25012OT3G447/9T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed1185 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- Rated speed 1185 rpm
- Locked rotor time 32s (cold) 18s (hot)
- No load current 125 A
- Mounting F-1
- Rotation¹ Both (CW and CCW)
- Rated voltage 460 V
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 299 A
- L. R. Amperes 1944 A
- Approx. weight³ 2190 lb
- Frame 447/9T
- Rated torque 1110 ft.lb
- Service factor 1.15
- Noise level² 79.0 dB(A)
- Terminal box¹ Left position
- LRC 6.5x(Code G)
- Temperature rise 80 K
- Number of poles 6
- Slip 1.25 %
- Moment of inertia (J) 115 sq.ft.lb
- Insulation Class F
- Synchronous speed 1200 rpm
- Number of Poles 6
- Frequency 60 Hz
- Design A
- Locked rotor torque 220 %
- Degree of Protection IP23
- Altitude 1000 m.a.s.l.
- Output rating 250 HP
- Flange Without
- Output 250 HP (185 kW)
- Starting Method Direct On Line
- Voltage 460 V
- Breakdown torque 240 %
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25012OT3G447/9T-W40 Specs
