12963929 WEG AC Motors
Part#:12963929
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

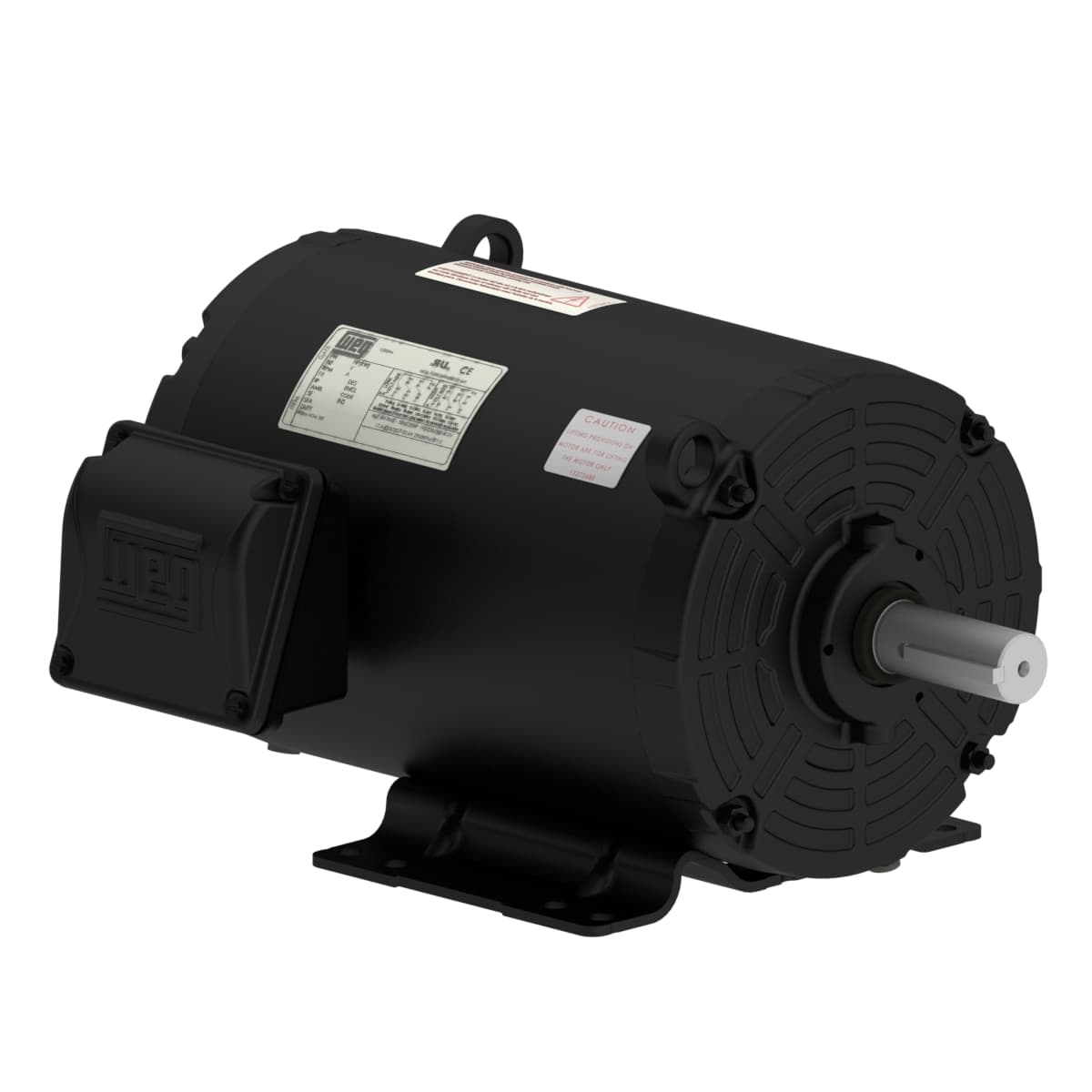

Rolled Steel High Efficiency 1 HP 6P 143/5T 3Ph 575 V 60 Hz IC418 - TEAO - Foot-mounted
Check out the 12963929 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 6
- No load current 0.862 A
- Starting Method Direct On Line
- Voltage 575 V
- Rated speed 1145 rpm
- Temperature rise 80 K
- Noise level² 50.0 dB(A)
- Slip 4.58 %
- Service factor 1.15
- Standard NEMA MG-1
- L. R. Amperes 8.37 A
- Moment of inertia (J) 0.1037 sq.ft.lb
- Enclosure IC418 - TEAO
- Output rating 1 HP
- Frame 143/5T
- Design B
- Approx. weight³ 42.1 lb
- Frequency 60 Hz
- Locked rotor time 55s (cold) 31s (hot)
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Flange Without
- Rated voltage 575 V
- Locked rotor torque 270 %
- Duty Cycle Cont.(S1)
- Number of poles 6
- LRC 6.3x(Code K)
- Rated torque 4.59 ft.lb
- Altitude 1000 m.a.s.l.
- Output 1 HP (0.75 kW)
- Insulation Class F
- Mounting F-1
- Synchronous speed 1200 rpm
- Rated current 1.33 A
- Breakdown torque 320 %
- Degree of Protection IP55
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12963929 Specs
1-year warranty
