12962687 WEG AC Motors
Part#:12962687
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

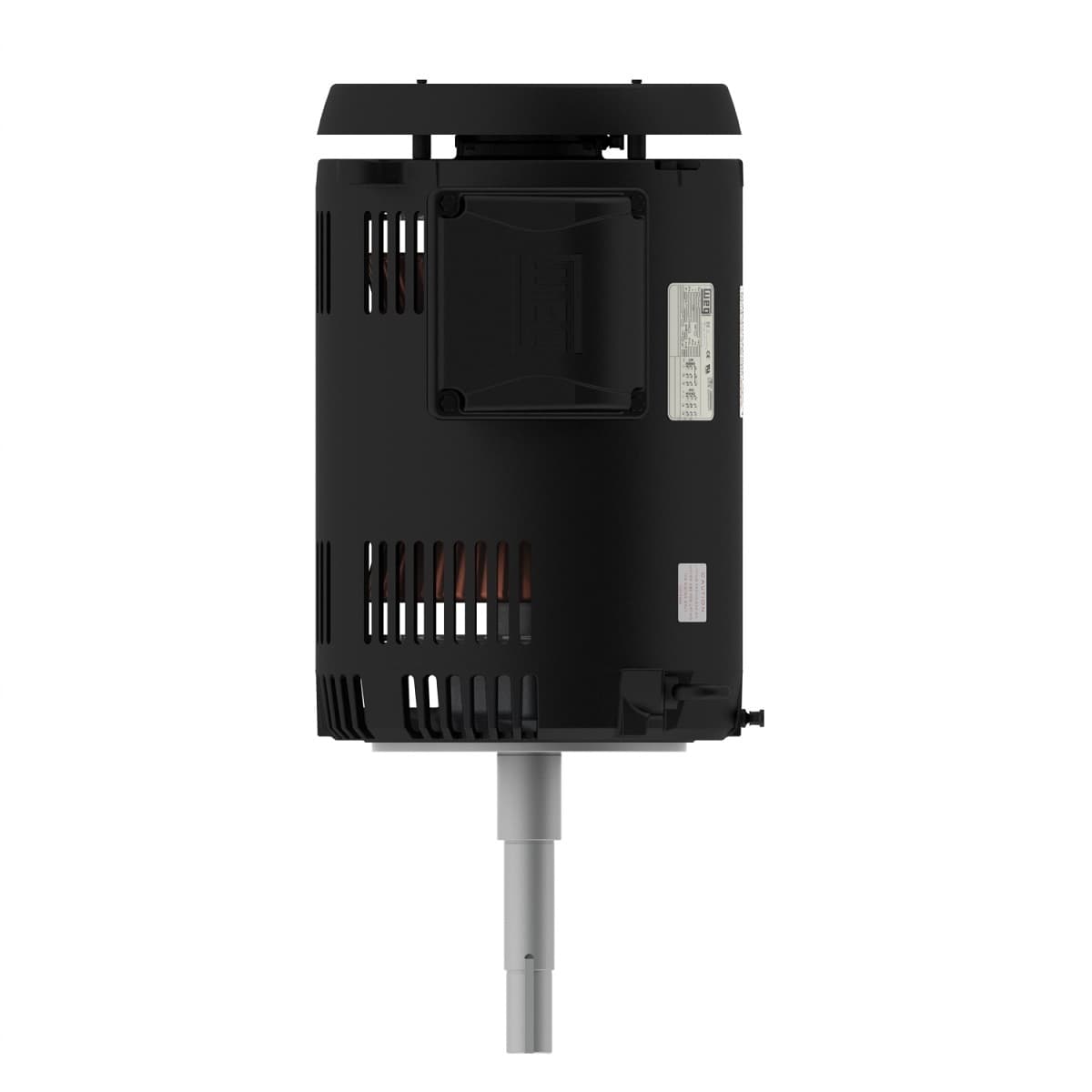

Rolled Steel JP Pump High Efficiency 7.5 HP 6P 254/6JP 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless
Check out the 12962687 WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 108/54.0 A
- Locked rotor time 54s (cold) 30s (hot)
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Rated speed 1175 rpm
- Rated voltage 230/460 V
- Rated torque 33.5 ft.lb
- No load current 12.6/6.28 A
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Number of Poles 6
- Frequency 60 Hz
- Locked rotor torque 200 %
- Mounting W-6
- Output rating 7.5 HP
- LRC 5.0x(Code G)
- Temperature rise 80 K
- Standard NEMA MG-1
- Slip 2.08 %
- Moment of inertia (J) 1.50 sq.ft.lb
- Duty Cycle Cont.(S1)
- Flange C
- Rated current 21.6/10.8 A
- Design B
- Altitude 1000 m.a.s.l.
- Noise level² 59.0 dB(A)
- Output 7.5 HP (5.5 kW)
- Frame 254/6JP
- Service factor 1.15
- Insulation Class F
- Approx. weight³ 157 lb
- Voltage 230/460//190-220/380-415 V
- Breakdown torque 229 %
- Enclosure IC01 - ODP
- Synchronous speed 1200 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12962687 Specs
1-year warranty
