12823465 WEG AC Motors
Part#:12823465
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

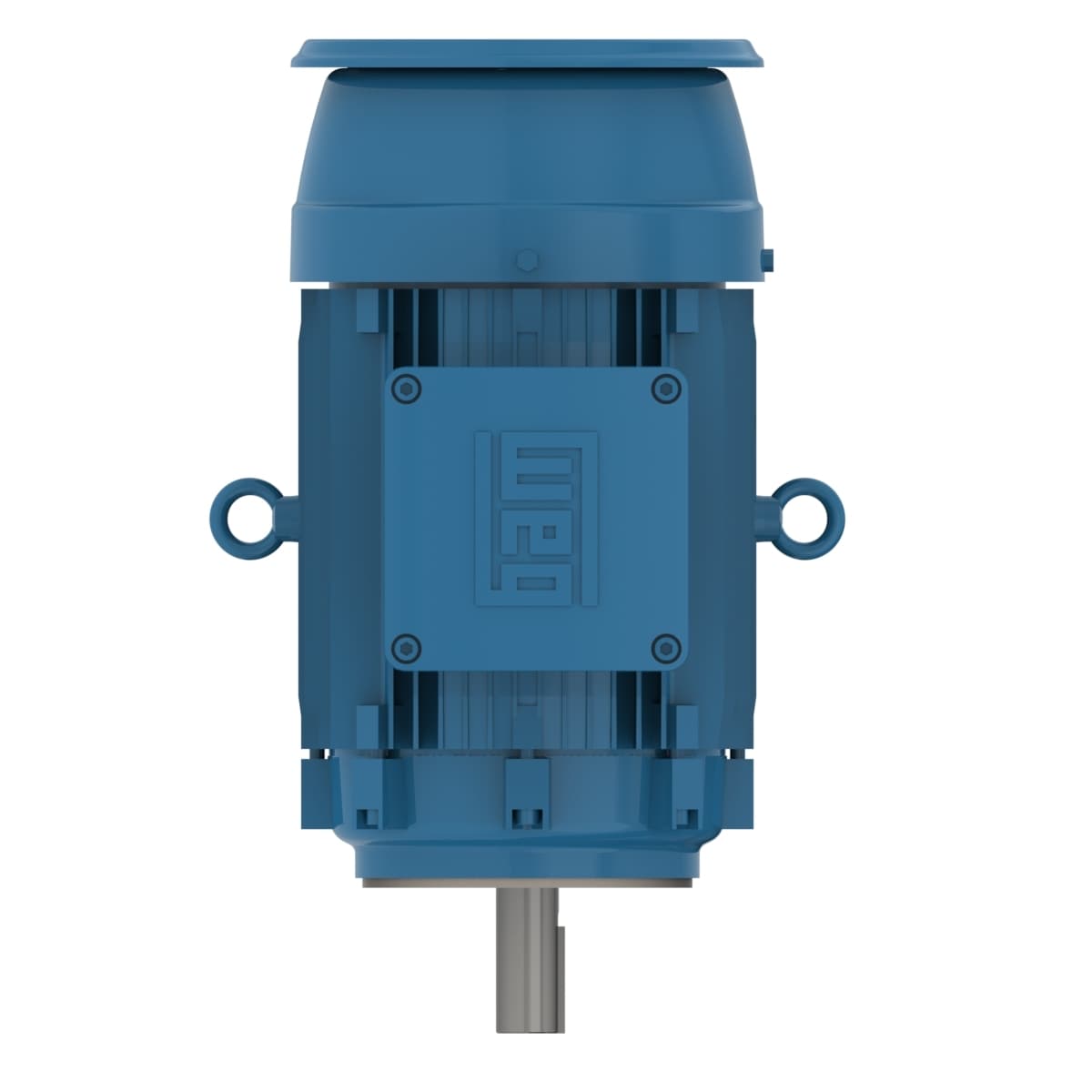

W21 Explosion-proof Motor High Efficiency 15 HP 4P 254TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 12823465 WEG price in the box on the right side or send a quick quote.
Product Details
- No load current 14.6/7.30 A
- Locked rotor torque 250 %
- Degree of Protection IP55
- Frequency 60 Hz
- Moment of inertia (J) 2.38 sq.ft.lb
- Standard NEMA MG-1
- Synchronous speed 1800 rpm
- L. R. Amperes 232/116 A
- Design B
- Rotation¹ Both (CW and CCW)
- Output rating 15 HP
- Number of Poles 4
- Service factor 1.15
- Noise level² 69.0 dB(A)
- Rated speed 1760 rpm
- Locked rotor time 48s (cold) 27s (hot)
- Approx. weight³ 330 lb
- Flange C
- Frame 254TC
- LRC 6.4x(Code G)
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Rated voltage 230/460 V
- Breakdown torque 250 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Slip 2.22 %
- Rated torque 44.8 ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 4
- Rated current 36.2/18.1 A
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Output 15 HP (11 kW)
- Insulation Class F
- Mounting W-6
- Voltage 230/460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12823465 Specs
1-year warranty
