12823463 WEG AC Motors
Part#:12823463
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

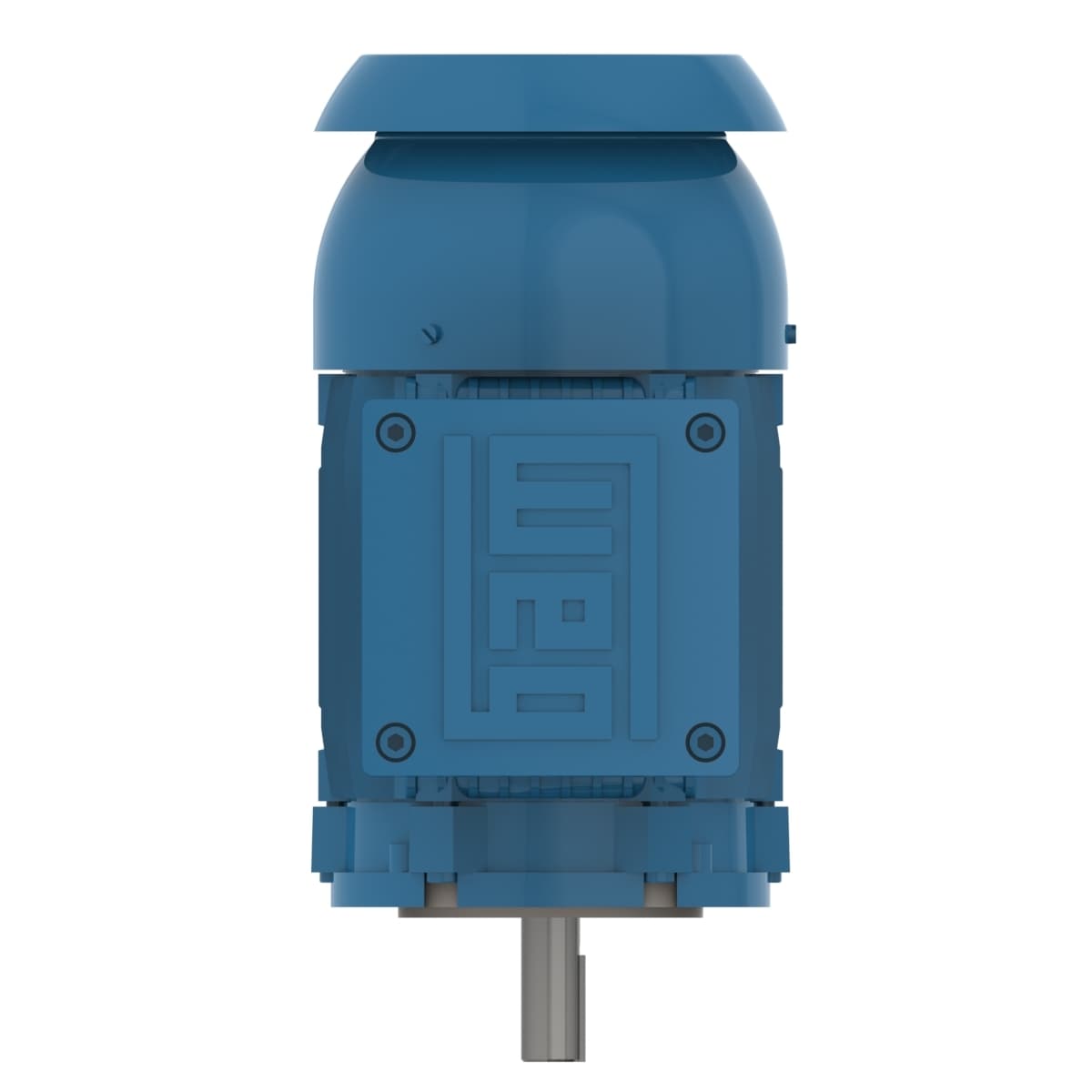

W21 Explosion-proof Motor High Efficiency 1.5 HP 4P 145TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 12823463 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 230/460 V
- Moment of inertia (J) 0.1196 sq.ft.lb
- Degree of Protection IP55
- Approx. weight³ 71.4 lb
- Slip 2.50 %
- No load current 2.60/1.30 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated current 4.26/2.13 A
- Breakdown torque 370 %
- Mounting W-6
- Terminal box¹ Left position
- Number of Poles 4
- Rated torque 4.49 ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 1.5 HP
- L. R. Amperes 36.2/18.1 A
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
- Frame 145TC
- Locked rotor torque 270 %
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Locked rotor time 23s (cold) 13s (hot)
- LRC 8.5x(Code L)
- Noise level² 51.0 dB(A)
- Output 1.5 HP (1.1 kW)
- Design B
- Duty Cycle Cont.(S1)
- Number of poles 4
- Rated speed 1755 rpm
- Insulation Class F
- Enclosure IC411 - TEFC
- Flange C
- Frequency 60 Hz
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
