12822485 WEG AC Motors
Part#:12822485
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

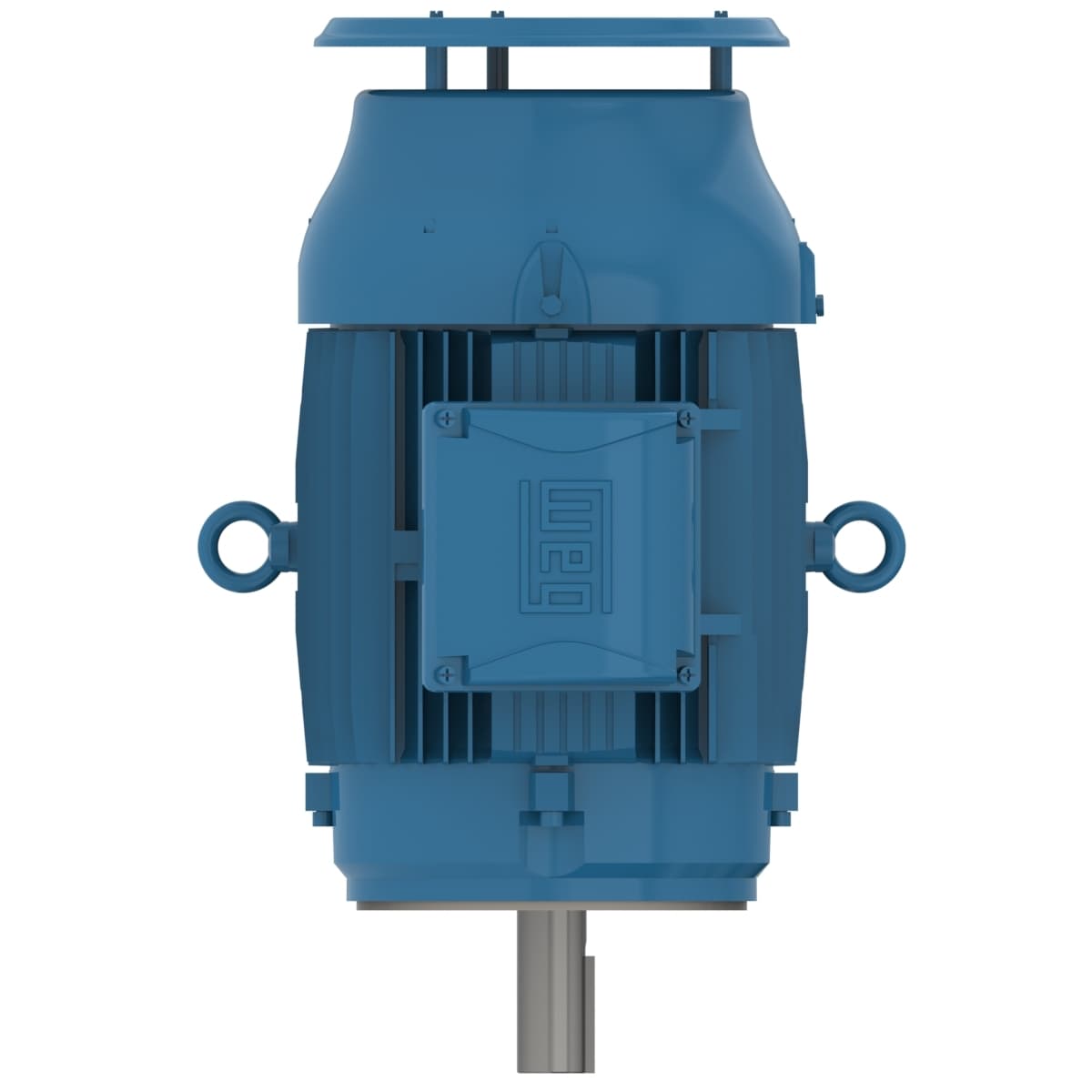

W22 High Efficiency 15 HP 2P 254TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 12822485 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2
- Design B
- Slip 2.08 %
- Breakdown torque 250 %
- Degree of Protection IP55
- Noise level² 72.0 dB(A)
- Output 15 HP (11 kW)
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Terminal box¹ Left position
- Frame 254TC
- Rated voltage 230/460 V
- LRC 6.2x(Code G)
- Moment of inertia (J) 1.26 sq.ft.lb
- Voltage 230/460//380 V
- Enclosure IC411 - TEFC
- Output rating 15 HP
- Flange C
- L. R. Amperes 216/108 A
- Rated torque 22.3 ft.lb
- No load current 9.20/4.60 A
- Service factor 1.25
- Starting Method Direct On Line
- Rated speed 3525 rpm
- Frequency 60 Hz
- Temperature rise 80 K
- Insulation Class F
- Duty Cycle Cont.(S1)
- Rated current 34.8/17.4 A
- Locked rotor time 32s (cold) 18s (hot)
- Altitude 1000 m.a.s.l.
- Mounting W-6
- Number of poles 2
- Approx. weight³ 253 lb
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
