12822569 WEG AC Motors
Part#:12822569
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

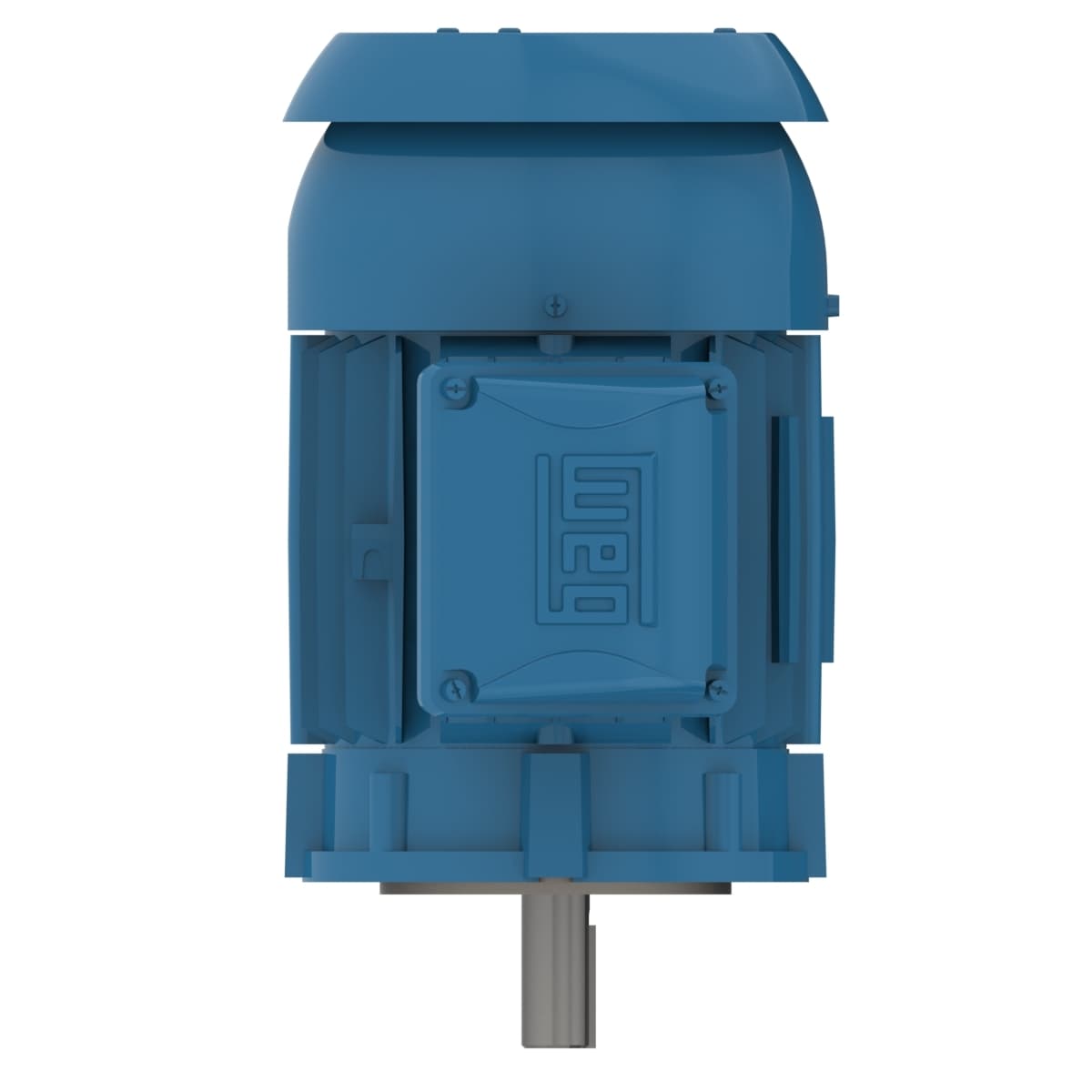

W22 High Efficiency 2 HP 4P 145TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 12822569 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 5.98/2.99 A
- No load current 3.52/1.76 A
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Output 2 HP (1.5 kW)
- Service factor 1.25
- Temperature rise 80 K
- Noise level² 51.0 dB(A)
- L. R. Amperes 41.9/20.9 A
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
- Frame 145TC
- Locked rotor torque 240 %
- Enclosure IC411 - TEFC
- Mounting W-6
- Number of Poles 4
- Breakdown torque 280 %
- Number of poles 4
- Slip 3.06 %
- Locked rotor time 19s (cold) 11s (hot)
- Degree of Protection IP55
- Flange C
- Terminal box¹ Left position
- LRC 7.0x(Code K)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Moment of inertia (J) 0.1296 sq.ft.lb
- Output rating 2 HP
- Frequency 60 Hz
- Rated torque 6.02 ft.lb
- Ambient temperature -20°C to +40°C
- Approx. weight³ 52.6 lb
- Rated speed 1745 rpm
- Design B
- Insulation Class F
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12822569 Specs
