12599092 WEG AC Motors
Part#:12599092
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

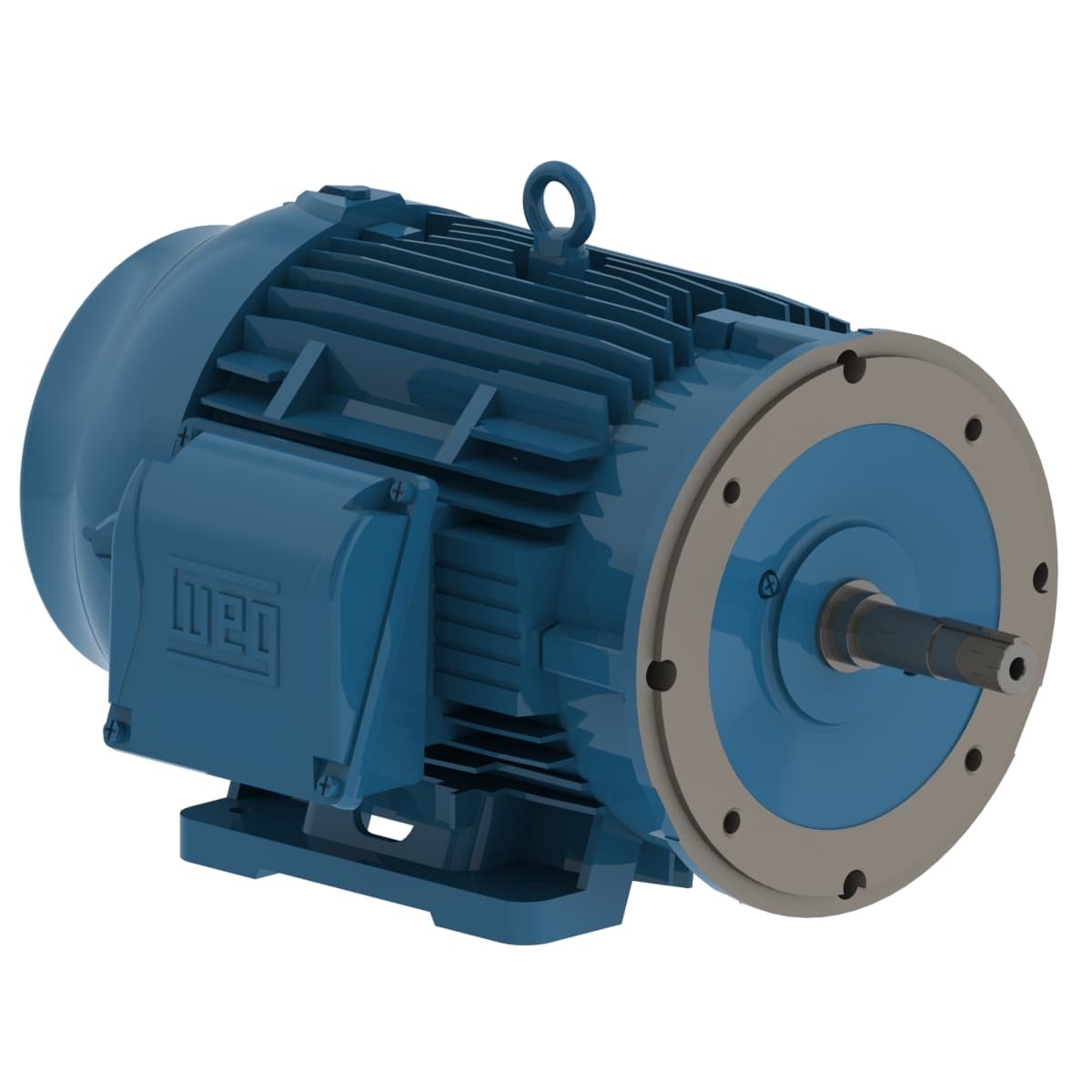

W22 Close Coupled Pump JM High Efficiency 15 HP 4P 254/6JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 12599092 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 1770 rpm
- Temperature rise 80 K
- Voltage 230/460//380 V
- Frame 254/6JM
- Locked rotor torque 229 %
- Starting Method Direct On Line
- Noise level² 64.0 dB(A)
- Frequency 60 Hz
- LRC 6.0x(Code G)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Output 15 HP (11 kW)
- No load current 14.2/7.10 A
- Locked rotor time 25s (cold) 14s (hot)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Rated current 36.1/18.1 A
- Breakdown torque 240 %
- Degree of Protection IP55
- Flange C
- Rated voltage 230/460 V
- Design B
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 217/108 A
- Moment of inertia (J) 2.38 sq.ft.lb
- Mounting F-1
- Number of poles 4
- Number of Poles 4
- Insulation Class F
- Approx. weight³ 267 lb
- Slip 1.67 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated torque 44.5 ft.lb
- Service factor 1.25
- Enclosure IC411 - TEFC
- Output rating 15 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12599092 Specs
1-year warranty
