12598482 WEG AC Motors
Part#:12598482
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

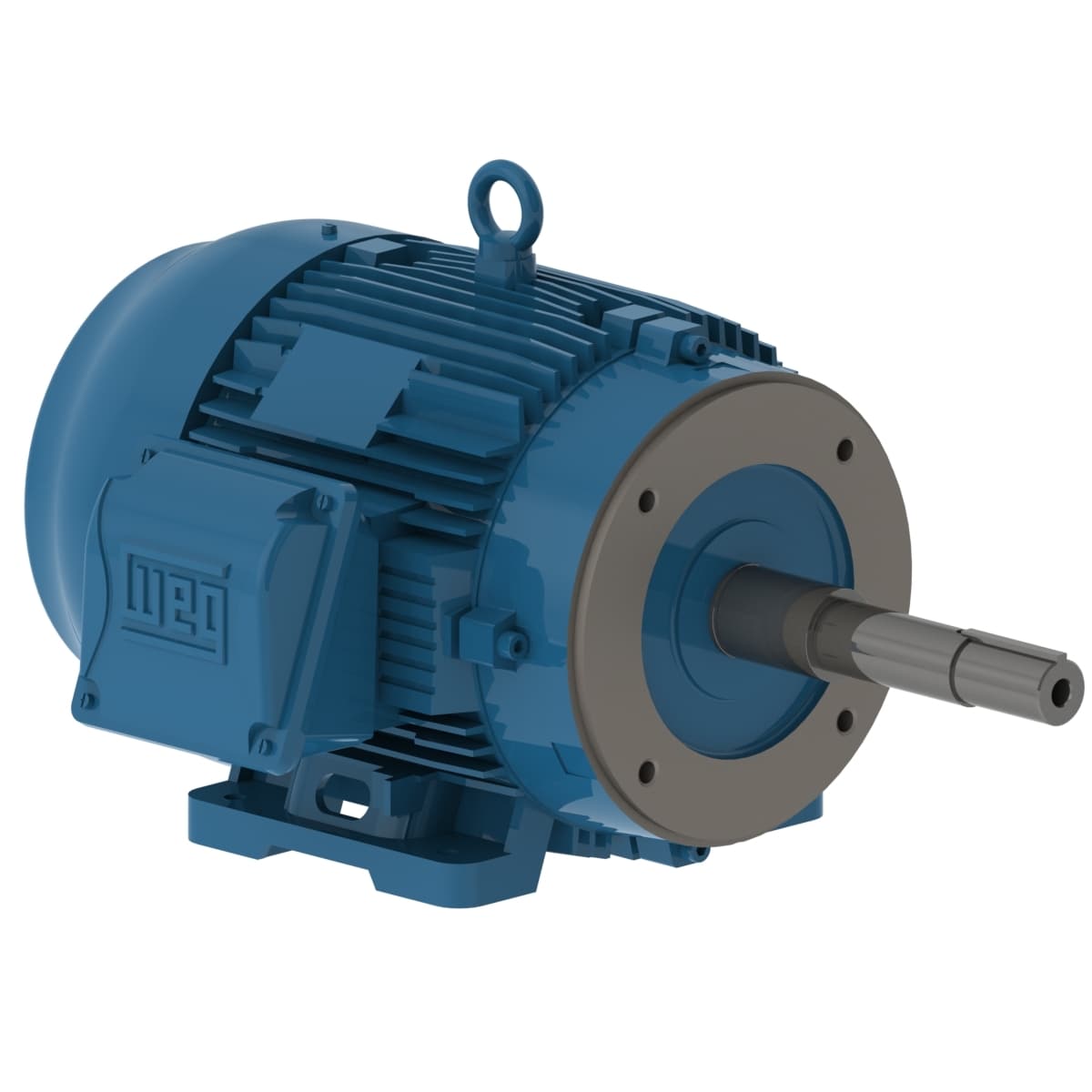

W22 Close Coupled Pump JP High Efficiency 3 HP 4P 182/4JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 12598482 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 8.10/4.05 A
- Insulation Class F
- Degree of Protection IP55
- Number of poles 4
- Rated voltage 230/460 V
- Moment of inertia (J) 0.2636 sq.ft.lb
- Approx. weight³ 86.3 lb
- Rated speed 1760 rpm
- Frame 182/4JP
- Altitude 1000 m.a.s.l.
- Slip 2.22 %
- Breakdown torque 280 %
- Frequency 60 Hz
- Rated torque 8.95 ft.lb
- Output 3 HP (2.2 kW)
- Locked rotor torque 220 %
- Design B
- Noise level² 56.0 dB(A)
- Standard NEMA MG-1
- L. R. Amperes 64.0/32.0 A
- Starting Method Direct On Line
- Duty Cycle Cont.(S1)
- Output rating 3 HP
- Number of Poles 4
- Locked rotor time 32s (cold) 18s (hot)
- Temperature rise 80 K
- Terminal box¹ Left position
- LRC 7.9x(Code K)
- Mounting F-1
- Flange C
- No load current 4.40/2.20 A
- Service factor 1.25
- Synchronous speed 1800 rpm
- Enclosure IC411 - TEFC
- Voltage 230/460//380 V
- Rotation¹ Both (CW and CCW)
- Ambient temperature -20°C to +40°C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12598482 Specs
1-year warranty
