12598688 WEG AC Motors
Part#:12598688
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

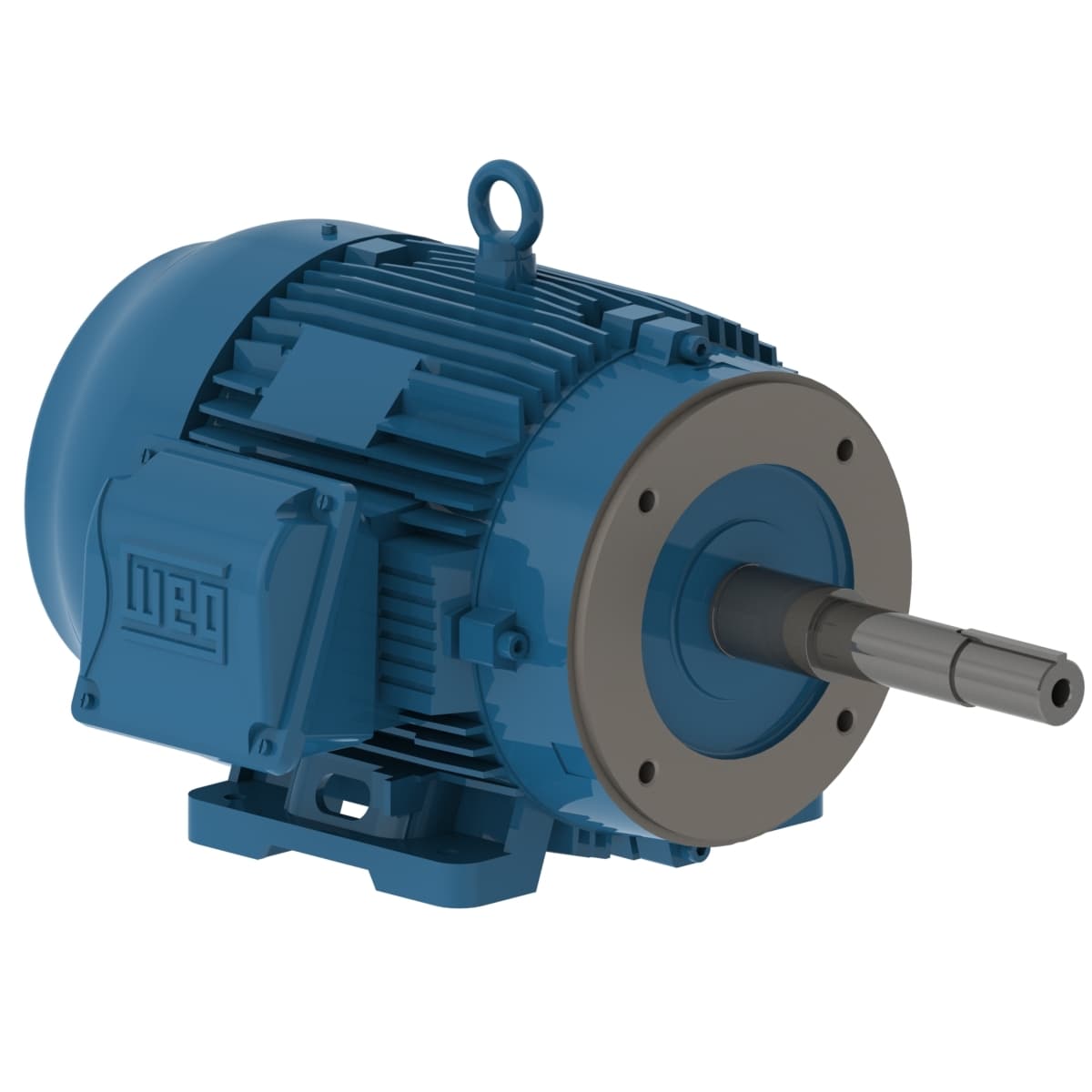

W22 Close Coupled Pump JP High Efficiency 3 HP 2P 182/4JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 12598688 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 3 HP (2.2 kW)
- Frequency 60 Hz
- LRC 7.9x(Code J)
- Temperature rise 80 K
- Number of poles 2
- Slip 2.50 %
- Moment of inertia (J) 0.1644 sq.ft.lb
- Noise level² 70.0 dB(A)
- No load current 2.60/1.30 A
- Starting Method Direct On Line
- Service factor 1.25
- Flange C
- Number of Poles 2
- Design B
- Enclosure IC411 - TEFC
- Output rating 3 HP
- Rated speed 3510 rpm
- Locked rotor time 50s (cold) 28s (hot)
- Breakdown torque 340 %
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Mounting F-1
- Synchronous speed 3600 rpm
- Frame 182/4JP
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Rated voltage 230/460 V
- L. R. Amperes 58.0/29.0 A
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated torque 4.49 ft.lb
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Rated current 7.34/3.67 A
- Locked rotor torque 210 %
- Approx. weight³ 88.1 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
