12549706 WEG AC Motors
Part#:12549706
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

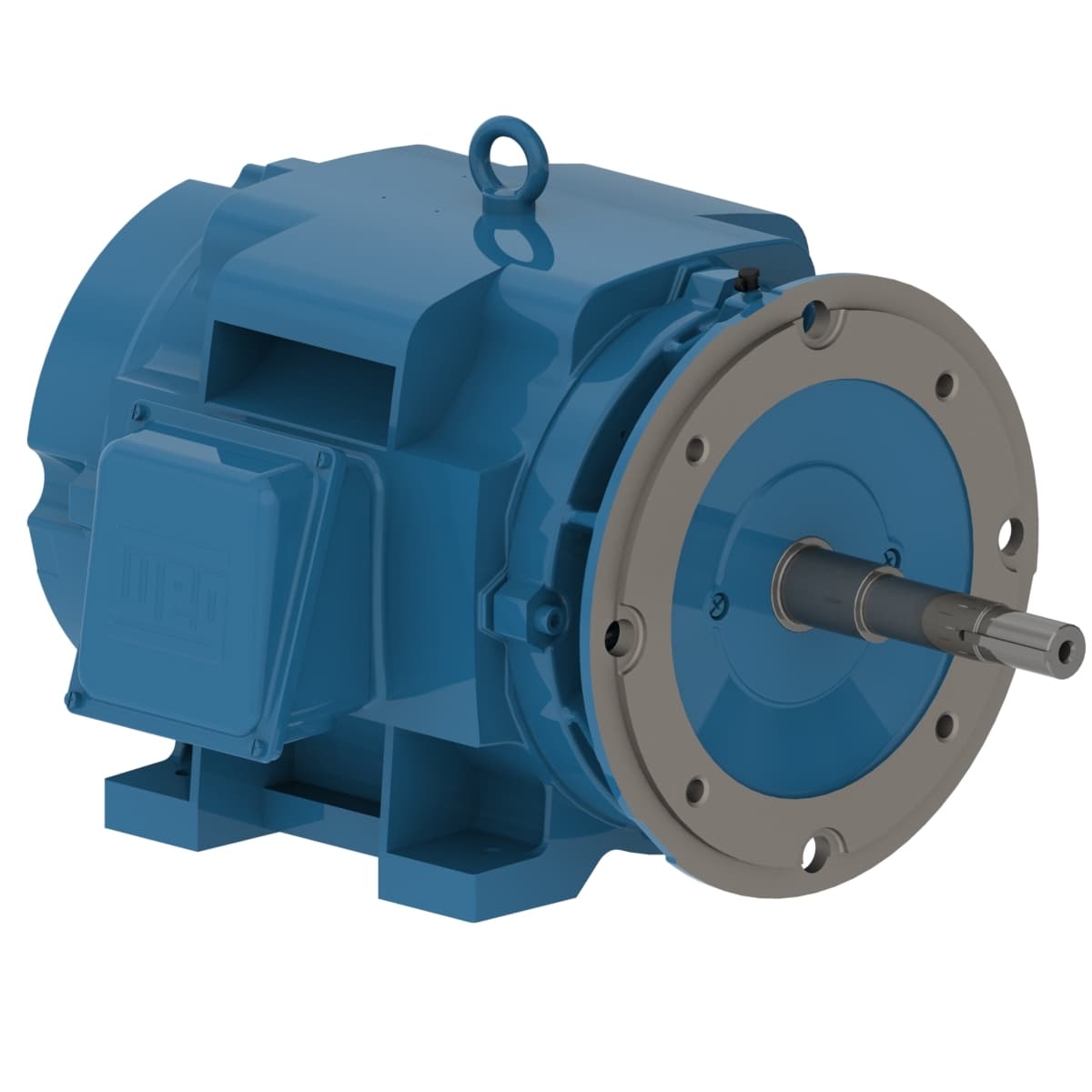

Close Coupled Pump High Efficiency 30 HP 4P 286JP 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12549706 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 1770 rpm
- Breakdown torque 270 %
- Rated voltage 230/460 V
- Design B
- Noise level² 63.0 dB(A)
- Number of Poles 4
- LRC 6.1x(Code G)
- Flange C
- Slip 1.67 %
- Service factor 1.15
- Starting Method Direct On Line
- Moment of inertia (J) 3.41 sq.ft.lb
- Temperature rise 80 K
- Mounting F-1
- Frequency 60 Hz
- L. R. Amperes 434/217 A
- Rated torque 89.0 ft.lb
- Locked rotor torque 250 %
- Duty Cycle Cont.(S1)
- Voltage 230/460 V
- Enclosure IC01 - ODP
- Synchronous speed 1800 rpm
- Output 30 HP (22 kW)
- Locked rotor time 23s (cold) 13s (hot)
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Output rating 30 HP
- Rated current 71.2/35.6 A
- No load current 28.0/14.0 A
- Altitude 1000 m.a.s.l.
- Approx. weight³ 361 lb
- Terminal box¹ Left position
- Frame 286JP
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
