12423829 WEG AC Motors
Part#:12423829
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

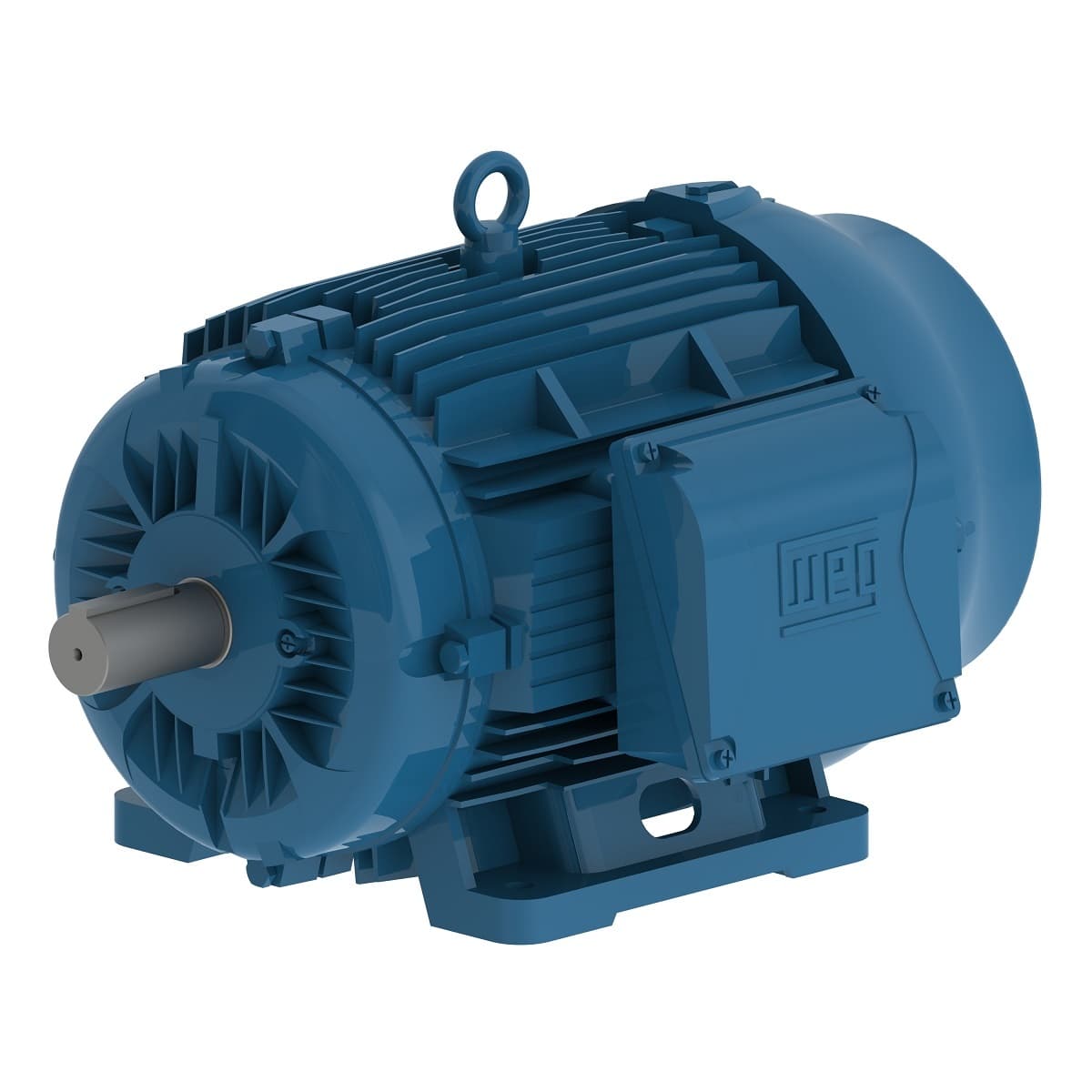

W22 Tru-Metric IE2 15 HP 8P 180L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 12423829 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 180L
- Design N
- Mounting B3L(E)
- Terminal box¹ Right position
- L. R. Amperes 144 A
- Enclosure IC411 - TEFC
- Output rating 15 HP
- Rated speed 725 rpm
- LRC 6.0
- Breakdown torque 240 %
- Duty Cycle S1
- Degree of Protection IP55
- Standard NEMA MG-1
- Locked rotor torque 210 %
- Noise level² 52.0 dB(A)
- Rated voltage 380 V
- No load current 10.5 A
- Rotation¹ Both (CW and CCW)
- Rated torque 109 ft.lb
- Temperature rise 80 K
- Starting Method Direct On Line
- Voltage 460//380-415 V
- Slip 3.33 %
- Number of Poles 8
- Locked rotor time 19s (cold) 11s (hot)
- Moment of inertia (J) 5.79 sq.ft.lb
- Number of poles 8
- Ambient temperature -20°C to +40°C
- Synchronous speed 900 rpm
- Frequency 50 Hz
- Rated current 24.0 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Flange Without
- Output 15 HP (11 kW)
- Approx. weight³ 392 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12423829 Specs
