12423175 WEG AC Motors
Part#:12423175
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

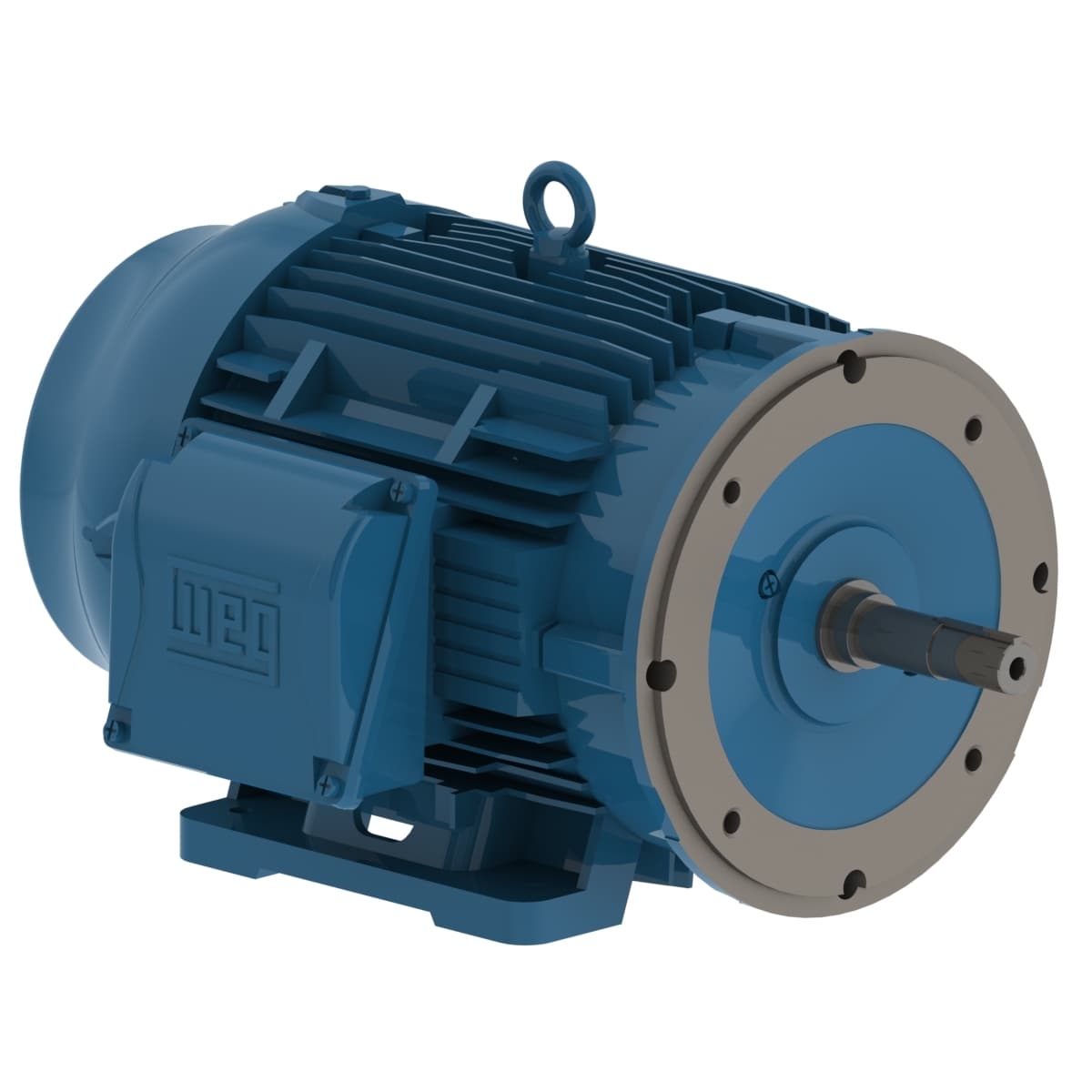

W22 Close Coupled Pump JM High Efficiency 20 HP 2P 254/6JM 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12423175 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 254/6JM
- Rated torque 29.9 ft.lb
- Temperature rise 80 K
- Terminal box¹ Left position
- Number of Poles 2
- Moment of inertia (J) 1.54 sq.ft.lb
- Mounting F-1
- Output rating 20 HP
- Rated current 19.0 A
- Breakdown torque 250 %
- Rotation¹ Both (CW and CCW)
- Flange C
- LRC 6.0x(Code G)
- Insulation Class F
- Noise level² 72.0 dB(A)
- No load current 4.56 A
- Design B
- Duty Cycle Cont.(S1)
- Number of poles 2
- L. R. Amperes 114 A
- Starting Method Direct On Line
- Approx. weight³ 280 lb
- Rated voltage 575 V
- Service factor 1.25
- Synchronous speed 3600 rpm
- Output 20 HP (15 kW)
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- Rated speed 3515 rpm
- Locked rotor time 18s (cold) 10s (hot)
- Altitude 1000 m.a.s.l.
- Enclosure IC411 - TEFC
- Frequency 60 Hz
- Slip 2.36 %
- Degree of Protection IP55
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12423175 Specs
