11767358 WEG AC Motors
Part#:11767358
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

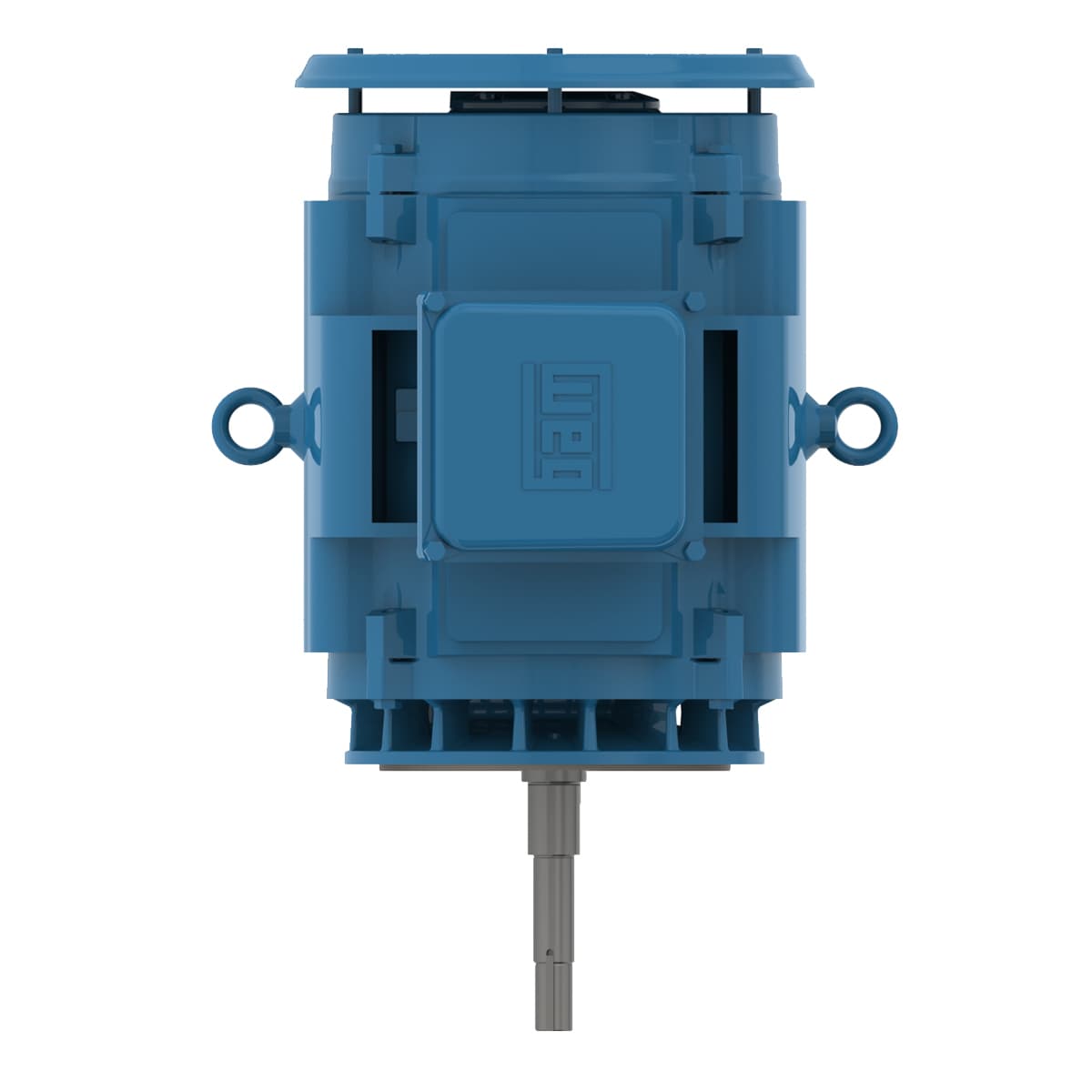

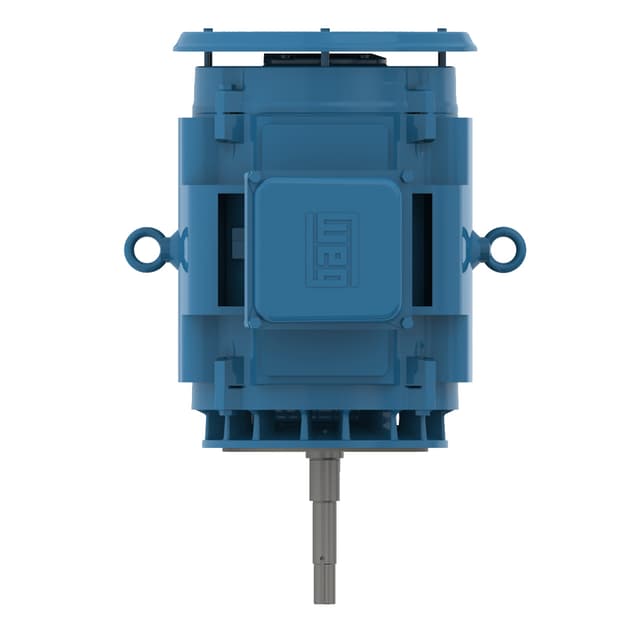

Close Coupled Pump High Efficiency 60 HP 4P 364/5JP 3Ph 230/460 V 60 Hz IC01 - ODP - Footless
Check out the 11767358 WEG price in the box on the right side or send a quick quote.
Product Details
- LRC 6.1x(Code G)
- Service factor 1.15
- Voltage 230/460 V
- Output 60 HP (45 kW)
- Locked rotor torque 200 %
- Mounting W-6
- Terminal box¹ Left position
- Number of Poles 4
- Breakdown torque 240 %
- Enclosure IC01 - ODP
- Noise level² 67.0 dB(A)
- Rated voltage 230/460 V
- Design B
- Degree of Protection IP23
- Synchronous speed 1800 rpm
- L. R. Amperes 856/428 A
- Locked rotor time 28s (cold) 16s (hot)
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Frame 364/5JP
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 140/70.2 A
- Moment of inertia (J) 12.5 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 60 HP
- No load current 42.0/21.0 A
- Temperature rise 80 K
- Slip 1.11 %
- Insulation Class F
- Approx. weight³ 727 lb
- Number of poles 4
- Rated speed 1780 rpm
- Rated torque 177 ft.lb
- Starting Method Direct On Line
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
