11766590 WEG AC Motors
Part#:11766590
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

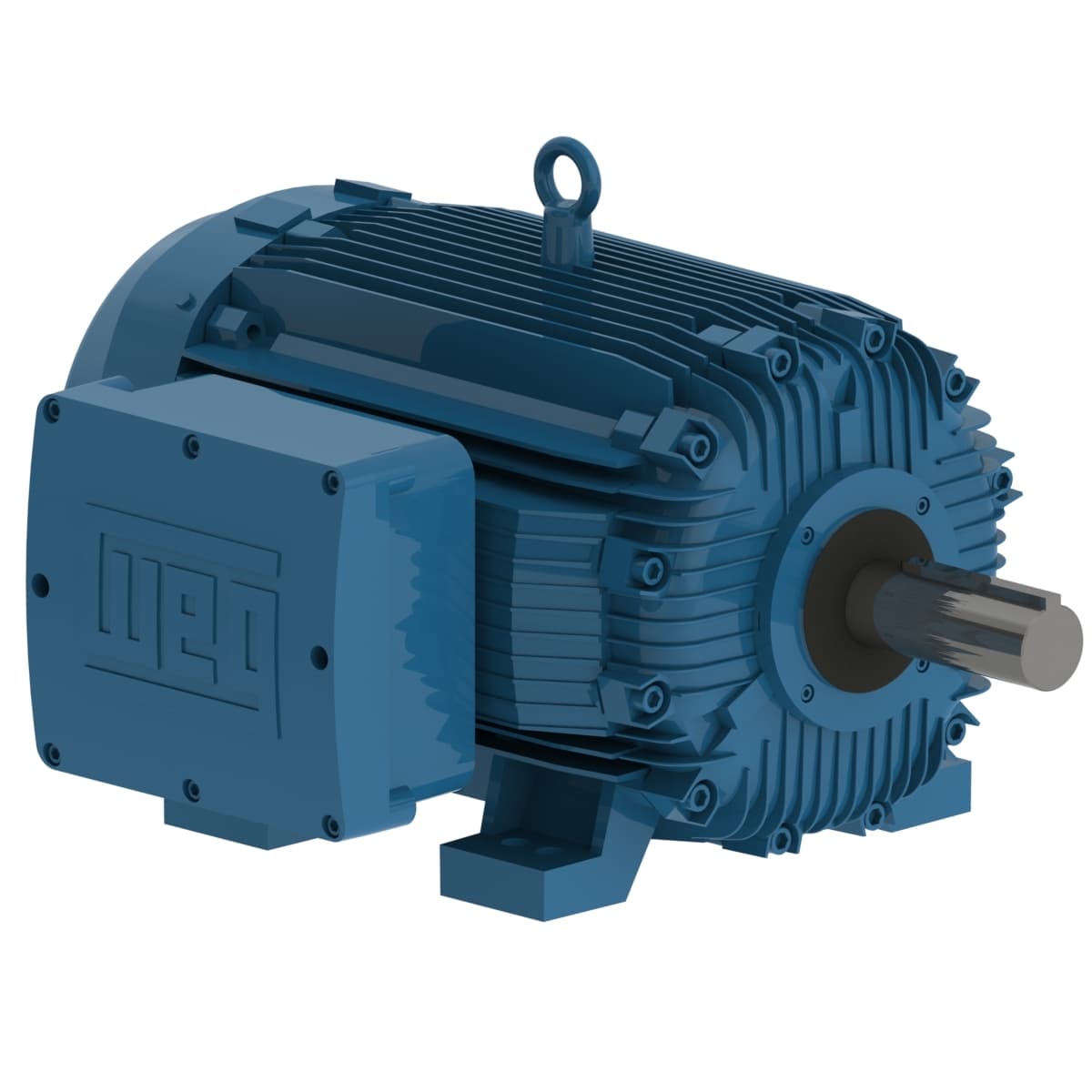

W21 Explosion-proof Motor High Efficiency 500 HP 4P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11766590 WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 3610 A
- Locked rotor time 63s (cold) 35s (hot)
- Enclosure IC411 - TEFC
- Flange Without
- Frequency 60 Hz
- LRC 6.4x(Code G)
- Duty Cycle Cont.(S1)
- Number of poles 4
- Rated voltage 460 V
- Locked rotor torque 180 %
- Temperature rise 105 K
- Noise level² 83.0 dB(A)
- Slip 0.56 %
- Service factor 1.15
- Approx. weight³ 4755 lb
- Output 500 HP (370 kW)
- Rated torque 1470 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- Rated current 564 A
- Moment of inertia (J) 256 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Rated speed 1790 rpm
- Design B
- Altitude 1000 m.a.s.l.
- Output rating 500 HP
- No load current 140 A
- Degree of Protection IP54
- Terminal box¹ Left position
- Number of Poles 4
- Breakdown torque 210 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Frame 586/7T
- Insulation Class F
- Mounting F-1
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11766590 Specs
1-year warranty
