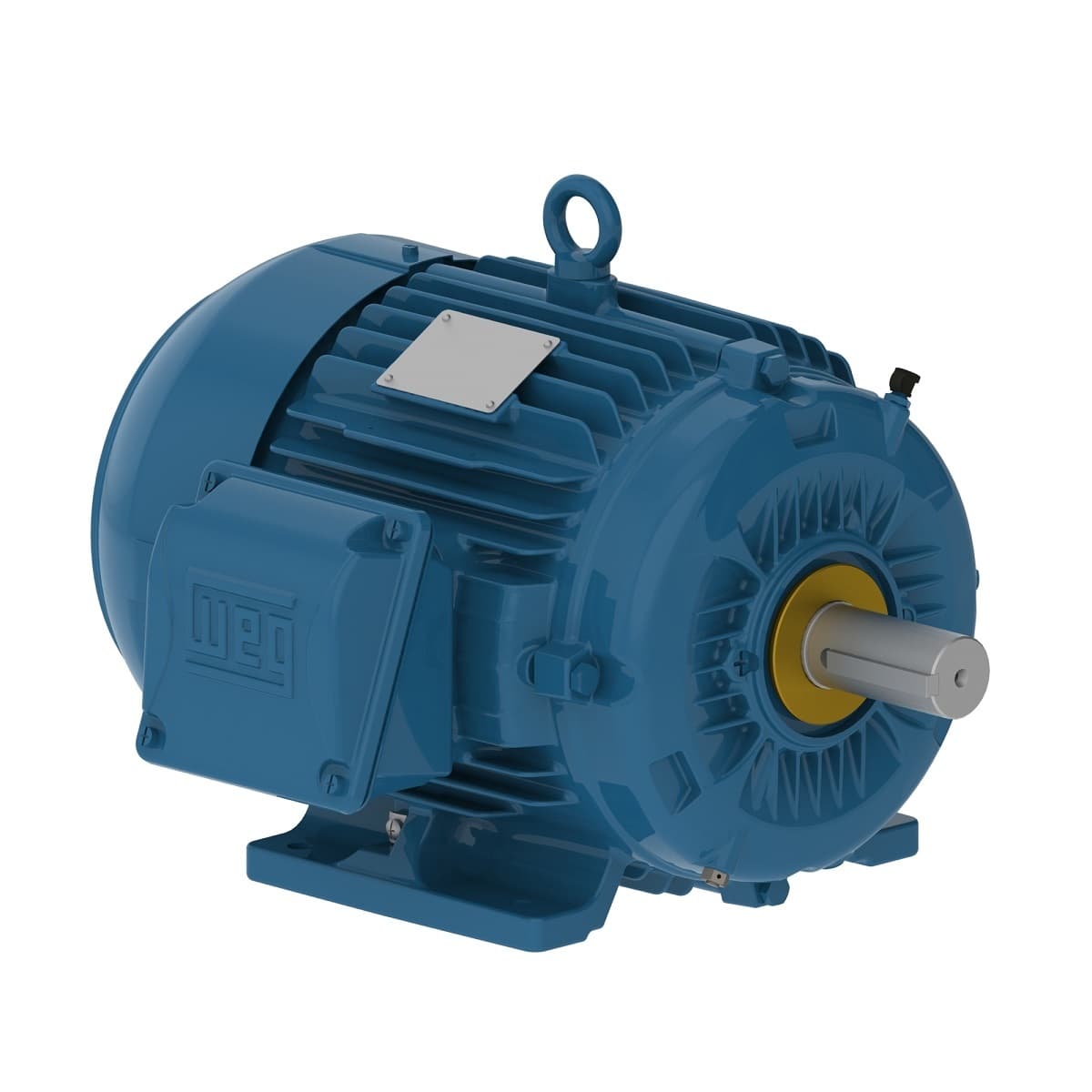

11724427 WEG AC Motors
Part#:11724427
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22 IEEE 841 NEMA Premium Efficiency 1.5 HP 8P 182/4T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11724427 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 1.5 HP (1.1 kW)
- Insulation Class F
- Duty Cycle Cont.(S1)
- Number of poles 8
- Slip 4.44 %
- Moment of inertia (J) 0.5766 sq.ft.lb
- Mounting F-1
- Flange Without
- Frequency 60 Hz
- Locked rotor time 30s (cold) 17s (hot)
- LRC 5.9x(Code K)
- Voltage 460 V
- Breakdown torque 290 %
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Frame 182/4T
- Rated torque 9.16 ft.lb
- Altitude 1000 m.a.s.l.
- Noise level² 50.0 dB(A)
- Terminal box¹ Left position
- Rated current 2.84 A
- Locked rotor torque 229 %
- Enclosure IC411 - TEFC
- Output rating 1.5 HP
- Rated voltage 460 V
- No load current 2.10 A
- Degree of Protection IP56
- L. R. Amperes 16.8 A
- Ambient temperature -20°C to +40°C
- Synchronous speed 900 rpm
- Rated speed 860 rpm
- Design B
- Service factor 1.25
- Starting Method Direct On Line
- Number of Poles 8
- Temperature rise 80 K
- Approx. weight³ 104 lb
