11722398 WEG AC Motors
Part#:11722398
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

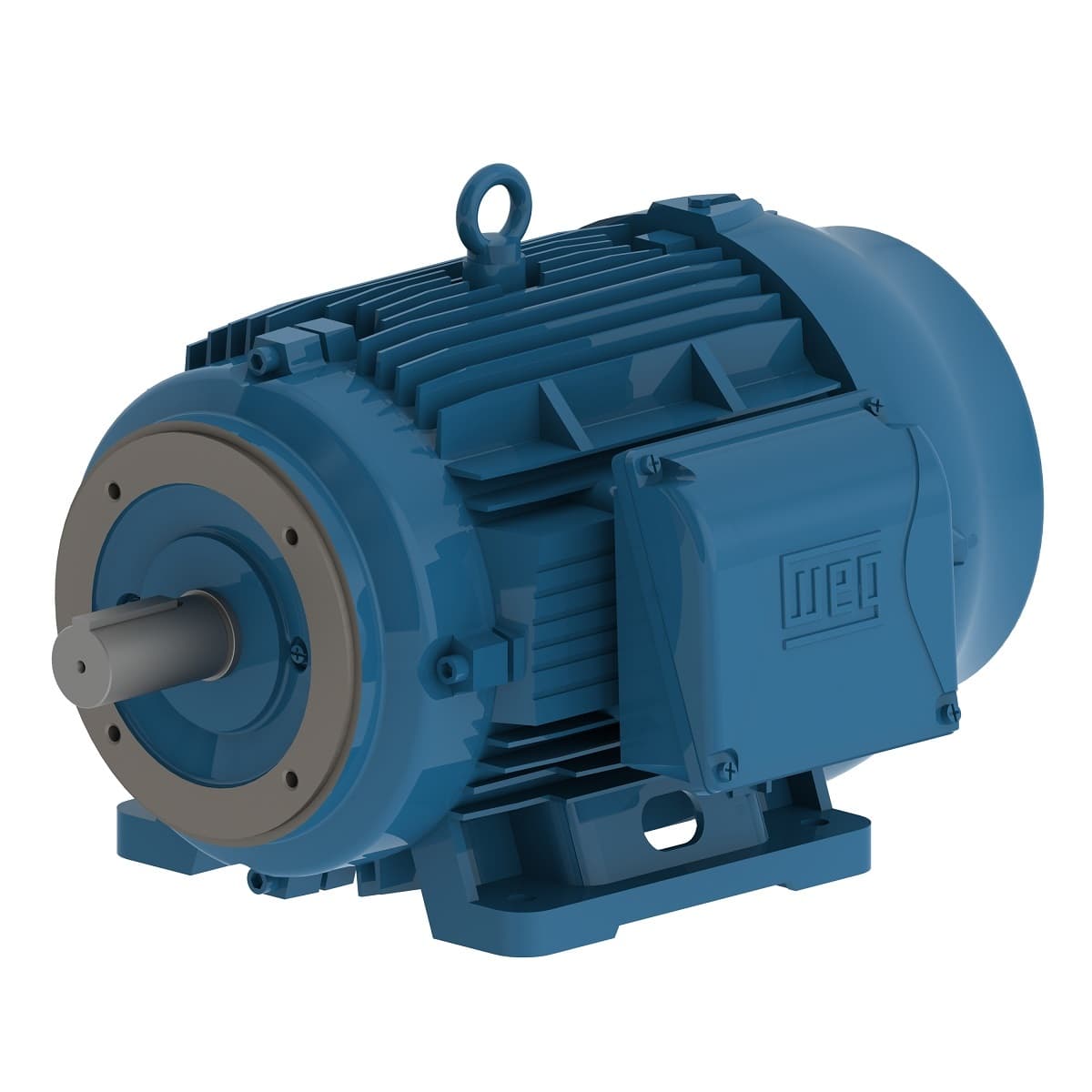

W22 NEMA Premium Efficiency 40 HP 4P 324TSC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11722398 WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Rated torque 118 ft.lb
- Noise level² 66.0 dB(A)
- No load current 34.0/17.0 A
- Temperature rise 80 K
- Mounting F-2
- Terminal box¹ Right position
- Slip 1.39 %
- Insulation Class F
- Starting Method Direct On Line
- Voltage 230/460//380 V
- Number of Poles 4
- LRC 6.1x(Code G)
- Ambient temperature -20°C to +40°C
- Number of poles 4
- L. R. Amperes 575/287 A
- Service factor 1.25
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- Frame 324TSC
- Breakdown torque 240 %
- Standard NEMA MG-1
- Output 40 HP (30 kW)
- Locked rotor time 36s (cold) 20s (hot)
- Approx. weight³ 585 lb
- Flange C
- Rated speed 1775 rpm
- Duty Cycle Cont.(S1)
- Rated current 94.2/47.1 A
- Rated voltage 230/460 V
- Locked rotor torque 229 %
- Altitude 1000 m.a.s.l.
- Design B
- Rotation¹ Both (CW and CCW)
- Moment of inertia (J) 9.16 sq.ft.lb
- Enclosure IC411 - TEFC
- Output rating 40 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
