11454080 WEG AC Motors
Part#:11454080
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

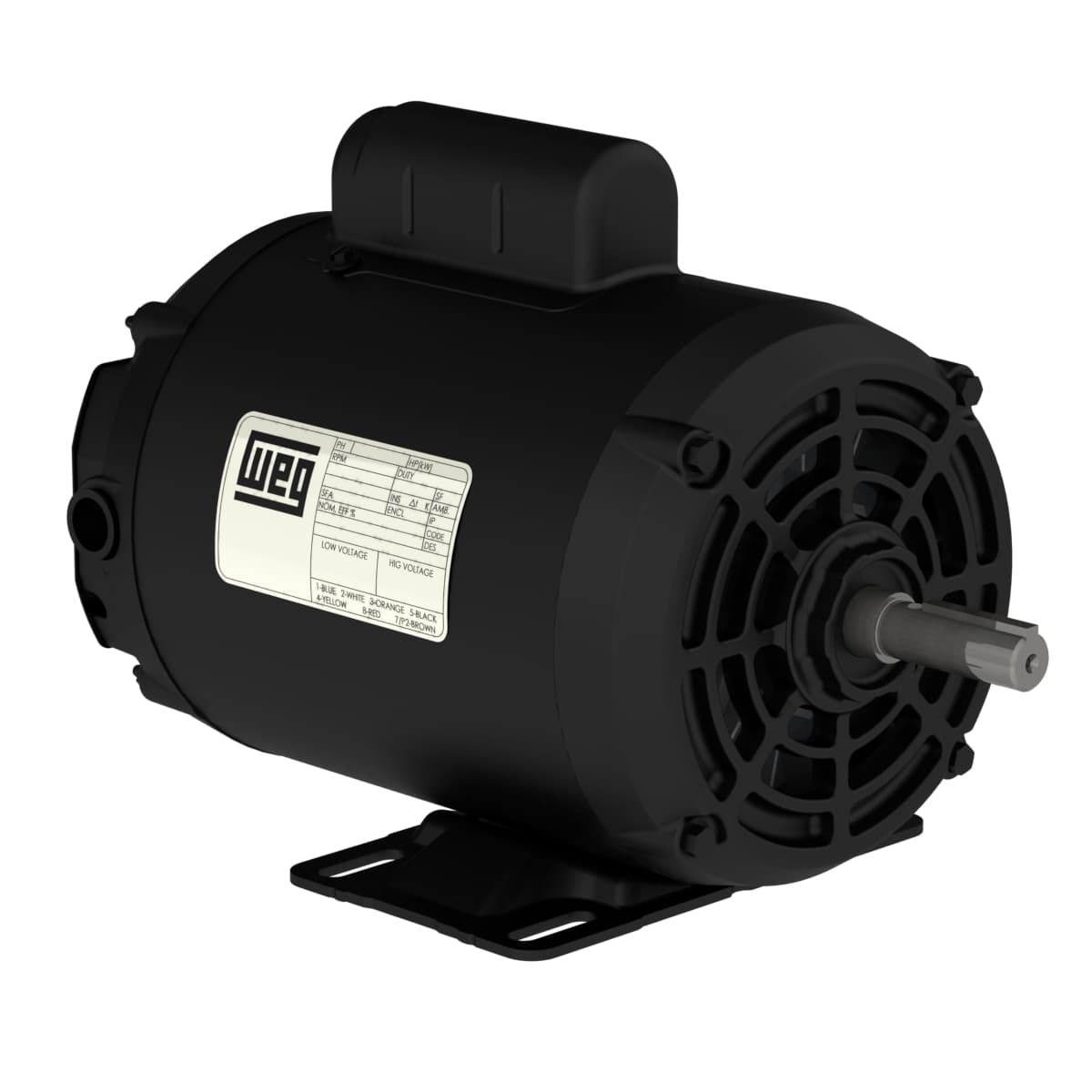

Compressor Duty 0.75 HP 2P C56 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 11454080 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 5.56 %
- Locked rotor torque 250 %
- Enclosure IC01 - ODP
- Voltage 115/208-230 V
- Rated current 9.20/5.00-4.60 A
- Insulation Class B
- Degree of Protection IP21
- Output rating 0.75 HP
- Frame C56
- Rated torque 1.16 ft.lb
- Altitude 1000 m.a.s.l.
- Terminal box¹ Without Terminal Box
- Frequency 60 Hz
- Moment of inertia (J) 0.0233 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
- L. R. Amperes 43.2/23.5-21.6 A
- Temperature rise 80 K
- Mounting F-1
- Number of Poles 2
- Locked rotor time 10s (cold) 6s (hot)
- Rotation¹ Both (CW and CCW)
- Output 0.75 HP (0.55 kW)
- Service factor 1.00 (1.00 @ 208V)
- Starting Method Direct On Line
- Flange Without
- Rated voltage 115/208-230 V
- No load current 5.20/2.24-2.60 A
- Standard NEMA MG-1
- Rated speed 3400 rpm
- Breakdown torque 190 %
- Approx. weight³ 22.0 lb
- LRC 4.7x(Code H)
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11454080 Specs
