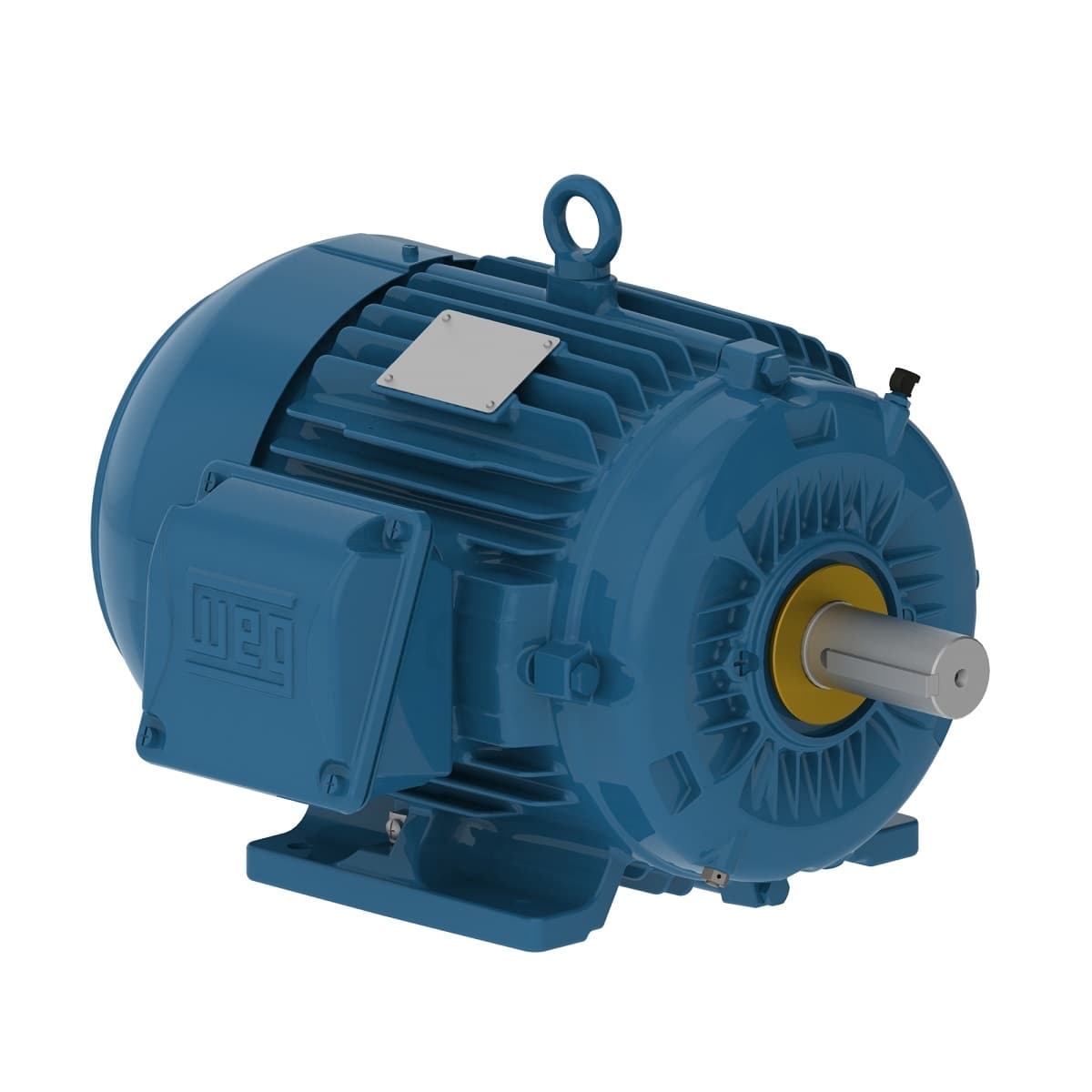

11453264 WEG AC Motors
Part#:11453264
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22 IEEE 841 NEMA Premium Efficiency 2 HP 8P 213T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11453264 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 8
- Insulation Class F
- Mounting F-1
- Synchronous speed 900 rpm
- Rated voltage 460 V
- Locked rotor torque 220 %
- Enclosure IC411 - TEFC
- Flange Without
- Frequency 60 Hz
- Locked rotor time 70s (cold) 39s (hot)
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 23.4 A
- No load current 2.30 A
- Temperature rise 80 K
- Approx. weight³ 349 lb
- Frame 213T
- Moment of inertia (J) 1.79 sq.ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Output 2 HP (1.5 kW)
- Design B
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- LRC 6.9x(Code L)
- Starting Method Direct On Line
- Number of poles 8
- Rated speed 875 rpm
- Service factor 1.25
- Noise level² 52.0 dB(A)
- Slip 2.78 %
- Rated torque 12.0 ft.lb
- Degree of Protection IP56
- Output rating 2 HP
- Rated current 3.39 A
- Breakdown torque 290 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11453264 Specs
1-year warranty
