11437963 WEG AC Motors
Part#:11437963
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

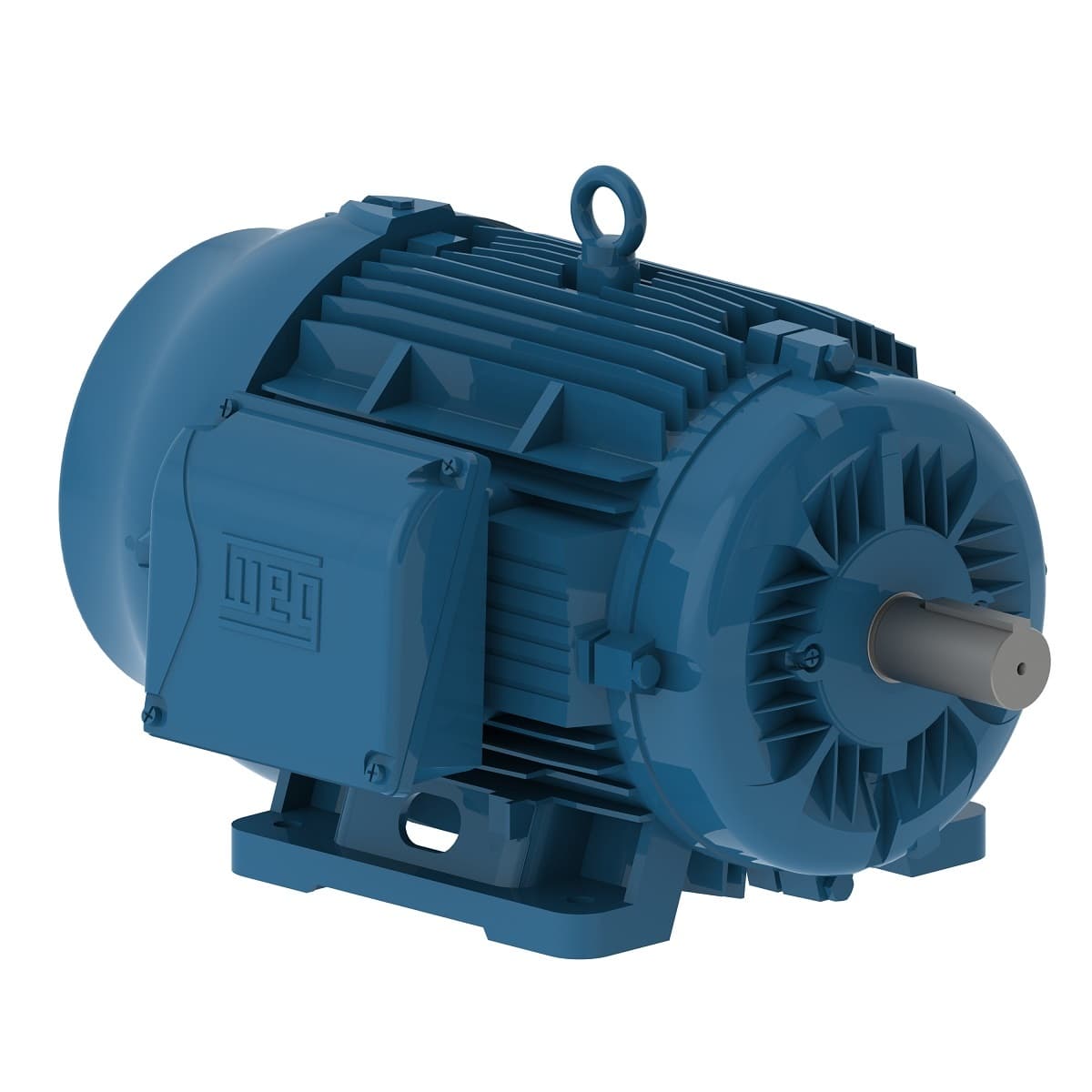

W22 NEMA Premium Efficiency 15 HP 2P 254T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11437963 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 15 HP (11 kW)
- No load current 10.6/5.30 A
- Approx. weight³ 265 lb
- Slip 1.94 %
- Rated current 34.4/17.2 A
- Locked rotor time 45s (cold) 25s (hot)
- Temperature rise 80 K
- Moment of inertia (J) 1.26 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Rated speed 3530 rpm
- Design B
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Insulation Class F
- Enclosure IC411 - TEFC
- L. R. Amperes 230/115 A
- Frequency 60 Hz
- Locked rotor torque 220 %
- Degree of Protection IP55
- Output rating 15 HP
- Rated voltage 230/460 V
- Breakdown torque 270 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Frame 254T
- Service factor 1.25
- Mounting F-1
- Synchronous speed 3600 rpm
- Number of Poles 2
- Rated torque 22.3 ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 2
- LRC 6.7x(Code G)
- Starting Method Direct On Line
- Voltage 230/460//380 V
- Flange Without
- Noise level² 72.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11437963 Specs
1-year warranty
