11432523 WEG AC Motors
Part#:11432523
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

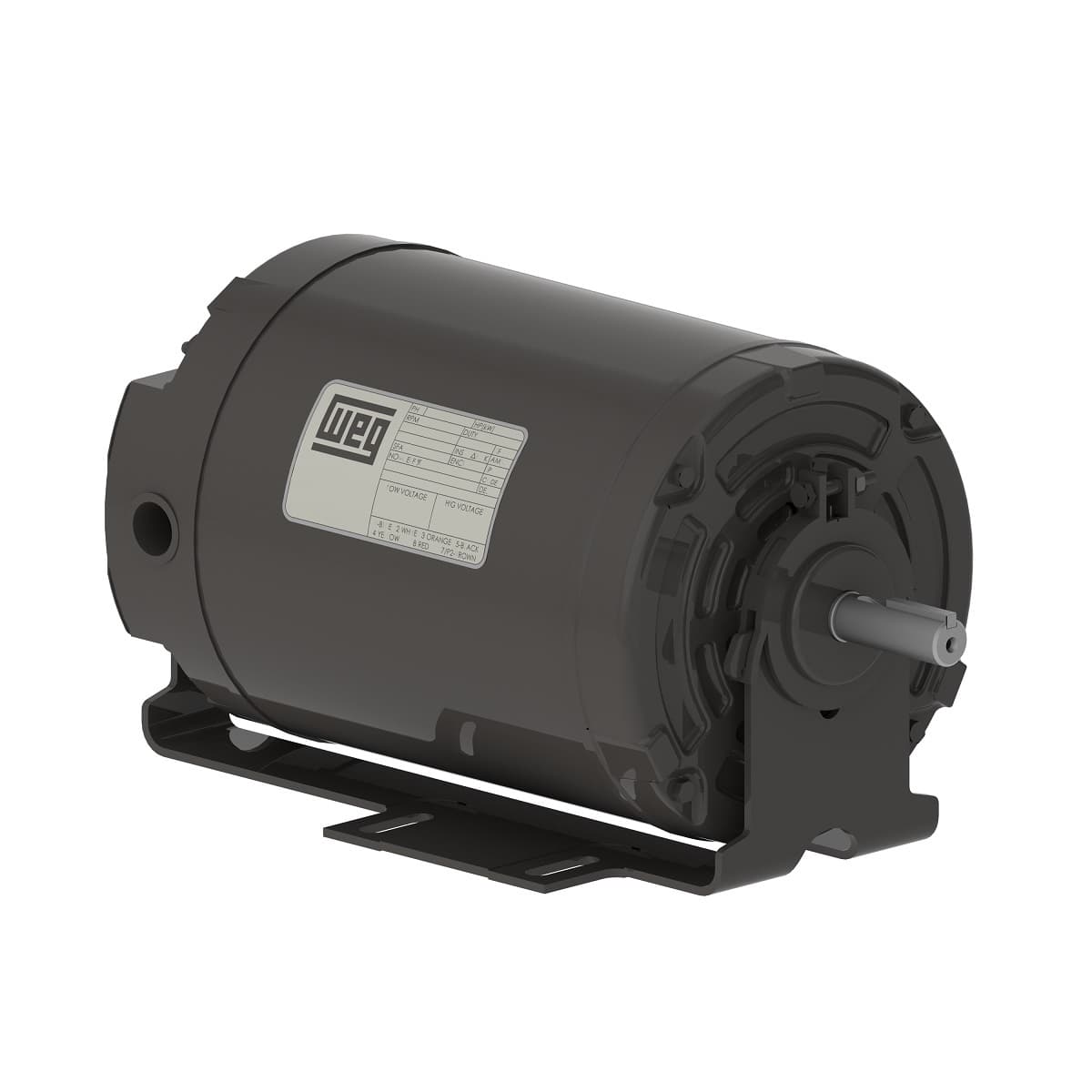

Motor Split Phase with Resilient Base 0.5 HP 4P C48 1Ph 115/208-230 V 60 Hz IC01 - ODP - Resilient base
Check out the 11432523 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 1730 rpm
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Slip 3.89 %
- Locked rotor torque 130 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output 0.5 HP (0.37 kW)
- Duty Cycle Cont.(S1)
- Mounting F-1
- LRC 6.0x(Code M)
- Ambient temperature -20°C to +40°C
- Output rating 0.5 HP
- Frequency 60 Hz
- No load current 6.00/2.59-3.00 A
- Breakdown torque 220 %
- Enclosure IC01 - ODP
- L. R. Amperes 48.0/24.0-24.0 A
- Moment of inertia (J) 0.0482 sq.ft.lb
- Voltage 115/208-230 V
- Rated current 8.00/4.00-4.00 A
- Rated torque 1.52 ft.lb
- Degree of Protection IP21
- Synchronous speed 1800 rpm
- Rated voltage 115/208-230 V
- Insulation Class B
- Service factor 1.25 (1.00 @ 208V)
- Approx. weight³ 25.9 lb
- Terminal box¹ Without Terminal Box
- Frame C48
- Starting Method Direct On Line
- Flange Without
- Number of Poles 4
- Locked rotor time 10s (cold) 6s (hot)
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11432523 Specs
