11143256 WEG AC Motors
Part#:11143256
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

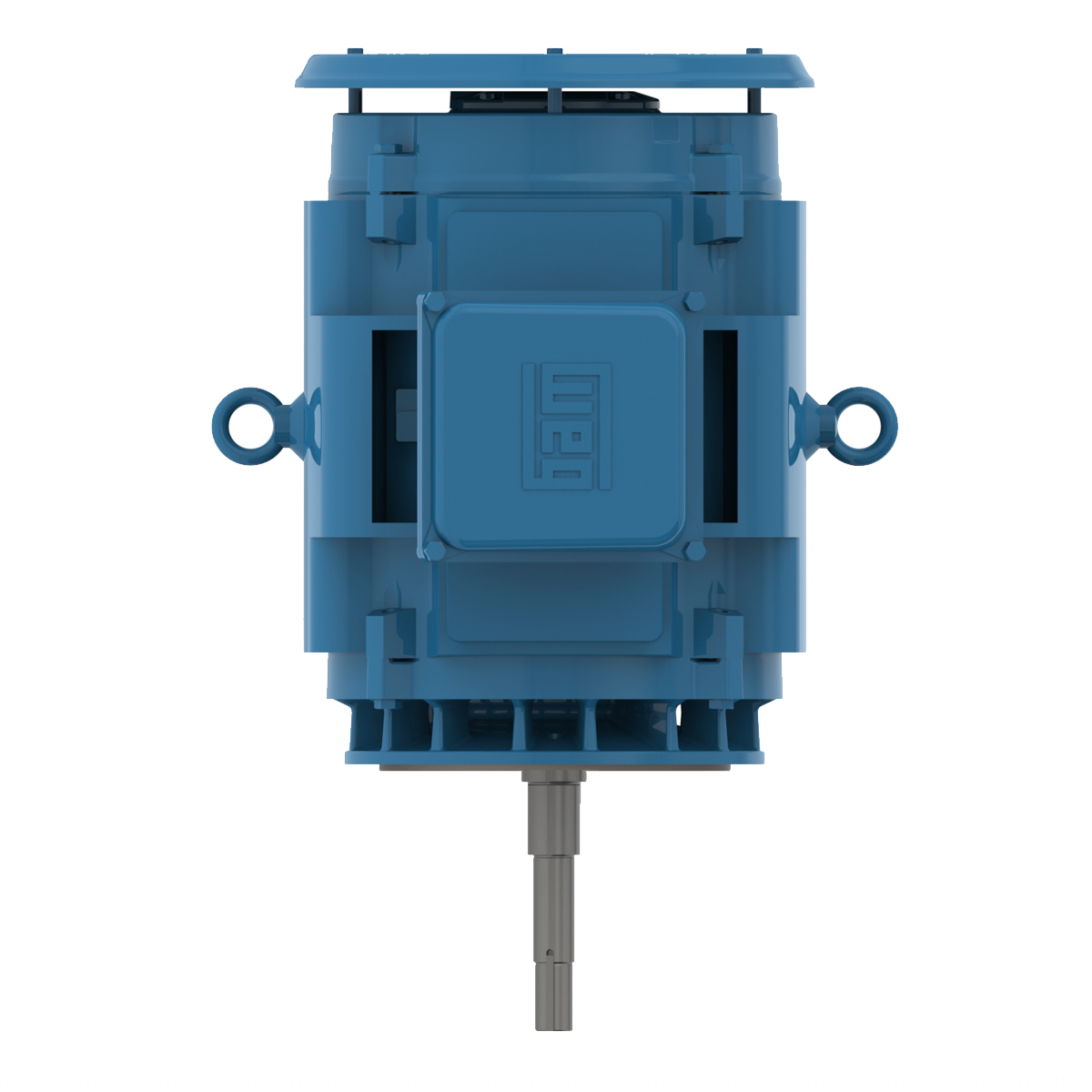

Close Coupled Pump High Efficiency 60 HP 2P 326JP 3Ph 230/460 V 60 Hz IC01 - ODP - Footless
Check out the 11143256 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 230/460 V
- Insulation Class F
- Approx. weight³ 516 lb
- Output 60 HP (45 kW)
- Moment of inertia (J) 3.94 sq.ft.lb
- Mounting W-6
- Terminal box¹ Left position
- Frequency 60 Hz
- Rated torque 88.6 ft.lb
- Altitude 1000 m.a.s.l.
- Flange C
- Rated current 141/70.6 A
- Locked rotor time 30s (cold) 17s (hot)
- Degree of Protection IP23
- Number of poles 2
- Slip 1.25 %
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- LRC 6.0x(Code G)
- Duty Cycle Cont.(S1)
- Voltage 230/460 V
- L. R. Amperes 847/424 A
- Breakdown torque 210 %
- Noise level² 75.0 dB(A)
- Rated speed 3555 rpm
- Locked rotor torque 220 %
- Rotation¹ Both (CW and CCW)
- Synchronous speed 3600 rpm
- Frame 326JP
- No load current 40.0/20.0 A
- Starting Method Direct On Line
- Temperature rise 80 K
- Number of Poles 2
- Design B
- Enclosure IC01 - ODP
- Output rating 60 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
