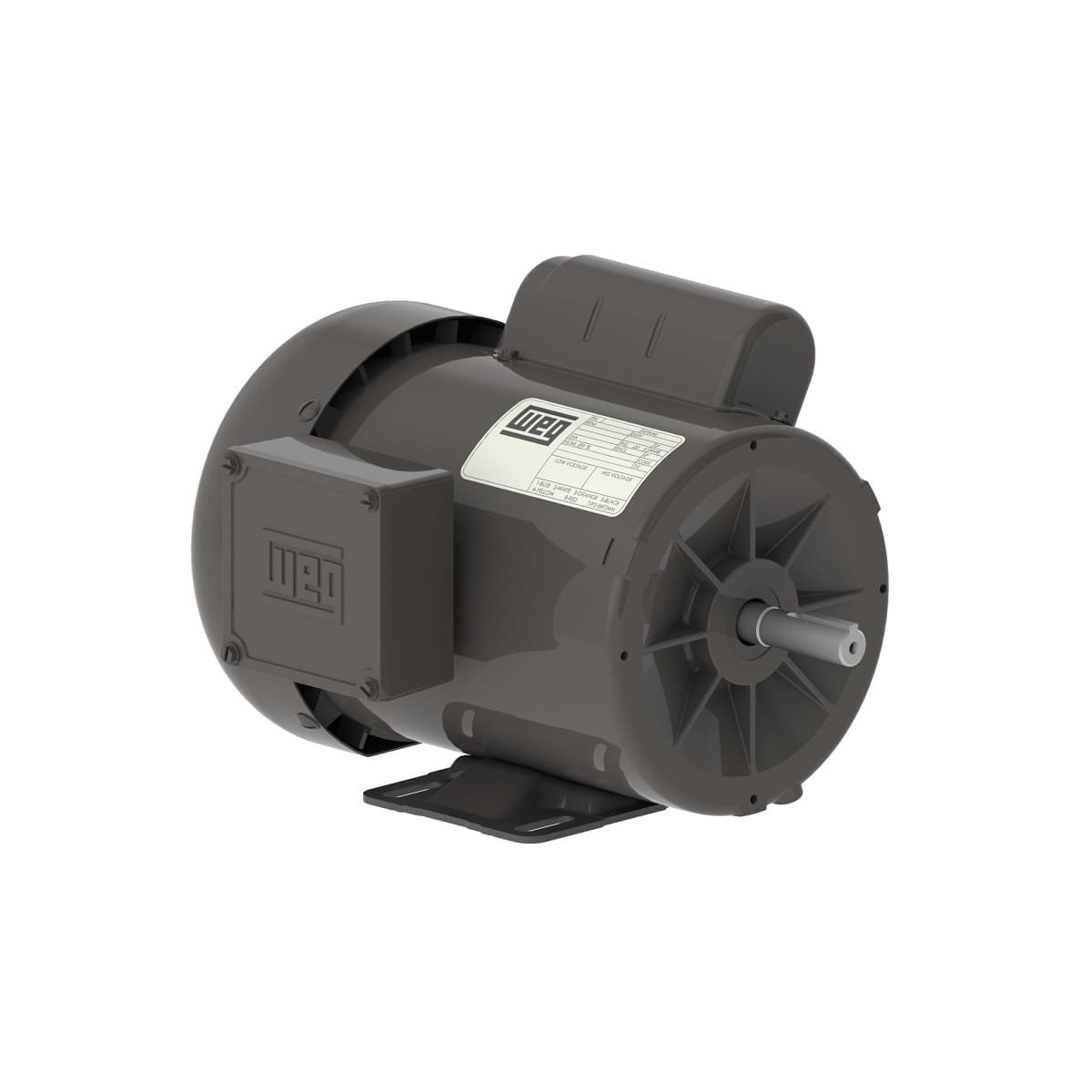

10579406 WEG AC Motors
Part#:10579406
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
General 0.33 HP 2P B56 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10579406 WEG price in the box on the right side or send a quick quote.
Product Details
- LRC 5.8x(Code N)
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Rated current 5.70/2.70-2.85 A
- Service factor 1.15 (1.00 @ 208V)
- Mounting F-1
- Frame B56
- Output 0.33 HP (0.25 kW)
- Moment of inertia (J) 0.0278 sq.ft.lb
- Locked rotor torque 370 %
- Ambient temperature -20°C to +40°C
- Enclosure IC411 - TEFC
- Output rating 0.33 HP
- Flange Without
- L. R. Amperes 33.1/15.7-16.5 A
- Breakdown torque 320 %
- Approx. weight³ 21.5 lb
- Slip 3.06 %
- No load current 4.40/1.90-2.20 A
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated voltage 115/208-230 V
- Rated torque 0.497 ft.lb
- Degree of Protection IP55
- Standard NEMA MG-1
- Rated speed 3490 rpm
- Insulation Class B
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Temperature rise 80 K
- Voltage 115/208-230 V
- Number of poles 2
- Frequency 60 Hz
- Locked rotor time 10s (cold) 6s (hot)
- Altitude 1000 m.a.s.l.
- Noise level² 55.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10579406 Specs
1-year warranty
