10571444 WEG AC Motors
Part#:10571444
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

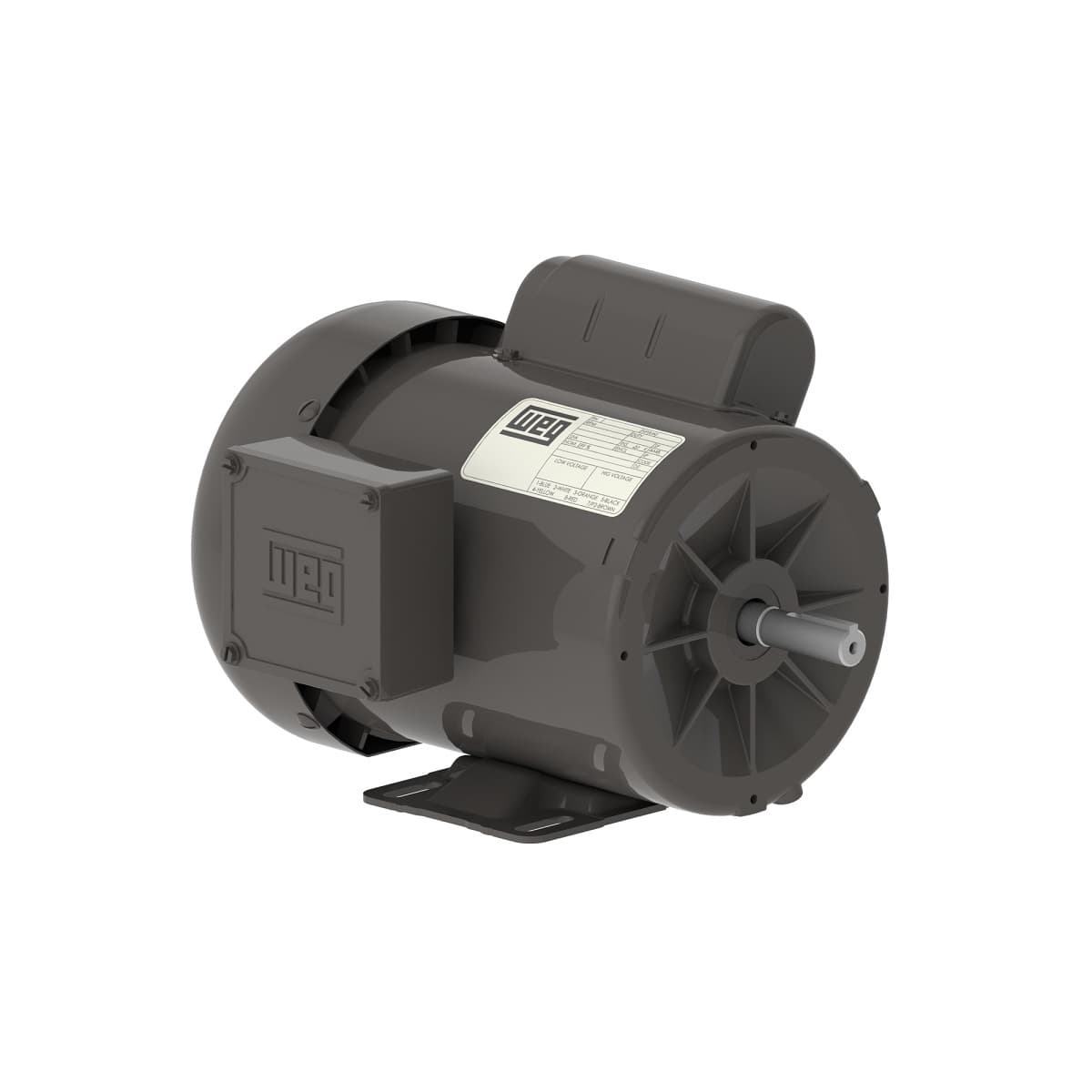

General 0.5 HP 2P B56 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10571444 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 7.60/3.80-3.80 A
- Temperature rise 80 K
- Noise level² 55.0 dB(A)
- Output rating 0.5 HP
- LRC 5.6x(Code L)
- Insulation Class B
- Voltage 115/208-230 V
- L. R. Amperes 42.6/21.3-21.3 A
- Frequency 60 Hz
- Moment of inertia (J) 0.0316 sq.ft.lb
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Terminal box¹ Left position
- Number of Poles 2
- Service factor 1.15 (1.00 @ 208V)
- Standard NEMA MG-1
- Rated voltage 115/208-230 V
- Locked rotor time 10s (cold) 6s (hot)
- Enclosure IC411 - TEFC
- Flange Without
- Rated speed 3480 rpm
- Breakdown torque 280 %
- Approx. weight³ 22.9 lb
- Slip 3.33 %
- No load current 5.60/2.41-2.80 A
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Frame B56
- Rated torque 0.754 ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Output 0.5 HP (0.37 kW)
- Locked rotor torque 320 %
- Degree of Protection IP55
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10571444 Specs
