07536OP3HFP364JPV-W4 WEG AC Motors
Part#:07536OP3HFP364JPV-W4
Manufacturer:WEG
Alt. Part#:7909492966142
Product Lifecycle:Active
Get a quick Quote!

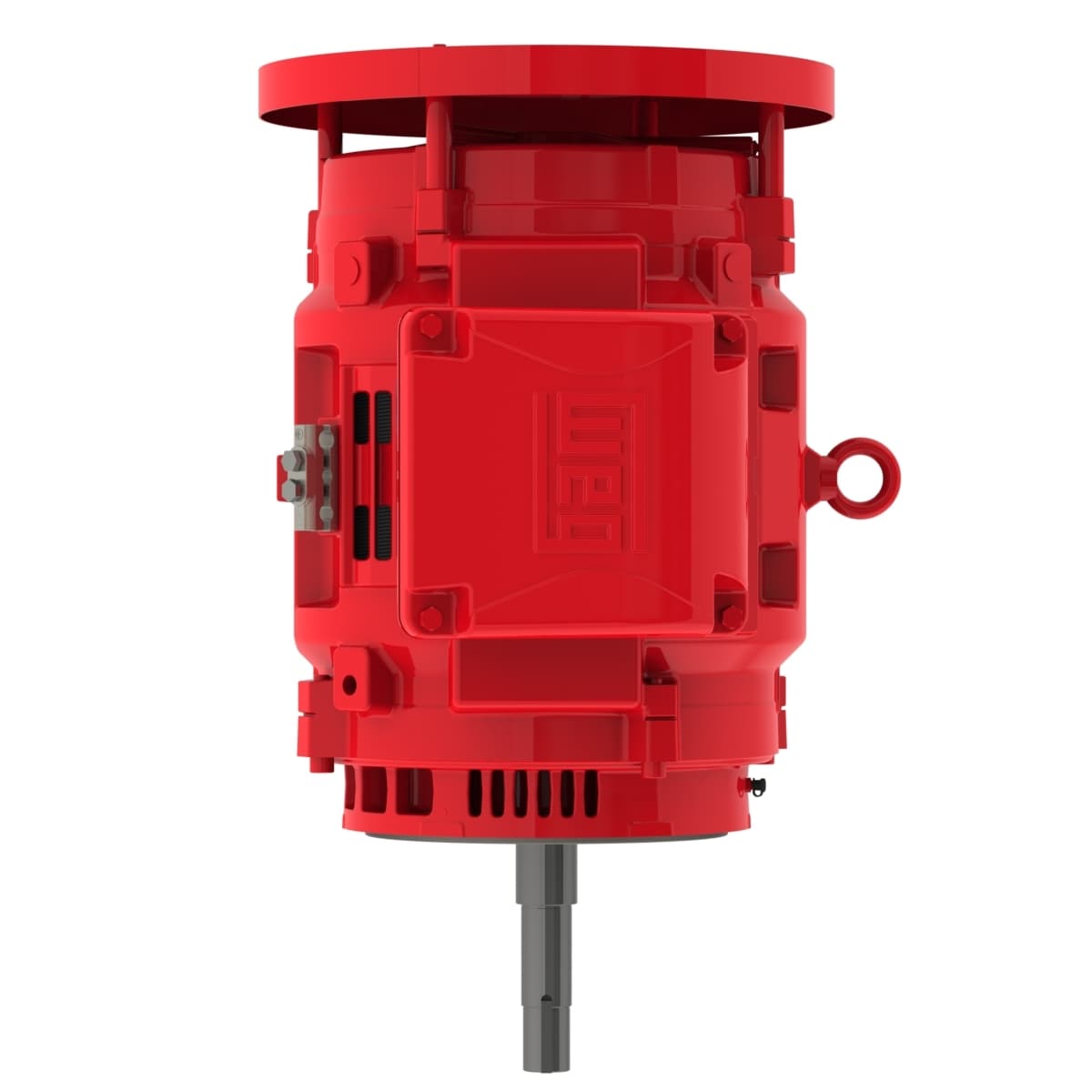

W40 JP Pump High Efficiency 75 HP 2P 364/5JP 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 07536OP3HFP364JPV-W4 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Frame 364/5JP
- Rated torque 111 ft.lb
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Voltage 575 V
- Rated speed 3550 rpm
- Breakdown torque 210 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Slip 1.39 %
- Design B
- Approx. weight³ 700 lb
- L. R. Amperes 396 A
- Moment of inertia (J) 5.60 sq.ft.lb
- Degree of Protection IP23
- Number of Poles 2
- Locked rotor time 46s (cold) 26s (hot)
- Service factor 1.15
- Standard NEMA MG-1
- Rated voltage 575 V
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output rating 75 HP
- Frequency 60 Hz
- No load current 17.6 A
- Enclosure IC01 - ODP
- Output 75 HP (55 kW)
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Locked rotor torque 160 %
- LRC 5.8x(Code F)
- Mounting W-6
- Flange C
- Rated current 68.3 A
- Temperature rise 80 K
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 07536OP3HFP364JPV-W4 Specs
